Hydraulic Toe Jacks & Industrial Lifting Jacks

Why Choose a Hydraulic Toe Jack from ULS Lifting?

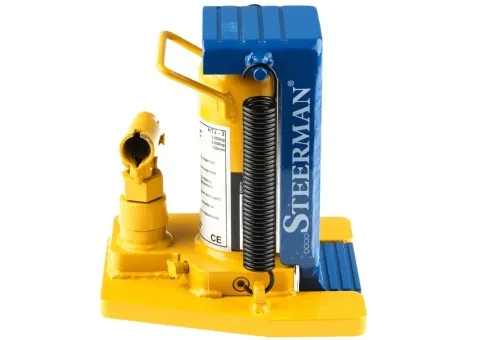

When precision lifting of heavy, low-clearance items is required, a standard bottle jack is simply insufficient. The defining feature of an Industrial Toe Jack is the dual lifting points: a standard head lift and a critical low-profile toe lift. This toe attachment can typically slide under loads with a clearance of as little as 25mm, making it the perfect tool for getting right under the base of machinery.

Every Toe Jack we supply is constructed from heavy-duty steel and features a highly efficient hydraulic system designed for smooth, precise control. Key safety features include an integrated safety valve to prevent overloading the jack's rated capacity, ensuring maximum stability and operational security when lifting heavy loads. Whether you are conducting maintenance, re-levelling equipment, or preparing items for transport, a ULS Lifting Hydraulic Toe Jack is an indispensable addition to your lifting equipment arsenal.

Frequently Asked Questions (FAQs)

What is the main benefit of a Toe Jack over a standard hydraulic jack?

The principal advantage is the ability to lift from an incredibly low position. Standard hydraulic jacks require significant ground clearance. A Hydraulic Toe Jack, however, uses a specialised claw (the "toe") that allows it to engage and lift objects that are only a few millimetres above the floor. This makes them perfectly suited for initial lifts, allowing you to insert machine-moving skates, blocking, or other support equipment underneath the load.

How do I select the right capacity for my Toe Jack?

When choosing a Toe Jack capacity, you must always prioritise safety by selecting a jack rated higher than the heaviest load you intend to lift. For example, if your machine weighs 10 tonnes, you should look for jacks rated for 12 tonnes or higher, if available. While the load may be distributed across multiple points, using a jack with a higher safety factor is highly recommended. Always verify the capacity of both the head and the toe, as the toe lift often has a slightly lower rating than the head lift.

Can ULS Lifting Toe Jacks be used with Machine Moving Skates?

Yes, absolutely. Industrial Toe Jacks are the ideal partner for machine-moving skates and rollers. The primary function of the jack is to lift the machine just high enough to allow you to safely place the skates, typically one under each corner or load point. Once the skates are correctly positioned, the machine can be lowered onto them and transported across the floor with minimal effort.
