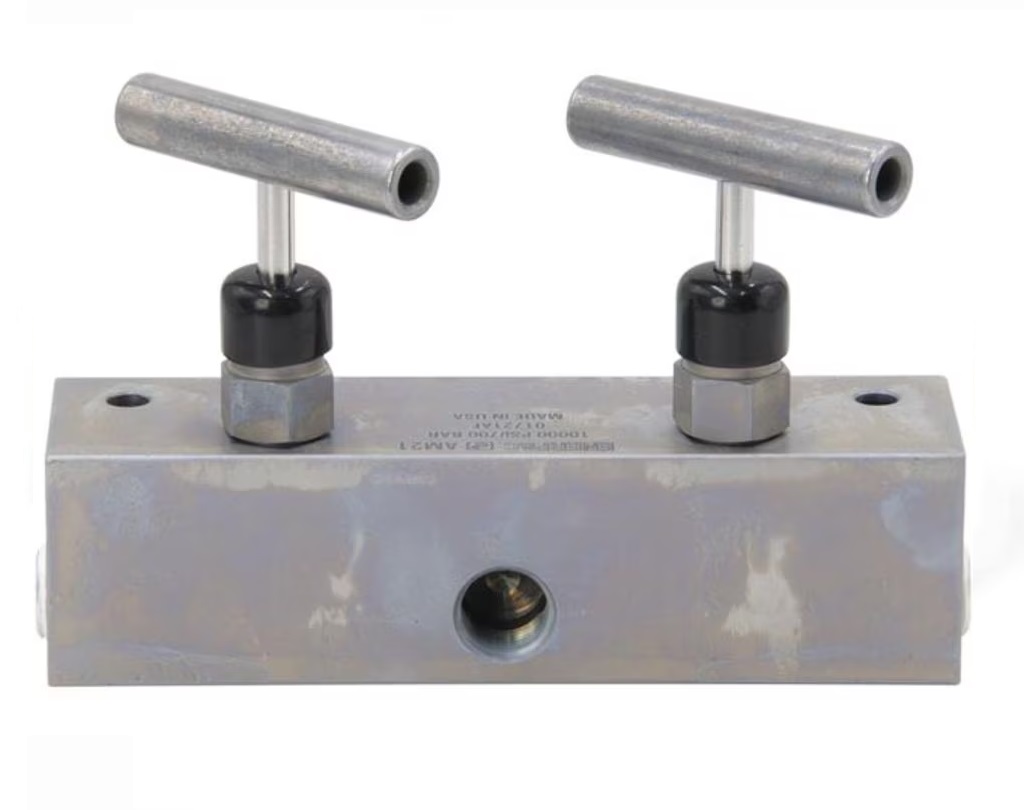

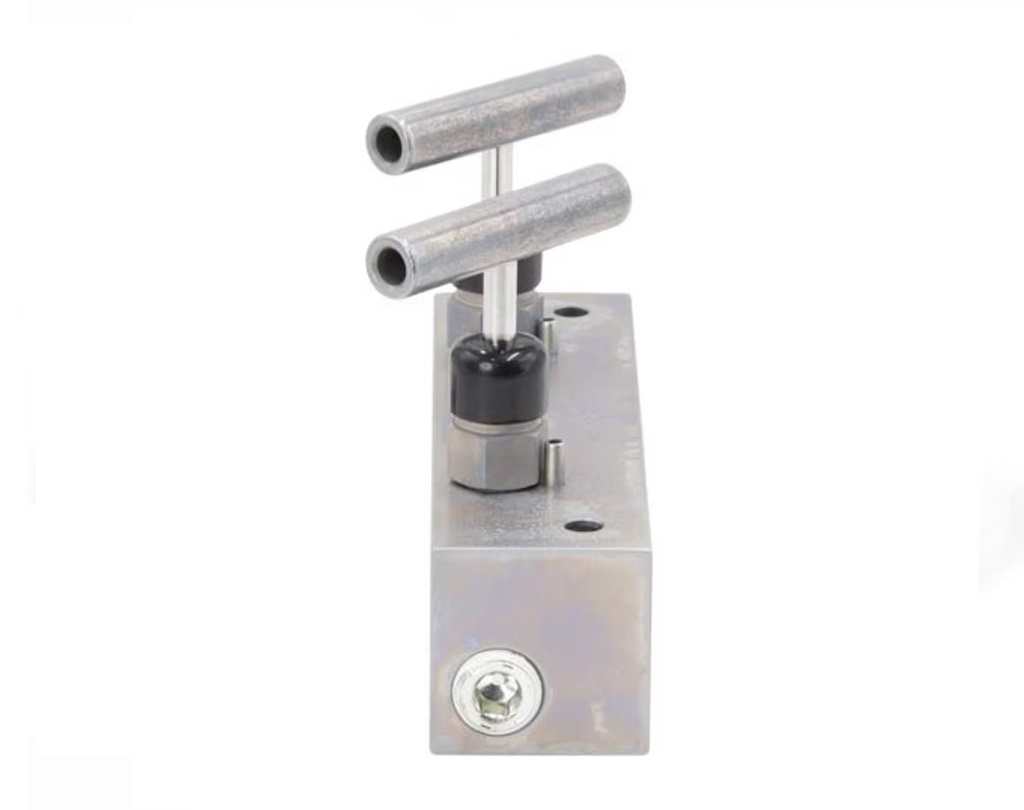

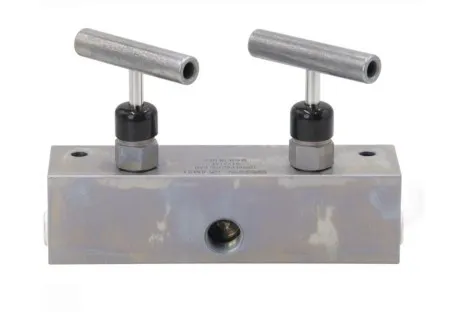

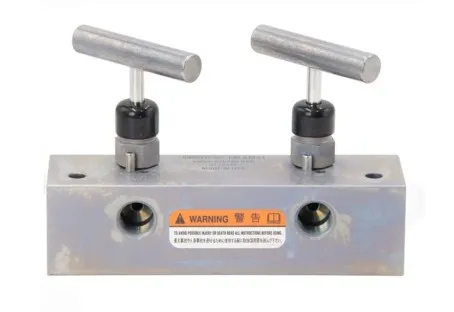

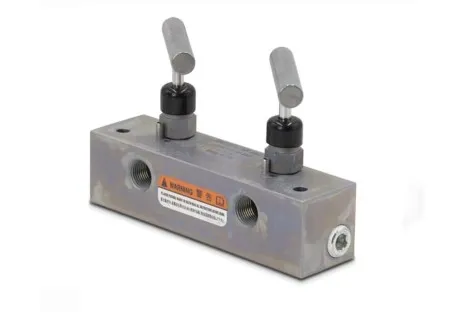

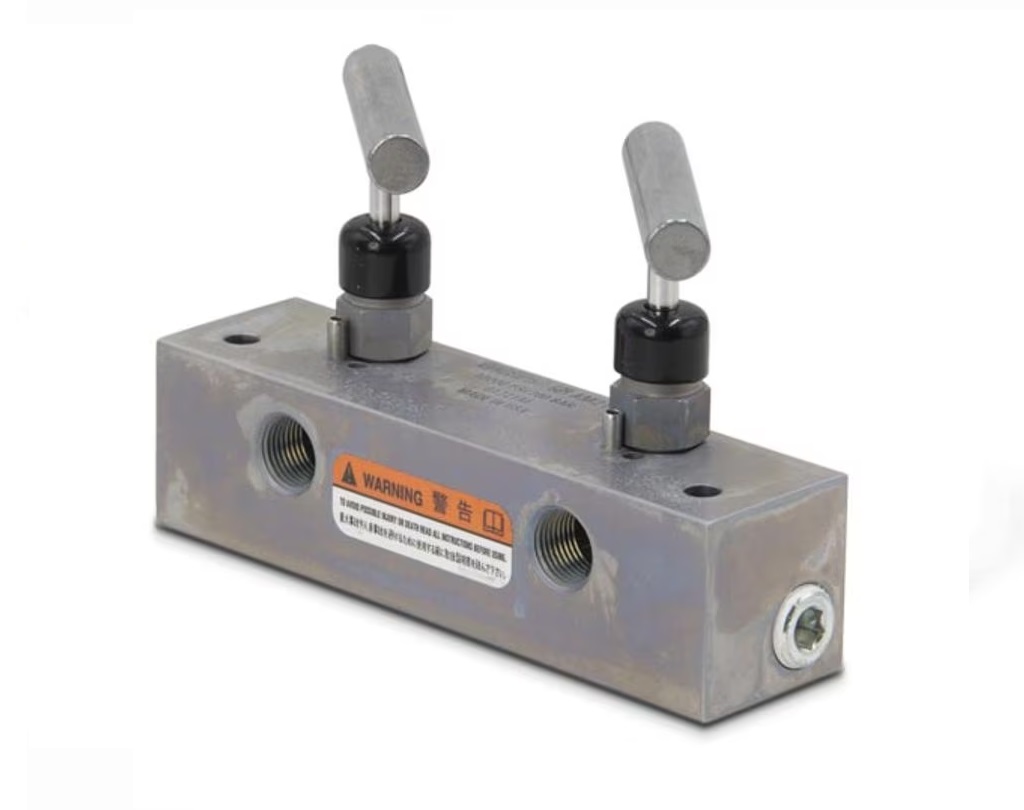

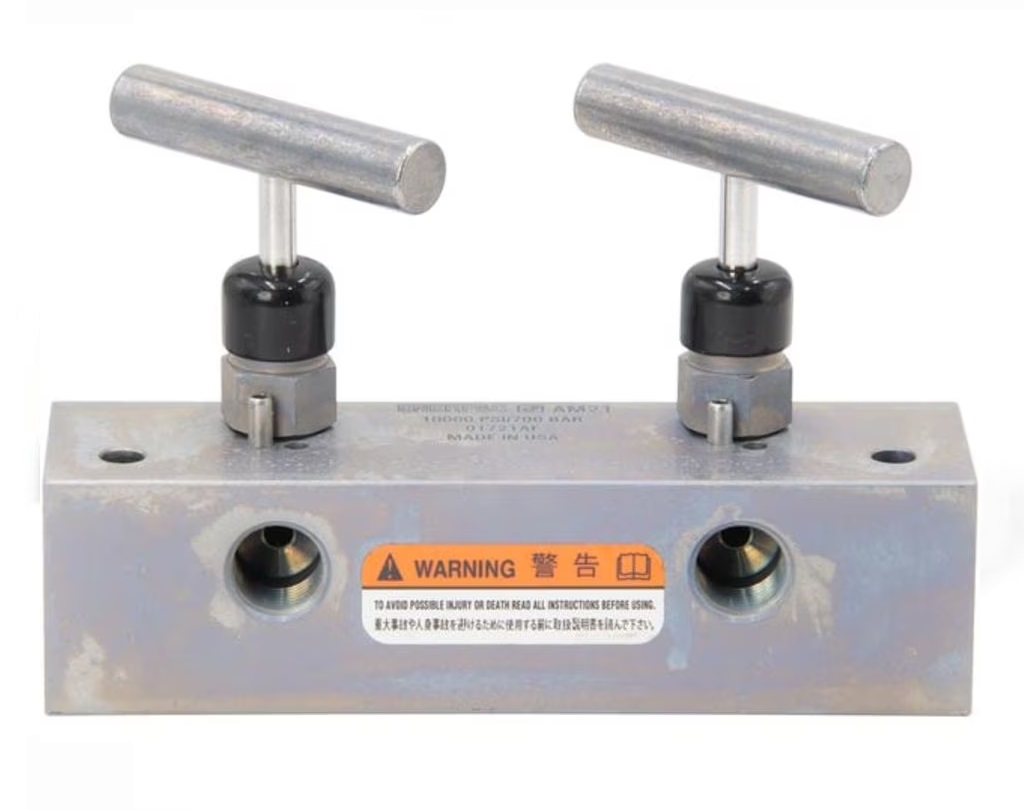

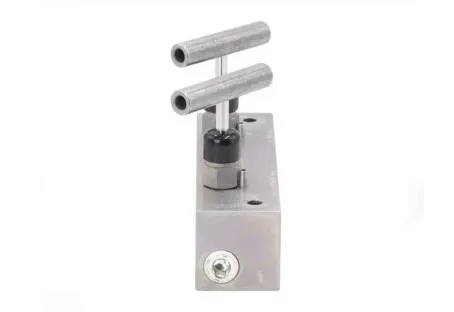

Enerpac AM21 Premounted Hydraulic Manifold
Brand:
Description
Enerpac AM21 Premounted Hydraulic Manifold complete with 1 inlet and 2 outlet ports. These Enerpac Control Manifolds will control two or four single-acting cylinders simultaneously. Supplied with 5 ports all with 3/8" NPTF Thread.
£465.50 ex VAT
£558.60 inc VAT
Add to cart
Add to quoteRelated products
Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m
HC7206C
The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.
£166.25 ex VAT
£199.50 inc VAT
Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly
GA45GC
The Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly provides a window to your hydraulic system that allows for easy reading of the pressure creating a safer operation.
£222.25 ex VAT
£266.70 inc VAT
Enerpac AM41 Premounted Hydraulic Manifold
AM41
Enerpac AM21 Premounted Hydraulic Manifold complete with 1 inlet and 2 outlet ports. These Enerpac Control Manifolds will control two or four single-acting cylinders simultaneously. Supplied with 5 ports all with 3/8" NPTF Thread.
£898.63 ex VAT
£1,078.36 inc VAT
Enerpac AM21 Premounted Hydraulic Manifold complete with 1 inlet and 2 outlet ports. These Enerpac Control Manifolds will control two or four single-acting cylinders simultaneously. Supplied with 5 ports all with 3/8" NPTF Thread. The AM21 functions as a split-flow valve to control single-acting cylinders simultaneously.
Number of Regulated Outlet Ports - 2
| Model | Inlet Ports | Outlet Ports | Regulated Outlet Ports | Oil Ports (NPTF) |
| AM21 | One | Two | Two | 3/8" NPTF |
Items that are frequently bought with the Enerpac AM21 Premounted Hydraulic Manifold
Enerpac GA45GC Gauge with angled adaptor.
HC7206C Enerpac 1.8m Thermo Plastic High Pressure Hydraulic Hose.
Enerpac AM21 Premounted Hydraulic Manifold
Model: AM21
ECCN: EAR99
Harmonization: 8481200040
Series: AM
Product Line: Industrial Tools
Control Manifolds For control of two or four single-acting cylinders simultaneously. 5 ports 3/8" NPTF.
Functions as split-flow valve to control single-acting cylinders simultaneously
Handle used to open and close each port
Easy to connect
Mounting holes on all models
All ports 3/8"-18 NPTF.
Maximum pressure up to 10,000 psi (700 bar)
| Model | Inlet Ports | Outlet Ports | Regulated Outlet Ports | Oil Ports (NPTF) |
| AM21 | One | Two | Two | 3/8" NPTF |
