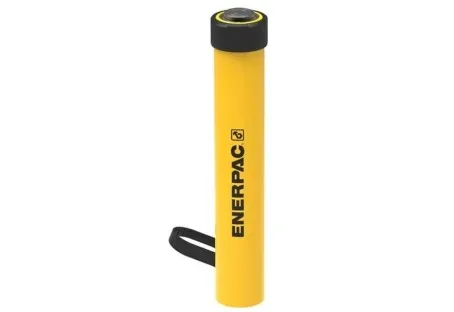

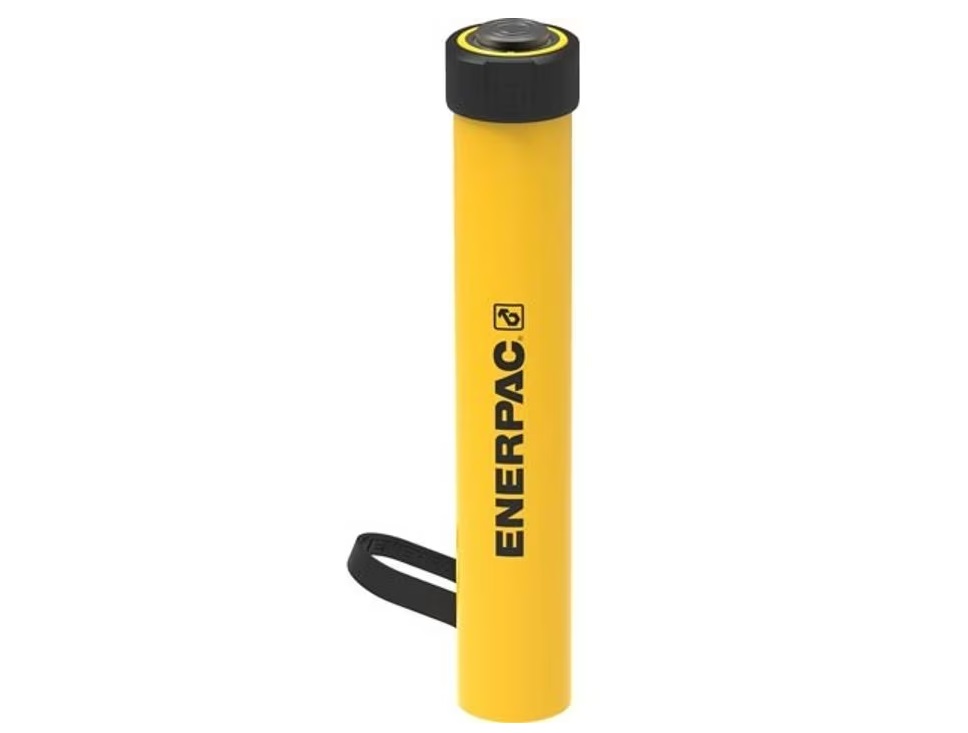

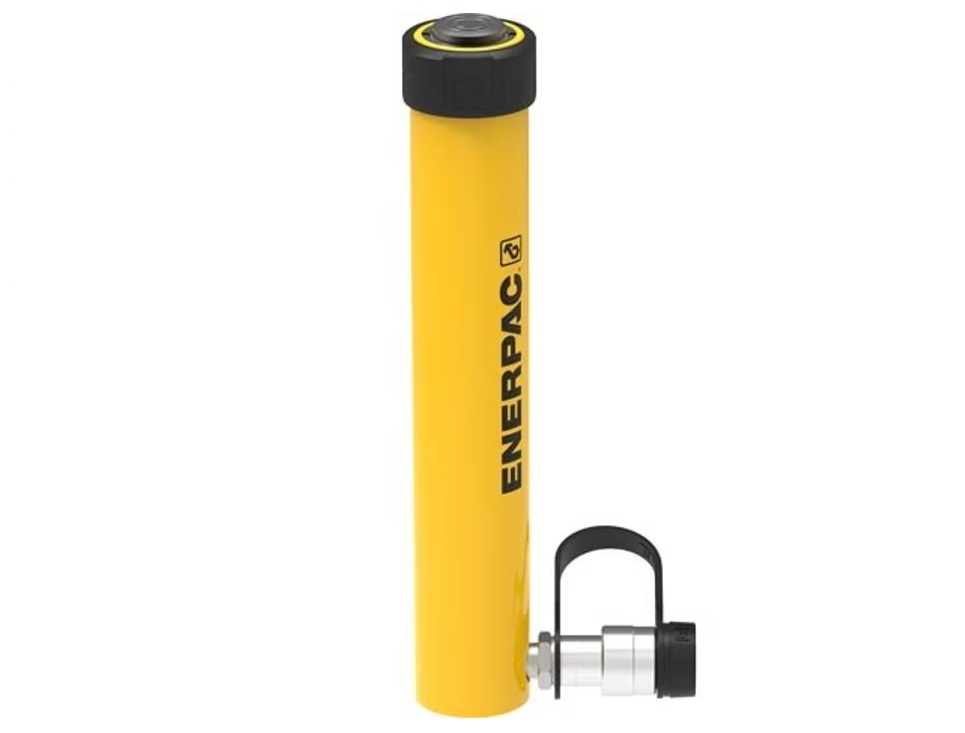

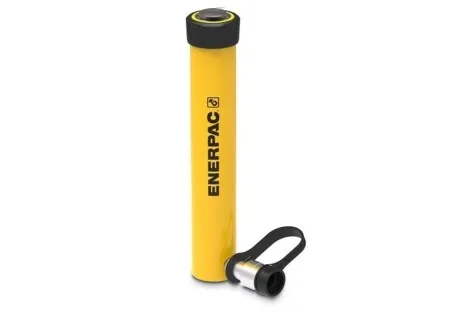

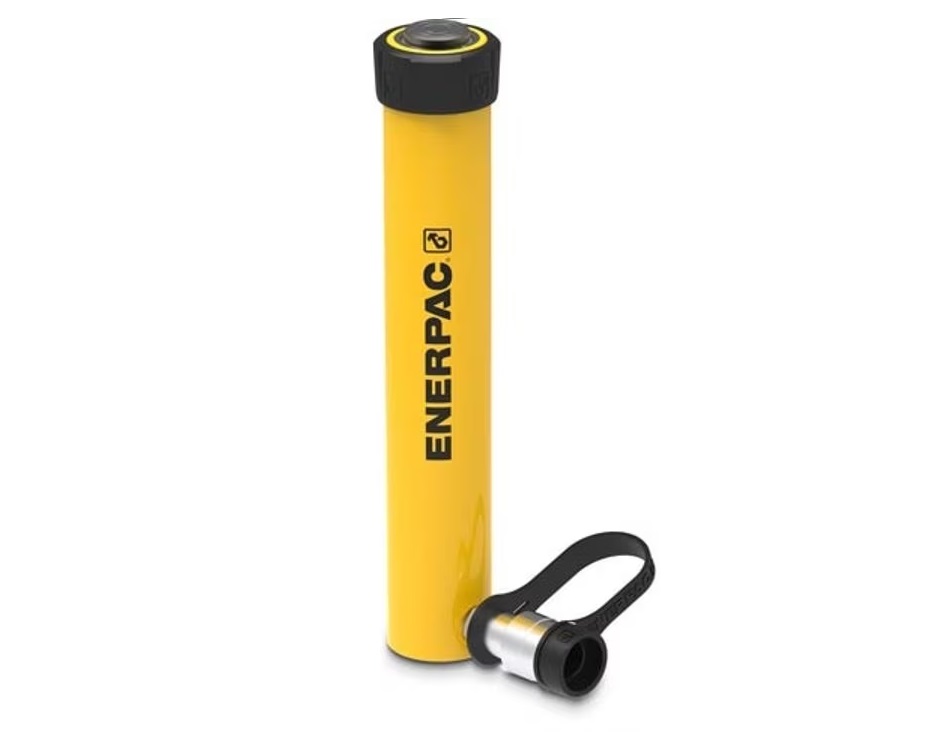

Enerpac RC1010 General Purpose Hydraulic Cylinder 10 Ton, 257 mm Stroke

Estimated lead time:1 to 2 days delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Enerpac RC1010 General Purpose Hydraulic Cylinder 10 Ton, 257 mm Stroke

Brand:

Description

Enerpac RC1010 General Purpose Hydraulic Cylinder 10 Ton, 257 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£629.99 ex VAT

£755.99 inc VAT

Do you require a hose, gauge, and pump to complete your order?

Related products

Enerpac RC59 General Purpose Hydraulic Cylinder 5 Ton, 232 mm Stroke

RC59

Enerpac RC59 General Purpose Hydraulic Cylinder 5 Ton, 232 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£544.99 ex VAT

£653.99 inc VAT

Enerpac RC108 General Purpose Hydraulic Cylinder 10 Ton, 203 mm Stroke

RC108

Enerpac RC108 General Purpose Hydraulic Cylinder 10 Ton, 203 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£569.99 ex VAT

£683.99 inc VAT

Enerpac RC1012 General Purpose Hydraulic Cylinder 10 Ton, 304 mm Stroke

RC1012

Enerpac RC1012 General Purpose Hydraulic Cylinder 10 Ton, 304 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£699.99 ex VAT

£839.99 inc VAT

Enerpac HC7206 High Pressure Hydraulic Hose x 1.8m

HC7206

The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.

£123.99 ex VAT

£148.79 inc VAT

Enerpac P39 Single Speed Hydraulic Hand Pump

P39

The Enerpac P39 Single Speed Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. Each model in the series features an all-steel construction ideal long-lasting performance.

£399.99 ex VAT

£479.99 inc VAT

Enerpac P391 Single Speed Lightweight Hydraulic Hand Pump

P391

The Enerpac P391 Single Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. They offer the simplicity needed for a wide range of industrial applications

£424.99 ex VAT

£509.99 inc VAT

Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump

P392

The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.

£534.99 ex VAT

£641.99 inc VAT

Enerpac P141 Single Speed Lightweight Hydraulic Hand Pump

P141

The Enerpac P141 Single Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. They offer the simplicity needed for a wide range of industrial applications

£354.99 ex VAT

£425.99 inc VAT

Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump

P142

The Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.

£399.99 ex VAT

£479.99 inc VAT

Enerpac P80 Two Speed Ultima Steel Hydraulic Hand Pump

P80

The Enerpac P80 Two Speed Ultima Steel Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. 2 stage pump, reduces the number of handle strokes by as much as 78% compared to single speed

£759.98 ex VAT

£911.98 inc VAT

Enerpac P801 Two Speed Ultima Steel Hydraulic Hand Pump

P801

The Enerpac P801 Two Speed Ultima Steel Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. 2 stage pump, reduces the number of handle strokes by as much as 78% compared to single speed

£1,039.99 ex VAT

£1,247.99 inc VAT

Enerpac HC7210 High Pressure Hydraulic Hose x 3m

HC7210

The Enerpac HC710 High-Pressure Hydraulic Hose x 3.0m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7210 High-Pressure hose has an operating pressure of 700 Bar.

£153.99 ex VAT

£184.79 inc VAT

Enerpac HC7220 High Pressure Hydraulic Hose x 6.1m

HC7220

The Enerpac HC7220 High-Pressure Hydraulic Hose x 6.1m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7220 High-Pressure hose has an operating pressure of 700 Bar.

£210.99 ex VAT

£253.19 inc VAT

Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m

HC7206C

The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.

£154.99 ex VAT

£185.99 inc VAT

Enerpac RC1010 General Purpose Hydraulic Cylinder 10 Ton, 257 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.

Superior versatility, durability, and, quality. RC-Series Hydraulic Cylinders are our most versatile cylinder and the driving force of the Enerpac range. They feature a robust bearing system for superior durability and a hybrid spring-return system for faster retraction speed.


10-tonne, 257mm stroke Enerpac RC1010 General Purpose Hydraulic Cylinder

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RC1010
10 Tonne
257 mm
349 mm
606 mm
700 Bar
Single Acting
Spring  Return
373 cm3
CR400 Coupler
6.4 Kg

RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.


The Full range of ENERPAC 10-tonne RC-Series Single-Acting Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RC101
10 Tonne26 mm
90 mm
116 mm
700 Bar
Single Acting
Spring Return
38 cm3
CR400 Coupler
1.8 Kg
RC102
10 Tonne
54 mm
121 mm
175 mm
700 Bar
Single Acting
Spring Return
78 cm3
CR400 Coupler
2.3 Kg
RC104
10 Tonne
105 mm
171 mm
276 mm
700 Bar
Single Acting
Spring Return
152 cm3
CR400 Coupler
3.3 Kg
RC106
10 Tonne
156 mm
248 mm
404 mm
700 Bar
Single Acting
Spring Return
226 cm3
CR400 Coupler
4.4 Kg
RC108
10 Tonne
203 mm
298 mm
501 mm
700 Bar
Single Acting
Spring  Return
294 cm3
CR400 Coupler
5.4 Kg
RC1010
10 Tonne
257 mm
349 mm
606 mm
700 Bar
Single Acting
Spring Return
373 cm3
CR400 Coupler
6.4 Kg
RC1012
10 Tonne
304 mm
400 mm
704 mm
700 Bar
Single Acting
Spring  Return
441 cm3
CR400 Coupler
6.8 Kg
RC1014
10 Tonne
356 mm
451 mm
807 mm
700 Bar
Single Acting
Spring Return
516 cm3
CR400 Coupler
8.2 Kg

What is frequently bought with the 10-tonne, 257mm stroke Enerpac RC1010 General Purpose Hydraulic Cylinder

HC7206 High-Pressure Hydraulic Hose x 1.8m Long

GA45GC 45° Angled Gauge Adaptor Assembly

P39 Single Speed Steel Hydraulic Hand Pump

Alternative pumps available

XC1202MB cordless hydraulic Pump.

XA12 Air Driven Hydraulic Foot Pump

PATG1102N Turbo II air Hydraulic Pump

PUJ1201B Two-Speed Economy Electric Hydraulic Pump


More information about the Enerpac RC Series Single Acting Cylinder Range

New TRIO Bearing System

Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.

Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.

New high-performance Polyethylene seals last longer than ever, improving lifespan and keeping you working for longer.

New TRIO Stop Ring

Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load.

Capable of taking full cylinder extension force.

Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.

New TRIO Spring System

Hybrid pre-tensioned return springs for up to 3x faster retraction and increased productivity.

High-strength steel wire improves spring life.

Spring retention design improves serviceability while allowing higher pre-load during assembly.

Spring is easily removed without special tools.

Durable Piston Rod

High-strength steel plunger for improved life and sideload resistance.

Nickel-plated plunger coating improves corrosion protection.

Internal plunger threads for easy tool fixturing.

Enhanced Ergonomics

Standard carry handles on cylinders from 15 up to 25 kg. Sizes above 25 kg include certified lifting eyes or optional handles.

Base mounting holes enable easy fixturing.

Improved Saddle Retention

Hardened plunger saddle protects plunger end during all lifting operations.

Easily removable for access to plunger mounting threads.

Tilt and smooth saddles are available as accessories (compatible with the new range of CATS-Series Tilt Saddles).

Enduring Compatibility

For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions, and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.



RC1010, 101 kN Capacity, 257 mm Stroke, General Purpose Hydraulic Cylinder (RC1010, 11.2-ton Capacity, 10.13 in Stroke, General Purpose Hydraulic Cylinder)


Series: RC. Product Line: Enerpac Industrial Tools

Model: RC1010 - ECCN: EAR99 - Harmonization: 8412210075

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RC1010
10 Tonne
257 mm
349 mm
606 mm
700 Bar
Single Acting
Spring Return
373 cm3
CR400 Coupler
6.4 Kg

RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.


The Full range of ENERPAC 10-tonne RC-Series Single-Acting Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RC101
10 Tonne26 mm
90 mm
116 mm
700 Bar
Single Acting
Spring Return
38 cm3
CR400 Coupler
1.8 Kg
RC102
10 Tonne
54 mm
121 mm
175 mm
700 Bar
Single Acting
Spring Return
78 cm3
CR400 Coupler
2.3 Kg
RC104
10 Tonne
105 mm
171 mm
276 mm
700 Bar
Single Acting
Spring Return
152 cm3
CR400 Coupler
3.3 Kg
RC106
10 Tonne
156 mm
248 mm
404 mm
700 Bar
Single Acting
Spring Return
226 cm3
CR400 Coupler
4.4 Kg
RC108
10 Tonne
203 mm
298 mm
501 mm
700 Bar
Single Acting
Spring Return
294 cm3
CR400 Coupler
5.4 Kg
RC1010
10 Tonne
257 mm
349 mm
606 mm
700 Bar
Single Acting
Spring Return
373 cm3
CR400 Coupler
6.4 Kg
RC1012
10 Tonne
304 mm
400 mm
704 mm
700 Bar
Single Acting
Spring Return
441 cm3
CR400 Coupler
6.8 Kg
RC1014
10 Tonne
356 mm
451 mm
807 mm
700 Bar
Single Acting
Spring Return
516 cm3
CR400 Coupler
8.2 Kg



Why purchase equipment from Enerpac?

As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
