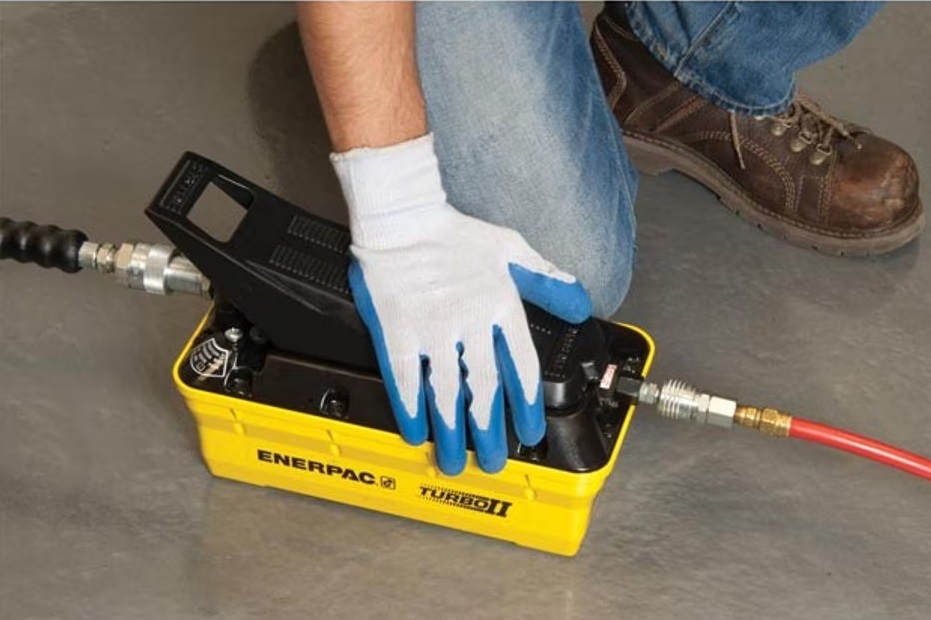

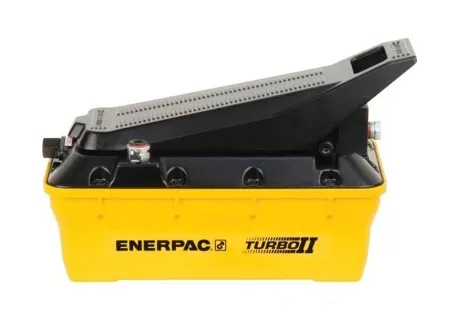

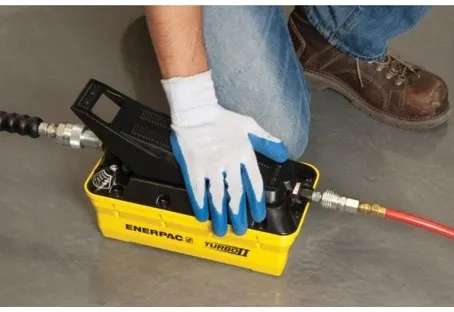

Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated
Estimated lead time:This is not a stocked Item. Delivery will be direct from Enerpac - Estimated Delivery time is 7 to 10 working days. Call if required sooner
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

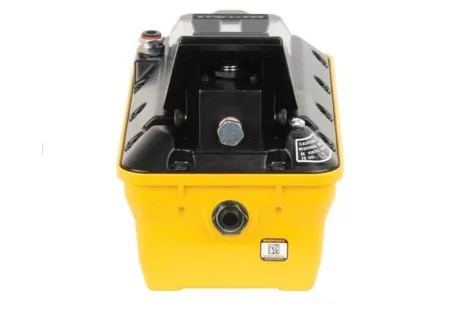

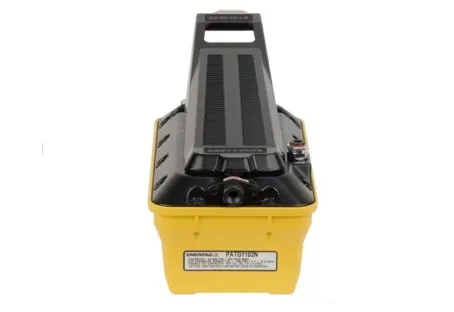

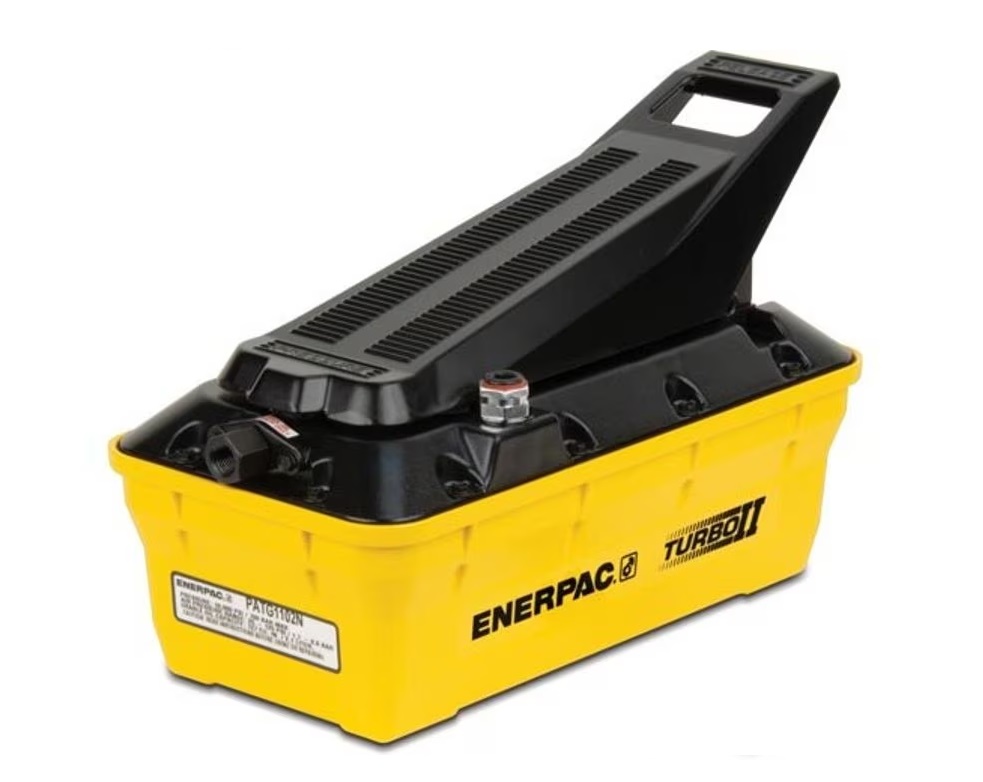

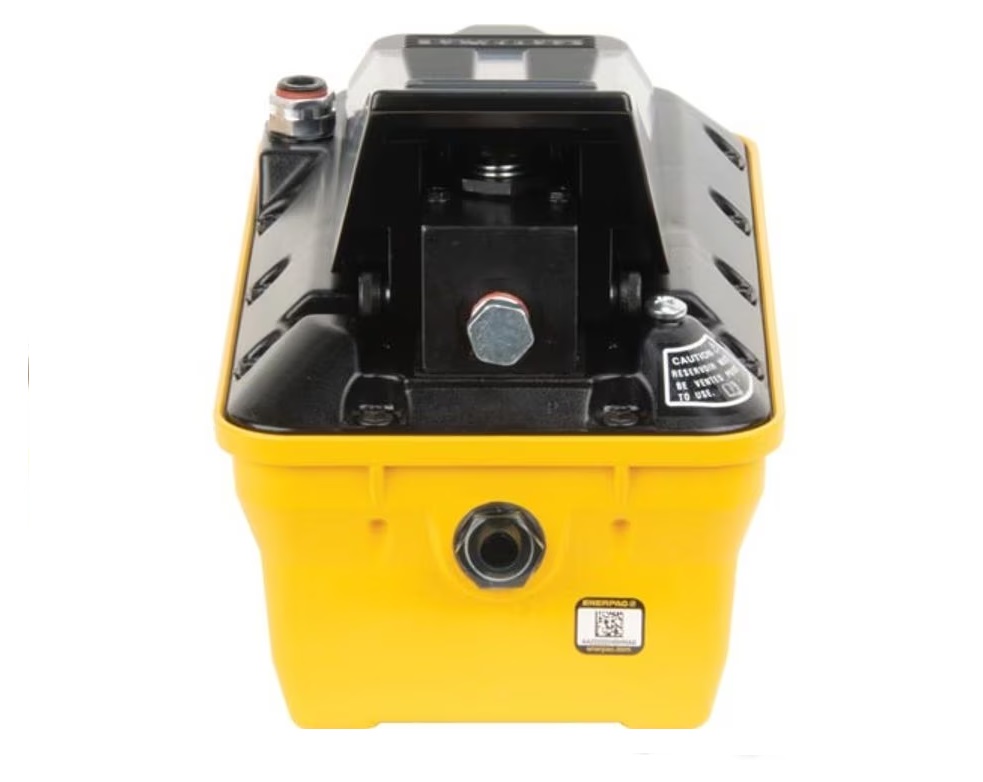

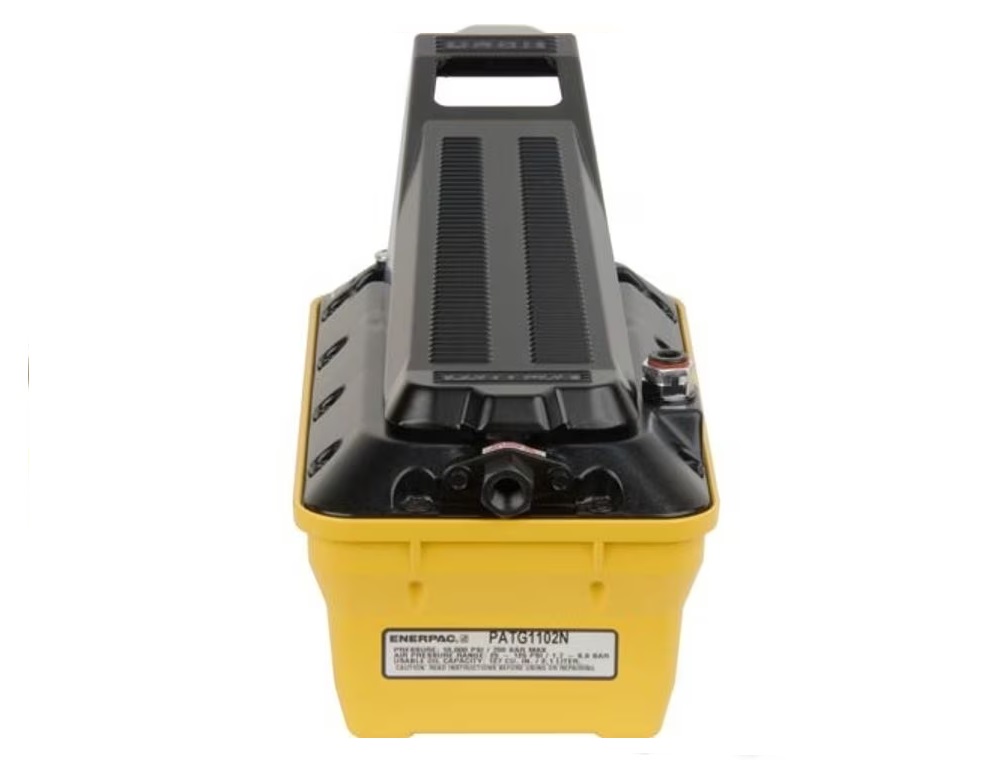

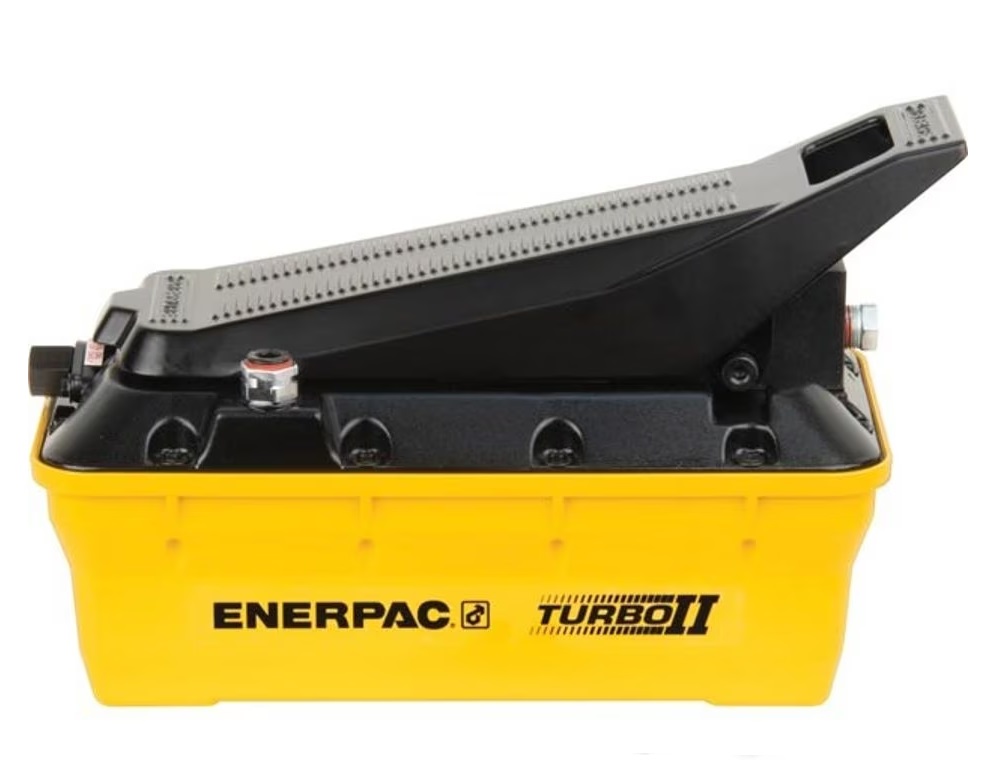

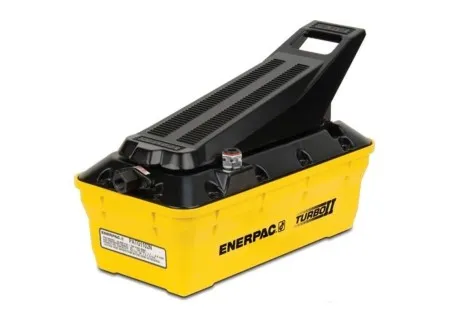

Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated
Description
Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated. It will generate the hydraulic pressure you need using the air pressure you have available. PATG1102N includes a 3-way, 3-position valve for Advance / Hold / Retract functions.
£929.99 ex VAT
£1,115.99 inc VAT
Related products
HC7206C
The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.
£154.99 ex VAT
£185.99 inc VAT
GA45GC
The Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly provides a window to your hydraulic system that allows for easy reading of the pressure creating a safer operation.
£201.99 ex VAT
£242.39 inc VAT
HF95Y
Enerpac Hydraulic Oil 5 litre HF95Y available from ULS Lifting - This is genuine Enerpac Oil. Use only genuine Enerpac Hydraulic Oil, the use of any other fluid will render your Enerpac warranty null and void.
£84.99 ex VAT
£101.99 inc VAT
PATG1105N
Enerpac PATG1105N Turbo II Air Hydraulic Pump, Hand/Foot Operated. It will generate the hydraulic pressure you need using the air pressure you have available. PATG1105N includes a 3-way, 3-position valve for Advance / Hold / Retract functions.
£1,369.99 ex VAT
£1,643.99 inc VAT

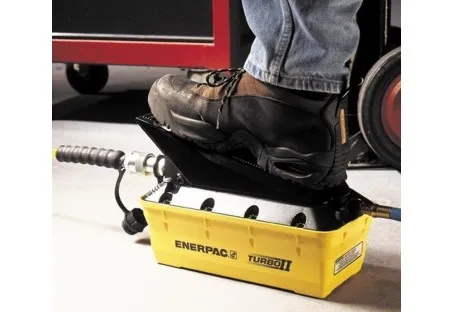

Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated. Ideal for use with all Enerpac Single Acting Cylinders, it will generate the hydraulic pressure you need using the air pressure you have available and includes a 3-way, 3-position valve for Advance / Hold / Retract functions. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.
Enerpac PATG1102N Turbo II Air-Hydraulic Pump suits medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single-acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.
Two models are available - The PATG1102N with a Reservoir Capacity / Useable Capacity of 2081 cm3 or the PATG1105N with a Reservoir Capacity / Useable Capacity of 3770 cm3
Model | Max Operating Pressure | Cylinder Compatibility | Usable Oil Capacity | Reservoir Capacity | Maximum Flow at Rated Pressure | Power Source | Air Pressure Range | Air Consumption | Weight |
PATG1102N | 700 Bar | Single Acting | 2081 cm3 | 2081 cm3 | 0.161 / min | Air | 2.8 - 8.8 bar | 340 L/Min | 8.2 Kg |
PATG1105N | 700 Bar | Single Acting | 3770 cm3 | 3770 cm3 | 0.161 / min | Air | 2.8 - 8.8 bar | 340 L/Min | 9.9 Kgs |
The Enerpac PATG1102N is part of the Turbo II Air Over Hydraulic Pump Series:

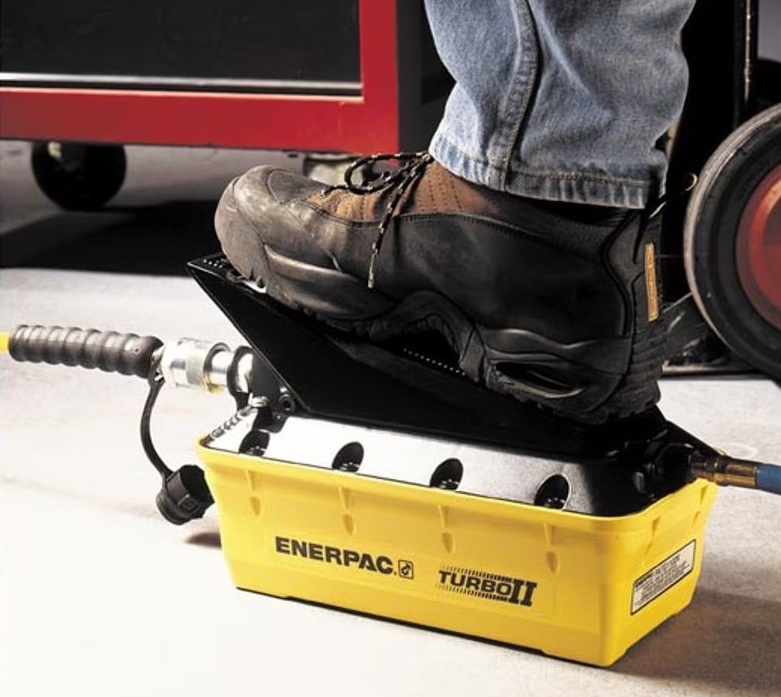

PATG - Treadle for foot or hand operation
PARG - Pendant Operation
PAMG - Manual lever operated. For double-acting applications
PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
PASG - Includes mount for a single DO3 Valve.
High-efficiency cast aluminum air motor for increased life and reduced air consumption
Reinforced heavy-duty reservoir for applications in tough environments
High-efficiency cast aluminium air motor
New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
Return-to-tank port for use in remote valve applications
Quieter operation - reduced noise level to 76 dBA
Operating air pressure: 2,8 - 8,8 bar, enables the pump to start at extremely low pressure
External adjustable pressure relief valve (behind sight glass)
Internal pressure relief valve provides overload protection
PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 2081 cm3 Usable Oil, For use with Single-Acting Cylinders
Model: PATG1102N
ECCN: EAR99
Harmonization: 8413500080
Series: PATG
Product Line: Industrial Tools
Model | Cylinder Compatibility | Max Operating Pressure | Usable Oil Capacity | Pump Type | Power Source | Operation | Weight |
PATG1102N | Single Acting | 700 Bar | 2081 cm3 | Single Speed | Air | Foot or Hand | 8.2 Kg |
Two models are available - The PATG1102N with a Reservoir Capacity / Useable Capacity of 2081 cm3 or the PATG1105N with a Reservoir Capacity / Useable Capacity of 3770 cm3
Model | Max Operating Pressure | Cylinder Compatibility | Usable Oil Capacity | Reservoir Capacity | Maximum Flow at Rated Pressure | Power Source | Air Pressure Range | Air Consumption | Weight |
PATG1102N | 700 Bar | Single Acting | 2081 cm3 | 2081 cm3 | 0.161 / min | Air | 2.8 - 8.8 bar | 340 L/Min | 8.2 Kg |
PATG1105N | 700 Bar | Single Acting | 3770 cm3 | 3770 cm3 | 0.161 / min | Air | 2.8 - 8.8 bar | 340 L/Min | 9.9 Kgs |
The Enerpac PATG1102N is part of the Turbo II Air Over Hydraulic Pump Series:
PATG - Treadle for foot or hand operation
PARG - Pendant Operation
PAMG - Manual lever operated. For double-acting applications
PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
PASG - Includes mount for a single DO3 Valve.
High-efficiency cast aluminum air motor for increased life and reduced air consumption
Reinforced heavy-duty reservoir for applications in tough environments
High-efficiency cast aluminium air motor
New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
Return-to-tank port for use in remote valve applications
Quieter operation - reduced noise level to 76 dBA
Operating air pressure: 2,8 - 8,8 bar, enables the pump to start at extremely low pressure
External adjustable pressure relief valve (behind sight glass)
Internal pressure relief valve provides overload protection
