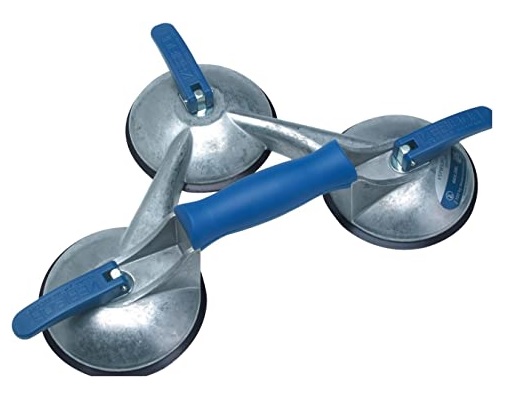

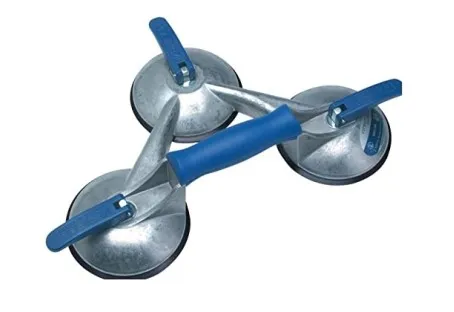

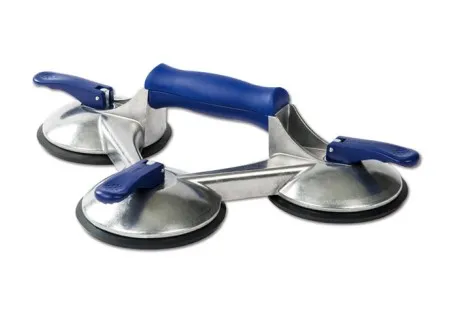

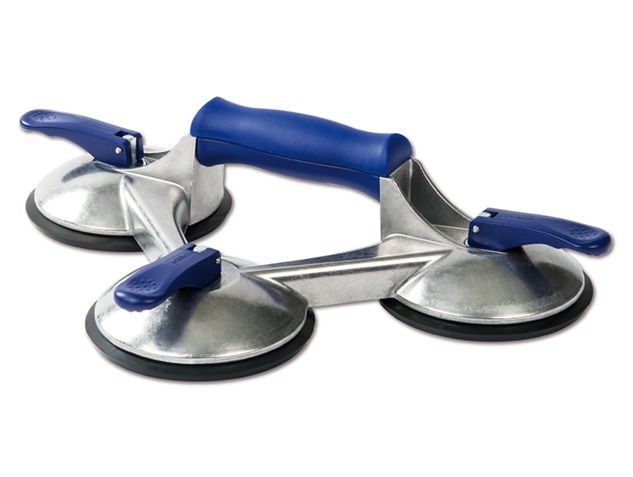

BO 603.0BL - Veribor Blue Line 3 Cup Aluminium Suction Lifter

Key features of the Veribor BO 603 021

• High quality Veribor® suction lifter with three suction heads.
• 100 kg carrying capacity with two-fold safety factor.
• For all gastight surfaces.
• Made of lead-free aluminium.
• Free from carcinogenic hydrocarbon compounds (PAH).
• Made in Germany.

While large suction heads enable an optimum distribution of vacuum pressure along the external rim of the rubber pad, the wide contact area of the levers ensures an ideal force absorption when engaging the lever – No matter whether this is done with the ball of the hand or the thumb. Large washers provide additional safety for the levers. The third lever can be rotated by 90° in two directions. In this way, the width of the 3-cup suction lifter is reduced, enabling greater flexibility of use. Manufactured with tested Bohle quality

Veribor® is a quality brand of Bohle Group. The products have been developed and manufactured exclusively in Germany since 1953 – with a special focus on safety and ergonomics thanks to a multi-stage test procedure. They are free from carcinogenic hydrocarbon compounds (PAH).

Technical Data

Type of vacuum generation      Lever-Activated Suction Lifters

Load capacity                              100 kg

Lifting direction                          Parallel

Material of Suction Lifter         Aluminium

Surface geometry                       Flat

Suction pad                                 ø 120 mm

Number of suction pads            3

Vacuum gauge                            No

GS certified                                 No

Veribor® is a quality brand. The products are developed and manufactured exclusively in Germany – with a special focus on safety and ergonomics. They are free from carcinogenic hydrocarbon compounds (PAH).

Veribor®

Under the brand name Veribor®, suction lifters for the transport of diverse materials and objects have been developed, produced and sold since 1950. Today the Veribor® product range includes lifting and carrying devices ranging from pump-activated suction lifters to the smallest positioning and fixing devices.

The Group is one of Europe’s leading manufacturers and wholesalers of tools, machinery and accessories for glass processing and glass finishing. The family business, founded in 1923, is now represented by almost 400 employees at fifteen locations in Germany and abroad. Divided into Hardware, Handling, Glass Cutting (manual and automatic), Glass Bonding, Surface Protection, and Tools and Machinery product divisions, the total product range is precisely tailored to the respective customer groups from trade, industry and retail.

Quality is the leading principle of the company – in every area. To live up to this requirement, the company develops and manufactures many products themselves, for example. A modern logistics centre quickly sends the ordered goods on their way to the customer.
