Camlok CH Industrial standard Horizontal Plate Clamps

Key notes for ordering:

Sold as a Pair with standard Jaws - options available. Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Camlok CH Industrial standard Horizontal Plate Clamps

Brand:

Capacity

1,000Kgs up to 20,000Kgs
(1 tonne - 20 tonne)

Description

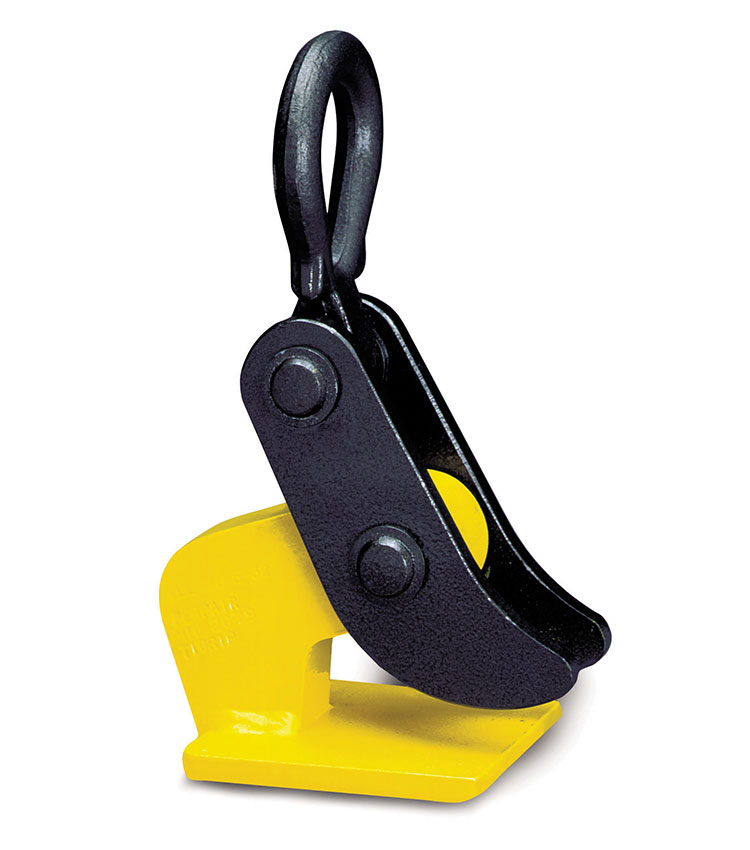

The Camlok CH Industry standard Horizontal Plate clamps have been specifically designed to be used in pairs for lifting and transporting either single or bundles of steel plates as long as the minimum thickness is 5mm. The CH range are manufactured in the UK offering a top quality / performing clamp - Spare parts are ready off the shelf.

save£38.81

£257.32 ex VAT

£224.98 ex VAT

£269.98 inc VAT

Related products

The Camlok CH Industry standard Horizontal Plate clamps have been specifically designed to be used in pairs for lifting and transporting either single or bundles of steel plates as long as the minimum thickness is 5mm. The CH range is manufactured in the UK offering a top quality / performing clamp - spare parts are ready off the shelf.

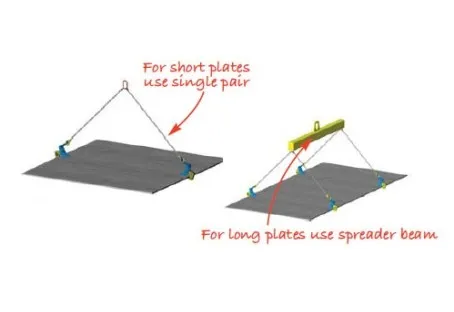

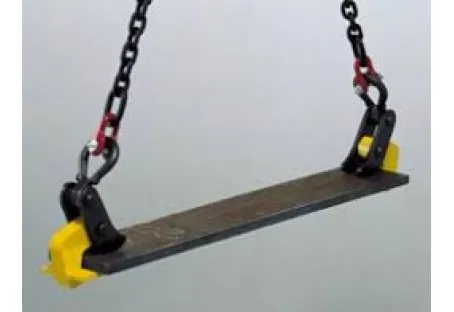

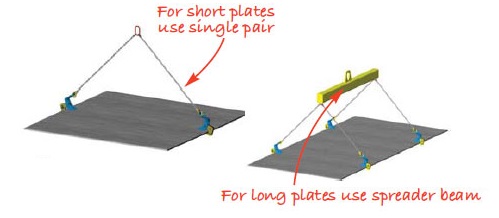

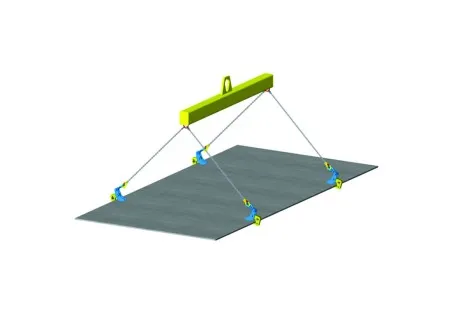

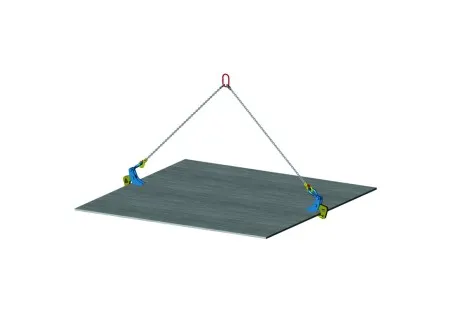

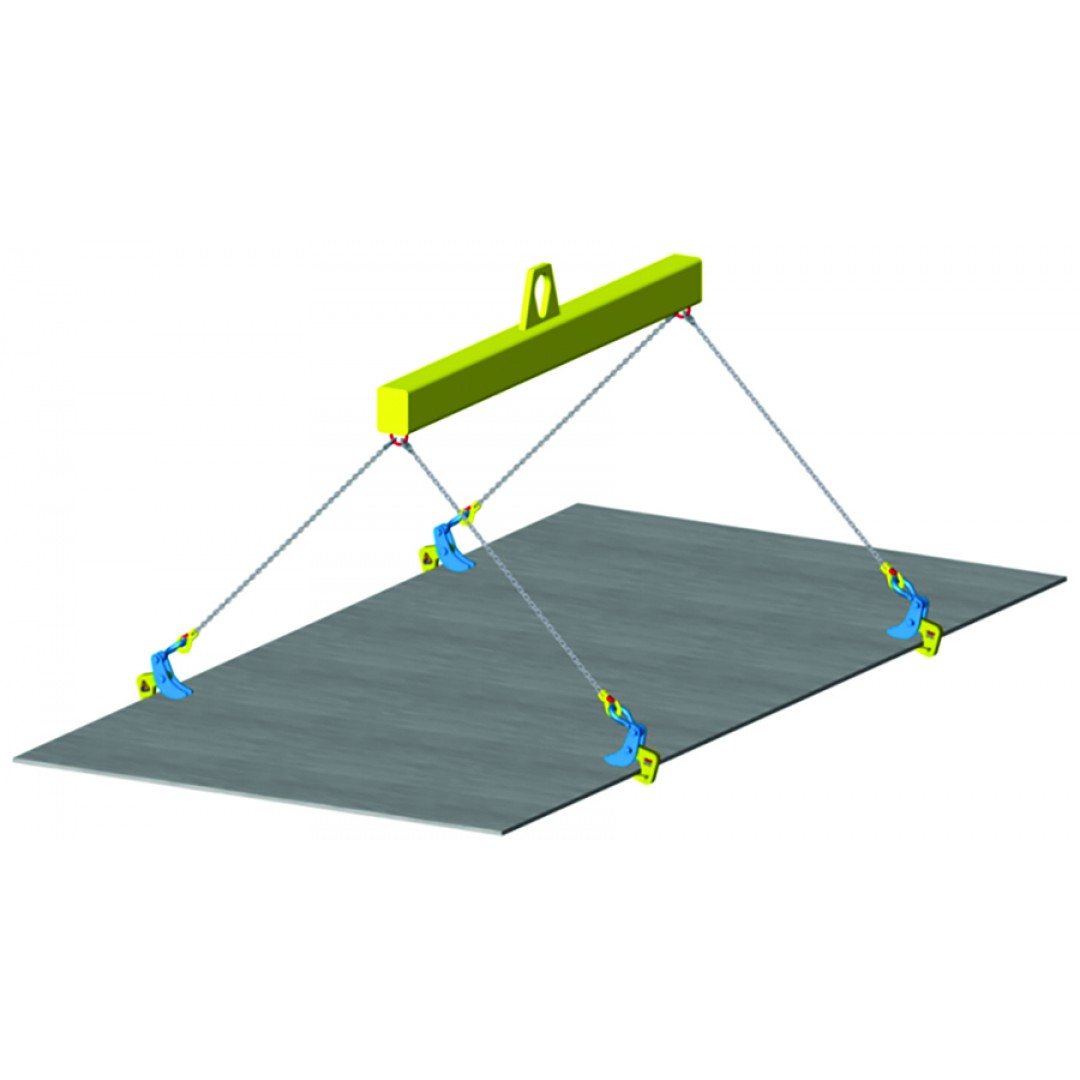

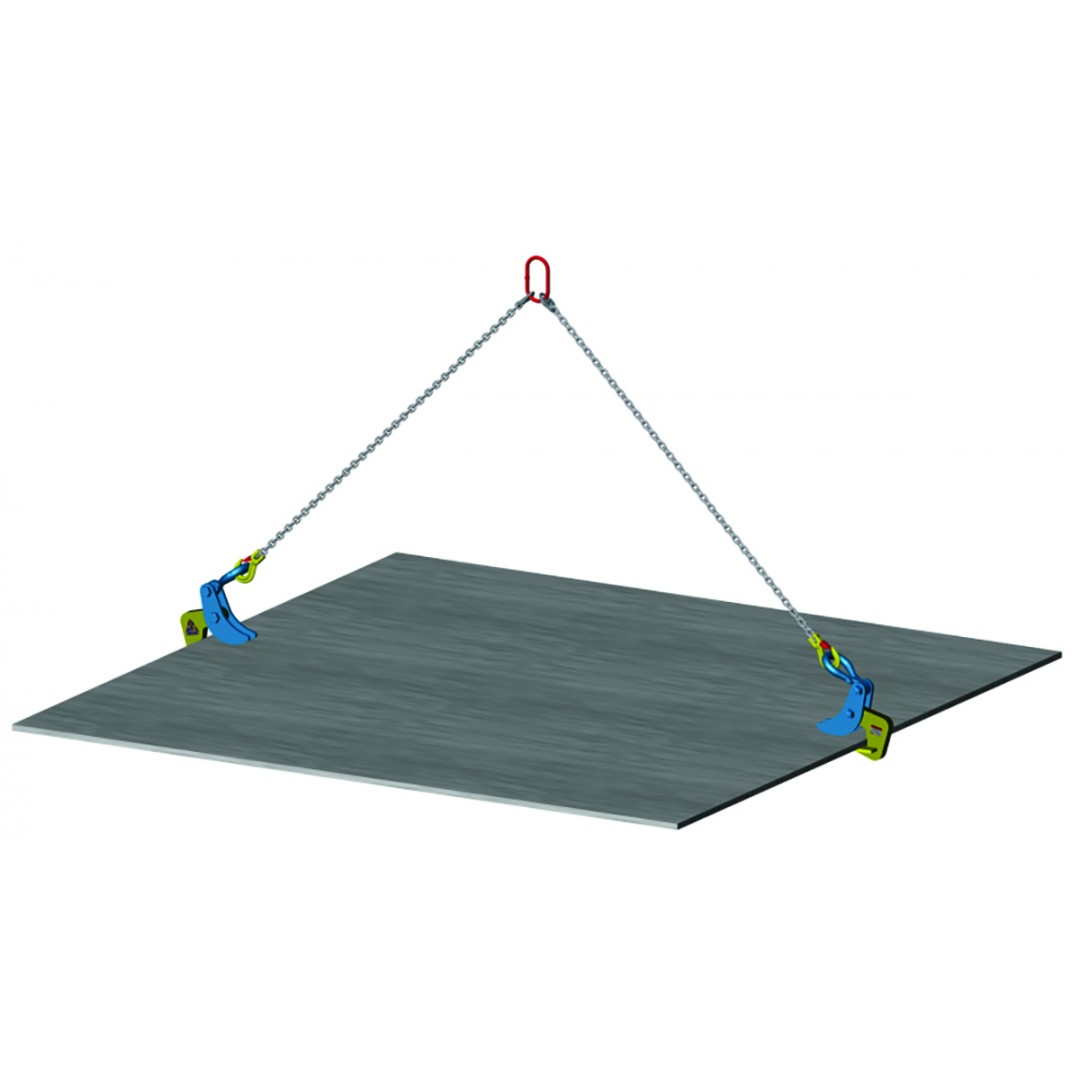

A pair of clamps used with a two-legged chain sling is suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for the handling of larger plates, These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth for special applications, and there is also an option for serrated jaws but these can only be used for lifting single plates and NOT bundles - If you need more information on special jaws, please contact us for more details.

NB - The angle between the chains must not exceed 45° from the vertical.
Model
WLL
Jaw Capacity
Lifting Eye dia
Weight

CH1

**Fitted with a single Jaw**

1,000Kgs
5 - 32mm
44 x32mm
8Kgs
CH2
2,000Kgs
5 - 32mm
73 x50mm
11Kgs
CH2L
2,000Kgs
20 - 50mm
73 x50mm
12Kgs
CH4
4,000Kgs
5 - 50mm
92 x64mm
17Kgs
CH4L
4,000Kgs
50 - 100mm
92 x64mm
23Kgs
CH6
6,000Kgs
5 - 75mm
130 x90mm
46Kgs
CH6L
6,000Kgs
50 - 125mm
130 x90mm
56Kgs
Other sizes are available on request - up to 20 tonnes available. The Weights above are per pair - but without chains or shackles.
Camlok CH HORIZONTAL PLATE CLAMPS
1000 - 20000KG

Industry-standard horizontal plate clamps

PRODUCT APPLICATIONS
The CH horizontal plate clamps have been specifically designed to be used in pairs for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.
A pair of clamps used with a two-legged chain sling is suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for the handling of larger plates. These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth jaws for special applications. Please contact our technical department for further details.
The HH horizontal plate clamps incorporate all of the features of the CH clamps, yet are manufactured from high-strength steel giving them exceptionally low tare weights.
NB: These units must NOT be used with endless chain slings.
Model
WLL
Jaw Capacity
Lifting Eye dia
Weight

CH1***

***CH1 are fitted with a single Jaw***

1,000Kgs
5 - 32mm
44 x32mm
8Kgs
CH2
2,000Kgs
5 - 32mm
73 x50mm
11Kgs
CH2L
2,000Kgs
20 - 50mm
73 x50mm
12Kgs
CH4
4,000Kgs
5 - 50mm
92 x64mm
17Kgs
CH4L
4,000Kgs
50 - 100mm
92 x64mm
23Kgs
CH6
6,000Kgs
5 - 75mm
130 x90mm
46Kgs
CH6L
6,000Kgs
50 - 125mm
130 x90mm
56Kgs
Other sizes are available on request - up to 20 tonnes available.
CARE & MAINTENANCE
The maintenance schedule is based on normal usage of clamps operating in a workshop environment. Maintenance frequency must be increased if
clamps are subject to heavy usage or operated in adverse conditions.

Legal requirements on inspection and certification / usage
The definition of lifting equipment and lifting accessories used in LOLER make it clear that Plate clamps fall under the heading of lifting accessories. Unless a scheme of examination is in place already, all lifting  clamps must be thoroughly examined by a competent person at intervals not exceeding 6 months.

Quality in design, performance and support. Camlok is the established industry brand for plate clamps and other items of lifting equipment. In fabrication plants, factories, warehouses, ports and docks, on construction sites, railheads and repair and service facilities around the world, the Camlok plate clamp and related products are the number one choice.


The Camlok brand is over 50 years old and was founded on original, innovative British design and manufacture. It evolved from a general industrial need to lift and transfer steel plate either horizontally, vertically or a combination of both, in a secure and safe manner. This was achieved by using an ingenious 'cam' and jaw mechanism to positively lock the steel plate into a clamping device so it may be suspended from a crane hook. The original 'cam-lock' principle has led to the vast spectrum of lifting clamps available today, for example: plate clamps, beam clamps, rail clamps, girder clamps, piling clamps, scissor grabs and other handling devices. This heritage generated the capability and understanding for Camlok to lead the way in engineering special non-standard lifting solutions for technically demanding applications.


All products are designed for easy repair and parts replacement, providing a lifetime of faithful service and performance and are manufactured in the UK to world-class standards. Hundreds of carefully selected and approved distributors around the world provide full advice, training, parts and after-sales services to ensure that Camlok lifting clamps deliver long life, reliable, productive and cost-effective performance -- wherever you are, whatever you do.
