Camlok CLT Container Top Lifting Lugs

Key notes for ordering:

Supplied as a set of 4, tested and certified. Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

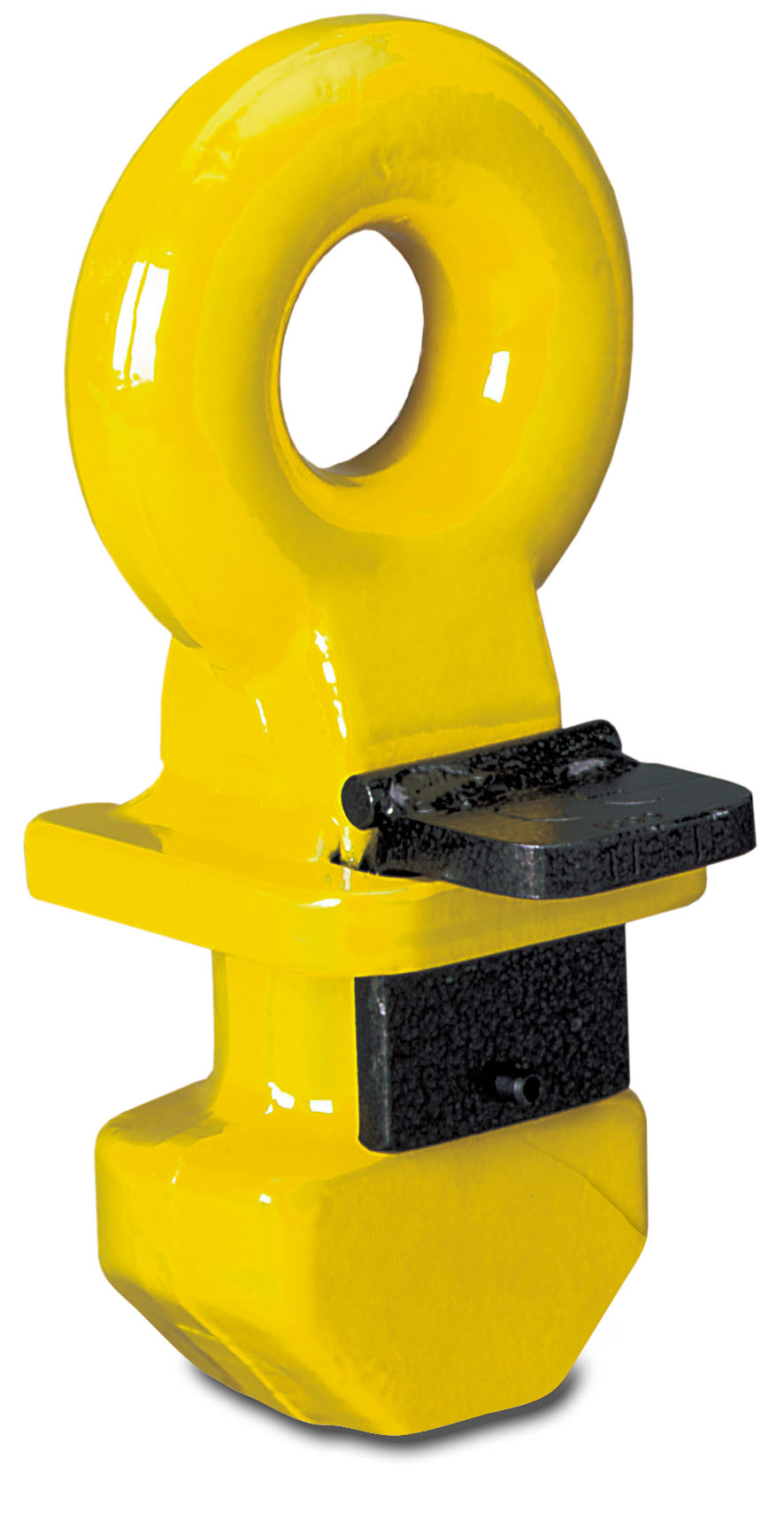

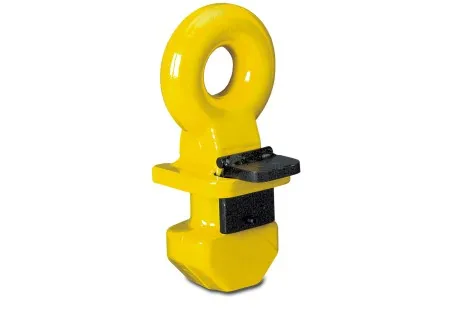

Camlok CLT Container Top Lifting Lugs

Brand:

Capacity

56,000Kgs
(56 Tonne)

Description

The Camlok CLT Container Lifting Lugs for lifting containers from the top Lifting pockets. this configuration allows for the transportation of containers using a container lifting frame (Lifting Slings Required) The main safety feature for this range is that they lock into place by simply rotating the lug through 90°.

save£98.32

£695.91 ex VAT

£613.98 ex VAT

£736.78 inc VAT

Supplied as a set of 4, tested and certified. Ready to use from the box

Related products

Camlok CLB Side Container Lifting Lugs

CLB

The Camlok CLB Container Lifting Lugs, these container lugs are sold in sets of four and are our most popular range of lugs for lifting containers using the side lifting pockets on all standard containers.

£626.21 ex VAT

£548.98 ex VAT

£658.78 inc VAT

Container Lifting Hooks/Lugs

XN633

Simple quick and easy to attach Eye Type Container Hooks designed for lifting ISO shipping containers or modular style objects. These lugs should only be used in the side lifting holes only. We sell both left handed and right handed lugs - sold singular or as a set of 4. Manufactured to EN1677-4 and load rated to 12.5 tonne per hook.

£43.99 ex VAT

£52.79 inc VAT

The Camlok CLT Container Lifting Lugs for lifting containers from the top Lifting pockets. This configuration allows for the transportation of containers using a container lifting frame Lifting Slings Required). The main safety feature for this range is that they lock into place by simply rotating the lug through 90°. The lugs are also marked as pairs with R.H Right and L.H Left.

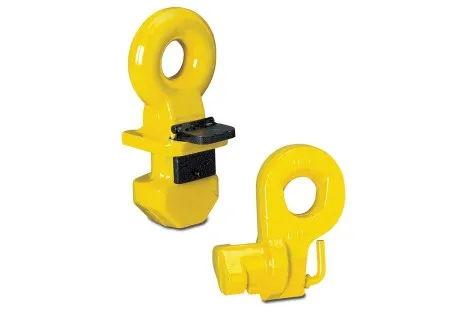

These container lifting lugs are supplied, and used, in sets of 4 and have a total lifting capacity of up to 56 tonnes. The CLT lugs serve as flexible lashing points for the transportation of containers. Two types are available depending on if you want to fasten them to the top or the side of the container. If the side lifters are required - Please see our page for Camlok CLB Side Lifting Lugs

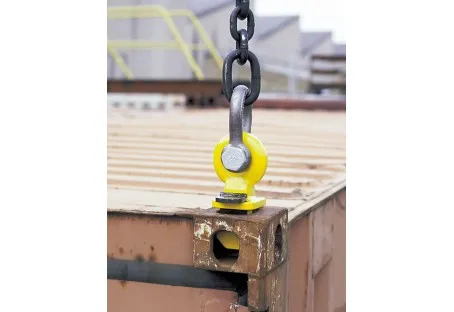

The CLT type is vertically mounted in the hole at the top of the container and is locked into place by simply turning the lug 90°. This configuration allows for transportation via the use of a lifting frame in conjunction with your chosen lifting chains or slings - Please ask if you require help with both the lifting slings and the lifting frame - we can supply everything required

NB. NOT TO BE USED ON A 4 LEG CHAIN SLING. Always use Shackles as a connection point between the lugs and your lifting slings.
Model
WLL
Suitable Lifting
Sling Angle From Vertical
Lifting Eye Diameter
Weight
CLT
56,000 Kgs
Top Only
Vertical
45mm
28Kgs
Simple to use

USAGE OF THE LOAD-LIFTING ATTACHMENT

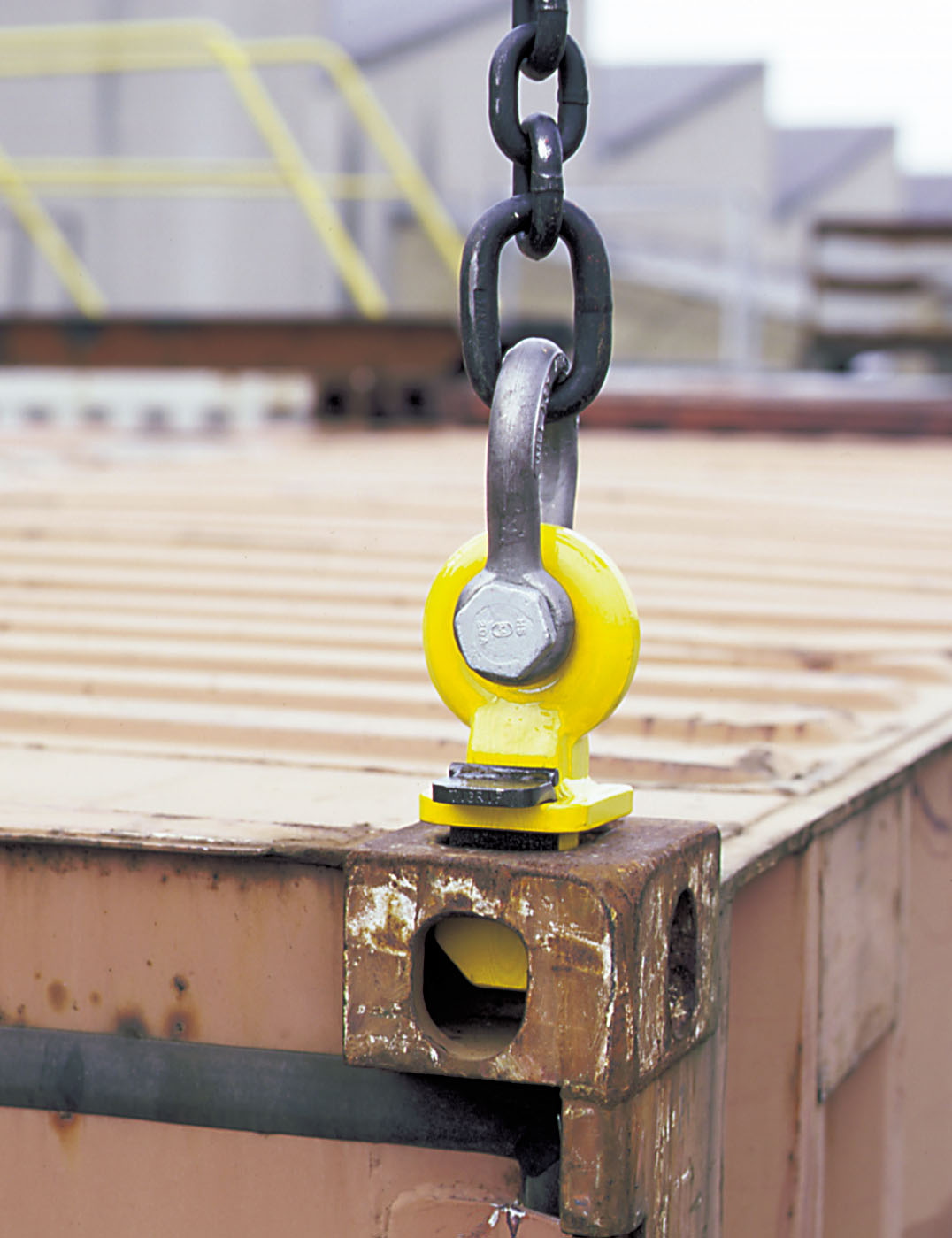

The individual container lifting lugs are inserted from above into all four openings of the ISO container to be transported; the safety angle is pressed up. In this condition, turn the lifting lug in any direction through 90°. Correct positioning of the load lifting attachment is ensured if the safety angle could be pressed down completely and reaches into the opening of the container. This prevents the turning and unlatching of the lifting lug.

After completion of the transport operation, the lifting lugs can be removed from the container by completely lifting the safety angle on the load lifting attachment and thus unlatching the lug. After turning the lug through 90° in any direction, it can be pulled out of the opening on the corner of the container.

NB. NOT TO BE USED ON A 4 LEG CHAIN SLING. Always use Shackles as a connection point between the lugs and your lifting slings


Model
WLL
Suitable Lifting
Sling Angle From Vertical
Lifting Eye Diameter
Weight
CLT
56,000 Kgs
Top Only
Vertical
45mm
28Kgs
INSPECTION / SERVICE

According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company,
• prior to initial operation,
• before the unit is put into service again following a shutdown
• after substantial changes,
• however, at least once per year, by a competent person.

Attention: Actual operating conditions (e.g. operation in galvanizing facilities) can dictate shorter inspection intervals.

Quality in design, performance and support.


Camlok is the established industry brand for plate clamps and other items of lifting equipment. In fabrication plants, factories, warehouses, ports and docks, on construction sites, railheads and repair and service facilities around the world, the Camlok plate clamp and related products are the number one choice.


The Camlok brand is over 50 years old and was founded on original, innovative British design and manufacture. It evolved from a general industrial need to lift and transfer steel plates either horizontally, vertically or a combination of both, in a secure and safe manner. This was achieved by using an ingenious 'cam' and jaw mechanism to positively lock the steel plate into a clamping device so it may be suspended from a crane hook. The original 'cam-lock' principle has led to the vast spectrum of lifting clamps available today, for example, plate clamps, beam clamps, rail clamps, girder clamps, piling clamps, scissor grabs and other handling devices.


This heritage generated the capability and understanding for Camlok to lead the way in engineering special non-standard lifting solutions for technically demanding applications. All products are designed for easy repair and parts replacement, providing a lifetime of faithful service and performance and are manufactured in the UK to world-class standards. Hundreds of carefully selected and approved distributors around the world provide full advice, training, parts and after-sales services to ensure that Camlok lifting clamps deliver long life, reliable, productive and cost-effective performance -- wherever you are, whatever you do.
