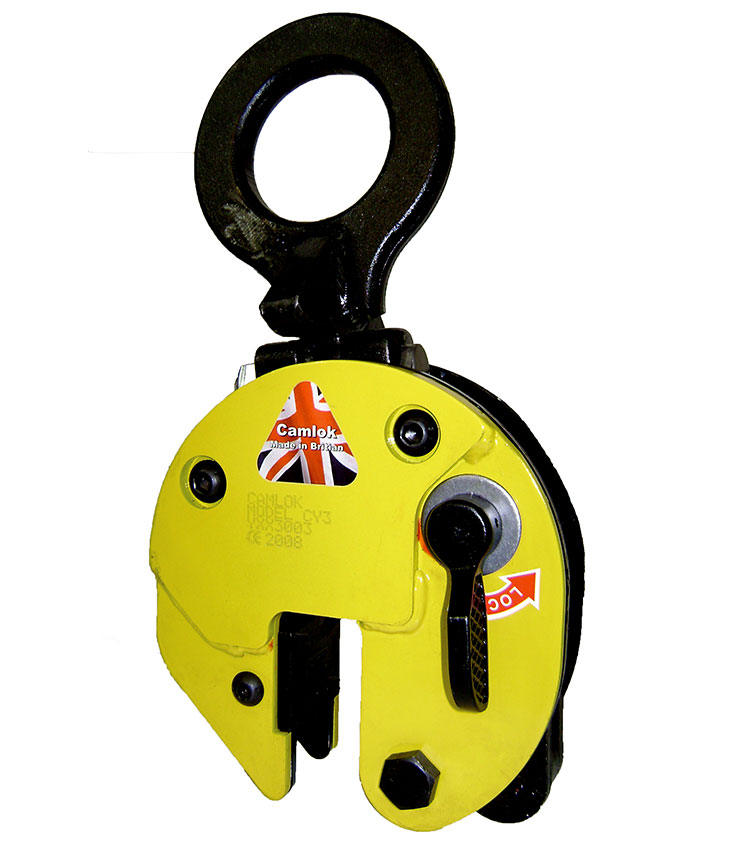

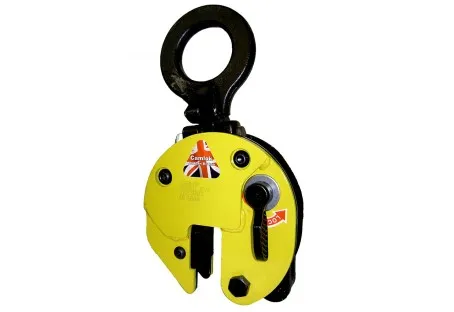

Camlok CY Hinged Vertical Plate Clamp

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Camlok CY Hinged Vertical Plate Clamp

Brand:

Capacity

100Kgs up to 3,000Kgs
(0.1 tonne to 3 tonne)

Description

Camlok CY Hinged Vertical Plate Clamp. Used to lift plates from horizontal & transport and relocate vertically in metal racks. The CY range of plate clamps are manufactured in the UK offering a top quality / performing clamp - Spare parts are ready off the shelf.

save£36.96

£325.78 ex VAT

£294.98 ex VAT

£353.98 inc VAT

Related products

Camlok 92 Series Vertical Plate Clamp

92 Series

Camlok Vertical Plate Clamps (92 series). Primarily used for transporting sheet metal and steel plates in the vertical position - The 92 series is manufactured in the UK offering a top quality / performing clamp - spare parts are ready off the shelf.

£188.88 ex VAT

£169.98 ex VAT

£203.98 inc VAT

Camlok CZ Heavy Duty Vertical Plate Clamp

CZ

CZ Camlok Vertical Plate Clamps. Heavy Duty and Robust range. Welded shell construction. Primarily used for transporting sheet metal and steel plates in the vertical position - The CZ range is manufactured in the UK offering a top quality / performing clamp - Spare parts are ready off the shelf

£231.96 ex VAT

£199.99 ex VAT

£239.99 inc VAT

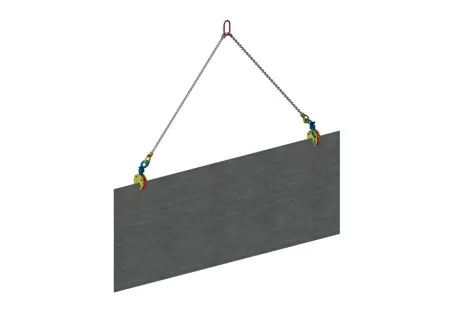

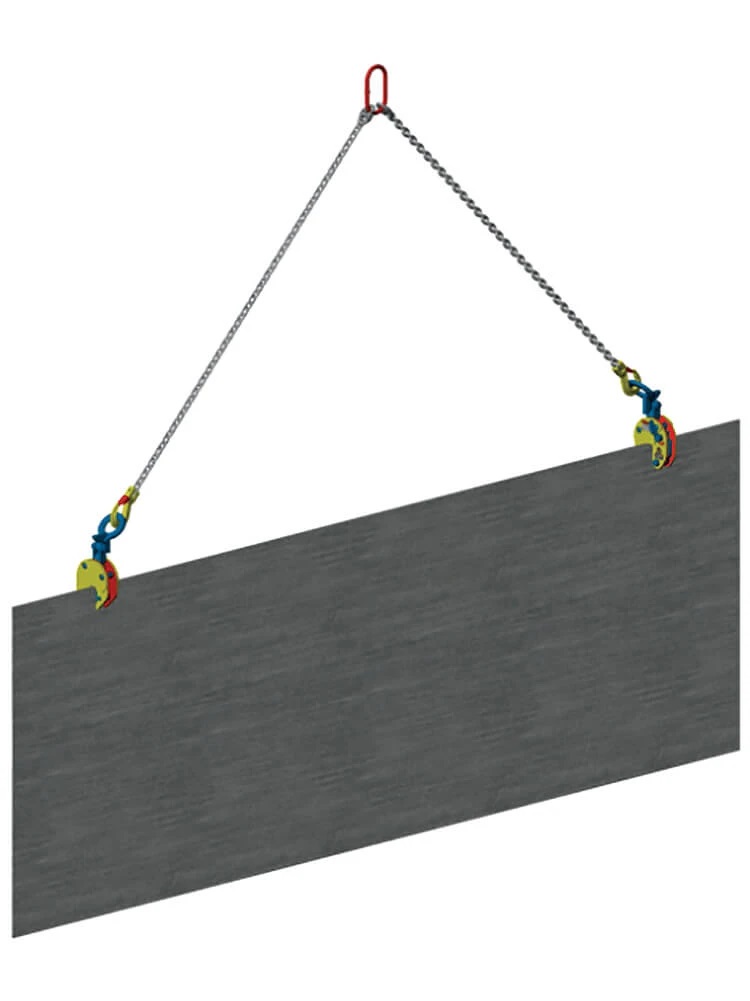

Camlok CY Vertical Plate Clamp with hinged lifting ring. Used to lift plates from the horizontal to the vertical position and then transport them safely, the benefit of the hinged lifting ring means this style of clamp can be used for the safe handling of sheet metal and steel plates at various angles. It can lift a plate from the horizontal and transport and put to rest in the vertical position inside metal racks. The hinged ring ensues adequate gripping pressure in every position of the lift , but the load capacity does reduce. when two clamps are used in conjunction with 2 leg chain sling. The hinged lifting ring ensures adequate gripping pressure in every position during the lift and is lea for longer plates, thus eliminating the need of expensive spreader beams.

CAMLOK LIFTING CLAMPS. QUALITY IN DESIGN, PERFORMANCE AND SUPPORT. The name itself is world renowned. Vertical plate clamps are known as Camlok not plate clamps, which is similar to HOVER and vacuum cleaners, people know them as CAMLOKS.

The CY range are manufactured in the UK offering a top quality / performing clamp - spare parts are ready off the shelf.
Model
WLL
Jaw Opening
Lifting Eye dia
Weight
CY 1
100 - 1000Kgs
0 - 20mm
50mm
4.6Kgs
CY 3
300 - 3,000Kgs
0 - 32mm
80mm
14Kgs
Camlok plate clamps are your ideal choice to lift and transfer steel plates in fabrication plants, factories, warehouses, ports and docks, construction sites, railheads and service facilities around the world.

All Camlok Plate clamps are Service Friendly, no specialist tools required - Spare parts are kept on the shelf for quick service, maintenance and repair - therefore , if you buy a clamp from the Camlok range, it should last you years - please always have repaired undertaken by a qualified service engineer - please contact us at ULS for further information on repairing plate clamps or any other lifting accessories.

The CY range is easy to use - The jaw of the plate clamp is opened and closed with the locking lever, once locked the serrated teeth on the cam assembly grip tightly onto the sheet or plate, it is now ready to lift and the plate/sheet will not slip (if the correct plate clamp has been selected) from the jaw until the locking lever has been released.

All Lifting clamps are shown with a lifting range (i.e. 100 to 1000Kgs WLL) never exceed either the lower of higher limit when lifting.

NB -The plate surface of the material being clamped MUST have a hardness level below HRC 30 / Brinell 300 - the CY range is recommended for all standard types of mild steel
CY 'HINGED' VERTICAL PLATE CLAMPS
100 - 3000KG

Standard plate clamps with hinged hook rings

PRODUCT APPLICATIONS
The CY plate clamps with hinged hook rings can be used for the safe handling of plate at various angles. It can lift plate from the horizontal and put it down in the vertical.

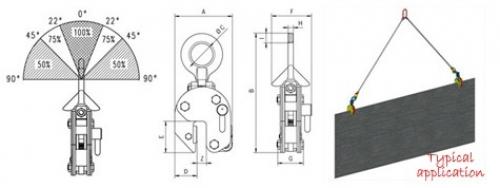

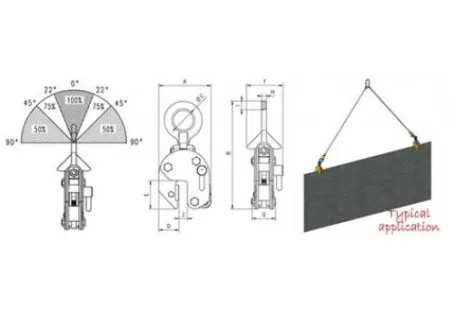

The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces. See the diagram below showing the load / force capacities.
NB: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300.

Model
WLL
Jaw Opening
Lifting Eye dia
Weight
CY 1
100 - 1000Kgs
0 - 20mm
50mm
4.6Kgs
CY 3
300 - 3,000Kgs
0 - 32mm
80mm
14Kgs

Camlok plate clamps are your ideal choice to lift and transfer steel plates in fabrication plants, factories, warehouses, ports and docks, construction sites, railheads and service facilities around the world.
CARE & MAINTENANCE
The maintenance schedule is based on normal usage of clamps operating in a workshop environment. Maintenance frequency must be increased if
clamps are subject to heavy usage or operated in adverse conditions.

Legal requirements on inspection and certification / usage
The definition of lifting equipment and lifting accessories used in LOLER make it clear that Plate clamps fall under the heading of lifting accessories. Unless a scheme of examination is in place already, all lifting  clamps must be thoroughly examined by a competent person at intervals not exceeding 6 months.

Quality in design, performance and support. Camlok is the established industry brand for plate clamps and other items of lifting equipment. In fabrication plants, factories, warehouses, ports and docks, on construction sites, railheads and repair and service facilities around the world, the Camlok plate clamp and related products are the number one choice.


The Camlok brand is over 50 years old and was founded on original, innovative British design and manufacture. It evolved from a general industrial need to lift and transfer steel plate either horizontally, vertically or a combination of both, in a secure and safe manner. This was achieved by using an ingenious 'cam' and jaw mechanism to positively lock the steel plate into a clamping device so it may be suspended from a crane hook. The original 'cam-lock' principle has led to the vast spectrum of lifting clamps available today, for example: plate clamps, beam clamps, rail clamps, girder clamps, piling clamps, scissor grabs and other handling devices. This heritage generated the capability and understanding for Camlok to lead the way in engineering special non-standard lifting solutions for technically demanding applications.


All products are designed for easy repair and parts replacement, providing a lifetime of faithful service and performance and are manufactured in the UK to world-class standards. Hundreds of carefully selected and approved distributors around the world provide full advice, training, parts and after-sales services to ensure that Camlok lifting clamps deliver long life, reliable, productive and cost-effective performance -- wherever you are, whatever you do.
