Green Pin Compact Skip Hook GKC


Key notes for ordering:
Supplied tested with relevant certification.
Estimated lead time:1 - 2 Days
Please call us if you need this item sooner

& COLLECT

delivery

DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

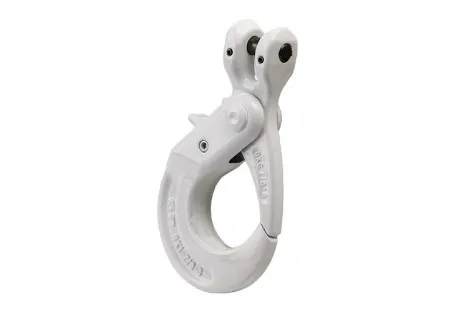

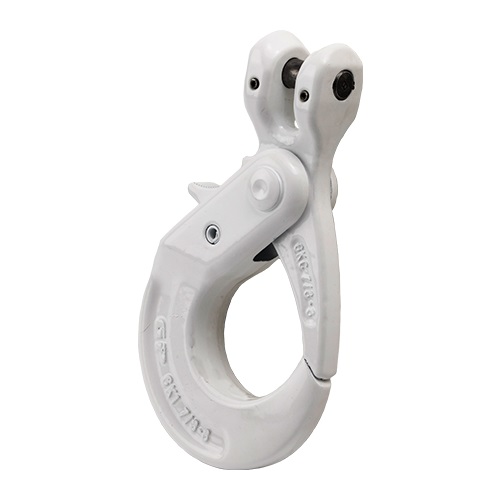

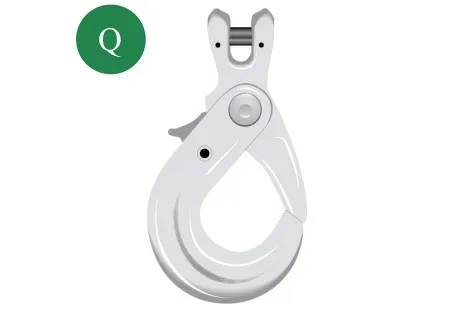

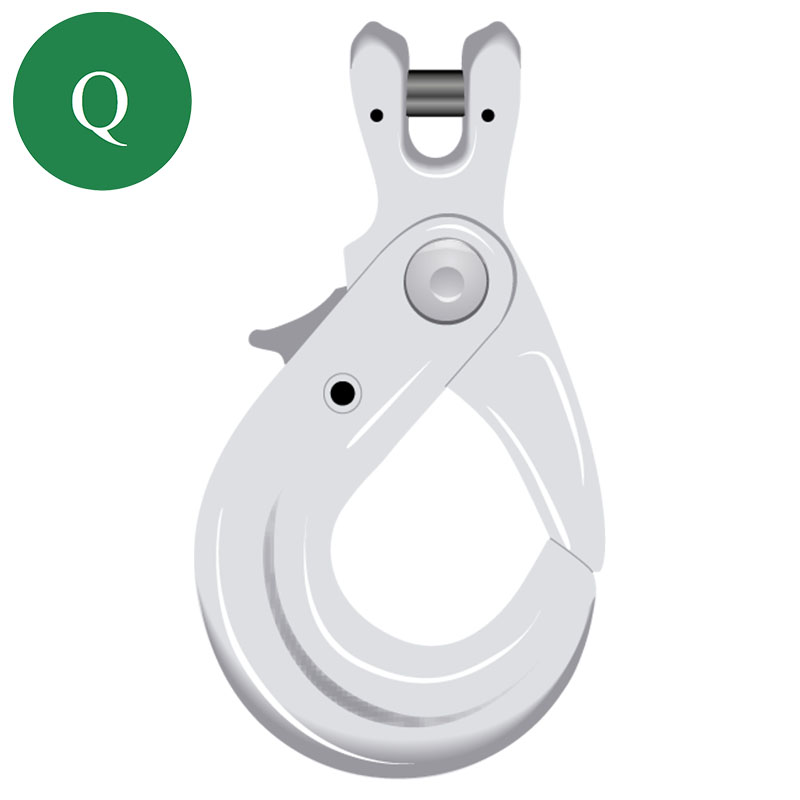

Green Pin Compact Skip Hook GKC
Capacity
2000Kgs up to 5,400Kgs
(2 tonne up to 5.4 tonne)
Description
The Green Pin quality Compact Skip Hook, have been designed as a snug fit on Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. Extensively used by all major skip vehicle manufacturers
Related products

XN243-13
£39.98 ex VAT
£47.98 inc VAT

8-069-13
£58.48 ex VAT
£70.18 inc VAT
Compact Skip Hook - The Green Pin Compact Skip Hooks are designed for a snug fit onto standard Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. They easily connect to your existing Chains (or contact us if you require the skip chains as well)

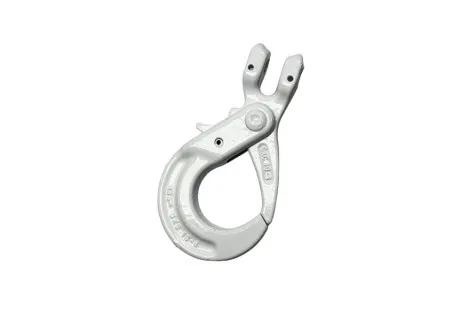

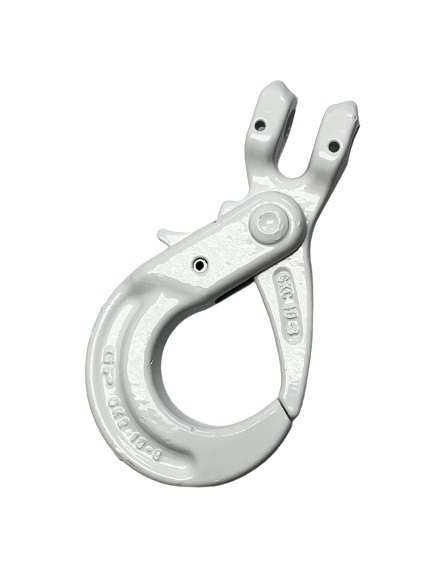

The compact design of the Green Pin Clevis Self Locking Skip Hook means these hooks do not slide off the skip lug, giving a secure and safe connection between the skip chains and the skip - We offer three sizes to suit all skip chain sizes, 7mm skip chains, 10mm skips chains and 13mm skip chains.
This style of hook from Green Pin is extensively used by all major skip vehicle manufacturers. due to its compact design and quality of manufacturer.
Model | Chain dia | WLL (Capacity) | Hook Opening | Weight |
GKC 1 | 7 & 8mm | 2.0 tonne | 32 mm | 0.60 Kgs |
GKC 2 | 10 mm | 3.2 tonne | 43 mm | 1.02 Kgs |
GKC 3 | 13 mm | 5.4 tonne | 47 mm | 2.01 Kgs |
The Hook itself is a self Locking style hook meaning once closed the hook automatically locks tight around the skip lug and cannot open until the release button on side of hook is depressed.

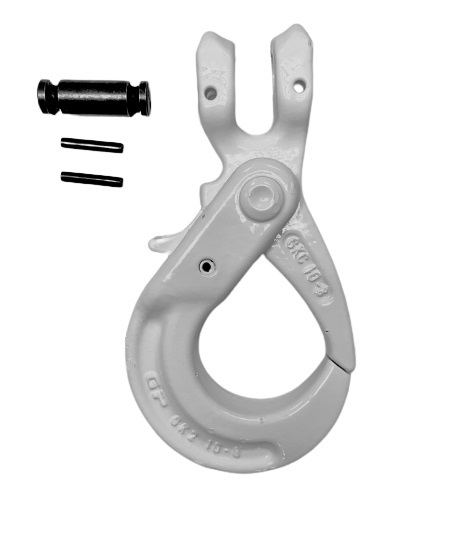

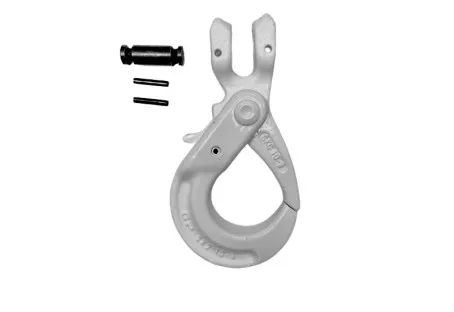

These self locking hooks are a Clevis style and supplied complete with necessary pins to easily fit to your existing Chain slings - If unsure Contact our sales team for exitance.
Compact Skip Hook - The Green Pin Compact Skip Hooks are designed for a snug fit onto standard Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. They easily connect to your existing Chains (or contact us if you require the skip chains as well)
Model | Chain dia | WLL (Capacity) | Hook Opening | Weight |
GKC 1 | 7 & 8mm | 2.0 tonne | 32 mm | 0.60 Kgs |
GKC 2 | 10 mm | 3.2 tonne | 43 mm | 1.02 Kgs |
GKC 3 | 13 mm | 5.4 tonne | 47 mm | 2.01 Kgs |
The Green Pin Self-Locking Hook CL is a grade 8 clevis self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The GK hook is a compact, lightweight hook. In comparison to an XL hook, it has the same working load limit, with a smaller size. The clevis design enables a direct connection to grade 8 chain. The Green Pin Self- Locking Hook CL is available in a range to suit 7/8 mm up to 22 mm grade 8 chain.
All safety critical parts of the skip lifting mechanism, including the lifting hook and arms, hydraulic cylinders and associated pipework and fittings, should be thoroughly examined by a competent person, such as an engineer surveyor, at least once every 12 months.
If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
Green Pin® is the leading brand for premium quality lifting and lashing equipment including shackles, turnbuckles, hooks and fibre link chain.
What makes it the leading brand? Only Green Pin® combines innovative, high quality products with industry leading availability and comprehensive, worldwide support. This unique combination means that with Green Pin® products you are always ready to get the job done. You are Green to Go.
