Grade 8 Eyebolt - High capacity

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

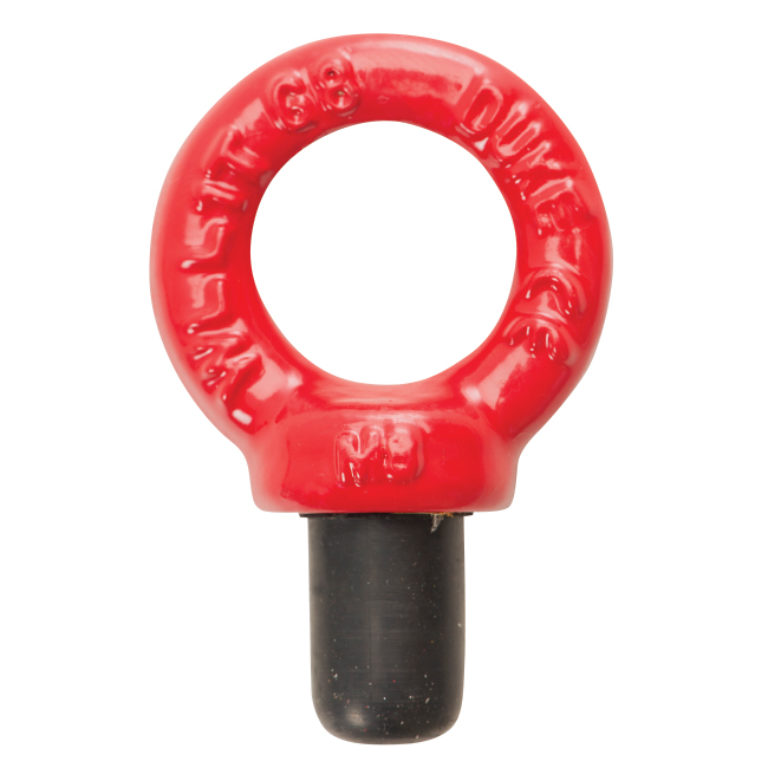

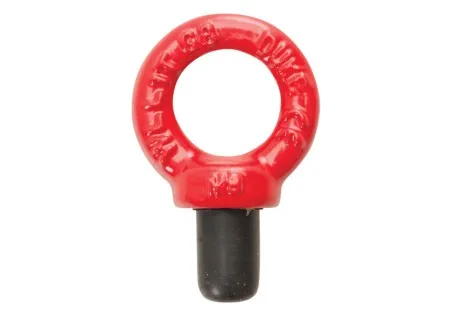

Grade 8 Eyebolt - High capacity

Brand:

Capacity

400Kgs up to 32,000Kgs
(0.4 tonne up to 32 tonne)

Description

Grade 8 Lifting Eyebolt with Collar. The great advantage of these is the higher capacity compared to standard eye bolts is the higher lifting capacity and larger eye diameter.

£2.10 ex VAT

£2.52 inc VAT

Add to cart Add to quote

Related products

Grade 8 Eyenut - High capacity

XN055

The great advantage of Grade 8 Lifting Eyenut with Collar, is the higher lifting capacity and larger eye diameter compared to a standard Eyenut

£1.98 ex VAT

£2.38 inc VAT

Grade 8 Lifting Eyebolt with Collar. The great advantage of these is the higher capacity compared to standard eye bolts is the higher lifting capacity and larger eye diameter.

High Tensile Lifting Eyebolt
Manufactured from quality Grade 8 Material
Safety Factor 4-1
Red powder coat finish to body
Can be used at 90° with lower lifting capacity

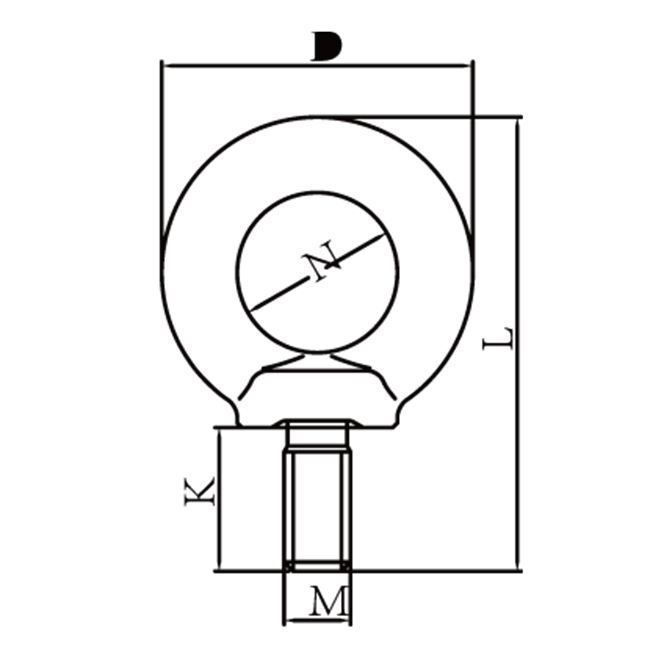

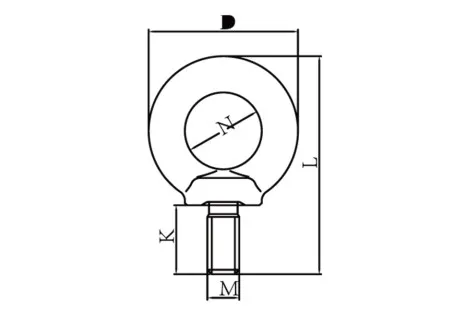

Model
Thread Size
Thread Length
WLL 0°
WLL 90°
Eye dia
Weight
XN054-M06
M06
13mm
0.4t
0.15t16mm
0.03Kgs
XN054-M08
M08
15mm
0.8t
0.4t20mm
0.06Kgs
XN054-M10
M10
18mm
1t
0.4t25mm
0.11Kgs
XN054-M12
M12
22mm
2t
0.75t30mm
0.18Kgs
XN054-M16
M16
28mm
4t
1.5t
35mm
0.30Kgs
XN054-M20
M20
30mm
6t
2.3t
40mm
0.45Kgs
XN054-M24
M24
38mm
8t
3.2t
50mm
0.95Kgs
XN054-M30
M30
45mm
12t
4.5t60mm
1.76Kgs
XN054-M36
M36
55mm
16t
7.0t70mm
2.65Kgs
XN054-M42
M42
65mm
24t
9.0t80mm
4.06Kgs
XN054-M48
M48
70mm32t12.0t90mm6.38Kgs
High Tensile Lifting Eyebolt
Manufactured from quality Grade 8 Material
Safety Factor 4-1
Red powder coat finish to body
Can be used at 90° with lower lifting capacity

Model
Thread Size
Thread Length
WLL 0°
WLL 90°
Eye dia
Weight
XN054-M06
M06
13mm
0.4t
0.15t16mm
0.03Kgs
XN054-M08
M08
15mm
0.8t
0.4t20mm
0.06Kgs
XN054-M10
M10
18mm
1t
0.4t25mm
0.11Kgs
XN054-M12
M12
22mm
2t
0.75t30mm
0.18Kgs
XN054-M16
M16
28mm
4t
1.5t
35mm
0.30Kgs
XN054-M20
M20
30mm
6t
2.3t
40mm
0.45Kgs
XN054-M24
M24
38mm
8t
3.2t
50mm
0.95Kgs
XN054-M30
M30
45mm
12t
4.5t60mm
1.76Kgs
XN054-M36
M36
55mm
16t
7.0t70mm
2.65Kgs
XN054-M42
M42
65mm
24t
9.0t80mm
4.06Kgs
XN054-M48
M48
70mm32t12.0t90mm6.38Kgs
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
