Grade 8 Pivoting Eyebolt with load ring - Extra Long Thread

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

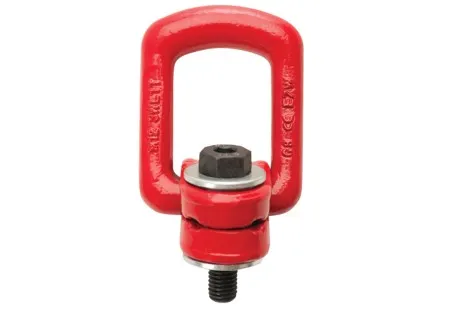

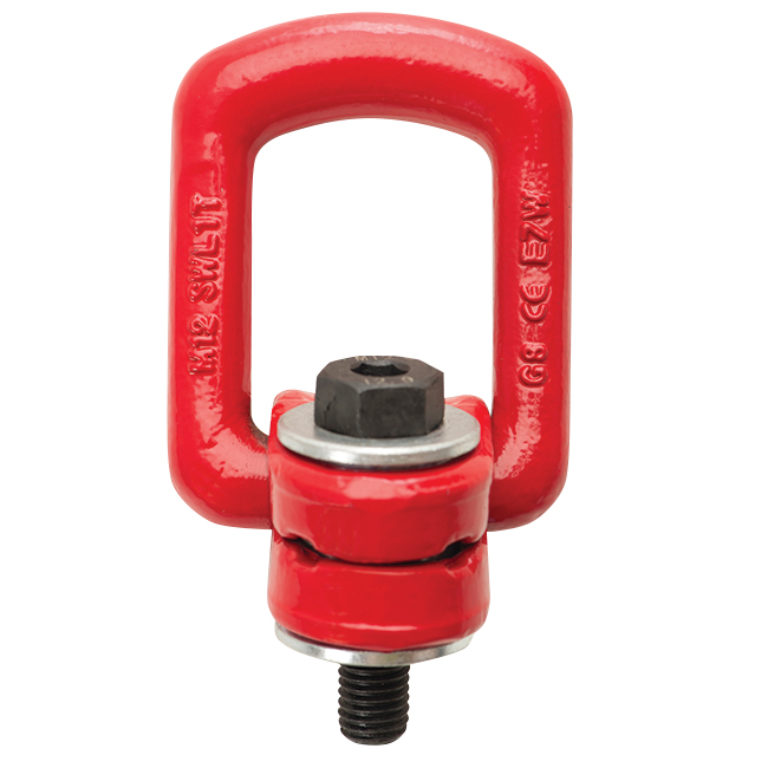

Grade 8 Pivoting Eyebolt with load ring - Extra Long Thread

Brand:

Capacity

300Kgs up to 20,000Kgs
(0.3 tonne to 20 tonne)

Description

Grade 8 Pivoting Eyebolt with large load ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles.

£23.85 ex VAT

£28.62 inc VAT

Add to cart Add to quote

Related products

RUD VLBG-PLUS Load Ring, Metric c/w Variable Bolt

VLBG-PLUS VAR

Rud VLBG-PLUS VIP Load Ring c/w Vario Bolt for bolting applications that require a swivel eyebolt with a precise length thread. RUD is Classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.

£91.97 ex VAT

£110.36 inc VAT

Grade 8 Pivoting Eyebolt with large load ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles

Grade 8 Steel, Quenched & Tempered
Powder coat Finish to body
Safety Factor 4-1
Same WLL at both zero and 90 degrees
Supplied fully tested with certification

We offer two sizes - Standard thread length and extended thread length

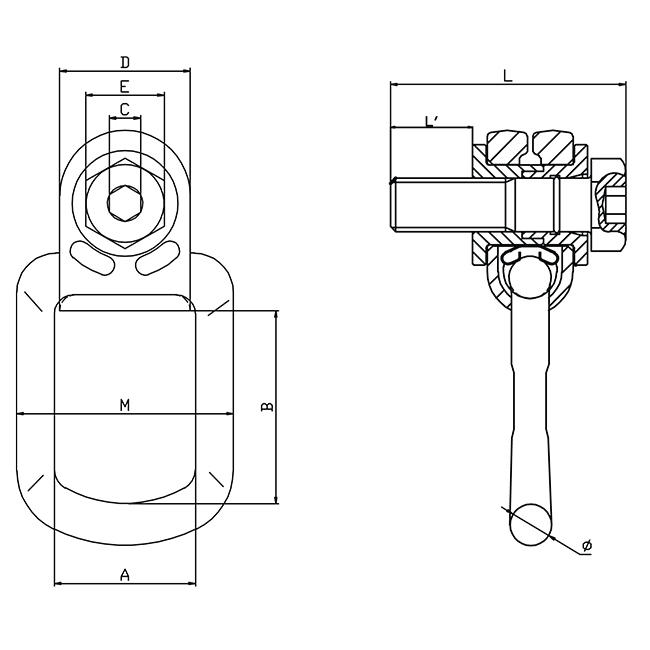

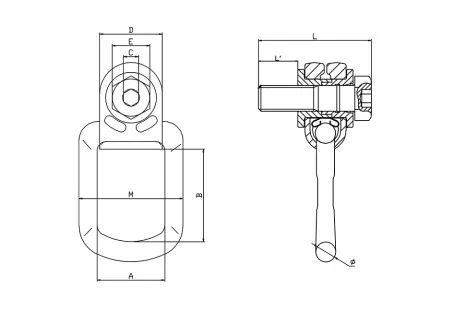

Standard Shank
Model
Thread Size
Thread Length
WLL 0° &  90°
Link Dimensions
Weight
XN173-M08
M8
10.4mm
0.3t
52.5 x 35mm
0.06Kgs
XN173-M10
M10
16mm
0.63t
52.5 x 35mm
0.11Kgs
XN173-M12
M12
18mm
1t
54 x 40mm
0.18Kgs
XN173-M14
M14
21mm
1.2t
54 x 40mm
0.18Kgs
XN173-M16
M16
24mm
1.5t
54 x 40mm
0.30Kgs
XN173-M18
M18
26mm
2t
80 x 54mm
0.30Kgs
XN173-M20
M20
30mm
2.5t
80 x 54mm

0.45Kgs

XN173-M24
M24
35mm
4t
94 x 54mm
0.95Kgs
XN173-M27
M27
38mm
4t
106 x 73mm
1.76Kgs
XN173-M30
M30
48mm
5t
106 x 73mm
1.76Kgs
XN173-M36
M36
54mm
8t
106 x 73mm
2.65Kgs
XN173-M42
M42
63mm
15t
155 x 104mm
4.06Kgs
XN173-M48
M48
74mm
20t
155 x 104mm
6.38Kgs
Extra Long Shank
Model
Thread Size
Thread Length
WLL 0° &  90°
Link Dimensions
Weight
XN173-M08EL
M8
76mm
0.3t
52.5 x 35mm
0.33Kgs
XN173-M10EL
M10
96mm
0.63t
52.5 x 35mm
0.43Kgs
XN173-M12EL
M12
114mm
1t
54 x 40mm
0.95Kgs
XN173-M12EL
M16
194mm
1.5t
54 x 40mm
1.17Kgs
XN173-M20EL
M20
187mm
2.5t
80 x 54mm
2.24Kgs
XN173-M24EL
M824
222mm
4t
94 x 54mm
2.61Kgs
Grade 8 Steel, Quenched & Tempered
Powder coat Finish to body
Safety Factor 4-1
Same WLL at both zero and 90 degrees
Supplied fully tested with certification

We offer two sizes - Standard thread length and extended thread length

Standard Shank
Model
Thread Size
Thread Length
WLL 0° &  90°
Link Dimensions
Weight
XN173-M08
M8
10.4mm
0.3t
52.5 x 35mm
0.06Kgs
XN173-M10
M10
16mm
0.63t
52.5 x 35mm
0.11Kgs
XN173-M12
M12
18mm
1t
54 x 40mm
0.18Kgs
XN173-M14
M14
21mm
1.2t
54 x 40mm
0.18Kgs
XN173-M16
M16
24mm
1.5t
54 x 40mm
0.30Kgs
XN173-M18
M18
26mm
2t
80 x 54mm
0.30Kgs
XN173-M20
M20
30mm
2.5t
80 x 54mm

0.45Kgs

XN173-M24
M24
35mm
4t
94 x 54mm
0.95Kgs
XN173-M27
M27
38mm
4t
106 x 73mm
1.76Kgs
XN173-M30
M30
48mm
5t
106 x 73mm
1.76Kgs
XN173-M36
M36
54mm
8t
106 x 73mm
2.65Kgs
XN173-M42
M42
63mm
15t
155 x 104mm
4.06Kgs
XN173-M48
M48
74mm
20t
155 x 104mm
6.38Kgs
Extra Long Shank
Model
Thread Size
Thread Length
WLL 0° &  90°
Link Dimensions
Weight
XN173-M08EL
M8
76mm
0.3t
52.5 x 35mm
0.33Kgs
XN173-M10EL
M10
96mm
0.63t
52.5 x 35mm
0.43Kgs
XN173-M12EL
M12
114mm
1t
54 x 40mm
0.95Kgs
XN173-M12EL
M16
194mm
1.5t
54 x 40mm
1.17Kgs
XN173-M20EL
M20
187mm
2.5t
80 x 54mm
2.24Kgs
XN173-M24EL
M824
222mm
4t
94 x 54mm
2.61Kgs
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
