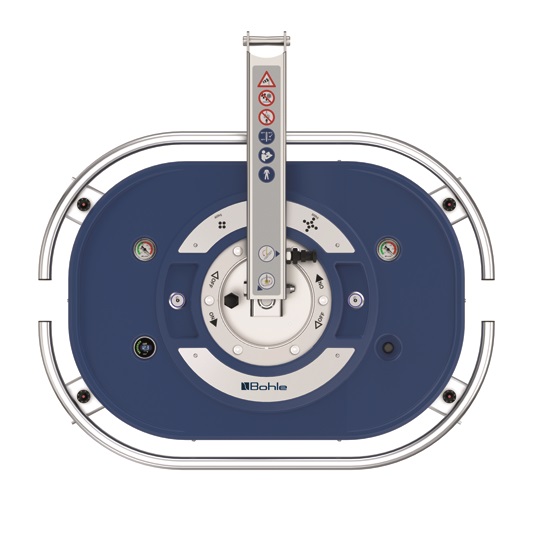

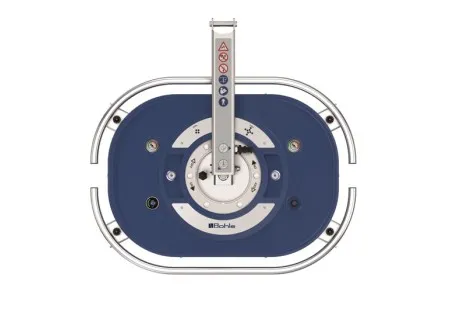

Liftmaster Quadro Battery Powered Vacuum Lifting Device

Estimated lead time:7 to 10 days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Liftmaster Quadro Battery Powered Vacuum Lifting Device

Brand:

Capacity

from 300Kgs to 400Kgs

Description

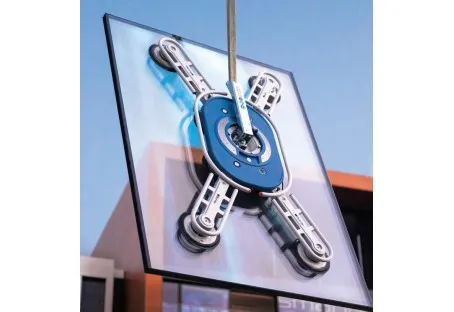

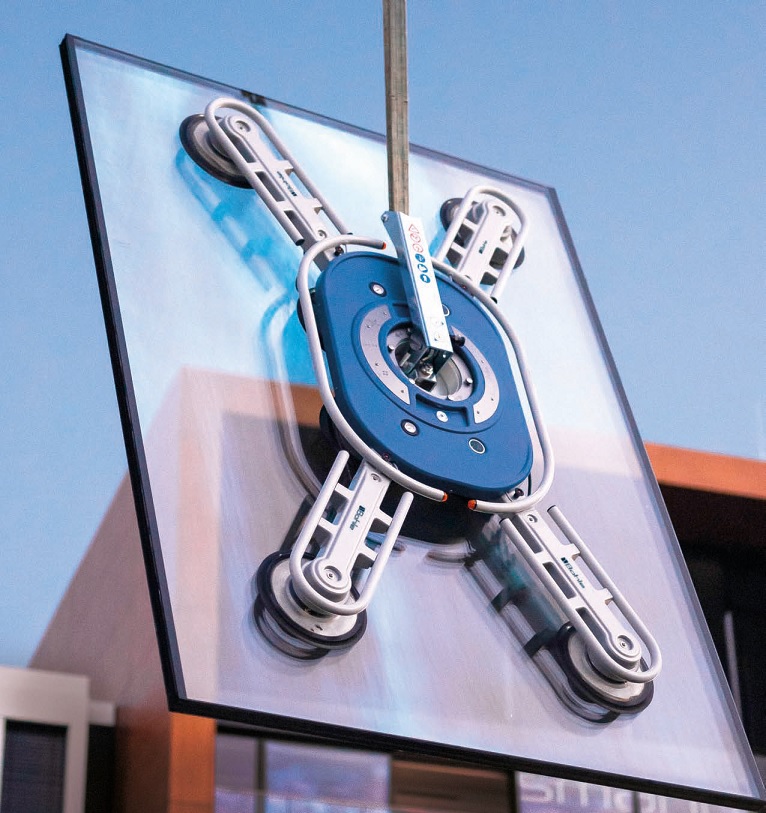

The Quadro is the new high capacity battery powered vacuum lifting device from the Liftmaster series and sets new standards in mobile vacuum lifting technology. Its innovative operating concept, and the high safety standards that we all come to expect from a German designed and manufactured product, make the lifting systems a reliable mounting aids for indoor and outdoor applications.

save£1,110.00

£7,400.00 ex VAT

£6,475.00 ex VAT

£7,770.00 inc VAT

Various accessories available on request

Related products

Liftmaster Quadro PRO Battery Powered Vacuum Lifter

Liftmaster Quadro Pro

The Quadro is the new high capacity battery powered vacuum lifting device from the Liftmaster series and sets new standards in mobile vacuum lifting technology. Its innovative operating concept, and the high safety standards that we all come to expect from a German designed and manufactured product, make the lifting systems a reliable mounting aids for indoor and outdoor applications.

£8,670.00 ex VAT

£7,587.50 ex VAT

£9,105.00 inc VAT

The Quadro is the new high capacity battery powered vacuum lifting device from the Liftmaster series and sets new standards in mobile vacuum lifting technology. Its innovative operating concept, and the high safety standards that we all come to expect from a German designed and manufactured product, make the lifting systems a reliable mounting aids for indoor and outdoor applications. Fitted with a powerful rechargeable battery that can be fitted and removed for charging without the use of tools, the vacuum lifter is also fitted with an audible alarm when the battery is nearing empty. Supplied with a swivel mounting arm that can be quickly and effortlessly be hung onto most overhead cranes or hoists.

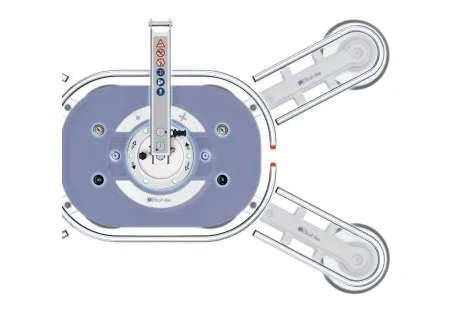

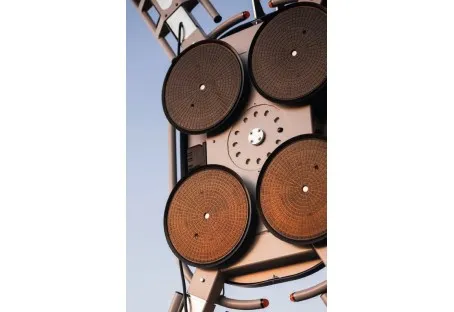

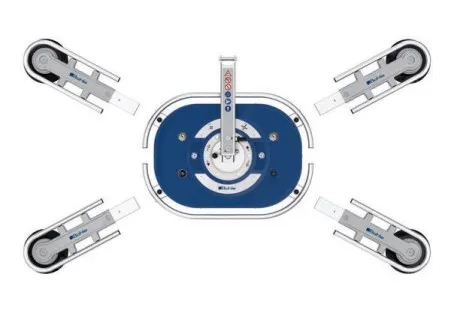

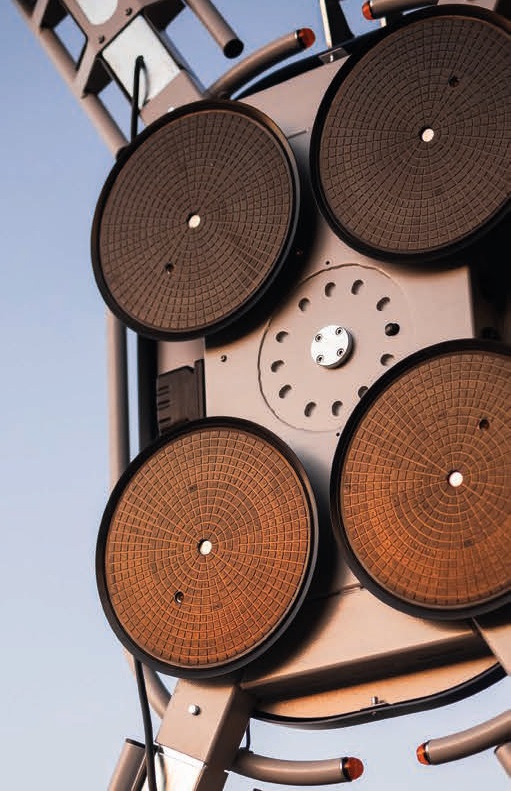

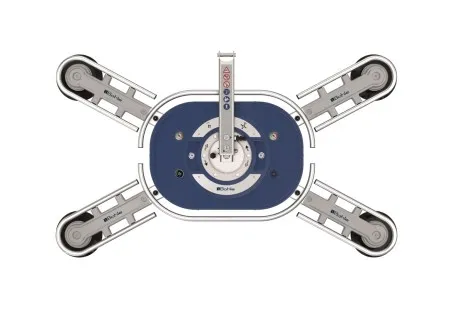

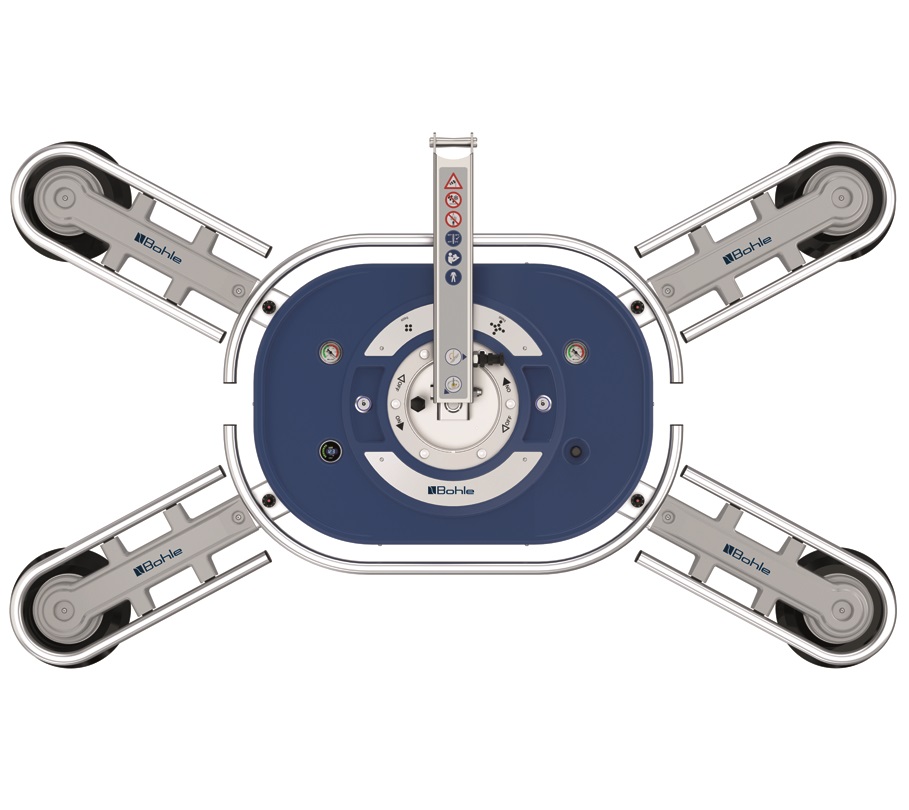

Designed with maximum flexibility in mind - Thanks to its modular construction, the Liftmaster Quadro system can ideally adapt itself to the most diverse installations with the aid of up to four extensions arms and the detachable suction pads. The properties of the suction pads ensure outstanding adhesion and a long service life. The whole lifting system can be rotated by 360° (with 12 locking positions) and can also be tilted by 90°.

ModelCapacityDimensionsPad DiaBatteries SuppliedWarning System FittedNo of Suction PadsWeight
Quadro 300300Kgs1190x700x235mm305mmOne BatteryOne Signal LampFour
Quadro 600600Kgs2300x1350x235mm305mmOne BatteryOne Signal LampEight
Quadro Pro 400400Kgs1195x745x235mm360mmTwo BatteriesFour Signal LampsFour
Quadro Pro 800800Kgs2370x1450x235mm360mmTwo BatteriesFour Signal LampsEight

NOTE - Pro Models are TUV Approved. Both Liftmaster Quadro 400 Pro and Liftmaster Quadro 800 Pro models have been independently approved by TÜV Nord and bear the GS sign. The system is therefore subject to regular product and production audits

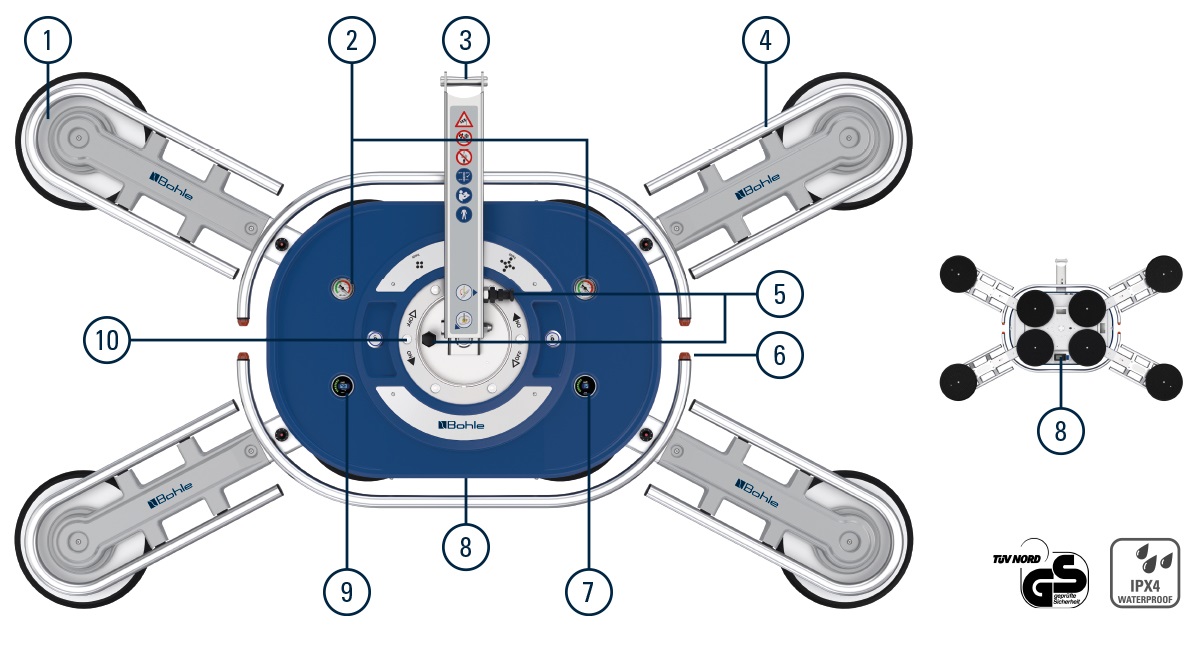

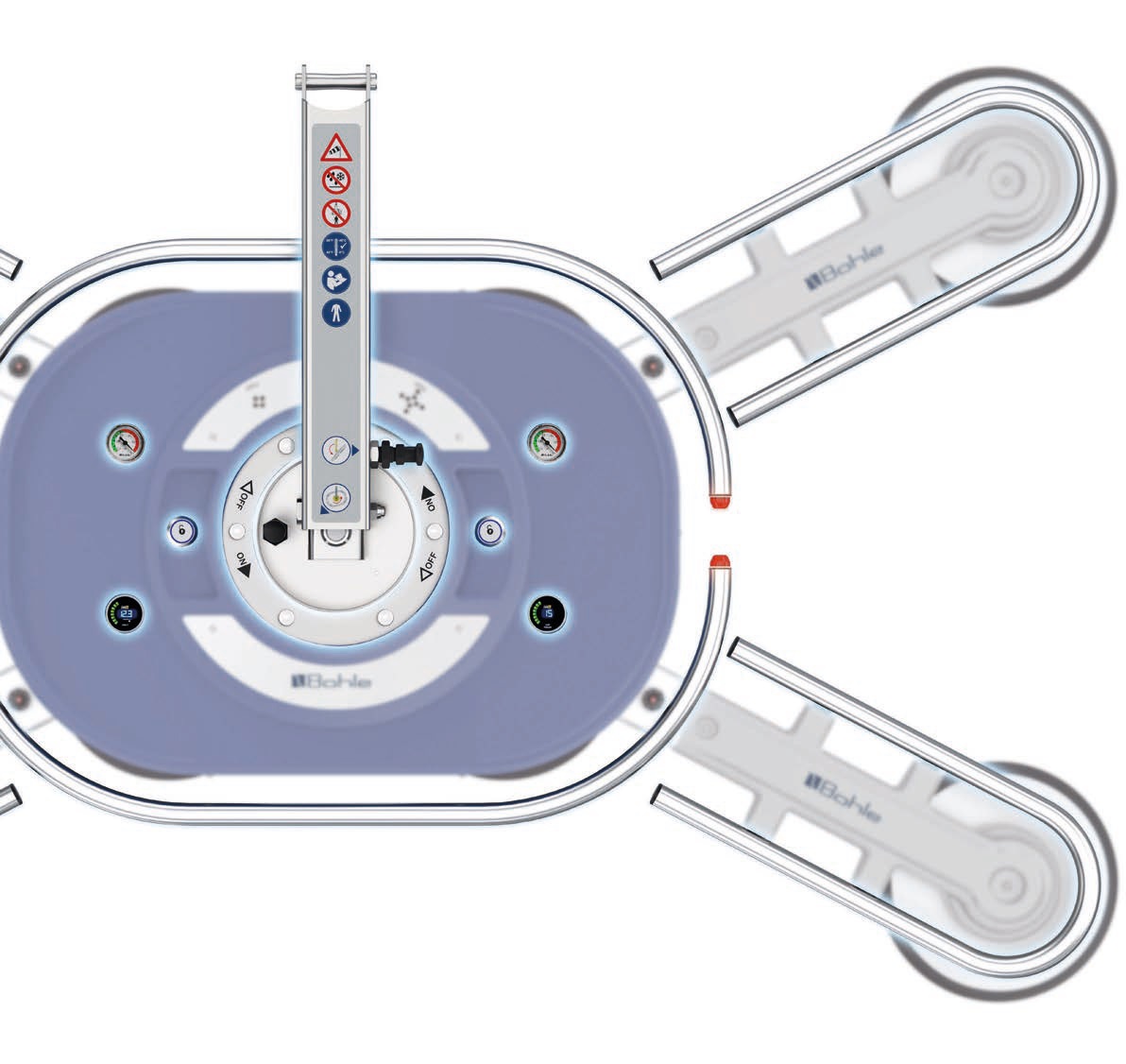

Key Features

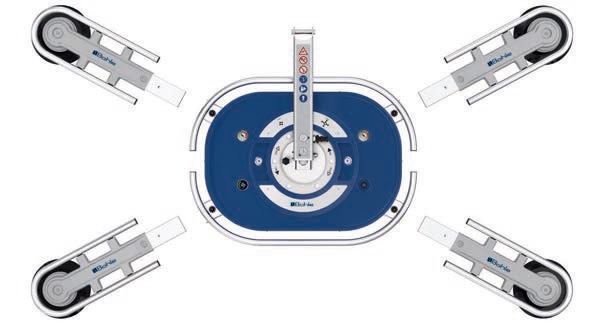

1. Mobile extension arms

2. Vacuum indicator for vacuum circuits 1 & 2

3. Crane arm for suspension in interior and exterior areas

4. Safe handrail surrounding the entire system

5. Locking bolt for tilting and rotating the system

6. Warning light in case of low battery and vacuum level

7. Digital temperature indicator

8. Digital battery indicator

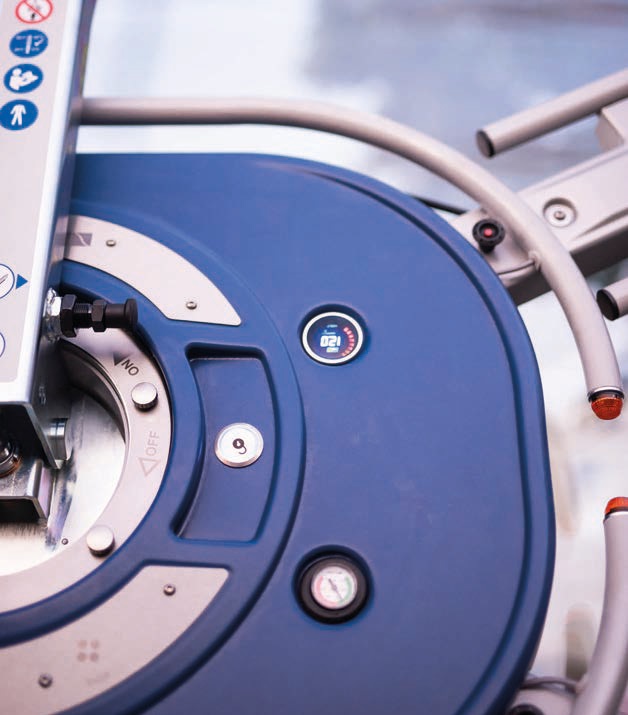

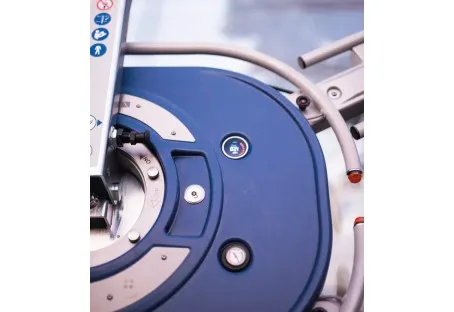

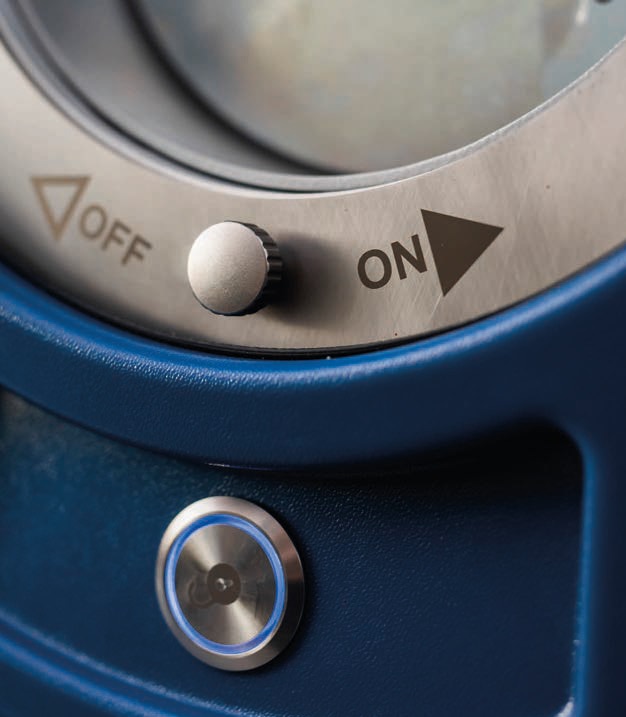

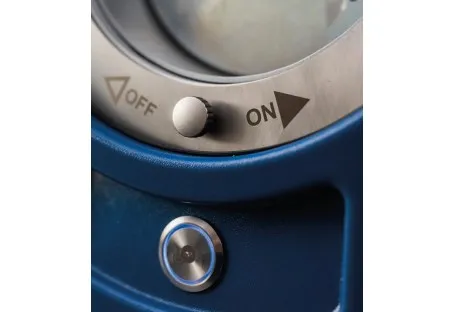

9. Patented control panel with clever safeguard

10. Rechargeable battery on the rear – can be changed without the need of tools


First battery-powered lifting equipment with GS certificate

Whole Series is splash-proof as per IPX4


When it comes to safety, Liftmaster sets new benchmarks. The new operating concept in particular makes the everyday handling of loads from 300Kgs up to 800 kg respectively much safer. Thanks to a continuous handrail surrounding the entire lifting equipment and a patented, centrally located control panel, every move fits – ensuring a safe and easy application, regardless from which side the system is operated. In addition, all lines and cables are protected inside the housing in such a way that any risk of damage is practically excluded. Visual and acoustic signals alert the operator in case of a low battery and vacuum level. The reliable dual circuit vacuum system guarantees a twofold safety factor according to EN13155 for vacuum generation and fixing tasks.

Key points for the Liftmaster Quadro Vacuum Lifters


First lifting equipment with GS certificate (Liftmaster Quadro 400 Pro and 800 Pro)

• Dual circuit vacuum system as per EN 13155

• All lines and cables protected inside the housing

• Sturdy handrail surrounding the entire system

• Visual and acoustic warning signals

• Splash-proof as per IPX4

ModelCapacityDimensionsPad DiaBatteries SuppliedWarning System FittedLoad Capacity per PadWeight
Quadro 300300Kgs1190x700x235mm305mmOne BatteryOne Signal Lamp75Kgs
Quadro 600600Kgs2300x1350x235mm305mmOne BatteryOne Signal Lamp75Kgs
Quadro Pro 400400Kgs1195x745x235mm360mmTwo BatteriesFour Signal Lamps100Kgs
Quadro Pro 800800Kgs2370x1450x235mm360mmTwo BatteriesFour Signal Lamps100Kgs

NOTE - Pro Models are TUV Approved
