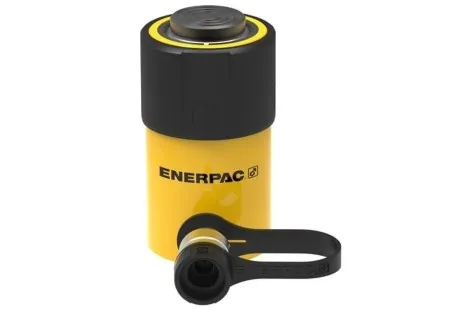

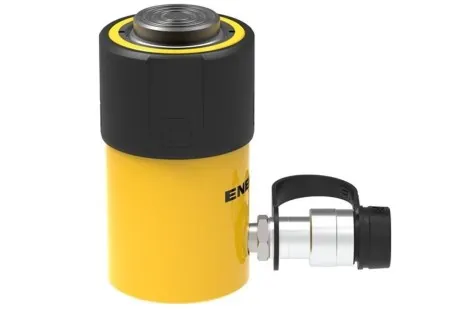

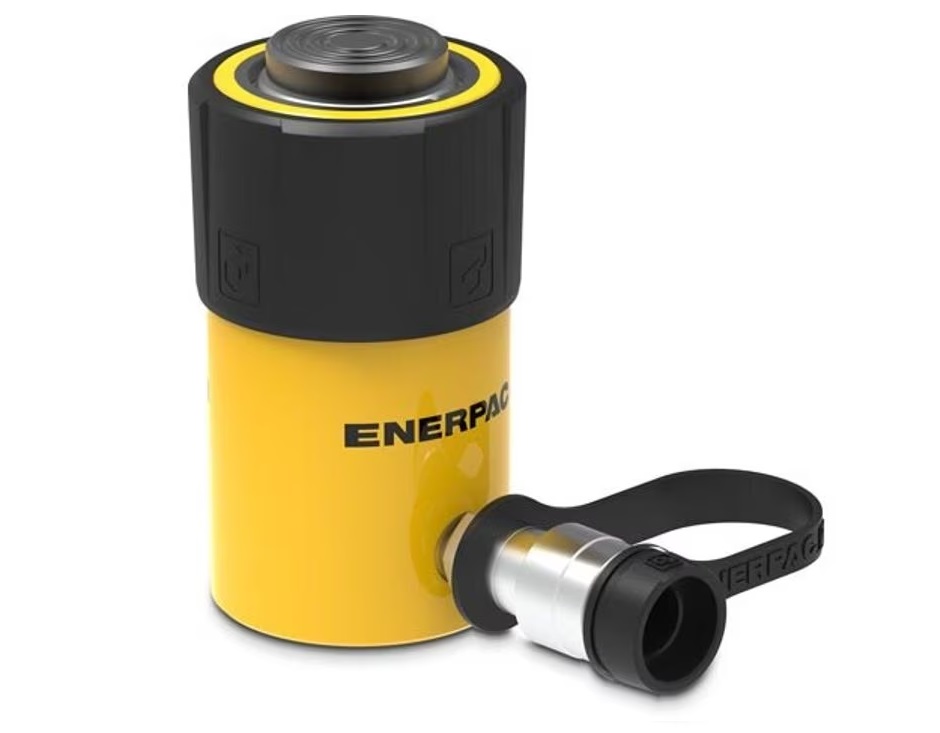

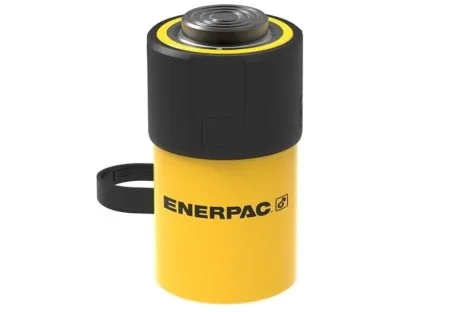

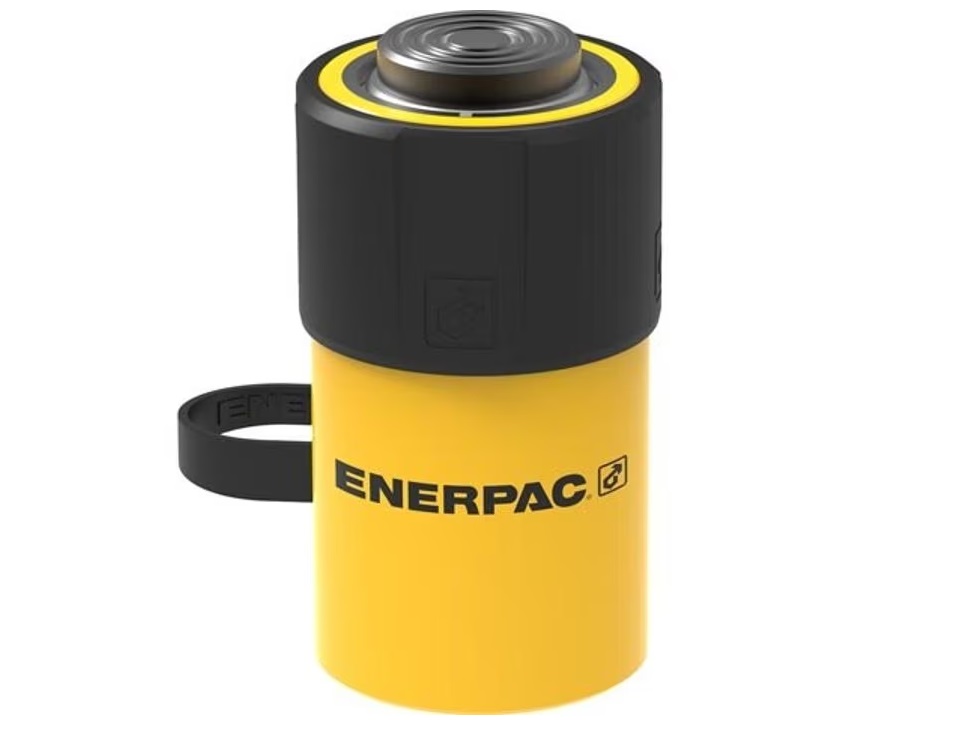

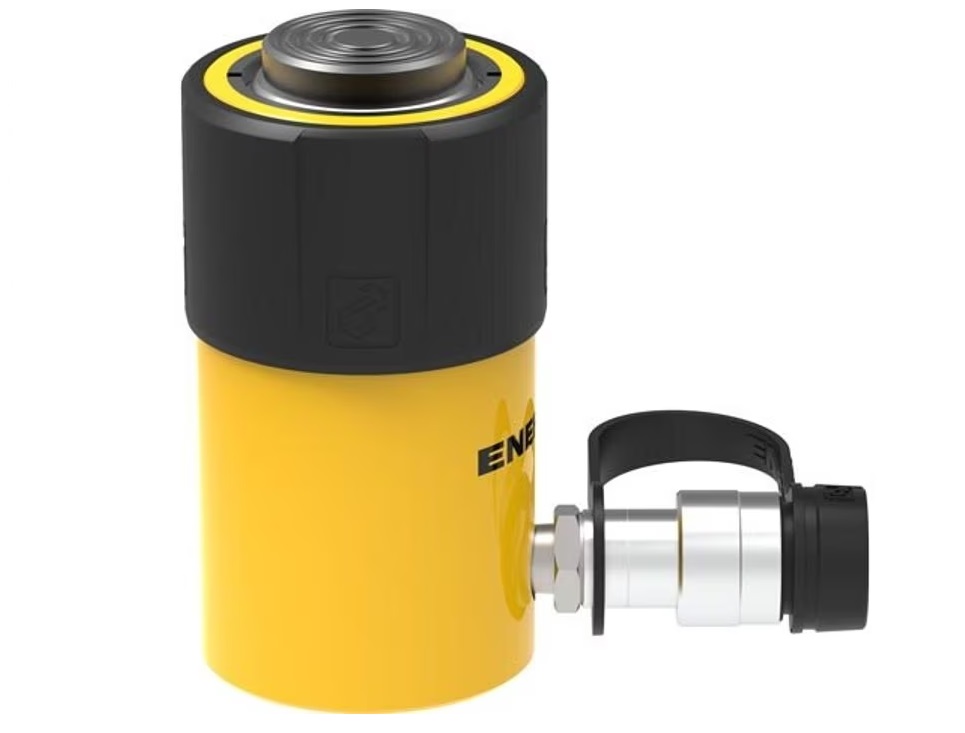

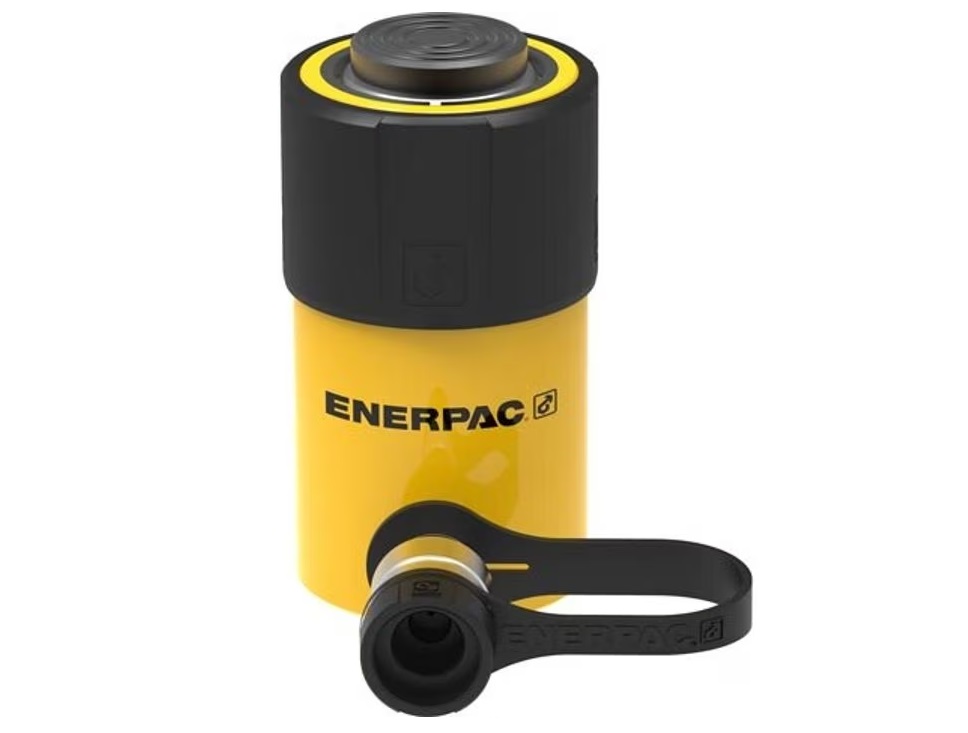

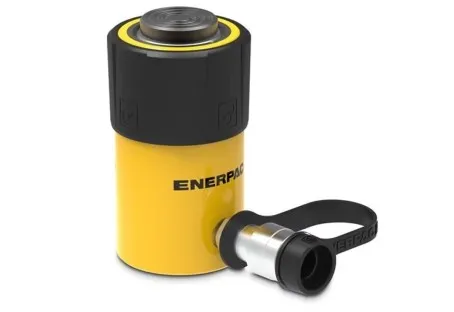

Enerpac RC252 General Purpose Hydraulic Cylinder 25 Ton, 50 mm Stroke

Estimated lead time:1 to 2 days delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Enerpac RC252 General Purpose Hydraulic Cylinder 25 Ton, 50 mm Stroke

Brand:

Description

Enerpac RC252 General Purpose Hydraulic Cylinder 25 Ton, 50 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£679.99 ex VAT

£815.99 inc VAT

Do you require a hose, gauge, and pump to complete your order?

Related products

Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke

RC101

Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£374.99 ex VAT

£449.99 inc VAT

Enerpac HC7206 High Pressure Hydraulic Hose x 1.8m

HC7206

The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.

£123.99 ex VAT

£148.79 inc VAT

Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump

P392

The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.

£534.99 ex VAT

£641.99 inc VAT

Enerpac RC151 General Purpose Hydraulic Cylinder 15 Ton, 25 mm Stroke

RC151

Enerpac RC151 General Purpose Hydraulic Cylinder 15 Ton, 25 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£514.99 ex VAT

£617.99 inc VAT

Enerpac RC251 General Purpose Hydraulic Cylinder 25 Ton, 26 mm Stroke

RC251

Enerpac RC251 General Purpose Hydraulic Cylinder 25 Ton, 26 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£614.99 ex VAT

£737.99 inc VAT

Enerpac RC254 General Purpose Hydraulic Cylinder 25 Ton, 102 mm Stroke

RC254

Enerpac RC254 General Purpose Hydraulic Cylinder 25 Ton, 102 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£752.99 ex VAT

£903.59 inc VAT

Enerpac RC256 General Purpose Hydraulic Cylinder 25 Ton, 158 mm Stroke

RC256

Enerpac RC256 General Purpose Hydraulic Cylinder 25 Ton, 158 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£834.99 ex VAT

£1,001.99 inc VAT

Enerpac RC502 General Purpose Hydraulic Cylinder 50 Ton, 51 mm Stroke

RC502

Enerpac RC502 General Purpose Hydraulic Cylinder 50 Ton, 51 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£1,259.99 ex VAT

£1,511.99 inc VAT

Enerpac RC504 General Purpose Hydraulic Cylinder 50 Ton, 101 mm Stroke

RC504

Enerpac RC504 General Purpose Hydraulic Cylinder 50 Ton, 101 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£1,399.99 ex VAT

£1,679.99 inc VAT

Enerpac RCS302 Low Height Hydraulic Cylinder 30 Ton, 62 mm Stroke

RCS302

Enerpac RCS302 Low Height Hydraulic Cylinder 30 Ton, 62 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice where space is limited or constrained.

£664.99 ex VAT

£797.99 inc VAT

Enerpac RCS502 Low Height Hydraulic Cylinder 50 Ton, 60 mm Stroke

RCS502

Enerpac RCS502 Low Height Hydraulic Cylinder 50 Ton, 60 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice where space is limited or constrained.

£824.99 ex VAT

£989.99 inc VAT

Enerpac RC252 General Purpose Hydraulic Cylinder 25 Ton, 50 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


Superior versatility, durability, and, quality. RC-Series Hydraulic Cylinders are our most versatile cylinder and the driving force of the Enerpac range. They feature a robust bearing system for superior durability and a hybrid spring-return system for faster retraction speed.


Technical Information for the 25-tonne, 50mm stroke Enerpac RC252 General Purpose Hydraulic Cylinder

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RC252
25 Tonne
50 mm
165 mm
215 mm
700 Bar
Single Acting
Spring  Return
166 cm3
CR400 Coupler
6.4 Kg
RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.


The Full range of ENERPAC 25-tonne RC-Series Single-Acting Cylinders - Are available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RC251
25 Tonne26 mm
140 mm
166 mm
700 Bar
Single Acting
Spring  Return
86 cm3
CR400 Coupler
5.9 Kg
RC252
25 Tonne
50 mm
165 mm
215 mm
700 Bar
Single Acting
Spring  Return
166 cm3
CR400 Coupler
6.4 Kg
RC254
25 Tonne
102 mm
216 mm
318 mm
700 Bar
Single Acting
Spring  Return
339 cm3
CR400 Coupler
8.2 Kg
RC256
25 Tonne
158 mm
273 mm
431 mm
700 Bar
Single Acting
Spring  Return
525 cm3
CR400 Coupler
10.0 Kg
RC258
25 Tonne
210 mm
324 mm
534 mm
700 Bar
Single Acting
Spring  Return
697 cm3
CR400 Coupler
12.2 Kg
RC2510
25 Tonne
261 mm
375 mm
636 mm
700 Bar
Single Acting
Spring  Return
867 cm3
CR400 Coupler
14.1 Kg
RC2512
25 Tonne
311 mm
425 mm
736 mm
700 Bar
Single Acting
Spring  Return
1033 cm3
CR400 Coupler
16.3 Kg
RC2514
25 Tonne
362 mm
476 mm
838 mm
700 Bar
Single Acting
Spring  Return
1202 cm3
CR400 Coupler
17.7 Kg
What is frequently bought with the 25-tonne, 50mm stroke Enerpac RC252 General Purpose Hydraulic Cylinder?

HC7206 High-Pressure Hydraulic Hose x 1.8m Long

GA45GC 45° Angled Gauge Adaptor Assembly

P392 Two-Speed Steel Hydraulic Hand Pump

Alternative pumps available

XC1202MB cordless hydraulic Pump.

XA12 Air-Driven Hydraulic Foot Pump

PATG1102N Turbo II air Hydraulic Pump

PUJ1201B Two-Speed Economy Electric Hydraulic Pump


More information about the Enerpac RC Series Single Acting Cylinder Range

New TRIO Bearing System

Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.

Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.

New high-performance Polyethylene seals last longer than ever, improving lifespan and keeping you working for longer.

New TRIO Stop Ring

Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load.

Capable of taking full cylinder extension force.

Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.

New TRIO Spring System

Hybrid pre-tensioned return springs for up to 3x faster retraction and increased productivity.

High-strength steel wire improves spring life.

Spring retention design improves serviceability while allowing higher pre-load during assembly.

Spring is easily removed without special tools.

Durable Piston Rod

High-strength steel plunger for improved life and sideload resistance.

Nickel-plated plunger coating improves corrosion protection.

Internal plunger threads for easy tool fixturing.

Enhanced Ergonomics

Standard carry handles on cylinders from 15 up to 25 kg. Sizes above 25 kg include certified lifting eyes or optional handles.

Base mounting holes enable easy fixturing.

Improved Saddle Retention

Hardened plunger saddle protects the plunger end during all lifting operations.

Easily removable for access to plunger mounting threads.

Tilt and smooth saddles are available as accessories (compatible with the new range of CATS-Series Tilt Saddles).

Enduring Compatibility

For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions, and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.



RC252, 232 kN Capacity, 50 mm Stroke, General Purpose Hydraulic Cylinder (RC252, 25.8 Ton Capacity, 2 in Stroke, General Purpose Hydraulic Cylinder)


Series: RC. Product Line: Enerpac Industrial Tools

Model: RC252 - ECCN: EAR99 - Harmonization: 8412210075

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RC252
25 Tonne
50 mm
165 mm
215 mm
700 Bar
Single Acting
Spring  Return
166 cm3
CR400 Coupler
6.4 Kg
RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.


The Full range of ENERPAC 25-tonne RC-Series Single-Acting Cylinders - Are available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RC251
25 Tonne26 mm
140 mm
166 mm
700 Bar
Single Acting
Spring  Return
86 cm3
CR400 Coupler
5.9 Kg
RC252
25 Tonne
50 mm
165 mm
215 mm
700 Bar
Single Acting
Spring  Return
166 cm3
CR400 Coupler
6.4 Kg
RC254
25 Tonne
102 mm
216 mm
318 mm
700 Bar
Single Acting
Spring  Return
339 cm3
CR400 Coupler
8.2 Kg
RC256
25 Tonne
158 mm
273 mm
431 mm
700 Bar
Single Acting
Spring  Return
525 cm3
CR400 Coupler
10.0 Kg
RC258
25 Tonne
210 mm
324 mm
534 mm
700 Bar
Single Acting
Spring  Return
697 cm3
CR400 Coupler
12.2 Kg
RC2510
25 Tonne
261 mm
375 mm
636 mm
700 Bar
Single Acting
Spring  Return
867 cm3
CR400 Coupler
14.1 Kg
RC2512
25 Tonne
311 mm
425 mm
736 mm
700 Bar
Single Acting
Spring  Return
1033 cm3
CR400 Coupler
16.3 Kg
RC2514
25 Tonne
362 mm
476 mm
838 mm
700 Bar
Single Acting
Spring  Return
1202 cm3
CR400 Coupler
17.7 Kg



Why purchase equipment from Enerpac?

As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
