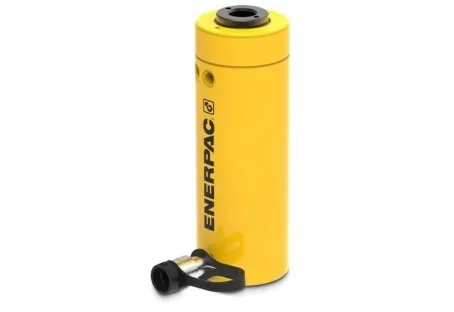

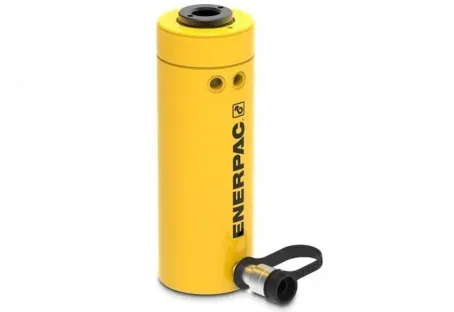

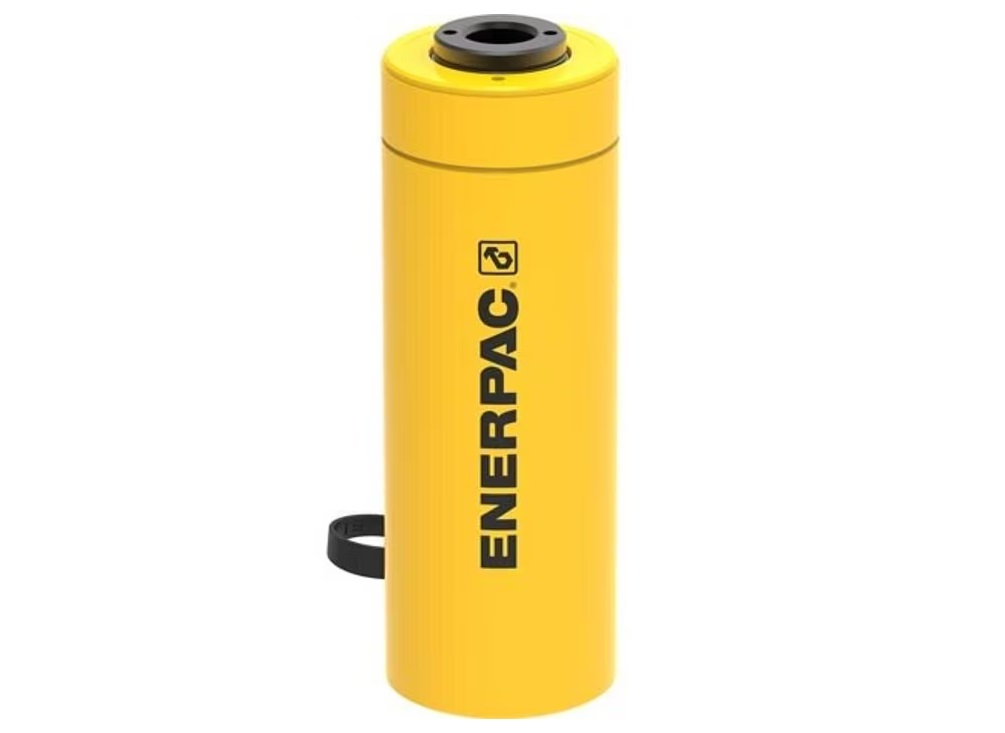

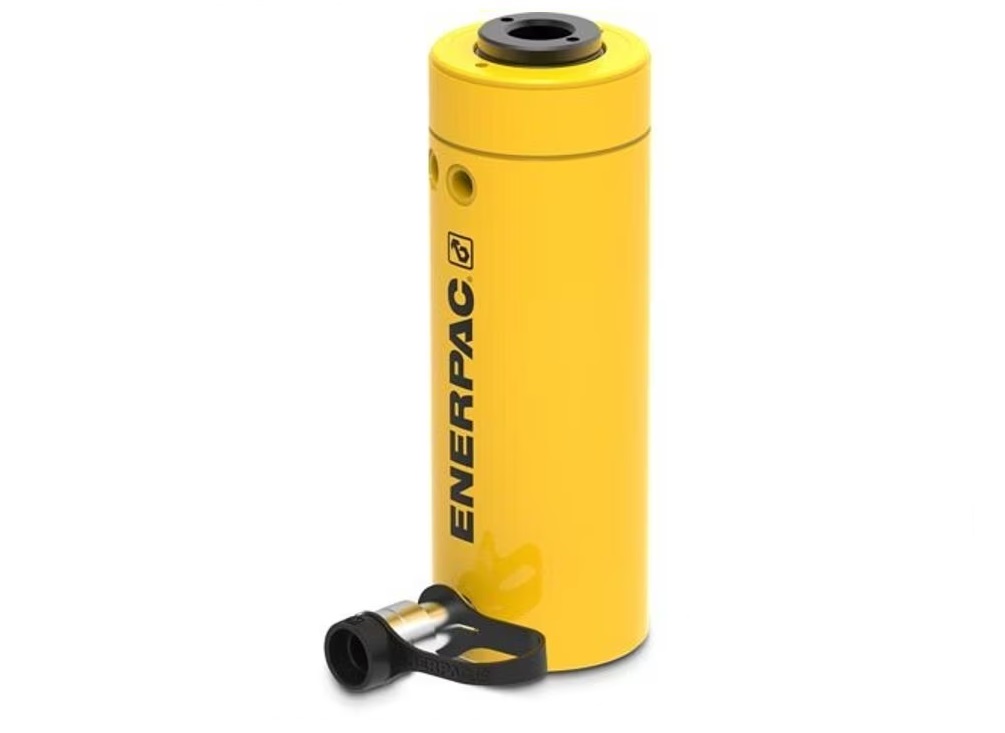

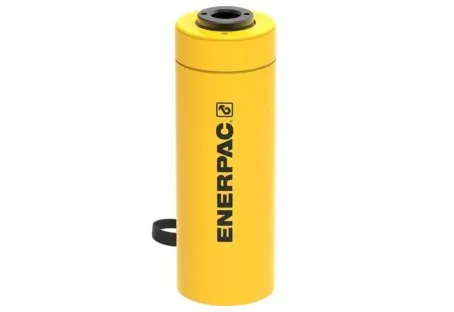

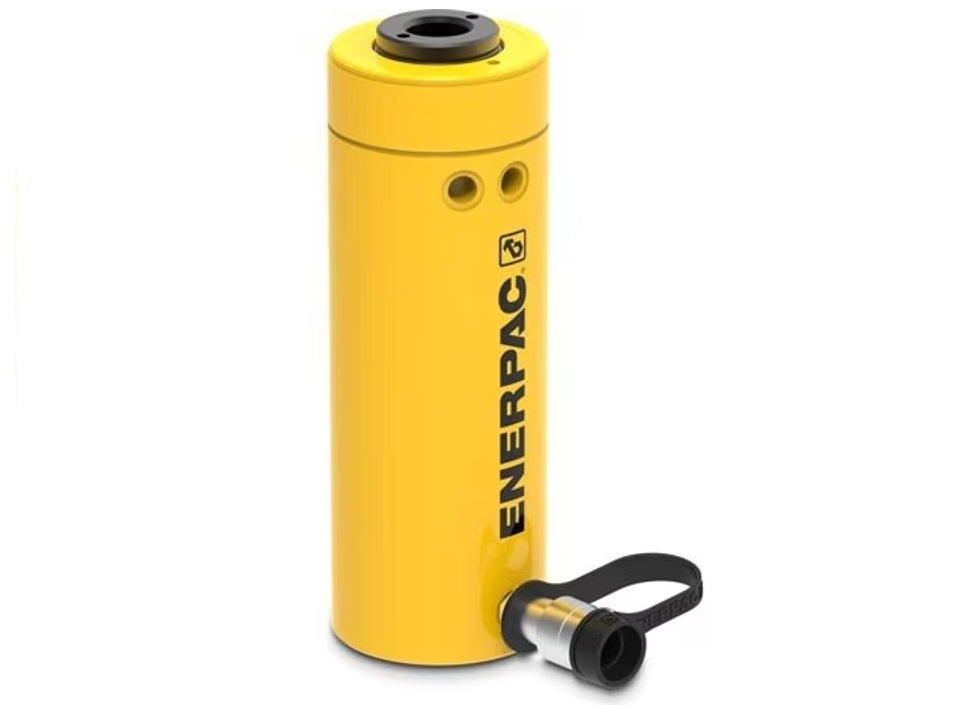

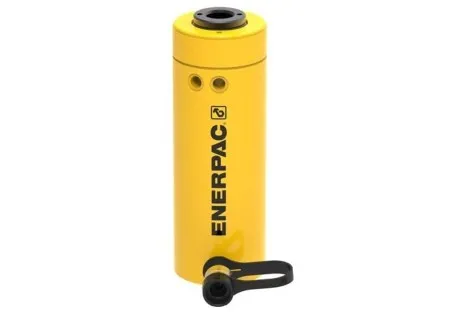

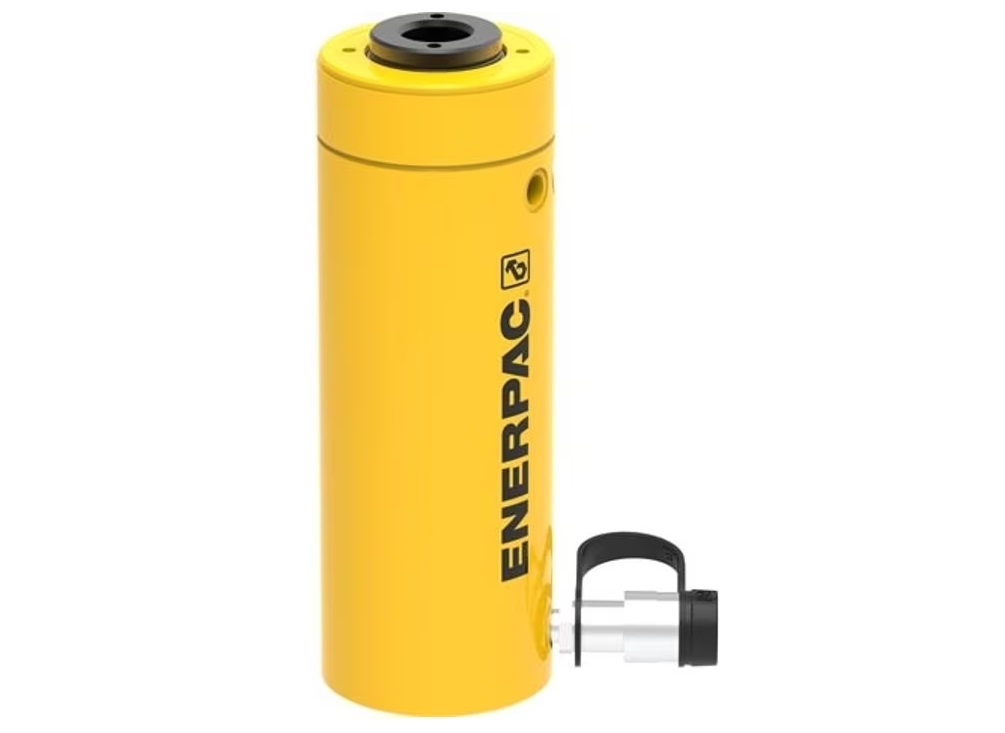

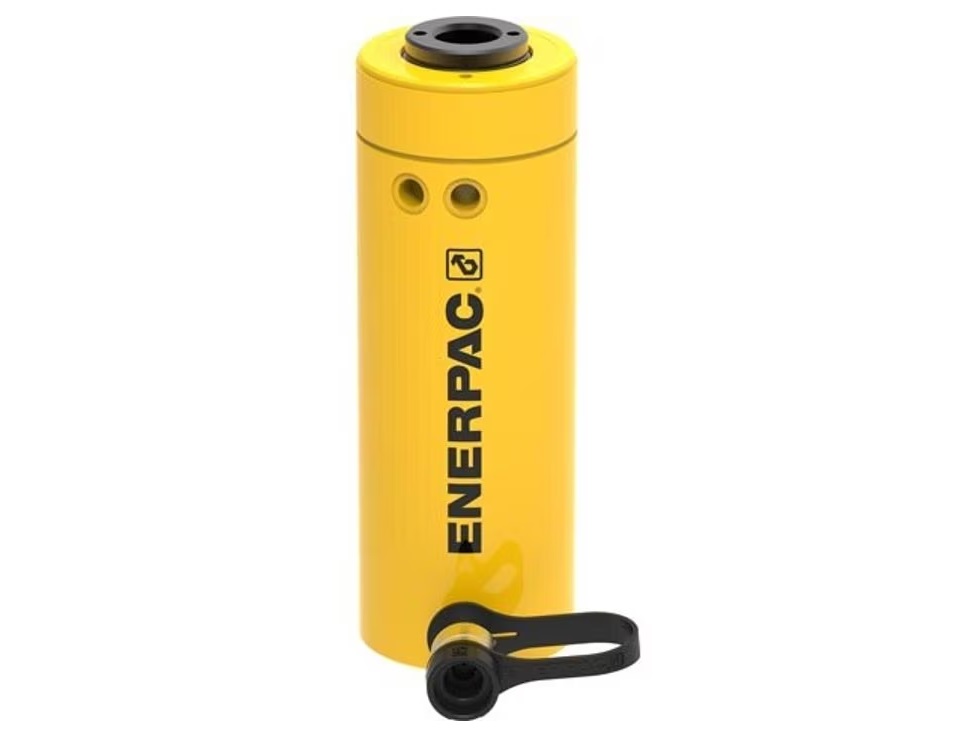

Enerpac RCH306 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 155 mm Stroke

Estimated lead time:This is not a stocked Item. Delivery will be direct from Enerpac - Estimated Delivery time is 7 to 10 working days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Enerpac RCH306 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 155 mm Stroke

Brand:

Description

Enerpac RCH306 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 155 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications


£1,539.99 ex VAT

£1,847.99 inc VAT

Do you require a hose, gauge, and pump to complete your order?

Related products

Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump

P392

The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.

£534.99 ex VAT

£641.99 inc VAT

Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m

HC7206C

The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.

£154.99 ex VAT

£185.99 inc VAT

Enerpac RCH202 Single Acting Hollow Plunger Hydraulic Cylinder 20 Tonne, 49 mm Stroke

RCH202

Enerpac RCH202 Single Acting Hollow Plunger Hydraulic Cylinder 20 Tonne, 49 mm Stroke offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications


£949.99 ex VAT

£1,139.99 inc VAT

Enerpac RCH302 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 64 mm Stroke

RCH302

Enerpac RCH302 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 64 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications


£1,019.99 ex VAT

£1,223.99 inc VAT

Enerpac RCH603 Single Acting Hollow Plunger Hydraulic Cylinder 60 Tonne, 76 mm Stroke

RCH603

Enerpac RCH603 Single Acting Hollow Plunger Hydraulic Cylinder 60 Tonne, 76 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications


£1,899.99 ex VAT

£2,279.99 inc VAT

Enerpac RCH606 Single Acting Hollow Plunger Hydraulic Cylinder 60 Tonne, 153 mm Stroke

RCH606

Enerpac RCH606 Single Acting Hollow Plunger Hydraulic Cylinder 60 Tonne, 153 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications


£2,379.99 ex VAT

£2,855.99 inc VAT

Enerpac RCH306 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne, 155 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications. The centre hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has a nickel-plated floating centre tube to reduce side load damage and increase the product life.


Why use the Enerpac RCH-Series Single Acting Hollow Plunger Hydraulic Cylinders? - Enerpac cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. They offer versatility in testing, maintenance, and tensioning applications.


30-tonne, 155mm stroke Enerpac RCH306 Hollow Plunger Cylinder - Single Acting

Model
Capacity
Stroke
Collapsed Height
Extended Height
Centre Hole Dia
Plunger Type
Operating Pressure
Oil Capacity Advance
Coupler
Weight
RCH306
30 Tonne
155 mm
330 mm
485 mm
33.3 mm
Hollow
700 bar
722 cm3
CR400 Coupler
21.8 Kg

The Full range of The ENERPAC RCH-Series, Hollow Plunger Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Centre Hole Dia
Plunger Type
Operating Pressure
Oil Capacity Advance
Coupler
Weight
RCH302
30 Tonne64 mm
178 mm
242 mm
33.3 mm
Hollow
700 bar
298 cm3
CR400 Coupler
10.9 Kg
RCH306
30 Tonne
155 mm
330 mm
485 mm
33.3 mm
Hollow
700 bar
722 cm3
CR400 Coupler
21.8 Kg

What is frequently bought with the Enerpac RCH306 Single Acting Hollow Plunger Hydraulic Cylinder 30 Tonne 155 mm Stroke

HC7206C High-Pressure Hydraulic Hose x 1.8m Long.

GA45GC 45° Angled Gauge Adaptor Assembly.

P392 Two Speed Steel Lightweight Hydraulic Hand Pump.

Alternative pumps available

XC1202MB Cordless Hydraulic Pump.

XA12 Air-Driven Hydraulic Foot Pump.

PATG1102N Turbo II air Hydraulic Pump.

PUD1301B Two-Speed Economy Electric Hydraulic Pump.


Key Features on the RCH Series Hollow Plunger Cylinders

Hollow plunger design allows for both pull and push forces.

Single-acting spring return.

Nickel-plated, floating centre tube on models over 218 kNs increases product life.

Baked enamel finish for increased corrosion resistance.

Collar threads for easy fixturing.

Includes AR630 coupler and has 1/4 NPTF port.


RCH306, 326 kN Capacity, 155 mm Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder (RCH306, 36.1 Ton Capacity, 6.13 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder)


Model: RCH306

ECCN: EAR99

Harmonization: 8412210075

Series: RCH Product Line: Industrial Tools


RCH Series Hollow Plunger Cylinders

Hollow plunger design allows for both, pull and push forces.

Single-acting, spring return.

Nickel-plated, floating centre tube on models over 20 tonnes increases product life.

Baked enamel finish for increased corrosion resistance.

Collar threads for easy fixturing.

RCH120 includes AR630 coupler and has 1/4" NPTF port.

RCH121 and RCH1211 have FZ1630 reducer and AR630 coupler (all other models feature CR400 coupler)

Model
Capacity
Stroke
Collapsed Height
Extended Height
Centre Hole Dia
Plunger Type
Operating Pressure
Oil Capacity Advance
Coupler
Weight
RCH306
30 Tonne
155 mm
330 mm
485 mm
33.3 mm
Hollow
700 bar
722 cm3
CR400 Coupler
21.8 Kg

The Full range of The ENERPAC RCH-Series, Hollow Plunger Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Centre Hole Dia
Plunger Type
Operating Pressure
Oil Capacity Advance
Coupler
Weight
RCH302
30 Tonne64 mm
178 mm
242 mm
33.3 mm
Hollow
700 bar
298 cm3
CR400 Coupler
10.9 Kg
RCH306
30 Tonne
155 mm
330 mm
485 mm
33.3 mm
Hollow
700 bar
722 cm3
CR400 Coupler
21.8 Kg



Why purchase equipment from Enerpac?

As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
