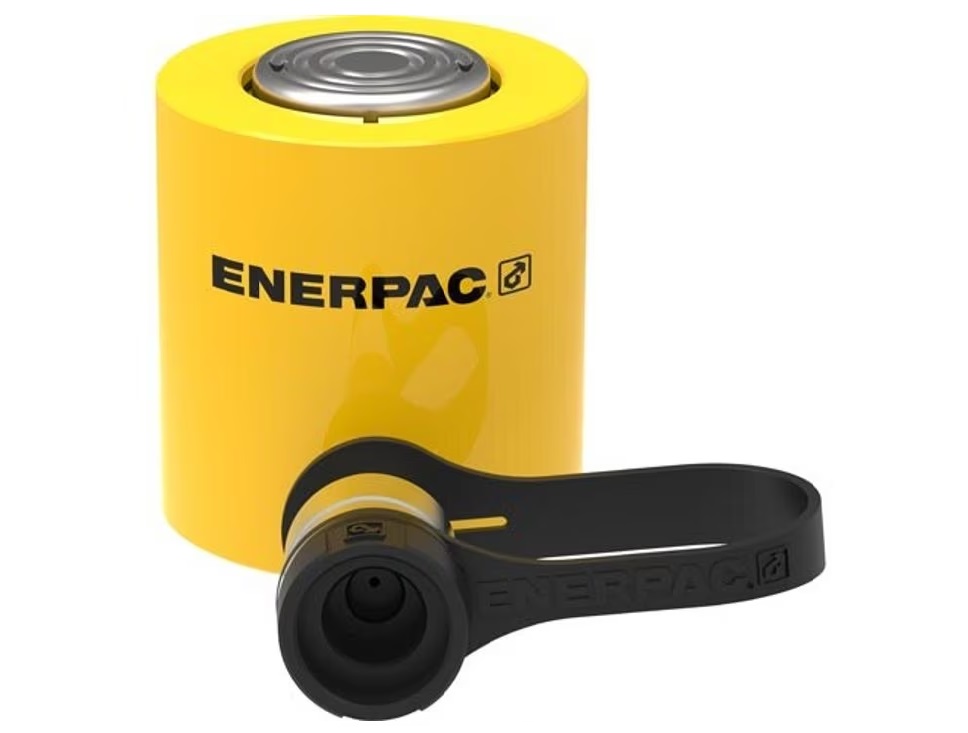

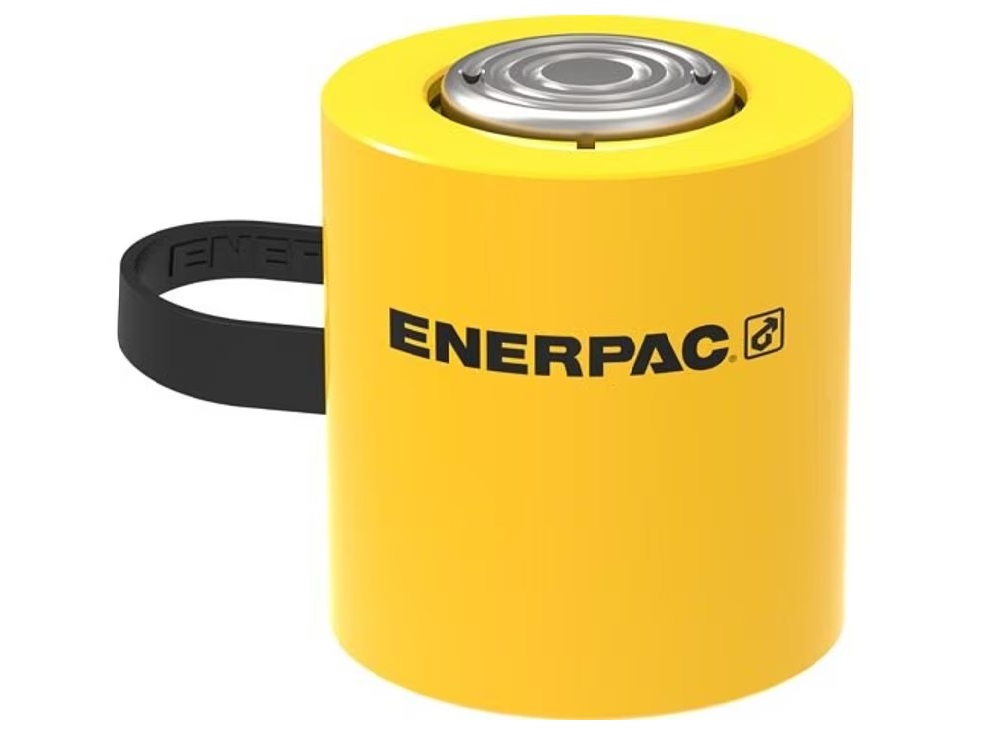

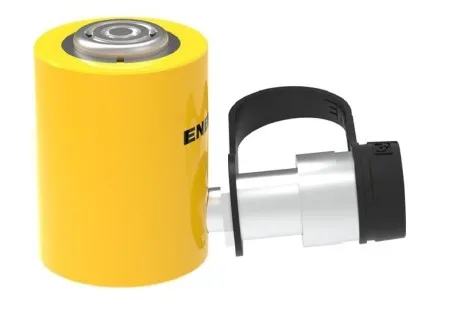

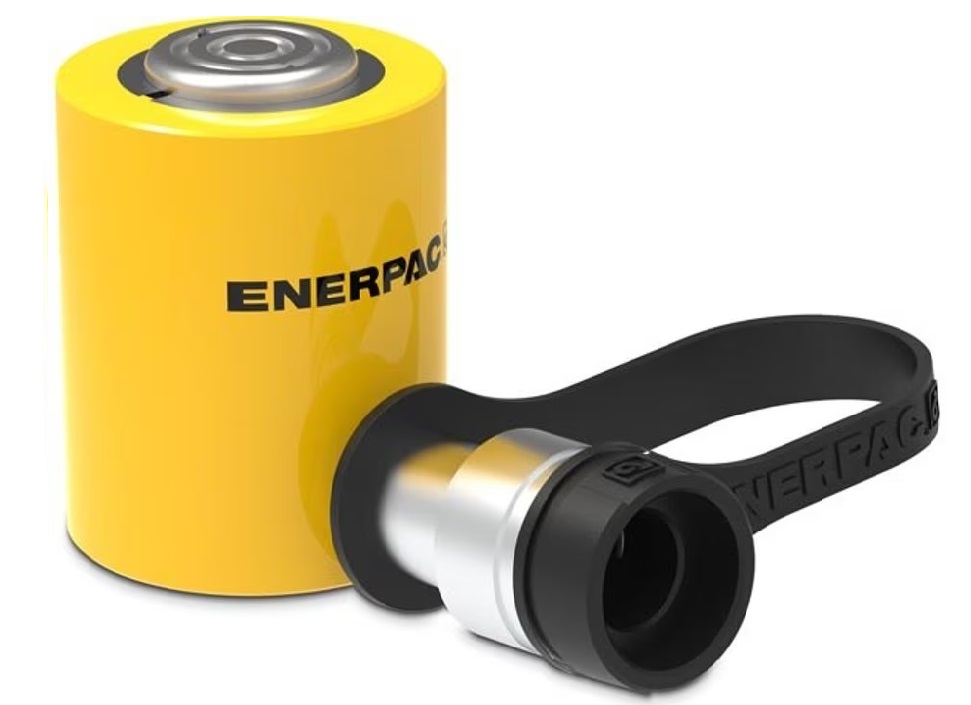

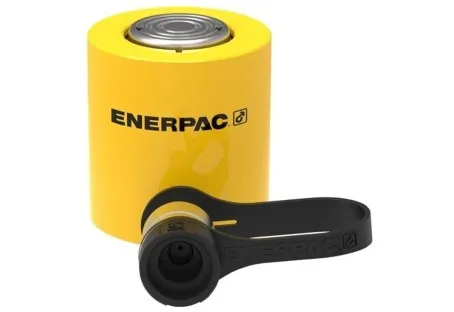

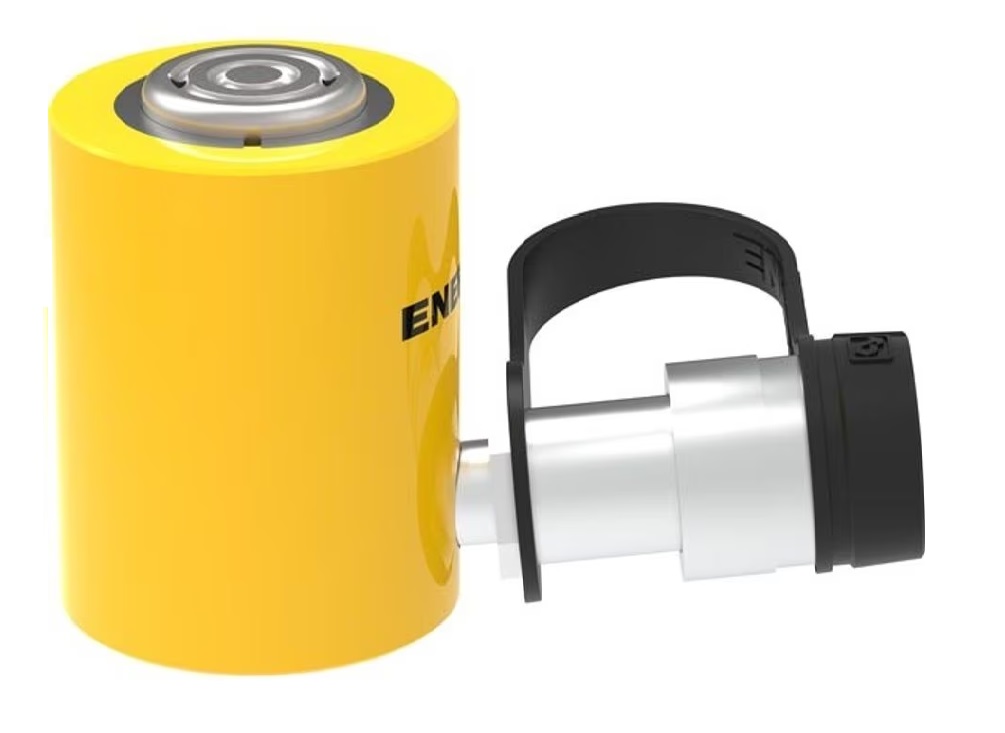

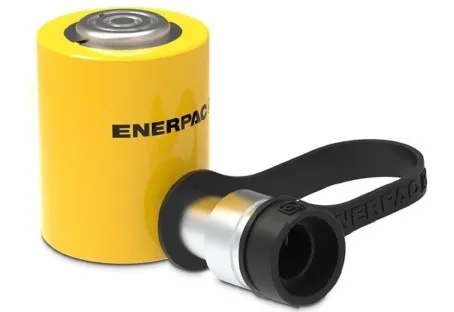

Enerpac RCS201 Low Height Hydraulic Cylinder 20 Ton, 45 mm Stroke

Estimated lead time:1 to 2 days delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Enerpac RCS201 Low Height Hydraulic Cylinder 20 Ton, 45 mm Stroke

Brand:

Description

Enerpac RCS201 Low Height Hydraulic Cylinder 20 Ton, 45 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice where space is limited or constrained.

£509.99 ex VAT

£611.99 inc VAT

Do you require a hose, gauge, and pump to complete your order?

Related products

Enerpac RC51 General Purpose Hydraulic Cylinder 5 Ton, 25 mm Stroke

RC51

Enerpac RC51 General Purpose Hydraulic Cylinder 5 Ton, 25 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£349.99 ex VAT

£419.99 inc VAT

Enerpac HC7206 High Pressure Hydraulic Hose x 1.8m

HC7206

The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.

£123.99 ex VAT

£148.79 inc VAT

Enerpac P39 Single Speed Hydraulic Hand Pump

P39

The Enerpac P39 Single Speed Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. Each model in the series features an all-steel construction ideal long-lasting performance.

£399.99 ex VAT

£479.99 inc VAT

Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m

HC7206C

The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.

£154.99 ex VAT

£185.99 inc VAT

Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke

RSM100

Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited.


£384.99 ex VAT

£461.99 inc VAT

Enerpac RCS201 Low Height Hydraulic Cylinder 20 Ton, 45 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enable safety and stability in both vertical and horizontal orientations.


Why use the Enerpac RSC-Series Low Profile Hydraulic Cylinders? - Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, more convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).


20-tonne, 45mm stroke Enerpac RCS201 Low Height Hydraulic Cylinder

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RCS201
20 Tonne
45 mm
98 mm
143 mm
700 Bar
Single Acting
Spring   Return
129 cm3
CR400 Coupler
5.0 Kg

The Full range of The ENERPAC RCS Low Height Hydraulic Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RCS101
10 Tonne38 mm
88 mm
126 mm
700 Bar
Single Acting
Spring   Return
55 cm3
CR400 Coupler
2.7 Kg
RCS201
20 Tonne
45 mm
98 mm
143 mm
700 Bar
Single Acting
Spring   Return
129 cm3
CR400 Coupler
5.0 Kg
RCS302
30 Tonne
62 mm
117 mm
179 mm
700 Bar
Single Acting
Spring   Return
261 cm3
CR400 Coupler
6.8 Kg
RCS502
50 Tonne
60 mm
122 mm
182 mm
700 Bar
Single Acting
Spring   Return
373 cm3
CR400 Coupler
10.0 Kg
RCS1002
100 Tonne
57 mm
141 mm
198 mm
700 Bar
Single Acting
Spring   Return
722 cm3
CR400 Coupler
20.7Kg

What is frequently bought with the 20-tonne, 45mm stroke Enerpac RCS201 Low Height Hydraulic Cylinder

HC7206 High-Pressure Hydraulic Hose x 1.8m Long.

GA45GC 45° Angled Gauge Adaptor Assembly.

P39 Single Speed Steel Hydraulic Hand Pump.

Alternative pumps available

XC1202MB Cordless Hydraulic Pump.

XA12 Air-Driven Hydraulic Foot Pump.

PATG1102N Turbo II air Hydraulic Pump.

PUJ1201B Two-Speed Economy Electric Hydraulic Pump.


Key Features on the RCS Low Profile Hydraulic Cylinders

Lightweight, low-profile design for use in confined spaces.

Baked enamel finish for increased corrosion resistance.

Plunger wiper reduces contamination, extending cylinder life.

CR400 coupler and dust cap are included on all models.

Grooved plunger end with threaded holes for mounting tilt saddles.

Plated steel plungers.

Single-acting spring return.



RCS201, 201 kN Capacity, 45 mm Stroke, Low Height Hydraulic Cylinder (RCS201, 22.1 Ton Capacity, 1.5 in Stroke, Low Height Hydraulic Cylinder)


Model: RCS201

ECCN: EAR99

Harmonization: 8412210075

Series: RCS

Product Line: Industrial Tools


RCS-series, Low-Height Cylinders

Lightweight, low-profile design for use in confined spaces.

Single-acting, spring return.

Baked enamel finish for increased corrosion resistance.

Plunger wiper reduces contamination, extending cylinder life.

CR400 coupler and dust cap are included on all models.

Grooved plunger end with threaded holes for mounting tilt saddles.

Integral handle on RCS1002 for easy carrying.

Plated steel plungers.

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RCS201
20 Tonne
45 mm
98 mm
143 mm
700 Bar
Single Acting
Spring   Return
129 cm3
CR400 Coupler
5.0Kg

The Full range of The ENERPAC RCS Low Height Hydraulic Cylinders - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RCS101
10 Tonne38 mm
88 mm
126 mm
700 Bar
Single Acting
Spring   Return
55 cm3
CR400 Coupler
2.7 Kg
RCS201
20 Tonne
45 mm
98 mm
143 mm
700 Bar
Single Acting
Spring   Return
129 cm3
CR400 Coupler
5.0 Kg
RCS302
30 Tonne
62 mm
117 mm
179 mm
700 Bar
Single Acting
Spring   Return
261 cm3
CR400 Coupler
6.8 Kg
RCS502
50 Tonne
60 mm
122 mm
182 mm
700 Bar
Single Acting
Spring   Return
373 cm3
CR400 Coupler
10.0 Kg
RCS1002
100 Tonne
57 mm
141 mm
198 mm
700 Bar
Single Acting
Spring   Return
722 cm3
CR400 Coupler
20.7Kg



Why purchase equipment from Enerpac?

As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
