Enerpac RSM200 Low Height Hydraulic Cylinder 20 Ton, 11 mm Stroke

Estimated lead time:1 to 2 days delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

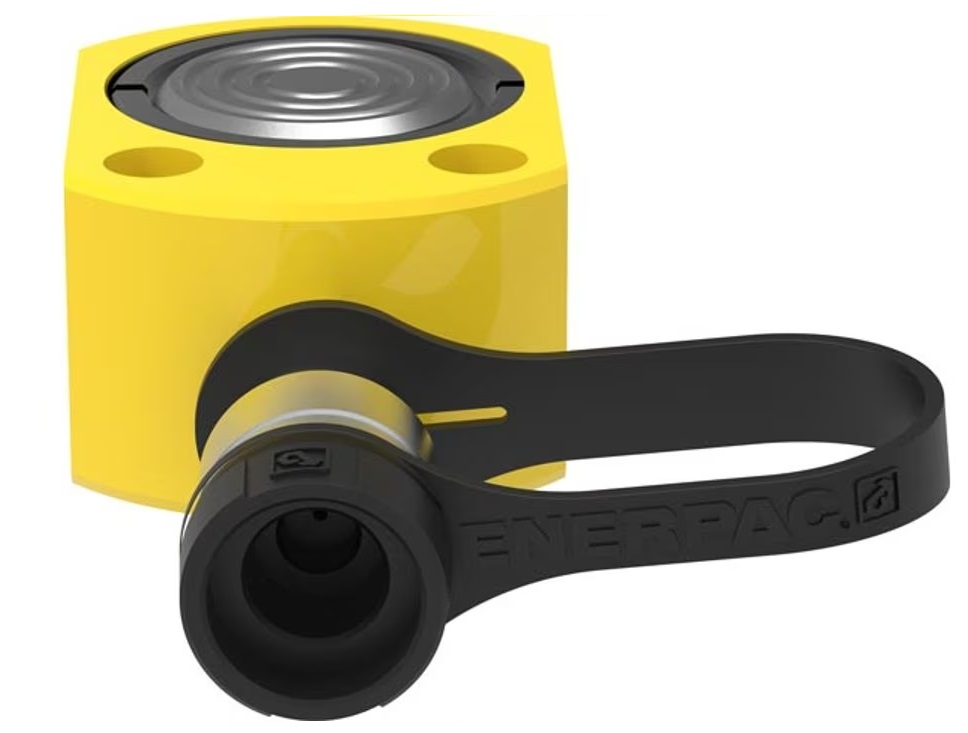

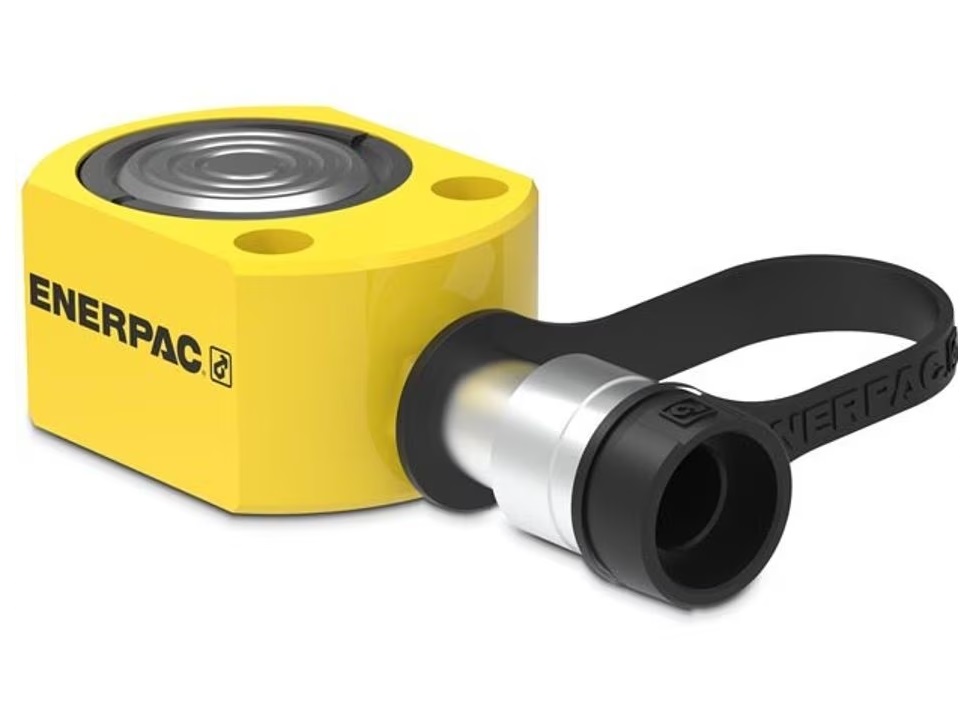

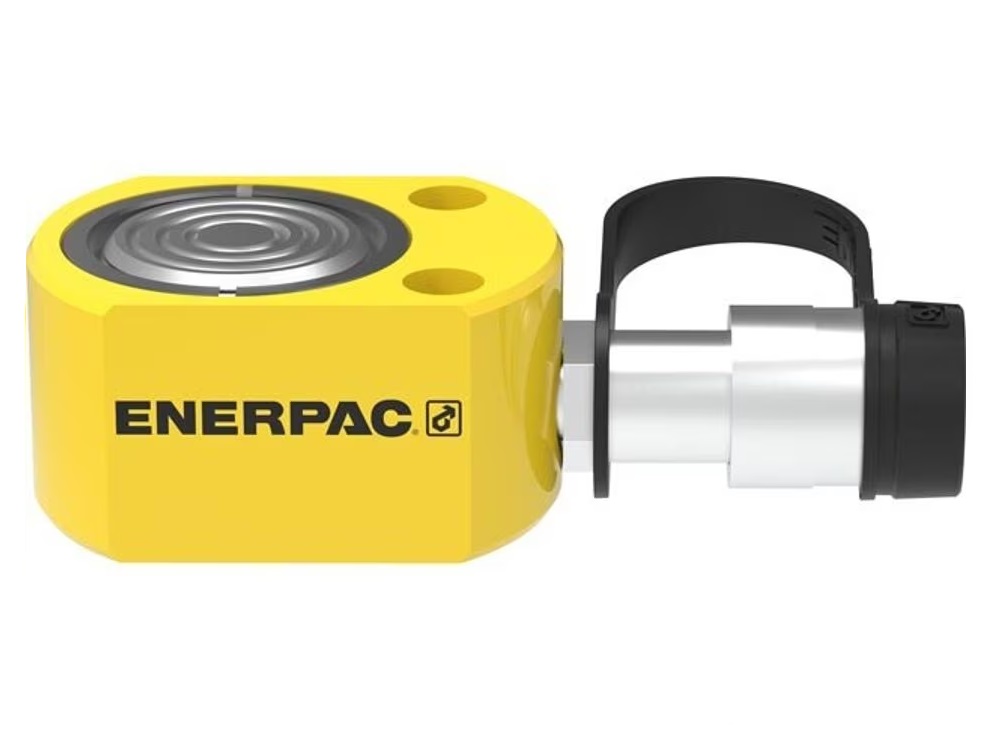

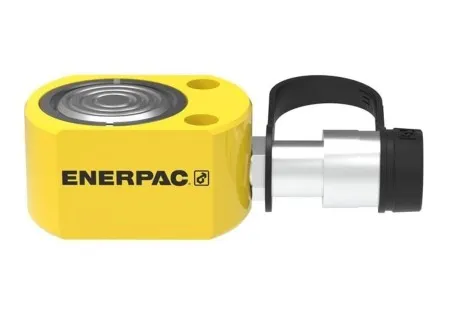

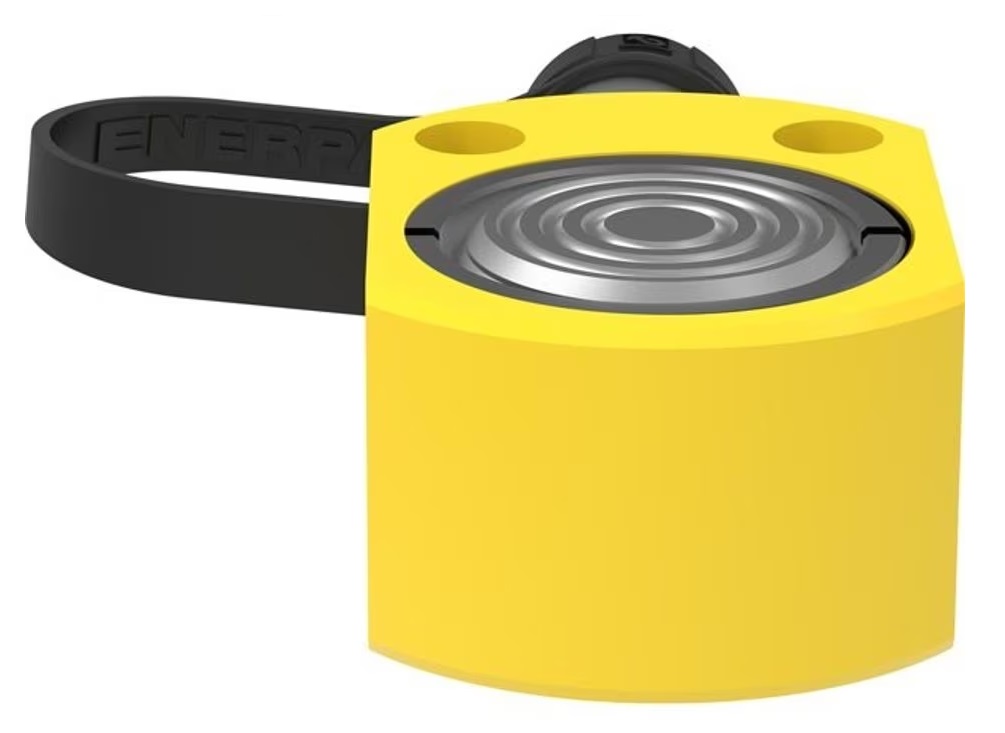

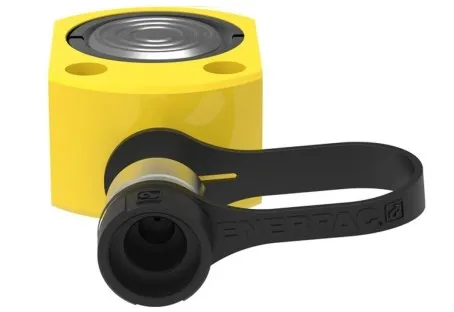

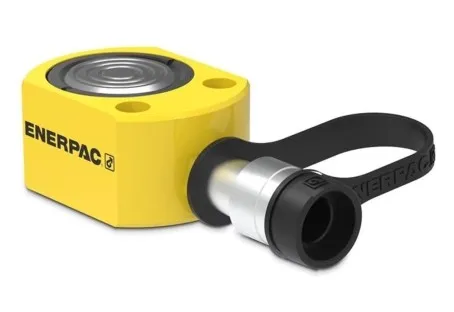

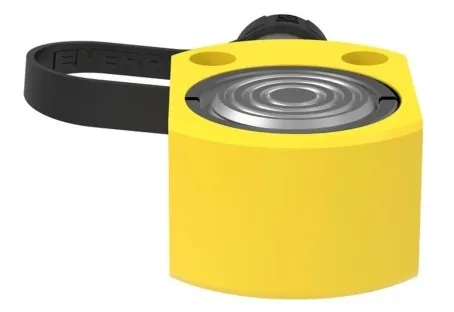

Enerpac RSM200 Low Height Hydraulic Cylinder 20 Ton, 11 mm Stroke

Brand:

Description

Enerpac RSM200 Low Height Hydraulic Cylinder 20 Ton, 11 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited.


£499.99 ex VAT

£599.99 inc VAT

Do you require a hose, gauge, and pump to complete your order?

Related products

Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke

RC101

Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£374.99 ex VAT

£449.99 inc VAT

Enerpac HC7206 High Pressure Hydraulic Hose x 1.8m

HC7206

The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.

£123.99 ex VAT

£148.79 inc VAT

Enerpac P39 Single Speed Hydraulic Hand Pump

P39

The Enerpac P39 Single Speed Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. Each model in the series features an all-steel construction ideal long-lasting performance.

£399.99 ex VAT

£479.99 inc VAT

Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m

HC7206C

The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.

£154.99 ex VAT

£185.99 inc VAT

Enerpac RC251 General Purpose Hydraulic Cylinder 25 Ton, 26 mm Stroke

RC251

Enerpac RC251 General Purpose Hydraulic Cylinder 25 Ton, 26 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.


£614.99 ex VAT

£737.99 inc VAT

Enerpac RSM300 Low Height Hydraulic Cylinder 30 Ton, 13 mm Stroke

RSM300

Enerpac RSM300 Low Height Hydraulic Cylinder 30 Ton, 13 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited.


£649.99 ex VAT

£779.99 inc VAT

Enerpac RSM200 Low Height Hydraulic Cylinder 20 Ton, 11 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited. A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.


Why use the Enerpac RSM-Series Low Profile Hydraulic Cylinders? - Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. The Enerpac RSM cylinders are different and include a powerful return spring, which is faster, more convenient, and more productive.


RSM-Series Cylinders are a popular choice. Not only for general lifting but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.


 20-tonne, 11mm stroke Enerpac RSM200 Low Height Hydraulic Cylinder

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RSM200
20 Tonne
11 mm
51 mm
62 mm
700 Bar
Single Acting
Spring   Return
32 cm3
CR400 Coupler
3.1 Kg

The Full range of The ENERPAC RSM Low Height Hydraulic Cylinder - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RSM50
5 Tonne6 mm
32 mm
38 mm
700 Bar
Single Acting
Spring   Return
4 cm3
AR400 Coupler
1.0 Kg
RSM100
10 Tonne
11 mm
43 mm
54 mm
700 Bar
Single Acting
Spring   Return
18 cm3
CR400 Coupler
1.4 Kg
RSM200
20 Tonne
11 mm
51 mm
62 mm
700 Bar
Single Acting
Spring   Return
32 cm3
CR400 Coupler
3.1 Kg
RSM300
30 Tonne
13 mm
58 mm
71 mm
700 Bar
Single Acting
Spring   Return
55 cm3
CR400 Coupler
4.5 Kg
RSM500
50 Tonne
16 mm
66 mm
82 mm
700 Bar
Single Acting
Spring   Return
99 cm3
CR400 Coupler
6.8Kg
RSM750
75 Tonne
16 mm
79 mm
95 mm
700 Bar
Single Acting
Spring   Return
164 cm3
CR400 Coupler
11.3 Kg
RSM1000
100 Tonne
16 mm
85 mm
101 mm
700 Bar
Single Acting
Spring   Return
203 cm3
CR400 Coupler
14.5 Kg
RSM1500
150 Tonne
16 mm
100 mm
116 mm
700 Bar
Single Acting
Spring   Return
317 cm3
CR400 Coupler
26.3 Kg

What is frequently bought with the 20-tonne, 11mm stroke Enerpac RSM200 Low Height Hydraulic Cylinder

HC7206 High-Pressure Hydraulic Hose x 1.8m Long.

GA45GC 45° Angled Gauge Adaptor Assembly.

P39 Single Speed Steel Hydraulic Hand Pump.

Alternative pumps available

XC1202MB Cordless Hydraulic Pump.

XA12 Air-Driven Hydraulic Foot Pump.

PATG1102N Turbo II air Hydraulic Pump.

PUJ1201B Two-Speed Economy Electric Hydraulic Pump.


Key Features on the RSM Low Profile Hydraulic Cylinders

Compact, flat design for use where other cylinders will not fit.

Mounting holes permit easy fixturing.

Baked enamel finish for increased corrosion resistance.

AR400 coupler and dust cap included.

Hard chrome plated high-quality steel plungers.

Grooved plunger ends require no saddle.

Single-acting spring return.



RSM200, 201 kN Capacity, 11 mm Stroke, Low Height Hydraulic Cylinder (RSM200, 22.1 Ton Capacity, .44 in Stroke, Low Height Hydraulic Cylinder)


Model: RSM200

ECCN: EAR99

Harmonization: 8412210075

Series: RSM

Product Line: Industrial Tools


RSM-series, Low-Height Cylinders

Compact, flat design for use where most other cylinders will not fit.

Single-acting, spring return.

RSM750, 1000, and 1500 have handles for easy carrying.

Mounting holes permit easy fixturing.

Baked enamel finish for increased corrosion resistance.

CR400 coupler and dust cap included on all models).

Hard chrome plated high-quality steel plungers.

Grooved plunger ends require no saddle.

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return type
Oil Capacity Advance
Coupler
Weight
RSM200
20 Tonne
11 mm
51 mm
62 mm
700 Bar
Single Acting
Spring   Return
32 cm3
CR400 Coupler
3.1 Kg

The Full range of The ENERPAC RSM Low Height Hydraulic Cylinder - Available with different closed heights and different stroke lengths - Choose from below

Model
Capacity
Stroke
Collapsed Height
Extended Height
Operating Pressure
Return Type
Return Type
Oil Capacity Advance
Coupler
Weight
RSM50
5 Tonne6 mm
32 mm
38 mm
700 Bar
Single Acting
Spring   Return
4 cm3
AR400 Coupler
1.0 Kg
RSM100
10 Tonne
11 mm
43 mm
54 mm
700 Bar
Single Acting
Spring   Return
18 cm3
CR400 Coupler
1.4 Kg
RSM200
20 Tonne
11 mm
51 mm
62 mm
700 Bar
Single Acting
Spring   Return
32 cm3
CR400 Coupler
3.1 Kg
RSM300
30 Tonne
13 mm
58 mm
71 mm
700 Bar
Single Acting
Spring   Return
55 cm3
CR400 Coupler
4.5 Kg
RSM500
50 Tonne
16 mm
66 mm
82 mm
700 Bar
Single Acting
Spring   Return
99 cm3
CR400 Coupler
6.8Kg
RSM750
75 Tonne
16 mm
79 mm
95 mm
700 Bar
Single Acting
Spring   Return
164 cm3
CR400 Coupler
11.3 Kg
RSM1000
100 Tonne
16 mm
85 mm
101 mm
700 Bar
Single Acting
Spring   Return
203 cm3
CR400 Coupler
14.5 Kg
RSM1500
150 Tonne
16 mm
100 mm
116 mm
700 Bar
Single Acting
Spring   Return
317 cm3
CR400 Coupler
26.3 Kg



Why purchase equipment from Enerpac?

As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
