5 tonne Duplex Web slings - 150mm wide

Key notes for ordering:

All ULS Lifting Duplex Web slings are dispatched with certificates and ready to use straight out of the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

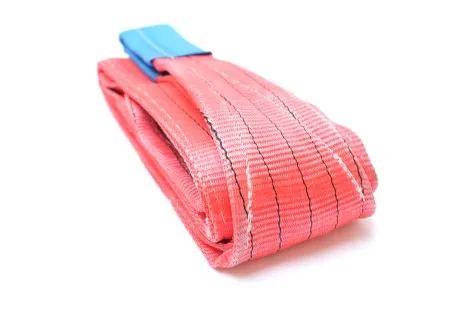

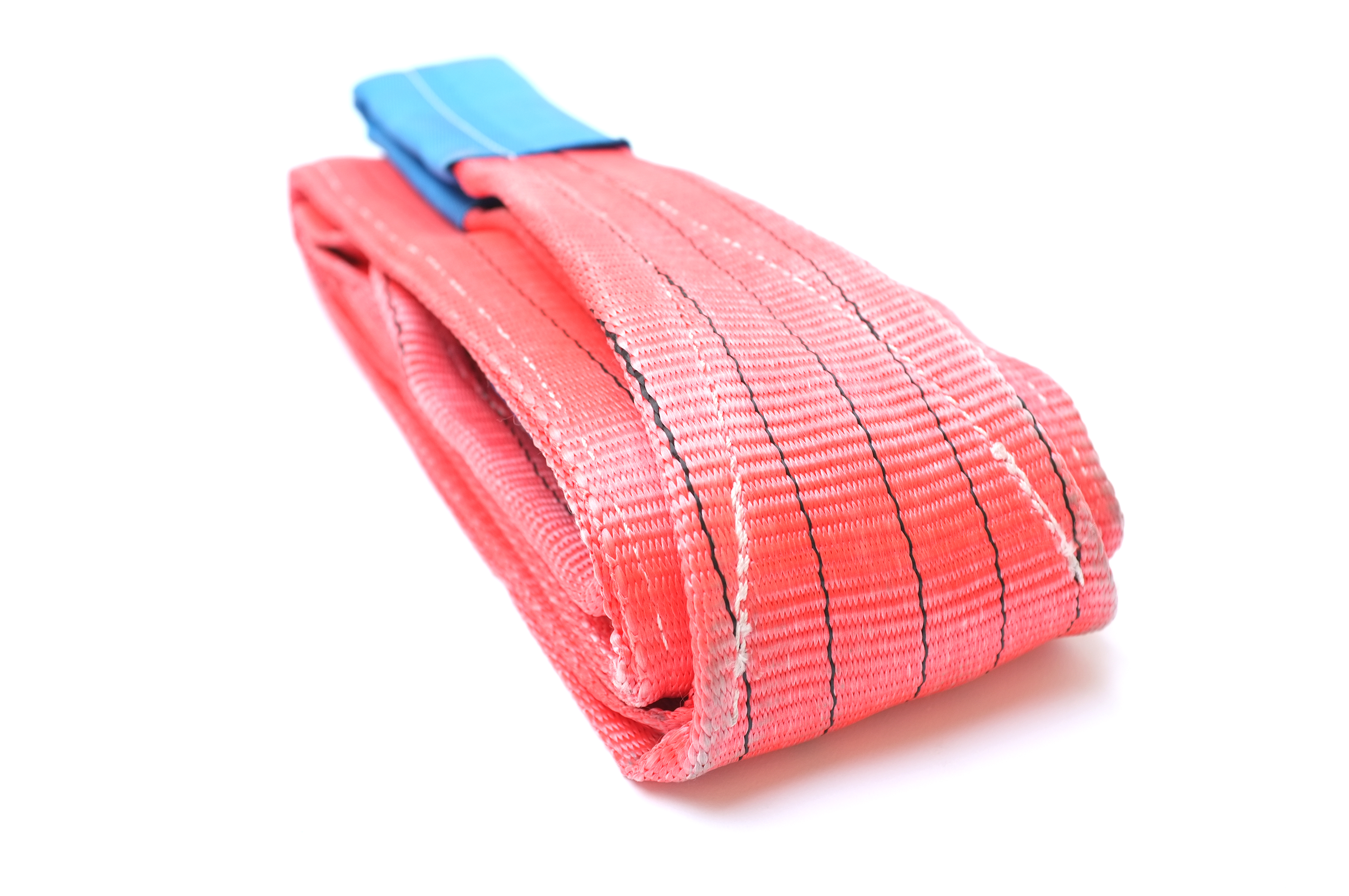

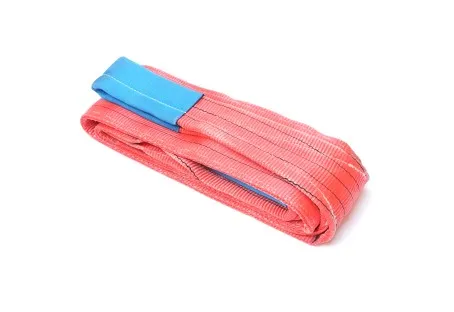

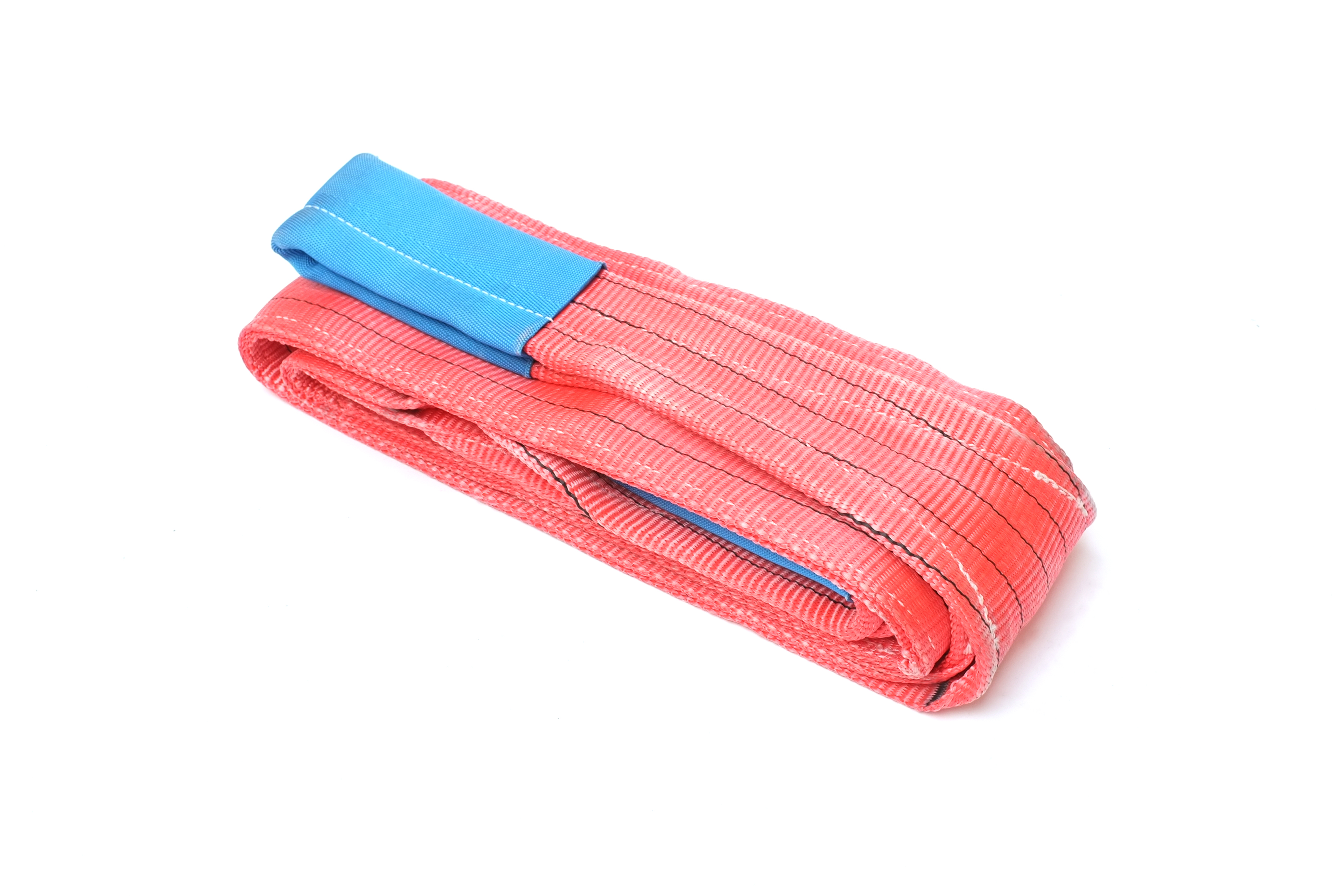

5 tonne Duplex Web slings - 150mm wide

Brand:

Capacity

5,000 Kgs 150mm wide
(5 tonne)

Description

Quality 5 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted.

£13.14 ex VAT

£15.77 inc VAT

Wear sleeves available on request - please call office for assistance

Related products

Self Colour Large Dee Shackle Screw Pin

SCLDA

Large Dee Shackles with Screw Pin (A-Pin) manufactured to BS3032 from High Tensile Steel. Dee or "D" Shackles are generally used to join two pieces of lifting equipment together before the lifting process. Also used for an anchorage point.

£2.37 ex VAT

£2.84 inc VAT

Alloy Bow Shackle with Screw Pin

USBSA

"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."

£1.07 ex VAT

£1.28 inc VAT

Green Pin Alloy Bow Shackle Screw Pin

G-4161

Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.

£2.81 ex VAT

£3.37 inc VAT

5 tonne Endless Round slings, Red

RS5T

Quality 5 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.

£6.18 ex VAT

£7.42 inc VAT

6 tonne Endless Round slings, Brown

RS6T

Quality 6 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.

£7.97 ex VAT

£9.56 inc VAT

10mm Single Leg Grade 8 Chain Sling 3.15 tonne

CS-G8-10-1L

10mm Single Leg Grade 8 Chain Sling 3.15 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£32.98 ex VAT

£39.58 inc VAT

13mm Single Leg Grade 8 Chain Sling 5.3 tonne

CS-G8-13-1L

13mm Single Leg Grade 8 Chain Sling 5.3 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£54.98 ex VAT

£65.98 inc VAT

10mm Two Leg Grade 8 Chain Sling 4.25 tonne

CS-G8-10-2L

10mm Two Leg Grade 8 Chain Sling 4.25 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£59.98 ex VAT

£71.98 inc VAT

13mm Two Leg Grade 8 Chain Sling 7.5 tonne

CS-G8-13-2L

13mm Two Leg Grade 8 Chain Sling 7.5 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£94.98 ex VAT

£113.98 inc VAT

7mm 4Leg Grade 8 Chain Sling 3.15 tonne

CS-G8-07-4L

A wide range of 7mm 4Leg Grade 8 Chain Sling 3.15 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£72.98 ex VAT

£87.58 inc VAT

8mm 4Leg Grade 8 Chain Sling 4.25 tonne

CS-G8-08-4L

A wide range of 8mm 4Leg Grade 8 Chain Sling 4.25 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£78.98 ex VAT

£94.78 inc VAT

10mm 4Leg Grade 8 Chain Sling 6.7 tonne

CS-G8-10-4L

A wide range of 10mm 4Leg Grade 8 Chain Sling 6.7 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£122.98 ex VAT

£147.58 inc VAT

Quality 5 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted, meaning they are less likely to damage the load and should never leave marks either.

ULS Lifting are a major UK supplier of both Duplex Webbing Slings and Endless Polyester Roundslings from 1 tonne to 20 tonne, from 1m EWL to 12m EWL off the shelf, larger sizes available on request. ultimate Lifting Solutions Limited only supply quality lifting slings that conform to relevant safety standards. If you need anymore information on Lifting slings. other capacities and sizes, feel free to give our sales team a call today on 01384 986 026 or email the team sales@ulslifting.com.


The ULS 5 tonne web slings, available off the shelf from 1m EWL (long) up to 10m EWL - other sizes are available on request.

Model
WLL
Webbing Width
Sling Thickness
Eye Length For 2m Slings
Weight For 2m Sling
Weight extra per 1m
DX5T
5,000Kgs
150mm
7mm
550mm
2.12Kgs
0.94Kgs

How to recognise 5 tonne duplex Web sling? 5 tonne Duplex Web Slings are colour coded red, manufactured from 150 mm wide Polyester Webbing with five black yarn stripes to denote working load limit.

What are 5 tonne Duplex web slings?  The maximum lifting capacity of sling is 5 tonne or 5,000Kgs, manufactured as a double layer sling, from 150mm wide polyester webbing, with large reinforced eyes each end and are woven from high tenacity polyester yarn. Each sling has an identification label sewn into the webbing, which gives the user vital information on the capabilities of the sling and each sling is supplied with a unique serial number for traceability.

Why use a Duplex Lifting sling? They are low weight compared to either chain slings or wire rope slings and more flexible, making them easier to use than chain slings or wire rope Slings. Another plus point for using webbing slings, they give significant improvements in safety over alternative lifting methods and lower purchasing costs in comparison to other lifting gear.


Working Load Limits and colour codes for Flat Web Slings to BS EN1492-1:2000


Colour code
WLL
Vertical Lift FOS(x1)
Choke Hitch FOS (x0.8)
Straight Basket FOS (x2)
Angled Basket (45°) FOS(x1)
Purple
1,000Kgs
1 tonne
0.4 tonne
1 tonne0.7 tonne
Green
2,000Kgs
2 tonne0.8 tonne2 tonne1.4 tonne
Yellow
3,000Kgs
3 tonne1.2 tonne3 tonne2.1 tonne
Grey
4,000Kgs
4 tonne3.2 tonne4 tonne2.8 tonne
Red
5,000Kgs
5 tonne4.0 tonne5 tonne4.2 tonne
Brown
6,000Kgs
6 tonne4.8 tonne6 tonne5.6 tonne
Blue
8,000Kgs
8 tonne6.4 tonne8 tonne7.0 tonne
Orange
10,000Kgs
10 tonne8.0 tonne10 tonne8.4 tonne
Orange
12,000Kgs
12 tonne9.6 tonne12 tonne11.2 tonne
Wear sleeves are available for all lifting slings - specialist lengths are also available


Slings supplied by Ultimate Lifting Solutions are manufactured by British manufacturer Miller Web lift.

The advantage of buying Miller Weblift slings from ULS means you get a high quality sling made from hard wearing 100% polyester fibres (PES) manufactured to the correct internationally recognised standards (EN1492-1:2000) and supplied with manufacturers EC Declaration of Conformity.

They have their own weaving facility on site in the UK meaning traceability and quality control is very high and it also gives them the ability to manufacture bespoke lifting slings up to 50 tonnes. Duplex Flat Web Slings or belt slings or straps are used for a variety of lifting purposes.


5 tonne Duplex Web slings supplied by Ultimate Lifting Solutions

Model
WLL
Webbing Width
Sling Thickness
Eye Length For 2m Slings
Weight For 2m Sling
Weight extra per 1m
DX5T
5,000Kgs
150mm
7mm
550mm
2.12Kgs
0.94Kgs

Working Load Limit (WLL) - 5,000kg or 5 tonne

Quick overview

Width - 150mm.

Colour - Red.

Material - 100% Polyester.

Lengths available - 1m long EWL up to 10m EWL. (longer available on a two to three day delivery)


Duplex web sling conform to EN1492-1:2000.

Safety factor 7:1 Woven from high tenacity 100% polyester (PES).

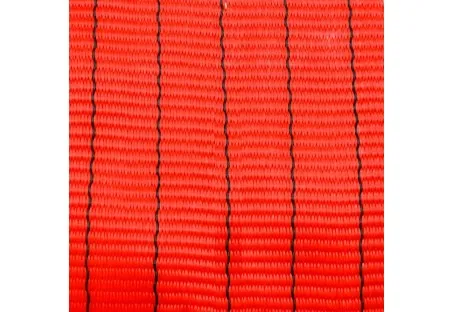

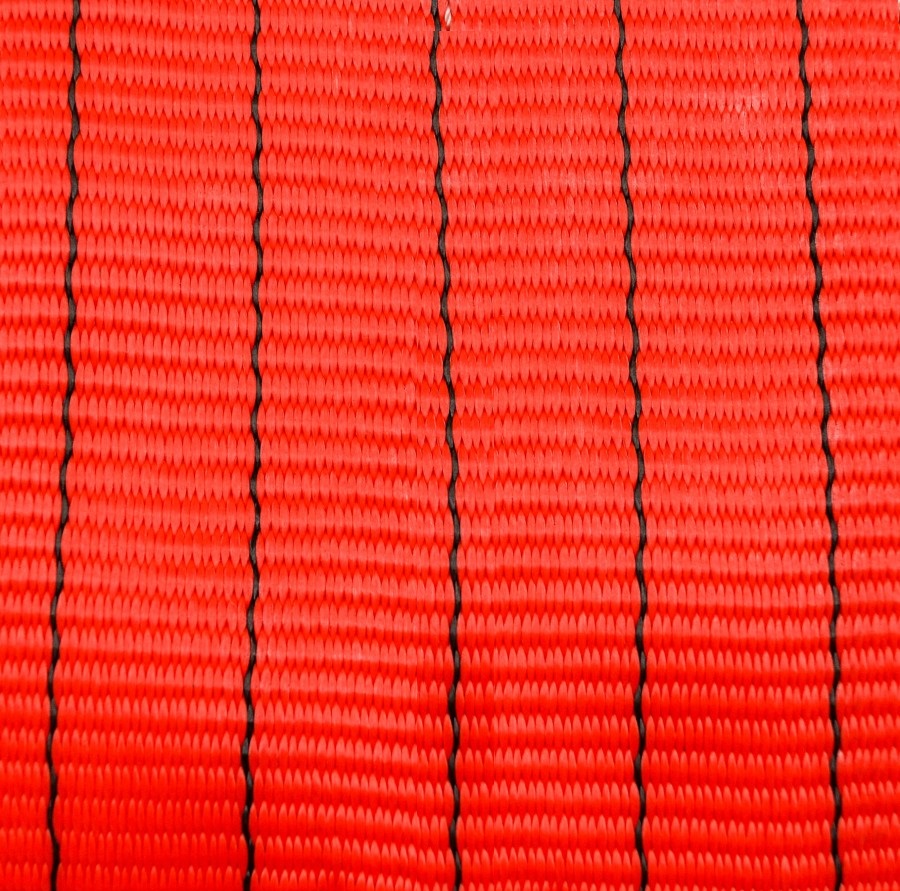

Yarn Stripes denotes WLL for easy identification.

Colour coded for easy recognition of working load.

Each sling supplied with unique serial number.


Available with a choice of wear sleeves for added protection at the load point(s)


Hazardous or Adverse Conditions
100% Polyester Slings have selective resistances to various chemicals  please consult us if you are worried about the conditions if your lift before purchase

Resistant to most mineral based acids - please ask for more details
Alkalis will cause damage
Temperature Range 40° to +100°
Ultra Violet - Susceptible to degradation if exposed to ultra-violet radiation, therefore, do not store polyester slings in direct sunlight or other sources of ultra-violet radiation.

SLING SAFETY ALWAYS


Store and handle slings / lashings correctly.

Inspect slings / lashings and accessories before use and before placing into storage.

Position the flat sling so that the load is uniformly spread over its width and protects the sling from sharp edges.

Use protection and fittings on a round sling (to avoid cutting, friction etc...)

Apply the correct mode factor for slinging arrangement NEVER Attempt to shorten, knot or tie any slings / lashings.


Expose slings / lashings to direct heat or flames. Use slings / lashings at temperatures above 100 ̊C or below -40ºC Expose slings / lashings to chemicals without consulting the supplier Shock load slings. Use flat slings which are cut or have loose or damaged stitching Use round slings with cut or damaged outer covers.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all Polyester Lifting Slings are classed as lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.


If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house

Miler Weblift boast at being World leaders in lifting and load restraint and Miller Weblift is an established international manufacturer, experts in providing premium lifting and load restraint solutions. They aim to provide the highest possible quality to ensure peace of mind when conducting a lift. They offer consistent and reliable lifting equipment to a range of domestic and worldwide destinations.


Company CORE VALUES:


SAFETY: Lifting equipment is extensively tested to the latest safety standards and beyond. All of the slings are made to the highest possible standard of quality.

SERVICE: Miller Weblift are very responsive to there distributors requirements, offering reliable services with the aim to build strong relationships with every business we work with.

EXPERIENCE: They pride them selves on being experts in there industry. being adaptable to new industry concepts and technology.


THE MILLER WEBLIFT WAY - Quote by Miller Weblift themselves From yarn straight to end user. At Miller Weblift we stand in a unique position because we weave the webbing here on site in the UK. This means that we control the complete manufacturing process, from the basic yarn right through to the end product, so you can be sure that you’ll receive the highest quality lifting equipment every time.
