BO 650.30A - Veribor Seaming Tool

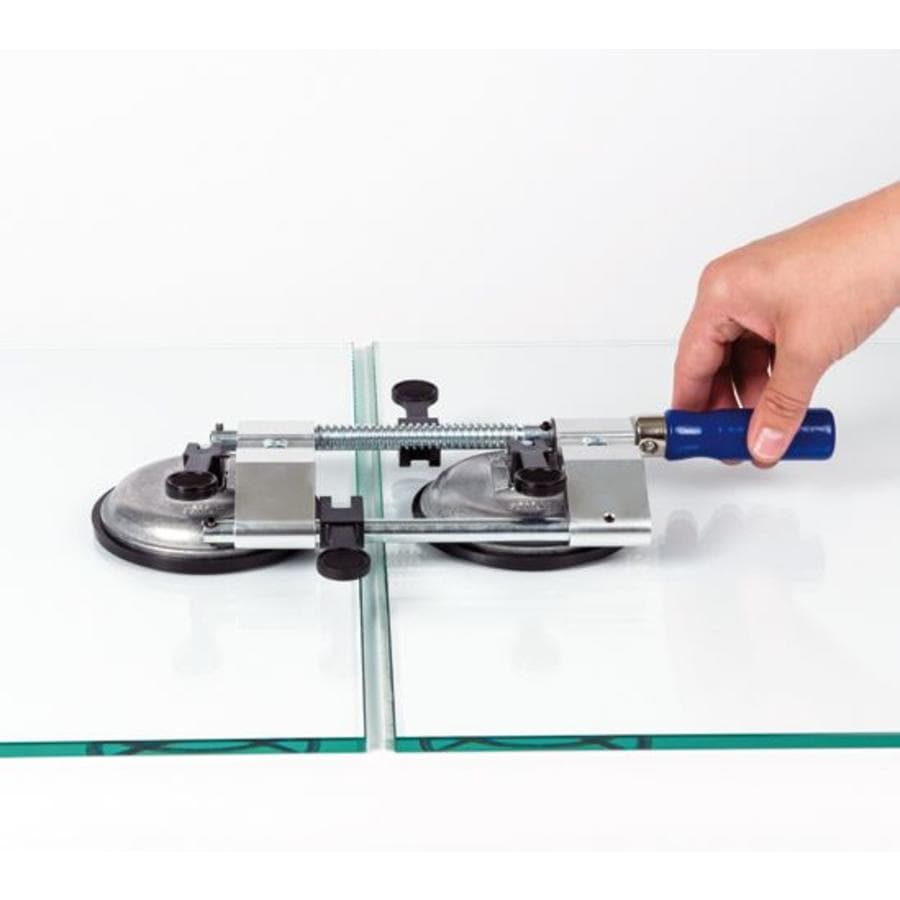

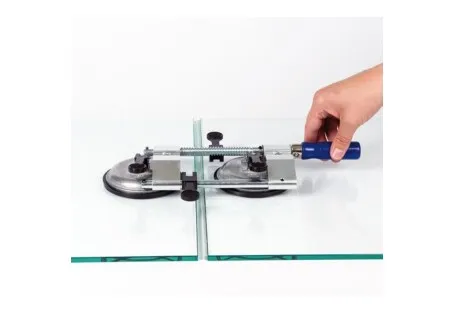

The ideal tool for pulling together or spreading apart large, flat, smooth sheets of material exactly to the millimetre. Especially suitable when bonding countertops. Suitable for all materials with flat, airtight surfaces like glass, plastic, metal, coated wood, marble, etc. The vacuum is generated by engaging the levers. With the rubber pad relaxed, the suction holders must be firmly pressed onto the work surface. When engaging the lever, you should noticeably feel the resistance produced by the vacuum. By turning the threaded handle the material can be drawn together or spread apart. If necessary, any height differences between the work pieces can be adjusted with the lateral eccentric lever. Also available as set in a carrying case: BO 650.32A

Technical Data

Type of vacuum generation    Lever-Activated Suction Lifters

Load capacity                            N / A

Torque                                         260 Nm

Material of Suction Lifter        Aluminium

Surface geometry                      Flat

Suction pad                                ø 120 mm

Type of fastening                      Seaming Tool for Clamping and Repositioning

Vacuum gauge                           No

GS certified                                No

Veribor® is a quality brand. The products are developed and manufactured exclusively in Germany – with a special focus on safety and ergonomics. They are free from carcinogenic hydrocarbon compounds (PAH).
