Manual Vacuum Lifting Device B18DM4GS

Key notes for ordering:

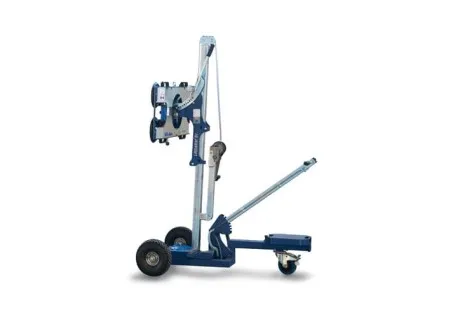

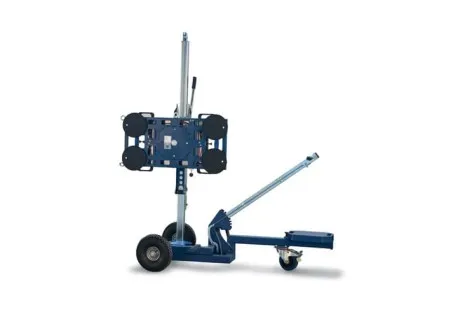

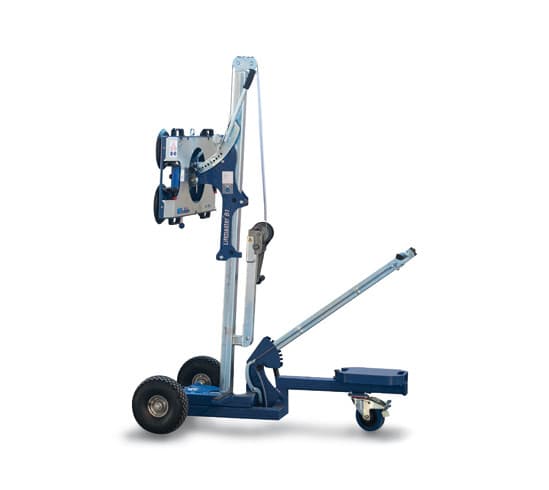

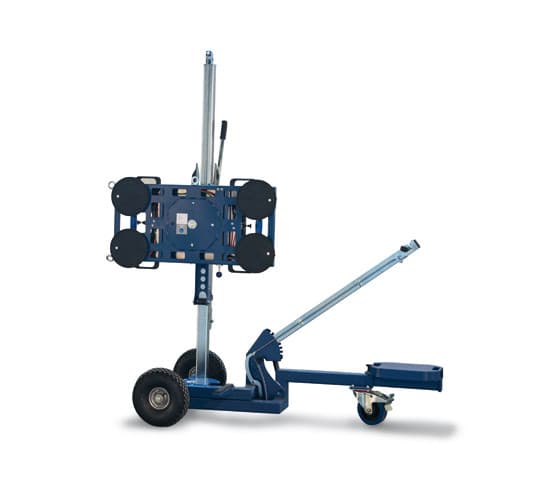

We also offer the B1 Transporter to offer even more flexibility either in the workplace or on site.

Estimated lead time:5 to 7 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

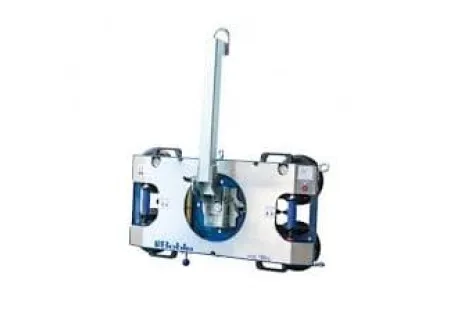

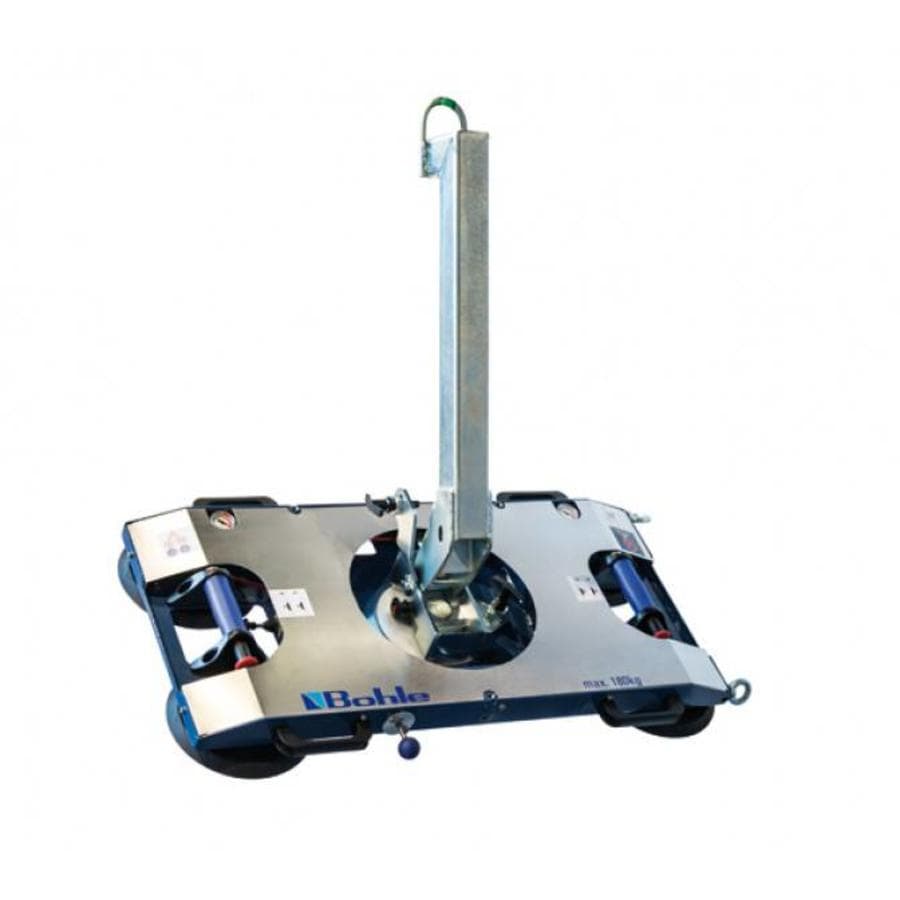

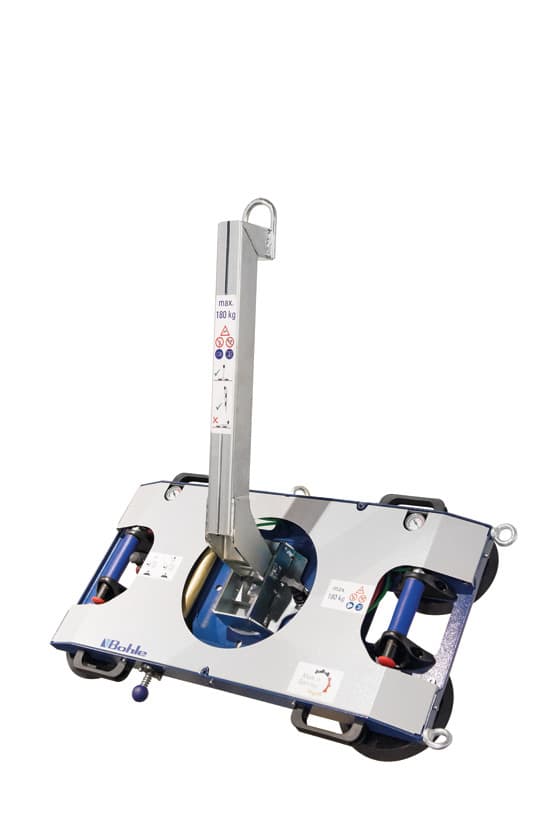

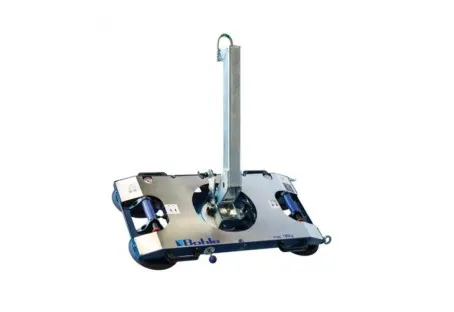

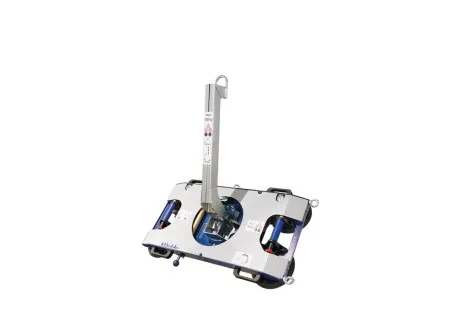

Manual Vacuum Lifting Device B18DM4GS

Brand:

Capacity

180Kgs

Description

The Liftmaster Vacuum Lifting Device provides a cost-effective solution, but with no sparing on quality from this German-manufactured product. Perfect for handling large glazed units or any flat polished products. Can be easily connected to overhead cranes and are simpler and far more flexible to use than many of its rivals.

save£372.00

£2,510.00 ex VAT

£2,200.00 ex VAT

£2,640.00 inc VAT

Related products

B 88.01 - Liftmaster B1 Lifting System with Dual Vacuum Lifter

BO 88.01

The Liftmaster B1 Vacuum lifter is complete with a trolley. This unit is an innovative handling and mounting aid which enable the user to transport large and heavy objects such as Glass Panels, Windows.

£7,310.00 ex VAT

£6,400.00 ex VAT

£7,680.00 inc VAT

Liftmaster Quadro PRO Battery Powered Vacuum Lifter

Liftmaster Quadro Pro

The Quadro is the new high capacity battery powered vacuum lifting device from the Liftmaster series and sets new standards in mobile vacuum lifting technology. Its innovative operating concept, and the high safety standards that we all come to expect from a German designed and manufactured product, make the lifting systems a reliable mounting aids for indoor and outdoor applications.

£8,670.00 ex VAT

£7,587.50 ex VAT

£9,105.00 inc VAT

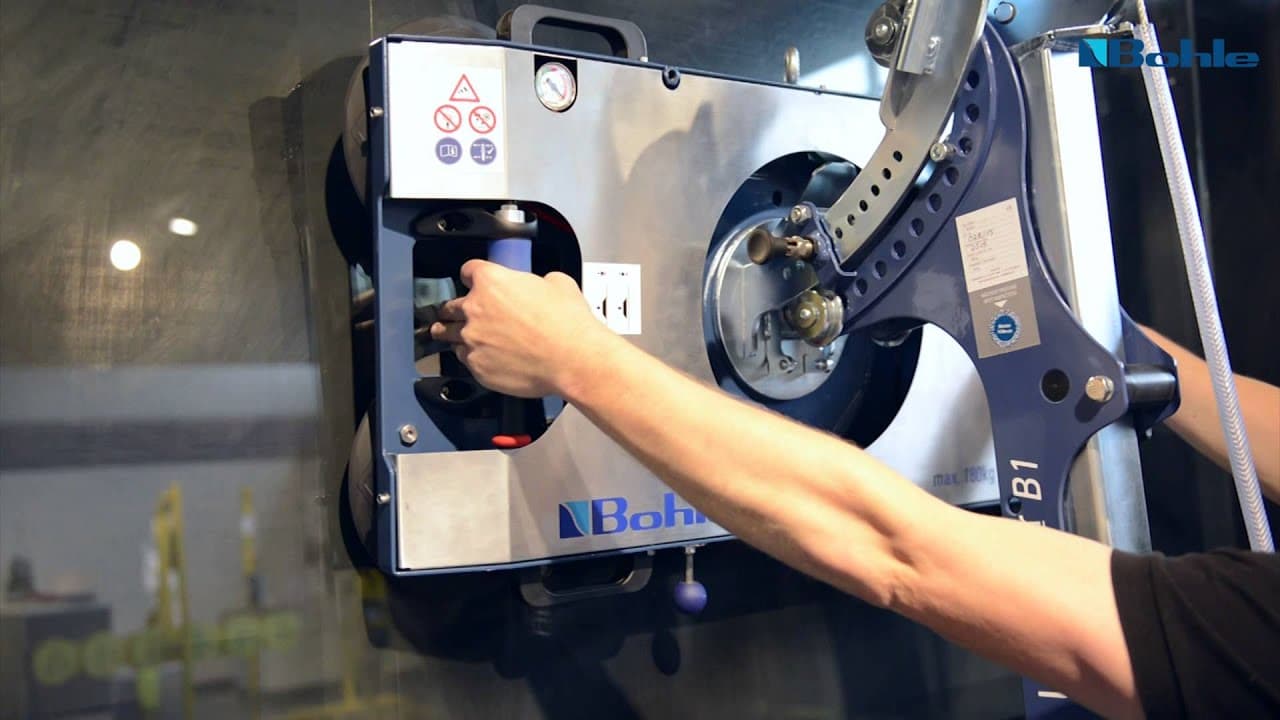

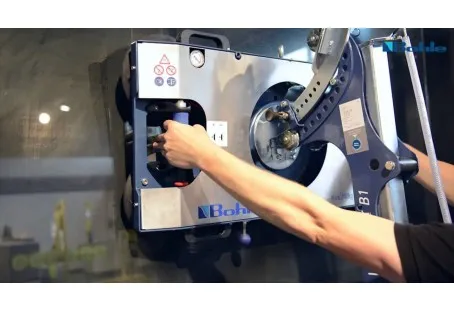

The Liftmaster Manual Vacuum Lifting Device provides a cost-effective solution, but with no sparing on quality from this German-manufactured product. Perfect for handling large glazed units or any flat polished products. Can be easily connected to any overhead crane, creating a simpler and far more flexible vacuum lifter to use than many of its rivals. Vacuum generation via a manual pump, therefore always ready for use (independent of power supply, no charging of batteries required) and no huge setup costs wiring vacuum units in, simply attach to lifting device, attach to glass, pump to generate suction and you are now ready to lift up to 180Kgs.


Supplied with a crane attachment arm, which can tilt and swivel. Can be locked into position if required.


Key Benefits:

  • No external power supply is required.

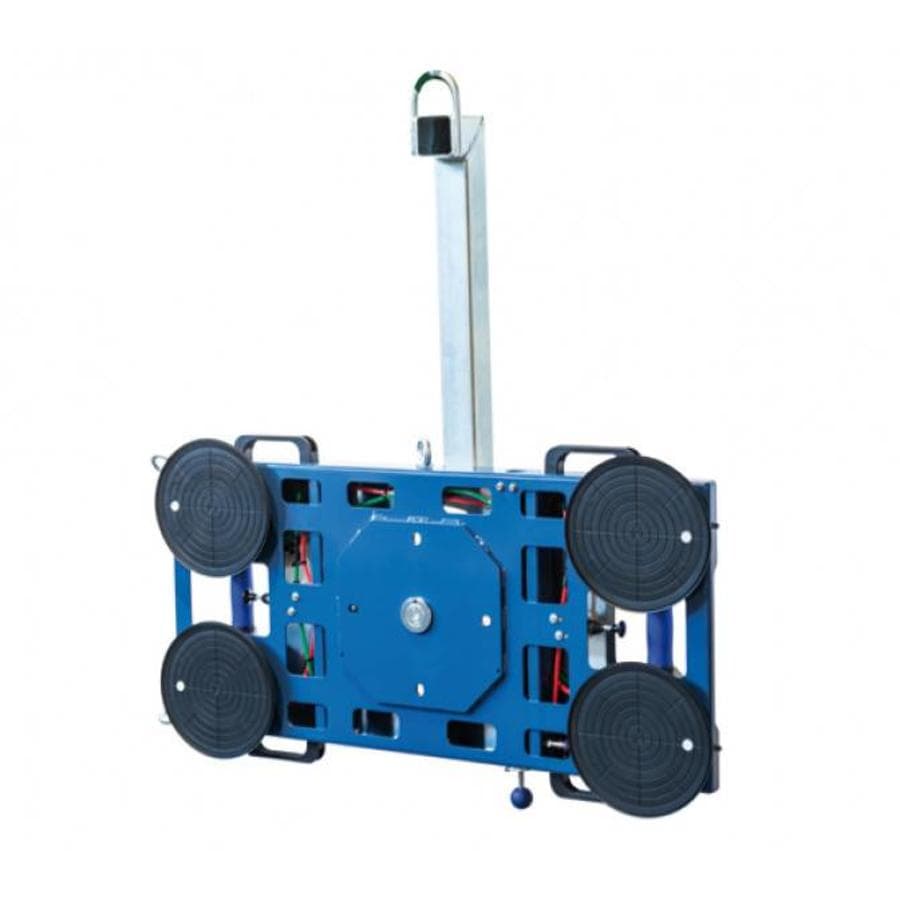

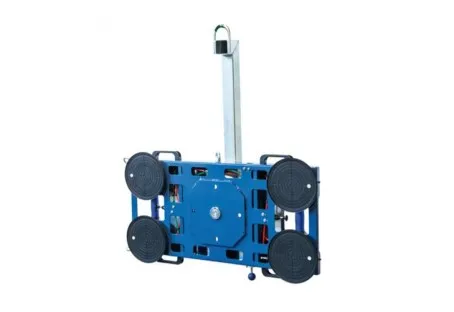

  • Dual circuit vacuum system with 4 suction pads
  • For use on construction sites or in the workshop
  • Very flat and compact
  • Weight only 31 kg
  • Load capacity 180 kg
  • Vacuum indicator for monitoring the vacuum
  • Can be rotated by 360°/ tilted by 90°

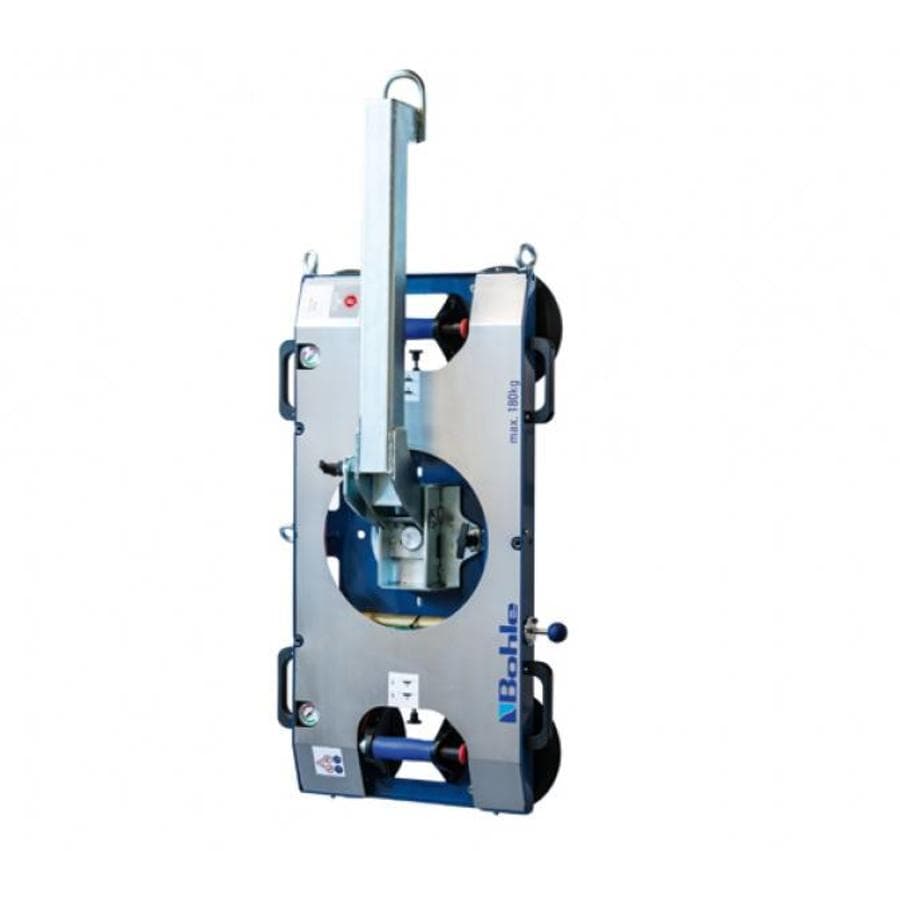

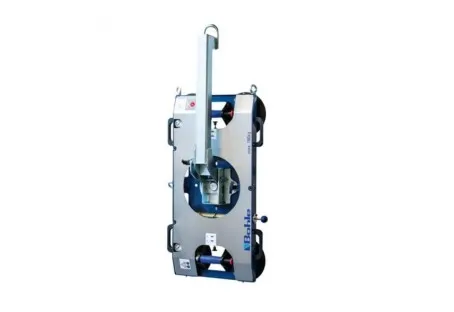

  • Can lift up panels in both the vertical and horizontal position


The manual lifting device can do without an electric pump and is therefore very versatile in use. A dual circuit vacuum system, reserve tanks, vacuum display and an additional visual vacuum indicator ensure high levels of safety. The manual lifting device stands out due to its very compact construction and low weight.

The Liftmaster Pump Action Vacuum Lifter


Key Benefits:

  • Dual circuit vacuum system with 4 suction pads.
  • For use at the construction site or in the workshop.
  • Very flat and compact.
  • Weight only 31 kg.
  • Load capacity 180 kg.
  • Vacuum indicator for monitoring the vacuum.
  • Can be rotated by 360°/ tilted by 90°.
  • Can lift up panels in both vertical and horizontal positions.


The manual lifting device can do without an electric pump and is therefore very versatile in use. A dual circuit vacuum system, reserve tanks, vacuum display and an additional visual vacuum indicator ensure high levels of safety. The manual lifting device stands out due to its very compact construction and low weight.

Technical Data

Suction pad - Four rubber suction pads, Ø 210 mm

Load capacity - 180 kg

Rotating range - Manual, 360°, with four locking positions

Swivel range  - Manual, 90°, can be locked in vertical pos.

Vacuum pump  - Manual

Vacuum indication via vacuum gauge - 2

Maximum operating altitude  - 1,680 m above sea level

Working temperatures  - 10° - +40° C

Weight only - 31 kg
