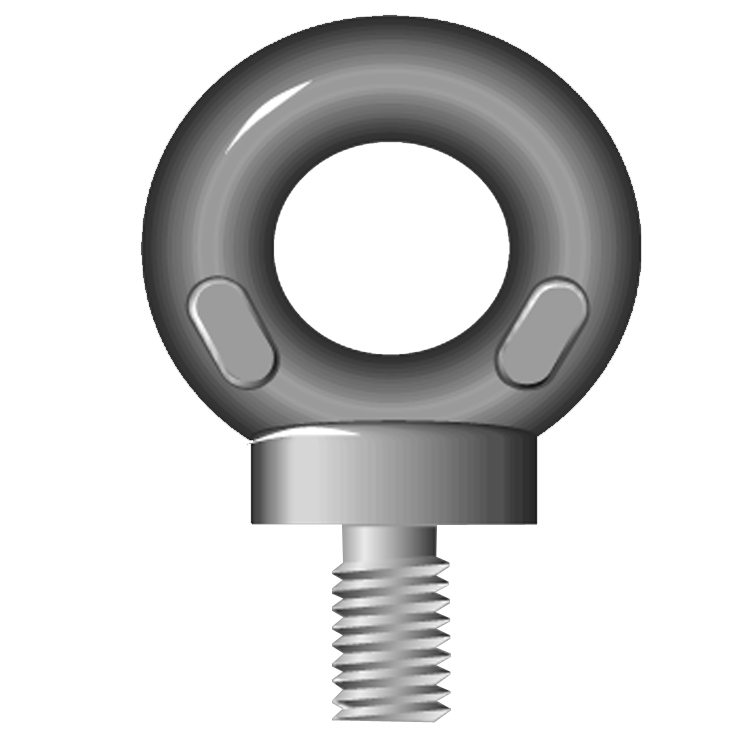

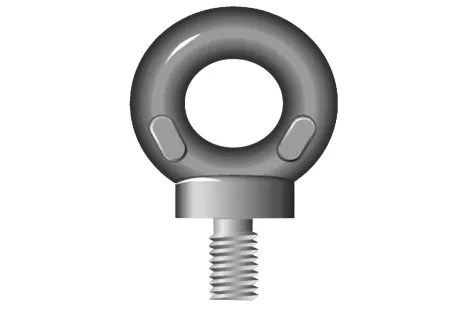

Collared Eye Bolts Metric Thread

Key notes for ordering:

Supplied in Self Colour and supplied tested with relevant certification - Can be supplied zinc plated or in stainless steel on request. Serial Number stamping on body of eye bolt available on request.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Collared Eye Bolts Metric Thread

Brand:

Capacity

100Kgs up to 6,300Kgs
(0.1t - 6.3 tonnes)

Description

"Metric Collared Eye Bolts manufactured to BS4278 Table 1. Sizes M6 to M36. Used to create a safe and secure Lifting / Anchor point between a load and a lifting sling"

£1.49 ex VAT

£1.79 inc VAT

Related products

Metric Collared eyebolts manufactured to BS4278 Table 1. Sizes M6 to M36. Used in a wide variety of applications and commonly used to create a safe and secure lifting / anchor point between a load and a lifting sling


Material: As specified by BS 4278 Hardened and Tempered


Each eye bolt stamped with SWL and Batch Number


SWL - Safe working Load from 100kg up to 20 tonne

S.W.L. Shown at 0° (vertical) angle of lift.

Safety Note: eye bolts under M12 are not recommended for lifting.


Various sizes from M6 to M64 available

Non-standard thread pitches available upon request.


Self-coloured finish as standard. Zinc plated finish available upon request.


Product Code
 Thread
Shank Length
Eye Dia
SWL (kg)
CEBM06
M618mm  15mm  0.1 t
CEBM08
M818mm  15mm  0.15 t
CEBM10
M1018mm  15mm  0.25 t
CEBM12
M1218mm  15mm  0.4 t
CEBM14
M1423mm  20mm  0.5 t
CEBM16
M1623mm  20mm  0.8 t
CEBM18
M1828mm  24mm  1.0 t
CEBM20
M2032mm  27mm  1.6 t
CEBM22
M2235mm  30mm  1.6 t
CEBM24
M2440mm  35mm  2.5 t
CEBM27
M2746mm  39mm  2.5 t
CEBM30
M3051mm  44mm  4.0 t
CEBM33
M3356mm  48mm  4.0 t
CEBM36
M3663mm  54mm  6.3 t


Sizes marked • are non standard thread sizes - check before ordering


Larger Sizes available up to M64 on request - Please call our sales team for more information.


Collar eye bolt

Alignment of the eye is also very important. Collared eye bolts can be used up to the marked SWL provided that the load is in line with the axis of the eye bolt. Collar eye bolts may also be used for non-axial loading provided that the SWL is reduced by the appropriate factors. The load should be applied within + or - 5º of the plane of the eye. The collar eye bolt is not suitable for direct connection to a hook; a shackle is usually employed for this.

In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eye bolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eye bolts or re-cut threads.

Regularly inspect eye bolts and, in the event of the following defects, refer the eye bolt to a competent person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspections / services either on-site or in-house.
