Camlok Single Rail Clamps CR Range

Key notes for ordering:

Supplied tested and certified - Ready to use from the box - Option of ordering with chain sling

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Camlok Single Rail Clamps CR Range

Brand:

Capacity

1000 - 2000Kgs
(1 tonne - 2 tonne)

Description

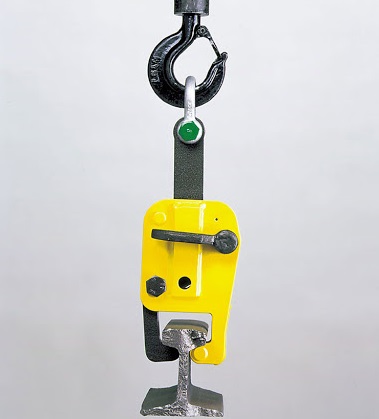

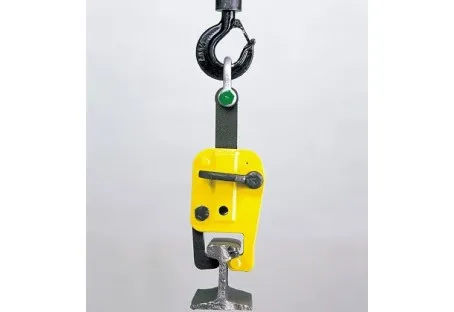

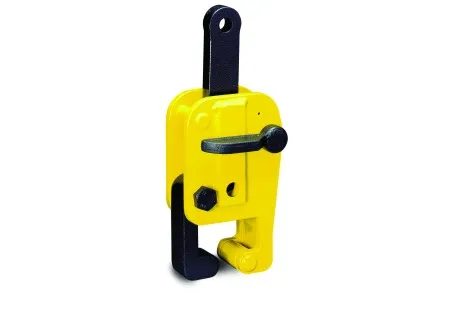

Camlok Single Rail Clamps are designed to fit the most available rail profiles currently in use and lift them securely and safely. The clamp locks onto the rail head via a lever-operated spring mechanism - can be supplied with only the lifting eye or short lifting chain assembly. A typical application would be with an Iron Man and Pull-Lift

£797.47 ex VAT

£956.96 inc VAT

Related products

Camlok Single Rail Clamps with safety locks are designed to fit the most common-sized rail profiles currently in use and lift them securely and safely. The clamp locks onto the rail head via a lever-operated spring mechanism. The Camlok CR Single Rail Clamps can be supplied with only the lifting eye or a short lifting chain assembly - Typical application would be with an Iron Man and Pull-lift or lever hoist.

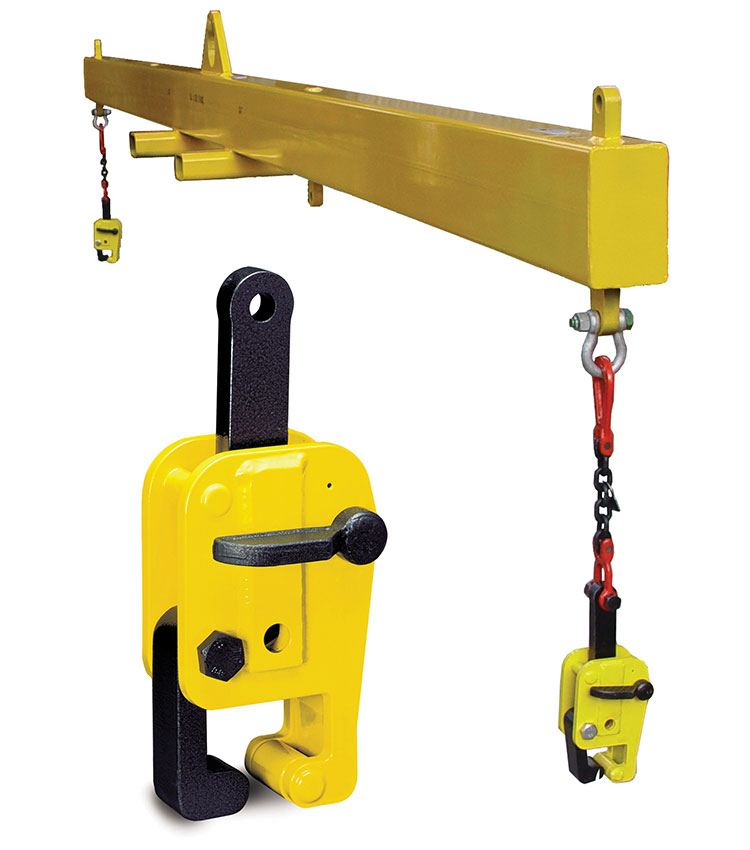

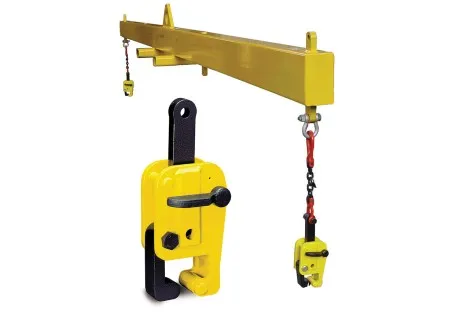

The Camlok Rail lifting clamp range has been recognized to be the industry standard for rail clamps for many years - all clamps are manufactured in the UK. It is recommended to use clamps suspended from a lifting beam for long rail lengths.

If ordered with the short Lifting Chain - It consists of Kuplex KSS10N Egglink, 7 Links of Chain, and Kuplex KDN10N Narrow Jaw Shackle - just a shackle is required to connect to a rail beam.
Model
No of Rails
WLL
Weight
CR1000
11,000Kgs
13Kgs
CR2000
12,000Kgs
13Kgs
Weight shown is with Eye Only.
CR SINGLE RAIL CLAMPS
1000 - 2000KG
Rail grab with safety lock

PRODUCT APPLICATIONS
The CR rail clamps are designed to lift single rails securely and safely.
The CRT is designed to lift the tram rail.
The clamps are designed to fit most types of rail sections currently in use. The clamps have a narrow profile to enable attachment to an individual rail when rails are side by side.


Model
No of Rails
WLL
Weight
CR1000
11,000Kgs
13Kgs
CR2000
12,000Kgs
13Kgs
Weight shown is with Eye Only.
CARE AND MAINTENANCE
De-grease clamps regularly.
Remove all grit, dirt and mud.
Lubricate all moving parts with soft grease.
Inspect every 1-4 weeks, depending on use.
Check for wear in the jaw, hooking, and chain.
Check for distortion in the shell plates, jaw bolt, internal links and spring.
Check any welds for cracks.
Check for smooth operation.
Check fasteners for integrity and tightness

Quality in design, performance and support.

Camlok is the established industry brand for plate clamps and other items of lifting equipment. In fabrication plants, factories, warehouses, ports and docks, on construction sites, railheads and repair and service facilities around the world, the Camlok plate clamp and related products are the number one choice.

The Camlok brand is over 50 years old and was founded on original, innovative British design and manufacture. It evolved from a general industrial need to lift and transfer steel plates either horizontally, vertically or a combination of both, in a secure and safe manner. This was achieved by using an ingenious 'cam' and jaw mechanism to positively lock the steel plate into a clamping device so it may be suspended from a crane hook.

The original 'cam-lock' principle has led to the vast spectrum of lifting clamps available today, for example, plate clamps, beam clamps, rail clamps, girder clamps, piling clamps, scissor grabs and other handling devices. This heritage generated the capability and understanding for Camlok to lead the way in engineering special non-standard lifting solutions for technically demanding applications.

All products are designed for easy repair and parts replacement, providing a lifetime of faithful service and performance and are manufactured in the UK to world-class standards. Hundreds of carefully selected and approved distributors around the world provide full advice, training, parts and after-sales services to ensure that Camlok lifting clamps deliver long life, reliable, productive and cost-effective performance -- wherever you are, whatever you do.
