Dynamo Eye Bolts BSW Imperial Thread

Key notes for ordering:

Supplied in Self Colour and supplied tested with relevant certification. Serial Number stamping on body of eye bolt available on request.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

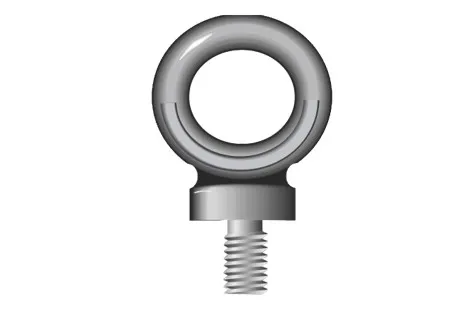

Dynamo Eye Bolts BSW Imperial Thread

Brand:

Capacity

0.1T - 2.2 Tons

Description

"BSW Imperial Dynamo. Sizes 1/4"" to 1"".

Dynamo Eye Bolts have an enlarged eye compared to Collared Eyebolts. Used to create a safe and secure Lifting / Anchor point."

P.O.A

Related products

BSW Imperial Dynamo Eyebolts. Sizes 1/4" to 1". with enlarged eye. Used in a wide variety of applications and commonly used to create a safe and secure lifting / anchor point between a load and a lifting sling


Material: High Tensile Steel

Each eye bolt stamped with SWL and Batch Number


SWL - Safe working Load from 0.1 Ton up to 2.2 Ton

S.W.L. Shown at 0° (vertical) angle of lift.

Safety Note: NOT to be used for Inclined Angle Lifting.


Product Code
Thread
Shank Length
Eye Dia
SWL (Tons)
DEBI06
1/4
19mm
22mm
0.1 T
DEBI08
5/16
19mm
22mm
0.15 T
DEBI10
3/8
19mm
22mm
0.25 T
DEBI12
1/2
26mm
29mm
0.5 T
DEBI16
5/8
30mm
32mm
0.8 T
DEBI20
 3/4
33mm
41mm
 1.2 T
DEBI22
 7/8
35mm
44mm
1.6 T
DEBI25
1.0
40mm
51mm
2.2 T


Dynamo eye bolt

Dynamo eye bolts are commonly fitted to the casing of equipment such as electric motors. They are extremely limited in their use. The SWL is lower than that of the collar eye bolt for axial loading and they cannot be used for angular loading. Loading by even 5 degrees out of the axial causes undue stress on the screw thread and shank. Dynamo eye bolts must not be used for trunnion lifting.

In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eye bolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eye bolts or re-cut threads.


Regularly inspect eye bolts and, in the event of the following defects, refer the eye bolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
