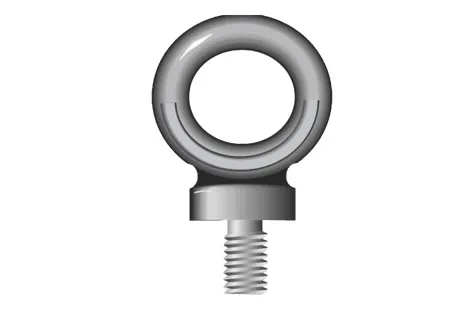

Dynamo Eye Bolts Metric Thread
Key notes for ordering:
Supplied in Self Colour and supplied tested with relevant certification. Serial Number stamping on body of eye bolt available on request.
Estimated lead time:1 - 2 Days
Please call us if you need this item sooner
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Dynamo Eye Bolts Metric Thread
100Kgs up to 3,200Kgs
(0.1t - 3.2 tonnes)
"Metric Dynamo Eye Bolts manufactured to BS4278. Sizes M6 to M30.
Dynamo Eyebolts have an enlarged eye compared to Collared Eyebolts. Used to create a safe and secure Lifting / Anchor point."
£1.95 ex VAT
£2.34 inc VAT
Metric Dynamo Eyebolts manufactured to BS4278. Sizes M6 to M30. with enlarged eye. Used in a wide variety of applications and commonly used to create a safe and secure lifting / anchor point between a load and a lifting sling
Material: As specified by BS 4278 Hardened and Tempered
Each eye bolt stamped with SWL and Batch Number
SWL - Safe working Load from 100kg up to 3.2 tonne
S.W.L. Shown at 0° (vertical) angle of lift.
Safety Note: NOT to be used for Inclined Angle Lifting.
|Product Code ||Thread||Shank Length|| Eye Dia||SWL (kg)|
|DEBM06||M6||18mm||22mm|| 0.1 t|
|DEBM08||M8||18mm||22mm|| 0.15 t|
|DEBM30||M30||51mm||64mm|| 3.2 t|

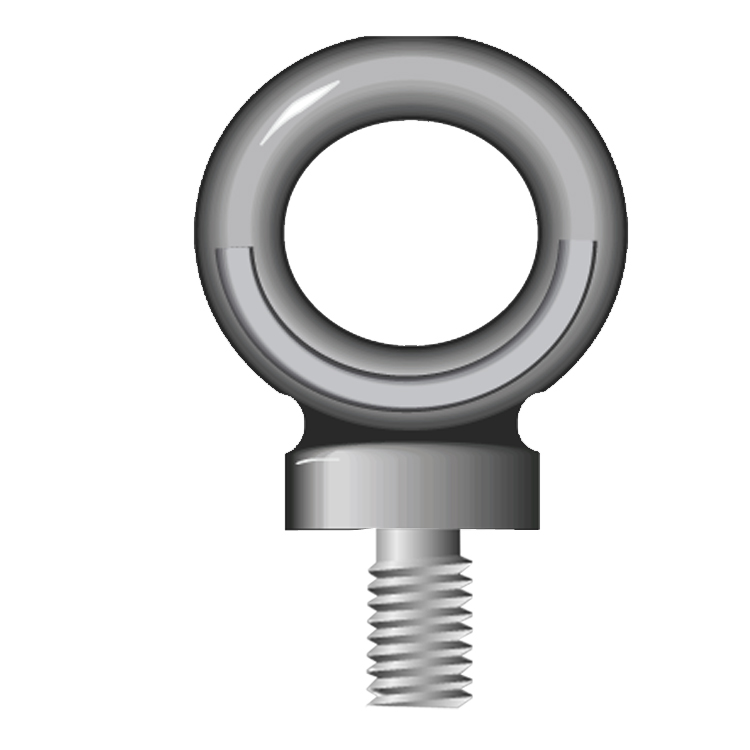

Dynamo eye bolt
Dynamo eye bolts are commonly fitted to the casing of equipment such as electric motors. They are extremely limited in their use. The SWL is lower than that of the collar eye bolt for axial loading and they cannot be used for angular loading. Loading by even 5 degrees out of the axial causes undue stress on the screw thread and shank. Dynamo eye bolts must not be used for trunnion lifting.
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eye bolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eye bolts or re-cut threads.
Regularly inspect eye bolts and, in the event of the following defects, refer the eye bolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
