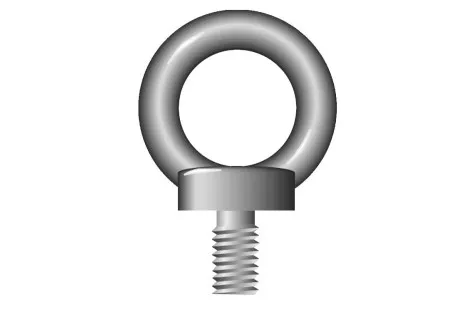

DIN580 Eye Bolts Zinc Plated

Key notes for ordering:

Zinc Plated finish as standard - Self Colour also available. Supplied tested with relevant certification. Serial Number stamping on body of eye bolt available on request.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

DIN580 Eye Bolts Zinc Plated

Brand:

Capacity

70Kgs up to 3,200Kgs
(0.07t - 3.2 tonnes)

Description

Zinc Plated DIN580 Eye Bolts with large eye, supplied tested and certified. Sizes M6 to M30 available from stock. Supplied with enlarger eye compared to Collared Eyebolts

£0.88 ex VAT

£1.06 inc VAT

Related products

Metric zinc plated DIN580 Eye Bolts with larger than standard eye, are manufactured in accordance to the DIN580 Standard, supplied tested and certified. Sizes M6 to M64. Used in a wide variety of applications and commonly used to create a safe and secure lifting / anchor point between a load and a lifting sling. Various sizes from M6 to M80 available from stock.


Zinc plated finish

Each Eyebolt stamped with SWL and Batch Number

Material: Carbon Steel - C15

SWL - Safe working Load from 70kg up to 16 tonne

S.W.L. Shown at 0° (vertical) angle of lift.

Safety Factor - Only 4 x SWL (lower than Collared eye bolts)


Also available in self colour finish.


Product Code
 Thread
 Shank Length
Eye Dia
SWL (kg)
DINEBM06ZP
M613mm
20mm
0.07 t
DINEBM08ZP
M813mm
20mm
0.14 t
DINEBM10ZP
M1017mm
25mm
  0.23 t
DINEBM12ZP
M1221mm
30mm
 0.34 t
DINEBM16ZP
M1627mm
35mm
0.70 t
DINEBM20ZP
M2030mm
40mm
1.2 t
DINEBM24ZP
M2436mm
50mm
1.8 t
DINEBM30ZP
M3045mm
60mm
  3.2 t

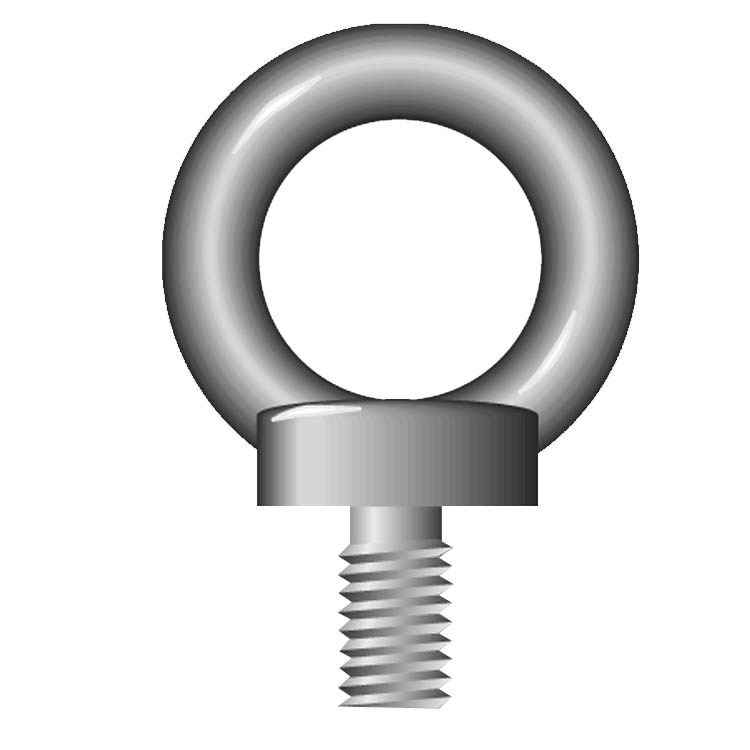

DIN580 eye bolt

Alignment of the eye is also very important. eye bolts can be used up to the marked SWL provided that the load is in line with the axis of the eye bolt. Collar eye bolts may also be used for non-axial loading provided that the SWL is reduced by the appropriate factors. These eye bolt even though have enlarged eyes are not suitable for direct connection to a hook; a shackle is usually employed for this.

In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eye bolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eye bolts or re-cut threads.


Regularly inspect eye bolts and, in the event of the following defects, refer the eye bolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
