DIN582 Eyenut Zinc Plated

Key notes for ordering:

Zinc Plated finish as standard - Supplied tested with relevant certification. Serial Number stamping on body of eyebolt available on request.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

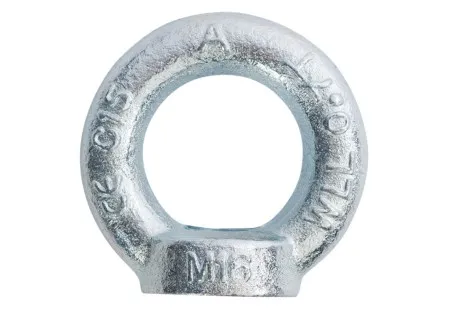

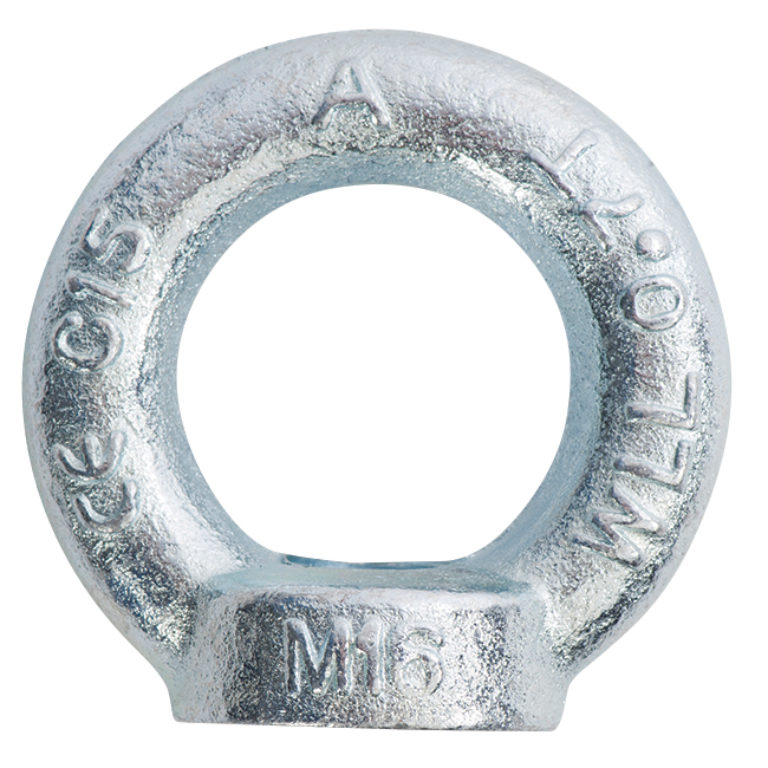

DIN582 Eyenut Zinc Plated

Brand:

Capacity

80Kgs up to 12,500Kgs
(0.08t - 12.5 tonnes)

Description

DIN582 Eyenuts supplied tested and certified, are manufactured in accordance to DIN582. with galv finish. Sizes M6 to M64 available from stock.

£0.89 ex VAT

£1.07 inc VAT

Add to cart Add to quote

Related products

ZINC PLATED DIN582 Eyenuts with large lifting eye, are manufactured in accordance to the DIN582 Standard. Sizes M6 to M64 available from stock. Used in a wide variety of applications and commonly used to create a safe and secure lifting / anchor point between a load and a lifting sling.

Zinc Plated Finish
Material: Carbon Steel - C15

Each Eyenut stamped with SWL and Batch Number
SWL - Safe working Load from 80kg up to 12.5 tonne
S.W.L. Shown at 0° (vertical) angle of lift.
Safety Factor - 4 x SWL

Product Code
Thread.
Eye Dia
SWL
Weight
DINENM06ZP
M6.
20mm
0.08 t
0.05 Kgs
DINENM08ZP
M8.
20mm
0.14 t
0.05 Kgs
DINENM10ZP
M10.
25mm
0.23 t
0.09 Kgs
DINENM12ZP
M12.
30mm
0.34 t
0.16 Kgs
DINENM16ZP
M16.
35mm
0.7 t
0.25 Kgs
DINENM20ZP
M20.
40mm
1.2 t
0.38 Kgs
DINENM24ZP
M24.
50mm
1.8 t
0.72 Kgs
DINENM30ZP
M30.
60mm
3.6 t
1.32 Kgs

Larger sizes up to M64 available on request .

DIN582 Eyenut Alignment of the eye is also very important. Eyenuts can be used up to the marked SWL provided that the load is in line with the axis of the Eyenut.


Product Code
Thread.
Eye Dia
SWL
Weight
DINENM06ZP
M6.
20mm
0.08 t
0.05 Kgs
DINENM08ZP
M8.
20mm
0.14 t
0.05 Kgs
DINENM10ZP
M10.
25mm
0.23 t
0.09 Kgs
DINENM12ZP
M12.
30mm
0.34 t
0.16 Kgs
DINENM16ZP
M16.
35mm
0.7 t
0.25 Kgs
DINENM20ZP
M20.
40mm
1.2 t
0.38 Kgs
DINENM24ZP
M24.
50mm
1.8 t
0.72 Kgs
DINENM30ZP
M30.
60mm
3.6 t
1.32 Kgs


Larger sizes up to M64 available on request.

DIN582 eyenut Alignment of the eye is also very important. Eyenuts can be used up to the marked SWL provided that the load is in line with the axis of the eyenut.

In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eyenuts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyenuts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn; incomplete or incorrectly formed internal threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts/eyenuts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
