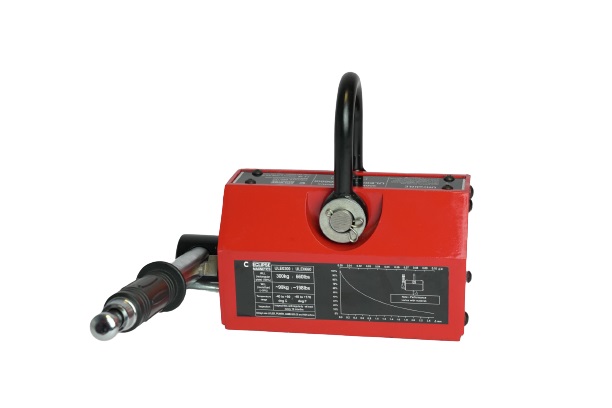

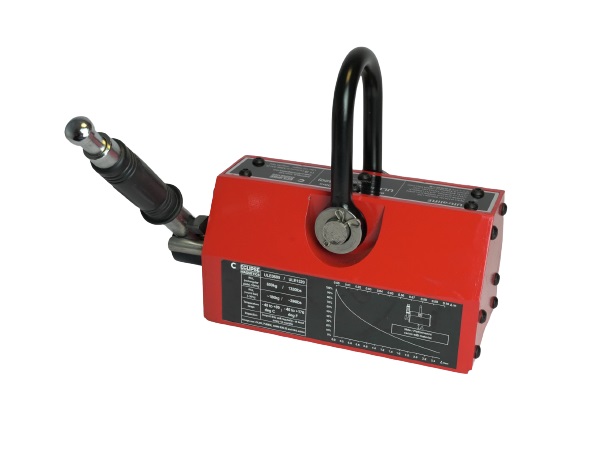

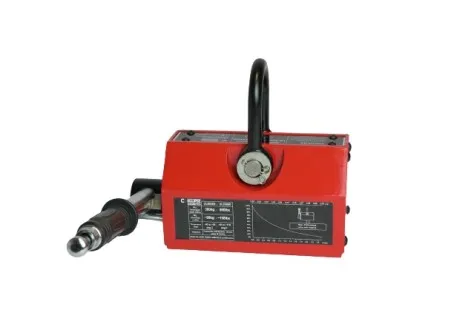

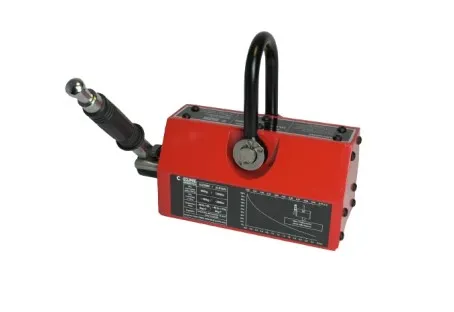

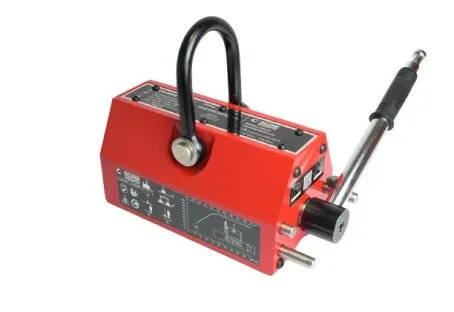

Eclipse Ultralift E Magnetic Lifter

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

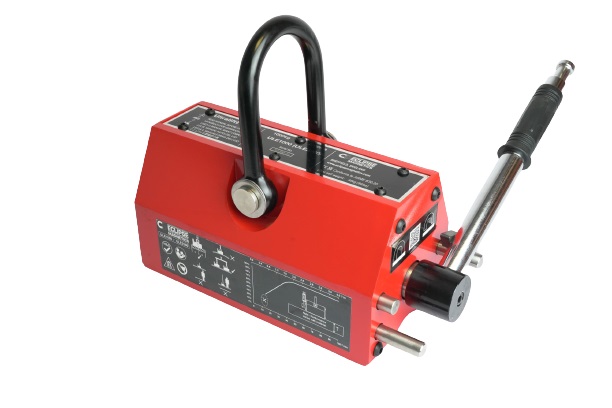

Eclipse Ultralift E Magnetic Lifter

Brand:

Capacity

100Kgs up to 1,000Kgs
(0.1 tonne - 1 tonne)

Description

The brand new Eclipse Ultralift E Magnetic Lifter range utilises the latest in magnetic technology to provide a cost-effective lifting solution when handling ferrous loads and round bars compared to traditional methods such as slings, chains, hooks, and grabs.

£174.98 ex VAT

£209.98 inc VAT

Add to cart Add to quote

Related products

Yale TPM Permanent Lifting Magnet

TPM

The Yale TPM permanent lifting magnets are a quick, easy, and economical way to transport heavy objects from Ferro-Magnetic material. Ideal tool within workshops and warehouses for loading/unloading any plates, machines, or tools that are magnetic.

£205.36 ex VAT

£187.20 ex VAT

£224.64 inc VAT

The brand new Eclipse Ultralift E Magnetic Lifter range utilises the latest in magnetic technology to provide a cost-effective lifting solution when handling ferrous loads and round bars compared to traditional methods such as slings, chains, hooks, and grabs. The technology is fail-safe, and extremely easy to operate, with no electricity required delivering world-class results when handling ferrous loads in any factory, workshop, or warehouse.

Lift Safely And Efficiently With the Ultralift E with a Working Load Limit (WLL) Safety Factor of 3:1 and the ability to lift up to 1,000kg (depending on model), you can rest assured that the Ultralift E is a safe and efficient choice for your business.

The Ultralift E range has been designed to lift ferrous sheets and ferrous round bars. Depending on the version, the Ultralift E can be used on minimum ferrous plate thickness from as little as 7.5mm thick (bearing in mind that the thinner the plate the less the holding force achieved will be). For safely lifting the thinner plates and sheets, please use the Eclipse Ultralift TP range.

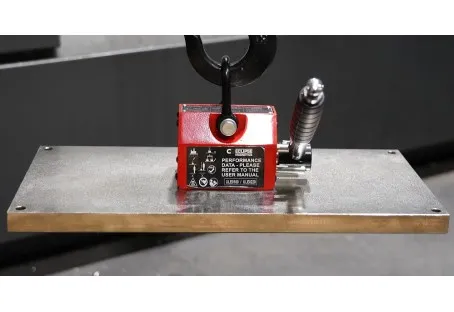

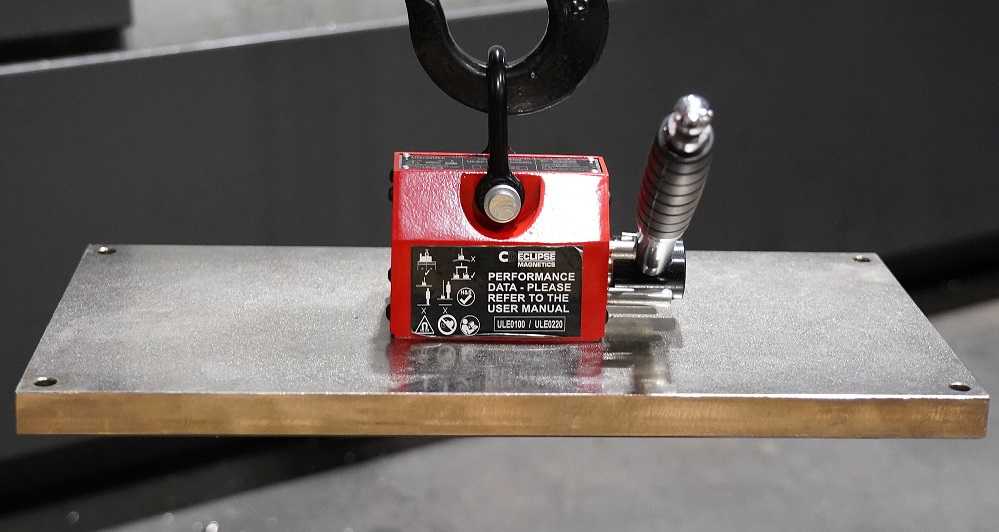

Lifting Ferrous Plates - The WLL varies from up to 100kg (220lb) for the ULE0100 rising to up to 1000kg (2200lb) for the ULE1000 when used on a ferrous flat plate.

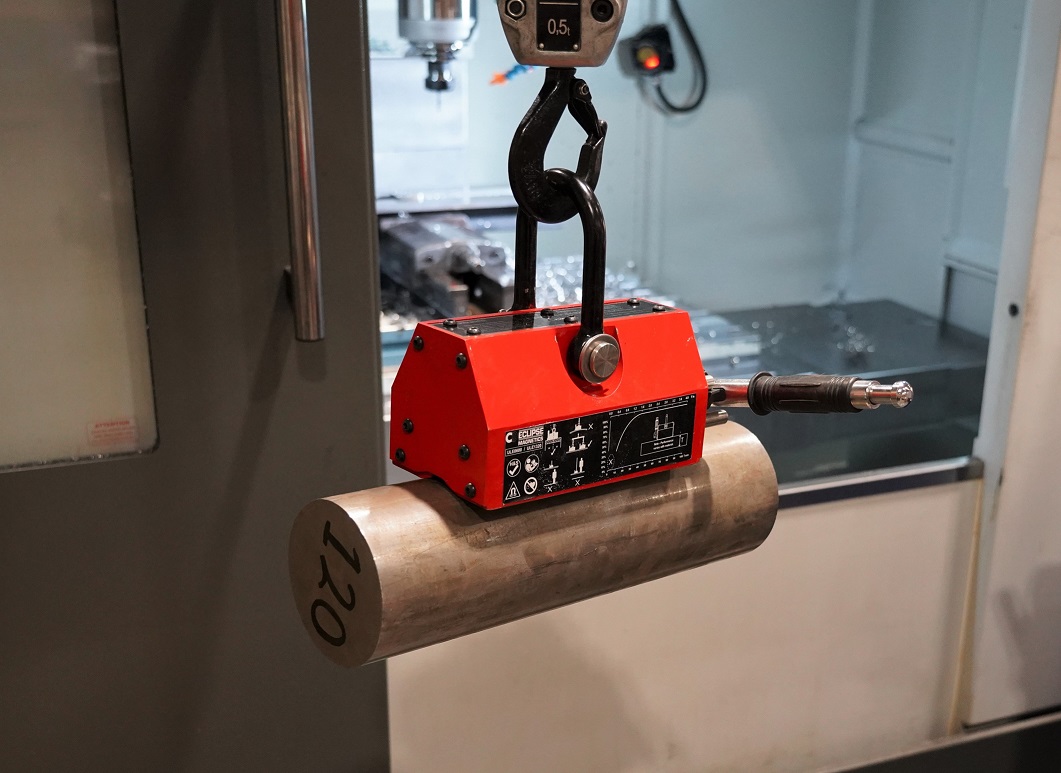

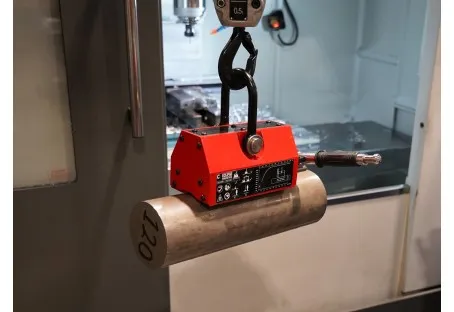

Lifting Ferrous Round Bar - The WLL varies from up to 50kg (110lb) for the ULE0100 (80mm maximum diameter) rising to up to 500kg (1100lb) for the ULE1000 (180mm maximum diameter) when used on a ferrous round bar (diameter limits apply for each version).

Please note that the WLL varies with sheet thickness and with diameter. These figures are based on lifting high-quality mild steel of the stated sheet thickness or diameter with no air gap in the way (see table on next page for further details). The Lifting Performance achieved is application-specific.
Model
Flat Plate / Section WLL
Flat Plate / Section Min ThicknessMax Material Length
Round Bar WLLRound Bar Maximum Diameter
Magnet Safety Factor
Weight
ULE0100
100
151000
50
80
3: 1
5.30
ULE0300
300201500
150
100
3: 1
310
ULE0600
600302000
300
140
3: 1
23
ULE01000
1,000402500
500
180
3: 1
39
* Please note that the Working Load Limit (WLL) is now used instead of the Safe Working Load (SWL).
The Lifting force values shown include the 3:1 safety factor and have been based on using thick high magnetic permeability steel with no air gaps. Air gaps, thinner materials, and materials with lower magnetic permeability can all reduce the pull force a lifter can actually achieve.
Please note that the achievable pull force is reduced when lifting thinner mild steel plates.
Please note that the diameter of the round bar can affect the amount of lift that can be achieved.
You must follow LOLER, PUWER, ASME B30.20, and H&S advice.
You should always check for a downrate, factor in any downrate to then perform a safety lift, and then perform a full lift only after a successful safety lift.

Benefits of using the Eclipse Ultralift E Magnetic Lifter -
No Power Supply required
3:1 Safety Factor for lifting
Lifts Ferrous Plate up to 1000kg (2200lb)
Lifts Ferrous Round Bar up to 500kg (1100lb)
Locking switch handle safety mechanism

Materials the Eclipse Ultralift E Magnetic Lifter can be used with -
Suitable Products Ferrous materials (e.g. mild steel)
Suitable Location Example - factory shopfloor/production line

Performance of the Eclipse Ultralift E Lifter
Magnetic Performance Up to 1000kg (2200lb) WLL (value varies with thickness and/or diameter) - see next page
Magnet Type Permanent Magnet Lifter
Temperature Range -10°C to +40°C (14°F to +104°F)

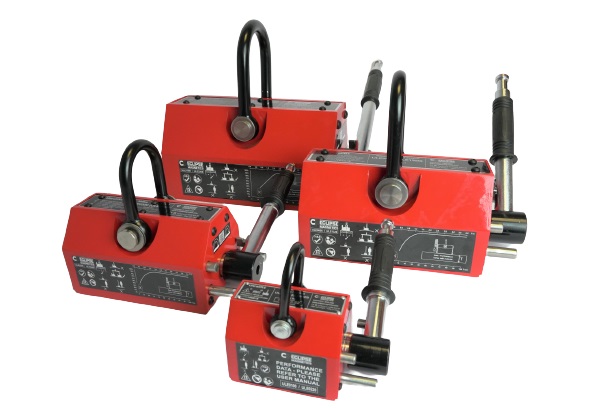

Ultralift E Magnetic Lifter ULE is the brand new high-performance and cost-effective magnetic lifter from Eclipse Magnets

Superior lifting performance and cost-effective
Simple, safe, single-person operation
Increased lifts per hour – engages with the load instantly
Optimises storage space - requires only single-face access to the load
Does not damage the load
The load can be moved with pinpoint accuracy
Zero running costs – use permanent magnetic technology
Ideal for flat surface or round steel section
Model
Flat Plate / Section WLL
Flat Plate / Section Min ThicknessMax Material Length
Round Bar WLLRound Bar Maximum Diameter
Magnet Safety Factor
Weight
ULE0100
100
151000
50
80
3: 1
5.30
ULE0300
300201500
150
100
3: 1
310
ULE0600
600302000
300
140
3: 1
23
ULE01000
1,000402500
500
180
3: 1
39
* Please note that the Working Load Limit (WLL) is now used instead of the Safe Working Load (SWL).
The Lifting force values shown include the 3:1 safety factor and have been based on using thick high magnetic permeability steel with no air gaps. Air gaps, thinner materials, and materials with lower magnetic permeability can all reduce the pull force a lifter can actually achieve.
Please note that the achievable pull force is reduced when lifting thinner mild steel plates.
Please note that the diameter of the round bar can affect the amount of lift that can be achieved.
You must follow LOLER, PUWER, ASME B30.20, and H&S advice.
You should always check for a downrate, factor in any downrate to then perform a safety lift, and then perform a full lift only after a successful safety lift.



As part of LOLER, PUWER, ASME B30.20, and H&S advice, you need to regularly inspect the Eclipse Ultralift E Magnetic Lifter to ensure they are not damaged and are suitable for lifting the parts

• Annual inspection is a minimum requirement

• We can inspect and service / repair our Lifters for you
