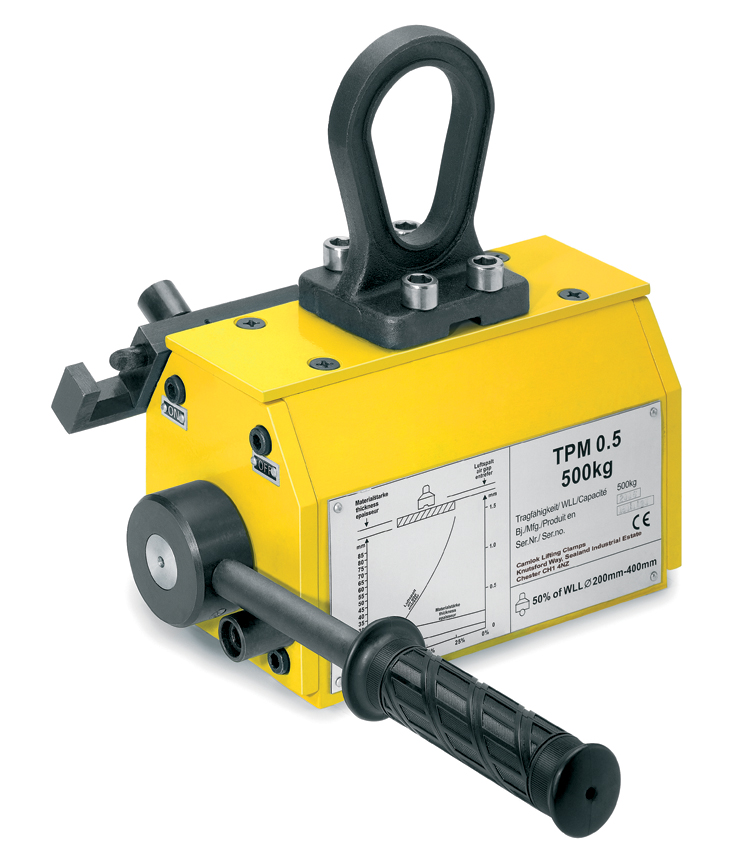

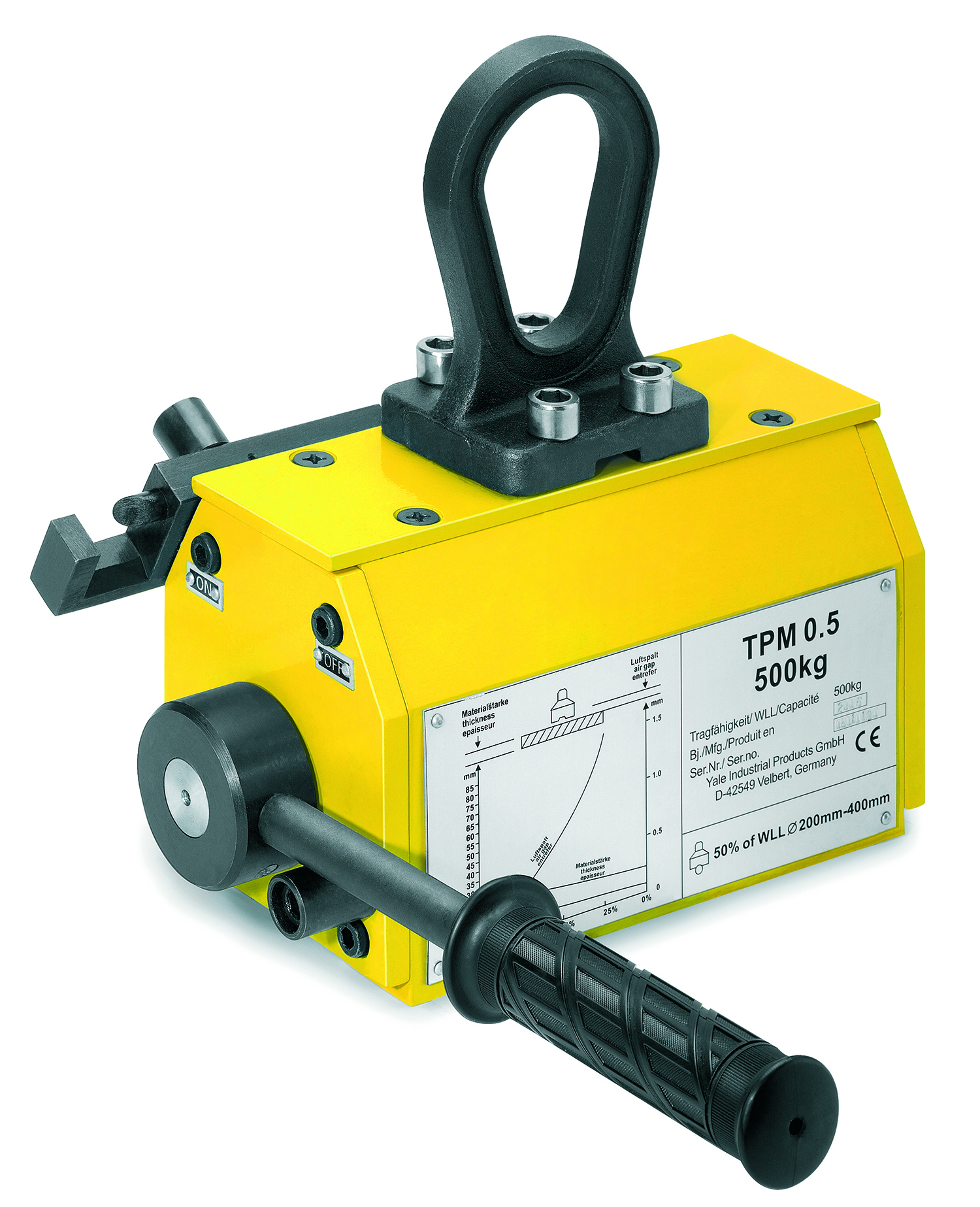

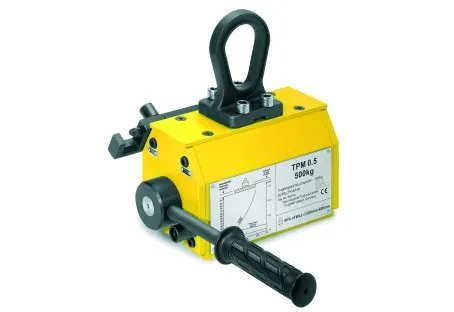

Yale TPM Permanent Lifting Magnet

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Yale TPM Permanent Lifting Magnet

Brand:

Capacity

100Kgs up to 2,000Kgs
(0.1 tonne - 2 tonne)

Description

Model/Capacity:

save£21.79

£205.36 ex VAT

£187.20 ex VAT

£224.64 inc VAT

Add to cart

Add to quote

Related products

Eclipse Ultralift E Magnetic Lifter

ULE

The brand new Eclipse Ultralift E Magnetic Lifter range utilises the latest in magnetic technology to provide a cost-effective lifting solution when handling ferrous loads and round bars compared to traditional methods such as slings, chains, hooks, and grabs.

£174.98 ex VAT

£209.98 inc VAT

More info

Description
Specifications
Maintenance and servicing
Reviews (0)
Q & A

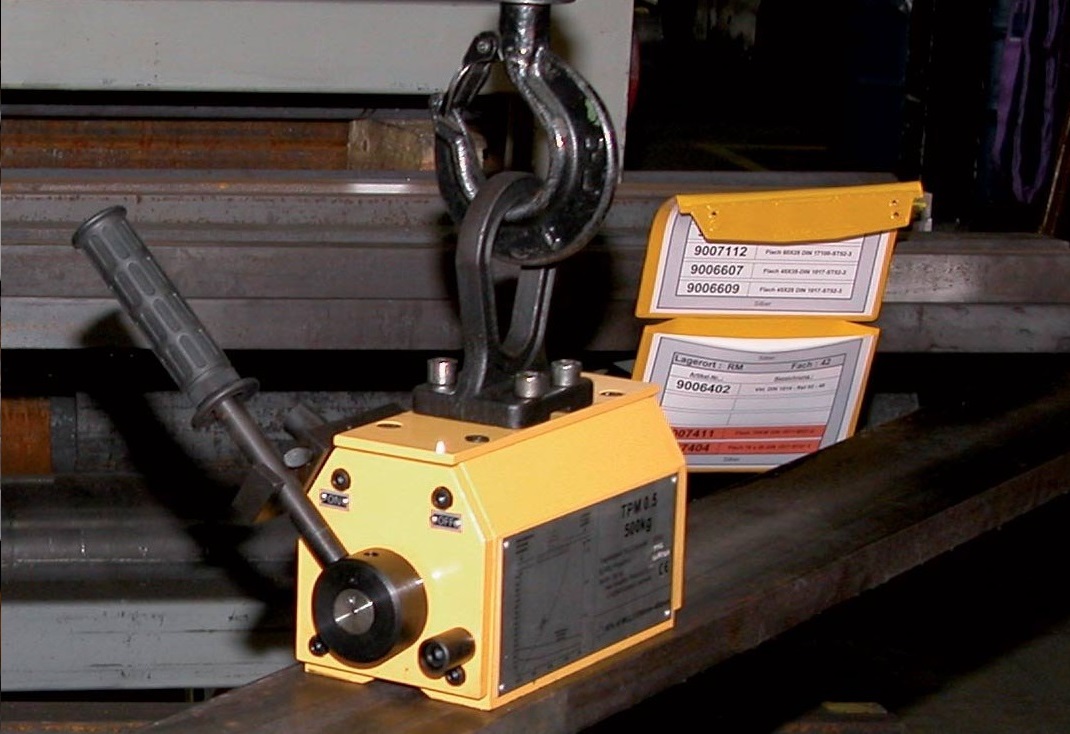

The Yale TPM permanent lifting magnets are a quick, easy, and economical way to transport heavy objects from Ferro-Magnetic material. Ideal tool within workshops and warehouses for loading/unloading any plates, machines, or tools that are magnetic. The load is not mechanically influenced, both flat and round materials can be accommodated. The powerful magnetic body allows a large lifting force at the low dead weight. The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use.

Switching on and off is done conveniently by flipping a hand lever. When activated, the operating lever is locked by a safety lock, so that unintentional demagnetization is prevented. For safety reasons, we recommend considering the different conditions like surface condition, material alloy, and plate thickness of the materials when selecting the magnets.

NB - In order to achieve a maximum capacity, the contact surface should be bright and free from dirt, oil, grease, scale, corrosion, paint, etc.

Model	Flat material Capacity. max kg	Material thickness min. at max Capacity mm	Flat material length of material max mm	Round material capacity1 max kg	Round material diameter mm	Round material length of material Max mm	Magnet Safety Factor	Weight
TPM 0,1	100	14	2000	50	40 - 300	2000	3: 1	5.30
TPM 0,3	300	20	2500	150	60 - 300	2500	3: 1	13.50
TPM 0,5	500	24	3000	250	60 - 400	3000	3: 1	27.50
TPM 0,8	800	34	3500	400	60 - 400	3500	3: 1	52.00
TPM 1,0	1000	40	3500	500	80 - 400	3500	3: 1	57.00
TPM 2,0	2000	55	3500	1000	100 - 400	3500	3: 1	125.0

The above results are based on a test piece of Bright Drawing Material ST 37.

TPM PERMANENT LIFTING MAGNETS

50 - 1000KG

Lifting magnets made from ferromagnetic material

PRODUCT APPLICATIONS

TPM permanent lifting magnets are ideal tools for easy, quick, and economical transport of heavy objects made from ferro-magnetic material. Typical operating areas are workshops and warehouses, loading and unloading of machines as well as the construction of jigs and fixtures.

NB - In order to achieve maximum capacity, the contact surface should be bright and free from dirt, oil, grease, scale, corrosion, paint, etc.

Model	Flat material Capacity. max kg	Material thickness min. at max Capacity mm	Flat material length of material max mm	Round material capacity1 max kg	Round material diameter mm	Round material length of material Max mm	Magnet Safety Factor	Weight
TPM 0,1	100	14	2000	50	40 - 300	2000	3: 1	5.30
TPM 0,3	300	20	2500	150	60 - 300	2500	3: 1	13.50
TPM 0,5	500	24	3000	250	60 - 400	3000	3: 1	27.50
TPM 0,8	800	34	3500	400	60 - 400	3500	3: 1	52.00
TPM 1,0	1000	40	3500	500	80 - 400	3500	3: 1	57.00
TPM 2,0	2000	55	3500	1000	100 - 400	3500	3: 1	125.0

The above results are based on a test piece of Bright Drawing Material ST 37.

Care, Maintenance and Inspection

INSPECTIONS BEFORE STARTING WORK

Ensure that the surface of the load, in the location where the magnet is set down, is free from grease, paint, contamination, scale and ice and is not coated, so that the pole shoes can make good contact with the surface of the load.

ATTENTION: Any distance or any obstacle between the load and the pole shoes of the magnet results in a reduction of the load capacity

Legal requirements on inspection and certification / usage

The definition of lifting equipment and lifting accessories used in LOLER make it clear that Magnet Lifters fall under the heading of lifting equipment. Unless a scheme of examination is in place already, all lifting Magnets must be thoroughly examined by a competent person at intervals not exceeding 12 months.

According to national and international accident prevention and safety regulations load lifting attachments must be inspected: • in accordance with the risk assessment of the operating company, • prior to initial operation, • before the unit is put into service again following a shut down, • after substantial changes, • however, at least once per year, by a competent person. ATTENTION: Actual operating conditions (e.g. operation in galvanizing facilities) can dictate shorter inspection intervals.
