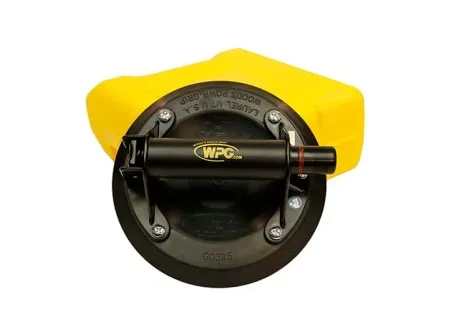

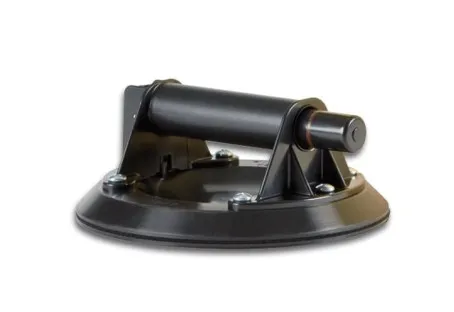

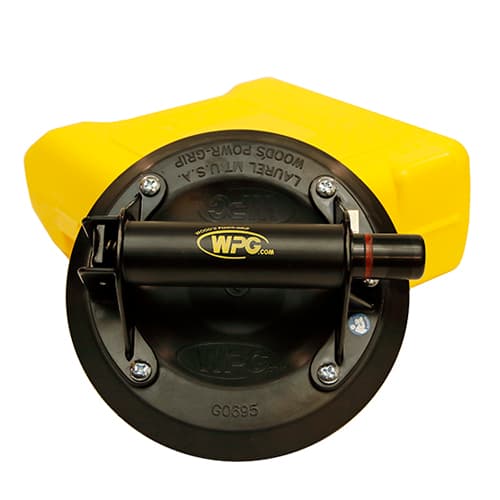

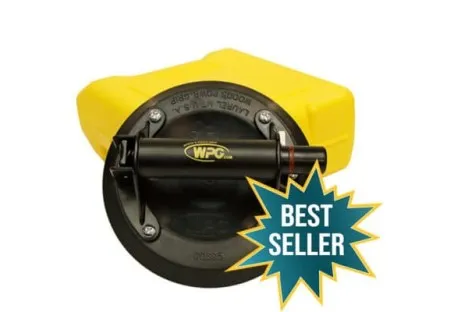

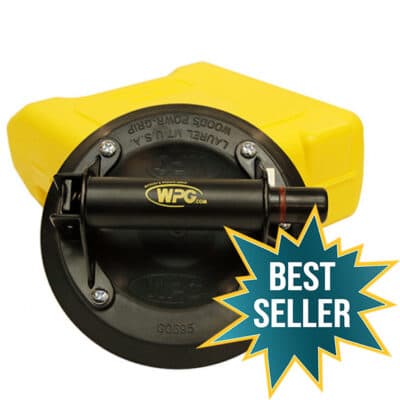

N4000 - Woods Powr-Grip Pump Activated Suction Lifter

Technical Data

Type of vacuum generation    Pump-Activated Suction Lifters

Load capacity                            57 kg

Lifting direction                       Parallel

Material of Suction Lifter       Plastic

Surface geometry                    Flat

Suction pad                              ø 200 mm

Number of suction pads        1

Vacuum gauge                        Yes

GS certified                              No

Safety Factor                           3 - 1 - guaranteed load capacity

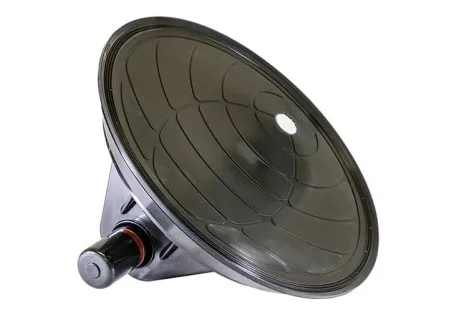

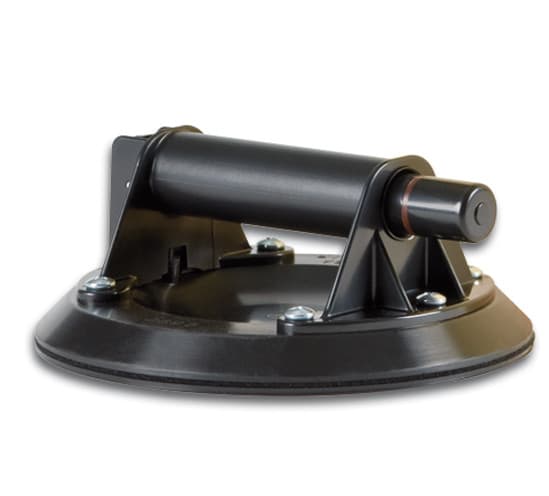

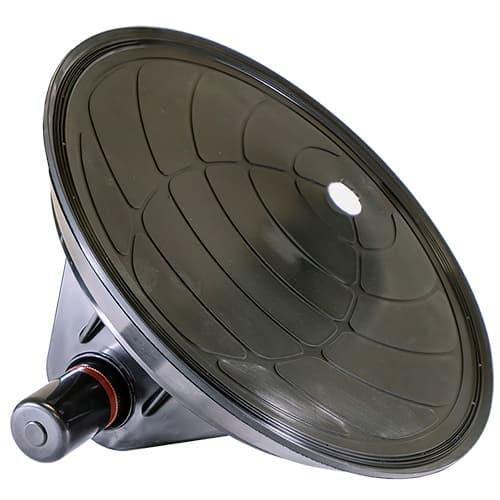

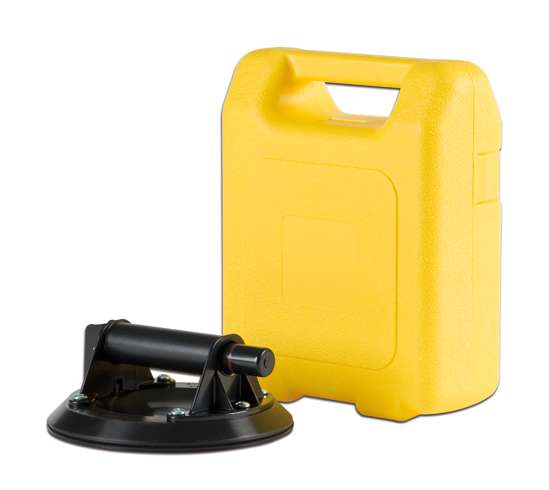

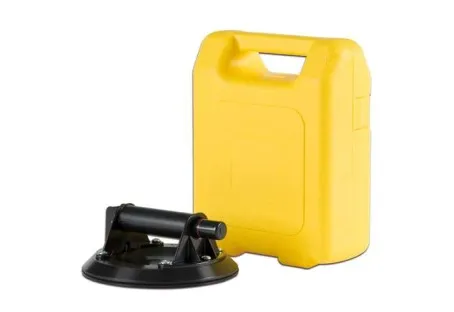

Wood's Powr-Grip® Vacuum Cups. These specially designed, hand actuated cups operate on a pump system, and create a vacuum under their gripping pad section. The pump plunger has a red band to indicate suction level at all times. When it shows less than 100% vacuum left, simply pump the plunger until you reach the original vacuum pressure without removing the cup from the surface! To release, just depress a trigger on the opposite end of the handle from the plunger. There are four models of the basic Wood's Powr-Grip® Vacuum Cup. All come with a vacuum-moulded carrying case to protect the cup when not in use.

MAINTENANCE

Service

Since aging and wear reduce the capacity of the rubber pad, it should be replaced at least once every 2 years or whenever damage is discovered (see Inspection). If the hand cup does not function normally, the cup face may be dirty or the cup may require service. First clean the cup face according to the directions to follow. If the condition persists, the unit may need to be returned to us for service.

Cleaning

1) Remove the air filter from the cup face.

2) Use a clean sponge or lint-free cloth to apply soapy water or another mild cleanser to the cup face; see WARNINGS. CAUTION: To prevent liquid from contaminating the pump, hold the cup face-down or cover the suction hole in the filter recess.

3) Wipe all residue from the cup face.

4) Allow the cup to dry and reinstall the air filter

Inspection

Examine and test the cup regularly to make sure it does not exhibit the following faults:

• cuts or damage to sealing edges of rubber pad.

• cracks or dents in handle or pump.

• reappearance of red line soon after attaching cup.

• sluggishness or dramatic changes in pump action.

• excessive glaze or stiffness of rubber pad.

• air filter missing from cup face.

Correct any faults before using the cup (see Service).

Storage

Store the cup in clean, dry condition within its protective carrying case.

POWR-GRIP® VACUUM LIFTERS AREN’T JUST SUCTION CUPS!

Since 1964, Wood’s Powr-Grip has provided innovative equipment which uses vacuum to lift, hold, and position nonporous materials, including glass, plastics, engine valves, sheet metal, stone slabs, and appliances. We offer a broad range of hand-held vacuum cups, vacuum mounting cups and below-the-hook vacuum lifters to make materials handling easier.

Whether your application requires standard or custom designs, let us put our expertise to work for you!
