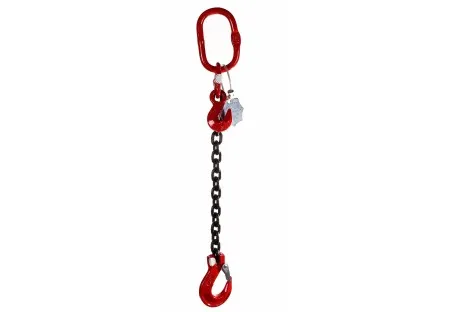

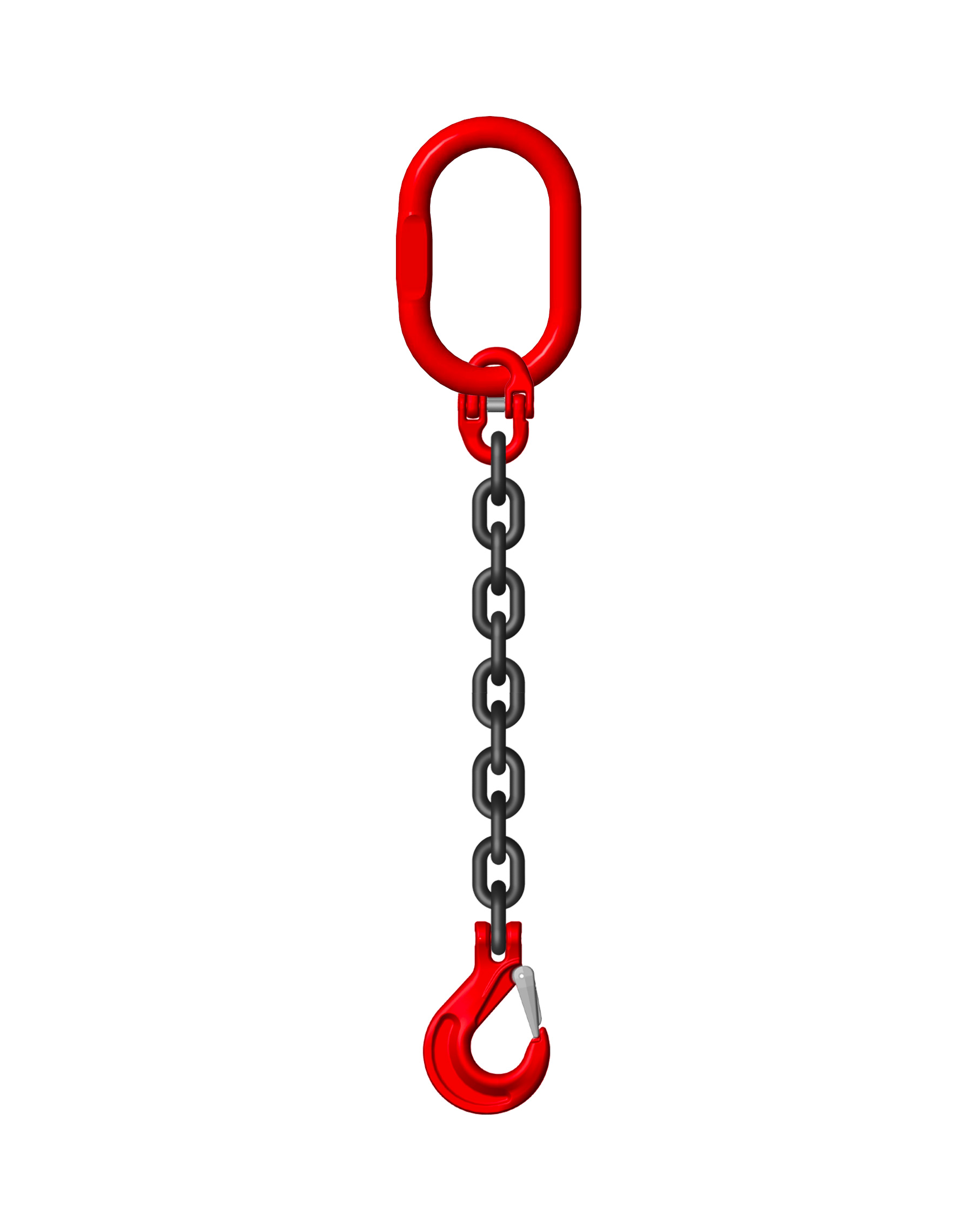

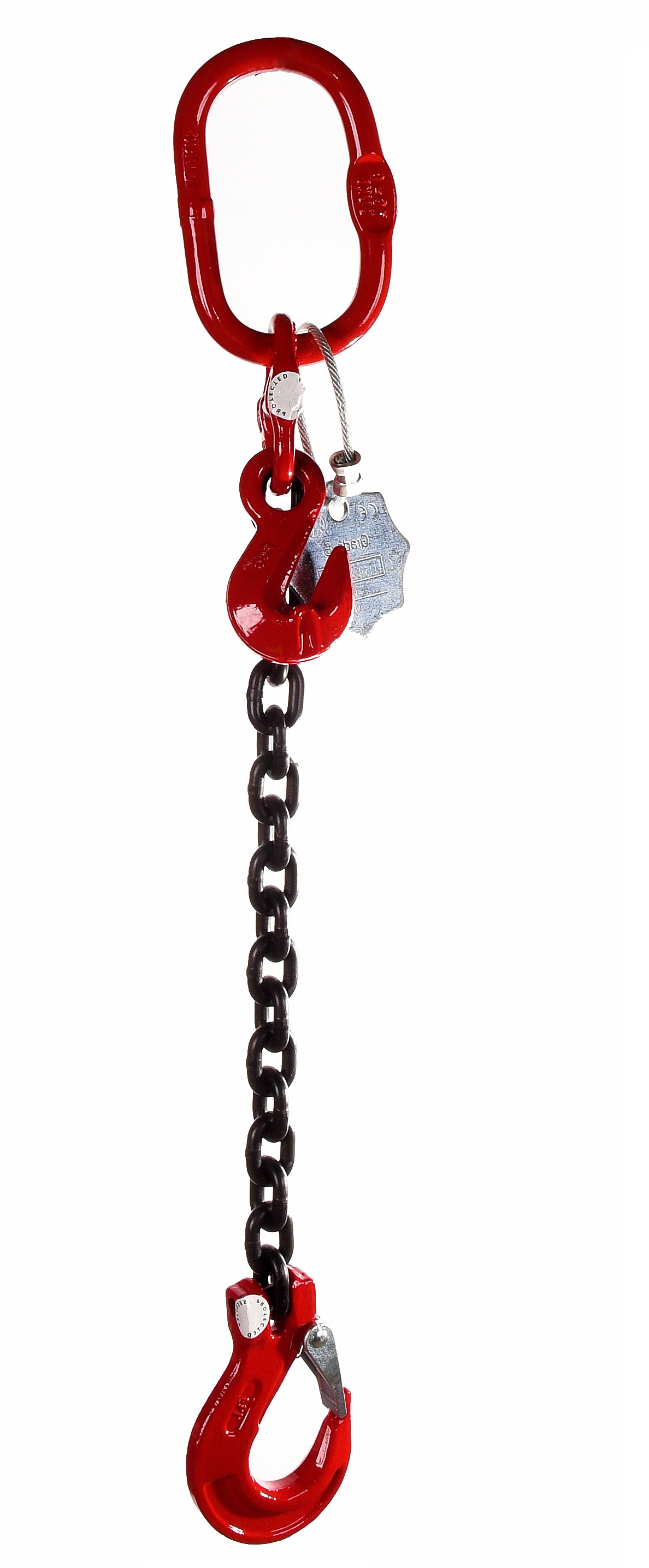

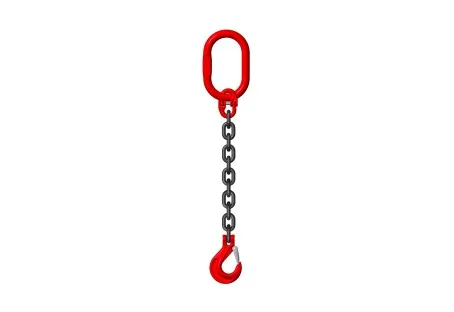

Single Leg Grade 8 Chain Sling from 7mm dia (1.5t) up to 32mm Dia (31.5tonne)

Key notes for ordering:

Standard sling priced at 2m long with standard sling hook/catches. Choose what accessories you require - Our slings will be dispatched stamped, with tags and certification, ready to use straight out of the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Single Leg Grade 8 Chain Sling from 7mm dia (1.5t) up to 32mm Dia (31.5tonne)

Brand:

Capacity

1500Kgs up to 31,500Kgs
(1.5 tonne to 31.5 tonne)

Description

Grade 8 Chain slings are the most commonly bought slings, very robust and versatile for all types of Lifting and lashing requirements - Our Single leg chain slings are manufactured to EN818-4, making them totally compliant to legislation and totally safe to use. They are custom made to suit your requirements, choose what hooks, what length, add adjusters, we even offer an oversized masterlinks just in case your lifting hook is large - we make what you require and standard slings can still be assembled and dispatched same day if ordered before 2pm.

P.O.A

Please note: We are able to supply & deliver the CS0832-1L - (32mm/31.5t) on request.

Please call us on 01384 986 026 for pricing and availability.

Related products

Alloy Bow Shackle with Screw Pin

USBSA

"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."

£1.07 ex VAT

£1.28 inc VAT

Green Pin Alloy Bow Shackle Screw Pin

G-4161

Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.

£2.81 ex VAT

£3.37 inc VAT

3 tonne Duplex Web slings - 90mm wide

DX3T

Quality 3 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted.

£5.09 ex VAT

£6.11 inc VAT

2 tonne Endless Round slings, Green

RS2T

Quality 2 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.

£2.68 ex VAT

£3.22 inc VAT

Grade 8 Chain slings are the most commonly bought slings, very robust and versatile for all types of Lifting and lashing requirements - Our Single leg chain slings are manufactured to EN818-4, using quality European chain making them totally compliant to legislation and totally safe to use. They are custom made to suit your requirements,  choose what hooks, what length, add adjusters, we even offer an oversized masterlinks just in case your lifting hook is large - we make up slings to your requirements and most standard slings can be assembled and dispatched same day if ordered before 2pm


Chain Size

WLL for Single  Leg
7mm Dia
1.5 tonne
8mm Dia
2.0 tonne
10mm Dia
3.15 tonne
13mm Dia
5.3 tonne
16mm Dia
8.0 tonne
19mm Dia
11.2 tonne
20mm Dia
12.5 tonne
22mm Dia
15.0 tonne
26mm Dia
21.2 tonne
32mm Dia
31.5 tonne
The load capacities of all chain slings are defined with the assumption that the load of the individual chain legs is distributed symmetrically. The load can be considered symmetrical when all the following conditions are met:

The angle from the vertical of all chain legs is not less than 15°.

The angle from the vertical of all chain legs are equal or deviate by Max. 15° from each other.

In the case of 3 and 4 leg chain slings, the corresponding angles in the sling level deviate by Max. 15° from each other.

The load is smaller than 80% of the indicated working load limit.
Chain Size

WLL for Single  Leg
7mm Dia
1.5 tonne
8mm Dia
2.0 tonne
10mm Dia
3.15 tonne
13mm Dia5.3 tonne
16mm Dia
8.0 tonne
19mm Dia
11.2 tonne
20mm Dia
12.5 tonne
22mm Dia
15.0 tonne
26mm Dia
21.2 tonne
32mm Dia
31.5 tonne
In-service Inspection and Maintenance requirements on chain slings are actually minimal.
Keep the condition of the chain slings clean and protect from corrosion as much as possible.
Regularly inspect chain slings and, in the event of the following defects, refer the sling to a Competent Person for a thorough examination: illegible markings; distortion of fittings; worn, stretched, bent or twisted links; ineffective safety catches; cuts, nicks, gouges, cracks, corrosion, heat discolouration or any other defect apparent to the chain or fittings.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all chain slings used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
