USBSE - Alloy Bow Shackle Safety Pin

Key notes for ordering:

Supplied tested with relevant certification. Serial Number stamping on body of eye bolt available on request.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

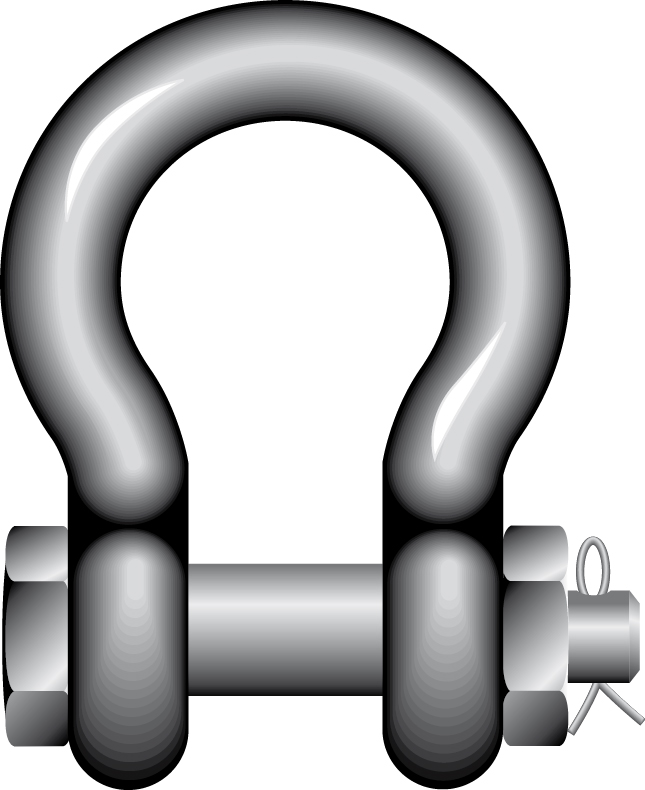

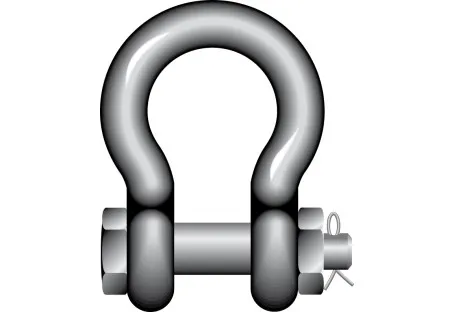

USBSE - Alloy Bow Shackle Safety Pin

Brand:

Capacity

0.33 Ton up to 55 Ton

Description

"Alloy Bow Shackles with Safety Pin manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane.


Why Safety Pin - Suitable in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security."

£1.20 ex VAT

£1.44 inc VAT

Related products

Alloy Bow Shackle with Screw Pin

USBSA

"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."

£1.07 ex VAT

£1.28 inc VAT

Alloy Dee Shackle Screw Pin

USDSA

Alloy Dee Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio. Dee or "D" Shackles are generally used to join two pieces of lifting equipment together before the lifting process. Also used for an anchorage point.

£1.18 ex VAT

£1.42 inc VAT

USDSE - Alloy Dee Shackle Safety Pin

USDSE

"Alloy Dee Shackles with Safety Pin manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio. Dee or ""D"" Shackles are generally used to join two pieces of lifting equipment together before the lifting process.


Why Safety Pin - Suitable in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security."

£1.35 ex VAT

£1.62 inc VAT

Green Pin Alloy Dee Shackle Safety Pin

G-4153

Green Pin Alloy Dee Shackles with Safety Pin, manufactured to EN13889 & US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. Safety Dee or ""D"" Shackles are generally used in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security.

£6.88 ex VAT

£8.26 inc VAT

Green Pin Alloy Bow Shackle Safety Pin

G-4163

Green Pin Alloy Bow Shackles with Safety Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio. Safety Bow Shackles are typically used in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security.

£3.80 ex VAT

£4.56 inc VAT

Alloy Bow Shackles with Safety Pin manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.

Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane.

Why Safety Pin - Suitable in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security.


Material - Alloy Steel Grade 6


Each shackle Body stamped with SWL , Size and Batch Number.


Safety Factor - Six times the WLL (SWL)


SWL from 0.33 Ton up to 55 Tons on request


Product Code
WLL (SWL).
Dia Body.
Dia Pin.
Jaw Gap.
USBS0.33E
0.33 Ton5mm6mm9.5mm
USBS0.50E
0.50 Ton6mm8mm12mm
USBS0.75E
0.75 Ton8mm10mm13.5mm
USBS1.00E
1.00 Ton10mm11mm17mm
USBS1.50E
1.50 Ton11mm13mm19mm
USBS2.00E
2.00 Ton13mm16mm20mm
USBS3.25E
3.25 Ton16mm19mm27mm
USBS4.75E
4.75 Ton19mm22mm32mm
USBS6.50E
6.50 Ton22mm25mm36mm
USBS8.50E
8.50 Ton25mm28mm43mm
USBS9.50E
9.50 Ton28mm32mm46mm
USBS12.0E
12.0 Ton32mm35mm51mm
USBS13.5E
13.5 Ton35mm38mm57mm
USBS17.0E
17.0 Ton38mm42mm60mm
USBS25.0E
25.0 Ton45mm50mm73mm
USBS35.0E
35.0 Ton50mm57mm83mm
USBS55.0E
55.0 Ton66mm70mm105mm


Working load limits

In terms of correct specification of shackles, there are three main decisions to be made: the SWL, the shape, and the pin type. The working load limit must be at least equal to the total load imposed upon the shackle. If the load on the pin is distributed over its length, or part of its length, the load bearing capacity of the pin is effectively increased but that of the body is not. It should be stressed that distributing the load right across the pin does not increase the strength of the shackle.


Body shapes

Selection of the right body shape depends on the intended use. It is desirable to use a shackle with as small a jaw opening as is consistent with adequate articulation of the connection. Buyers can select from large and small dee and bow shackles, obviously providing a choice in terms of the size of the internal clearances. However, size for size, the smaller option has a higher SWL. Dee shackles are generally used to join two pieces of lifting equipment, while bow shackles are typically employed where more than one attachment has to be made to the body, for example if joining two single leg slings and connecting to the hook of a crane, or to allow freedom of movement in the plane of the bow. The necessity for the eye of a shackle to pass through another fitting may have to be considered.


Pin types

For dee and bow type shackles there are essentially only two types of pin available: the screwed pin type and the nut and bolt type. The screwed pin is suitable for most purposes provided there is little risk of the pin becoming unscrewed during the lifting operation. It has the advantage of keeping the shackle as a quick-to-assemble, two component item. The nut and bolt pin, together with a split retaining pin, is a four component item. The advantage of the latter, however, is that the pin cannot unscrew in service. It is therefore more suitable in applications where there may be movement which could cause the shackle to unscrew; where it remains connected for extensive periods; or in situations that do not allow the shackle to be seen easily and checked for security

Maintenance requirements are minimal. Keep shackles clean, the threads free of debris and protect from corrosion.


Regularly inspect shackles and, in the event of the following defects, refer the shackle to a Competent Person for thorough examination: illegible markings; distorted, worn, stretched or bent body; bent pin; damaged or incomplete thread forms; nicks, gouges, cracks or corrosion; incorrect pin; any other defect.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.


If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
