Specification of the full range of Skoot Moving Systems

Skoots® moving system - About the product

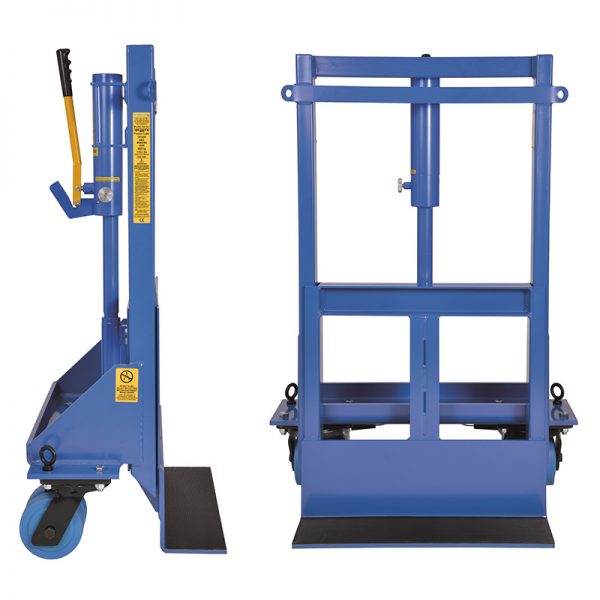

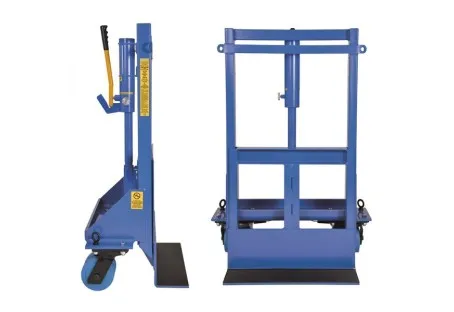

Each set of Skoots is supplied with a matching pair of mainframes which are designed to work at opposite ends of the load. A pair of heavy-duty straps are supplied to bind the Skoots units tightly to the load.

Skoots are portable moving systems that hydraulically lift a load of up to 5000kg off the floor onto castors, allowing easy movement in any direction. For heavy and bulky loads of all shapes and sizes, they can be used in a wide range of commercial and amenity situations...

- Air conditioning installation & maintenance

- Commercial refrigeration

- Security safe installation

- Switchgear panel manufacture & installation

- Vending machine installation

- Museums and galleries

- Hire shops – specialty lifting equipment

- Data cabinets and server equipment

- Machinery installation

and many more...

STORAGE PROCEDURE

Keep Skoots in an upright position at all times including during transportation and storage to avoid airlocks in the hydraulic jacks. If an airlock is present then refer to the operating instructions

Care And Maintenance

– Store Skoots upright at all times.

– Jacks should be maintained and repaired in accordance with the manufacturer’s instructions. Such work should be carried out by qualified persons.

– No modifications shall be carried out that adversely affect the compliance of the jack with this standard.

SKOOTS – YOUR MOVING SOLUTION

Supplied worldwide for over 30 years, Skoots has offered a practical solution to problems associated with moving large or difficult loads up to 5 tonnes where more conventional methods cannot be used. Skoots are a hydraulically controlled portable moving system that lifts product off the floor and onto castors, allowing easy movement in any direction to the user's desired location.

FAQs – SK5000 - 5,000Kgs Skoots Moving Systems

What is the maximum lifting capacity of the SK5000?

The SK5000 is rated for lifting and transporting loads up to 5,000kg (5 tonnes). It’s the most robust model in the Skoots range, designed for extreme-duty handling tasks.

What types of items can be moved with the SK5000?

The SK5000 is ideal for moving:

- Heavy machinery and switchgear

- Crated equipment or industrial control panels

- Server racks and EV batteries

- Safes, HVAC units, and vending machines

- It’s commonly used in data centres, factories, and installation work.

Can one person operate the SK5000 safely?

Yes, the SK5000 is designed for single-person operation, though due to the load weight, we recommend two-person handling for added control during movement and positioning.

What is the maximum lifting height?

The maximum lifting height is 200mm, which provides sufficient ground clearance while maintaining load stability.

Do I need special training to use the SK5000?

No formal training is required. The system is simple to operate:

- Secure the load with the included straps

- Raise the load using the hydraulic jack

- Manoeuvre using the swivel castors

- Lower using the control valve wheel

- We recommend a short user briefing or demonstration for safety.

What floor types are suitable for the SK5000?

The SK5000 should be used on flat, smooth, and hard surfaces such as concrete or sealed warehouse flooring. Avoid use on uneven, gravelled, or sloped areas.

Are replacement parts or straps available?

Yes, we supply Skoots Securing Straps and Skoots Replacement Strap STR5T. Regularly inspect your straps for wear and replace as needed.

What’s the difference between SK5000 and other Skoots models?

The main difference is capacity and lifting height. The SK5000 has the highest weight rating (5,000kg) but a lower lifting height (200mm) than smaller models like the:

- SK600 – 600Kg

- SK900 – 900Kg

- SK1400 – 1400Kg

- SK2000 – 2,000Kg

- SK3500 – 3,500Kg

Explore the full range here.

Can I store the SK5000 in an upright position?

Yes, the Skoots frames can be stored vertically to save space, but ensure they are clean, dry and straps are rolled and stored properly.
