Steerman Machine Movers kit

Key notes for ordering:

Sold as a full kit with options. Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Steerman Machine Movers kit

Brand:

Capacity

6,000kgs up to 12,000Kgs
6 tonne & 12 tonne

Description

Model/Capacity:

Accessories 1:

Accessories 2:

save£277.18

£999.98 ex VAT

£769.00 ex VAT

£922.80 inc VAT

Add to cart

Add to quote

Related products

Description
Specifications
Reviews (0)
Q & A

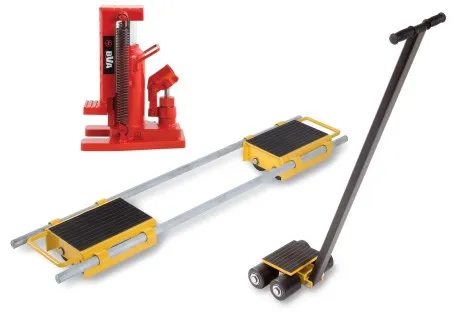

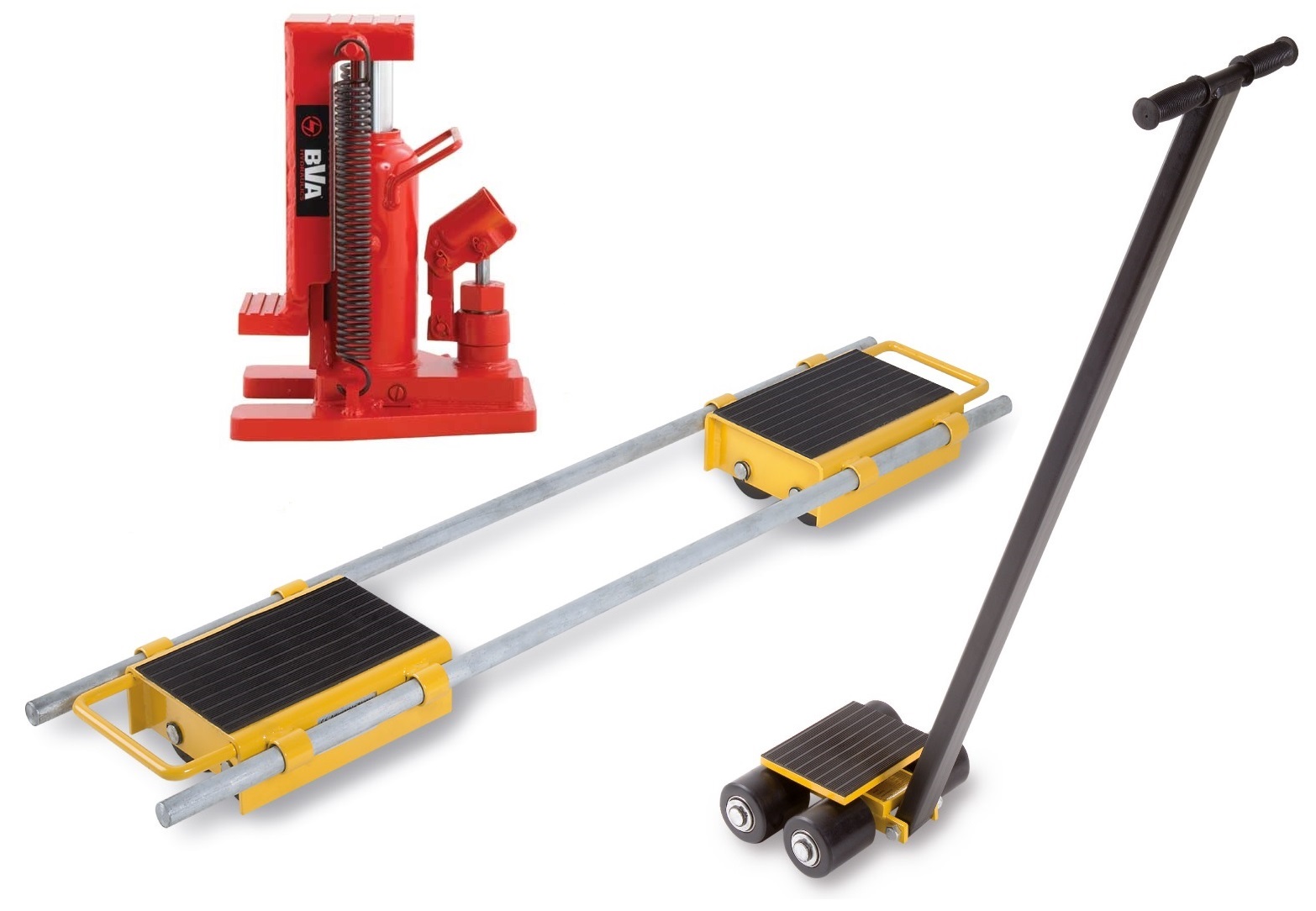

Steerman All-In-One Machine Movers Kit. These kits offer a complete solution to any load-moving or maintenance team. We have matched together the best-suited Toe Jacks to moving skates to create all you need using these quality products. The Steerman load-moving skate systems offer a low-cost alternative to the SX professional systems, but no compromise on quality. the LX has been designed to safely transport heavy/industrial loads. These 3-point kits comprise steerable front and 1 pair adjustable rear skates supplied complete with handles and connecting bars and ready to use straight from the box.

Add to this kit the BVA Hydraulic Toe jack, ideal when working in confined spaces for lifting and aiding the positioning of heavy machinery and similar large objects.

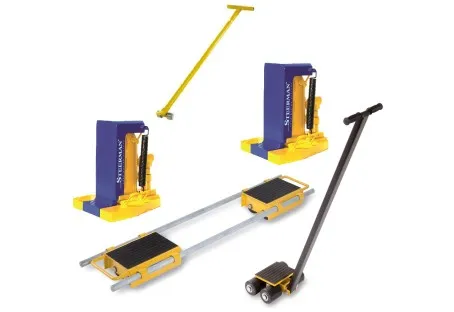

Kit includes

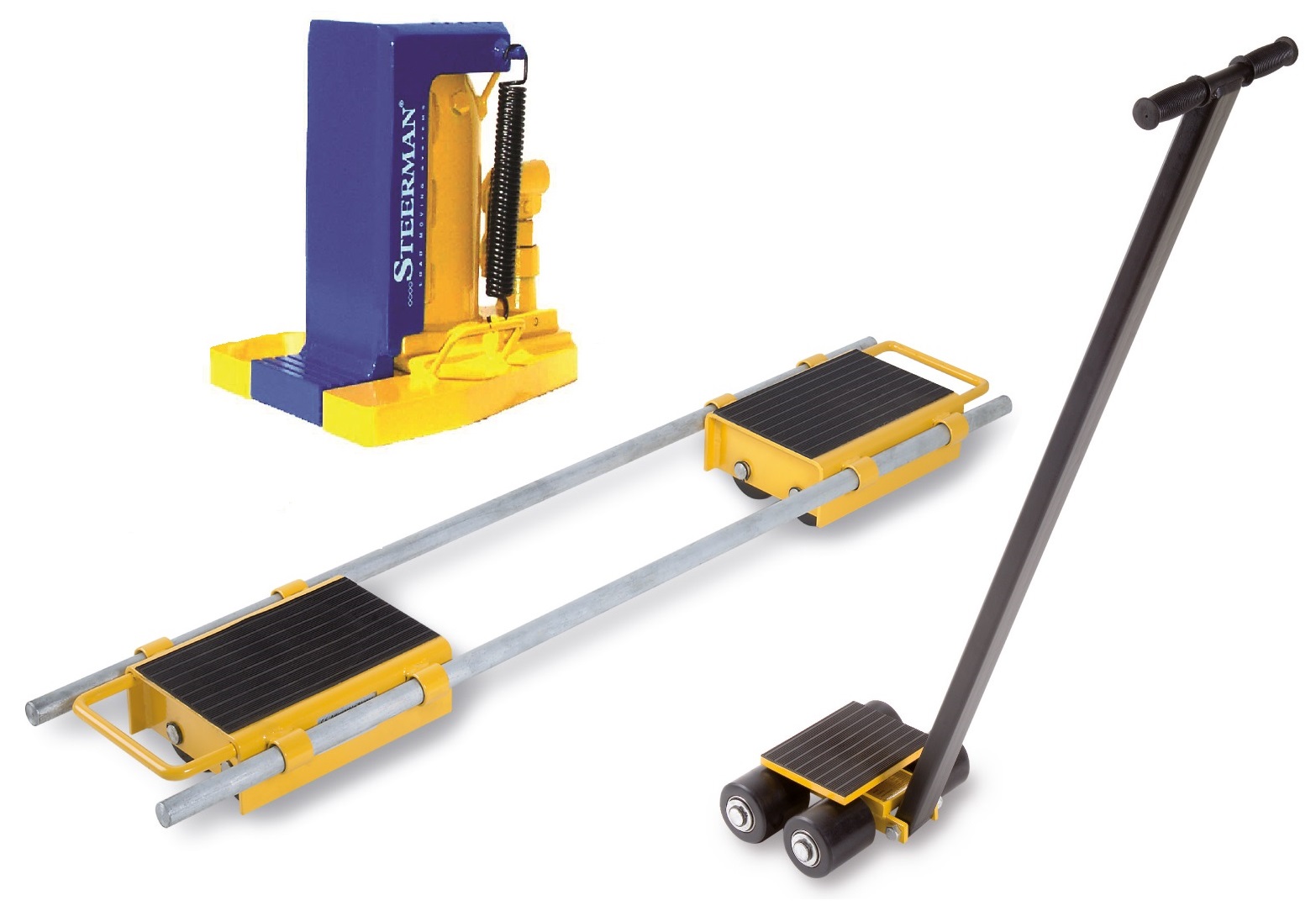

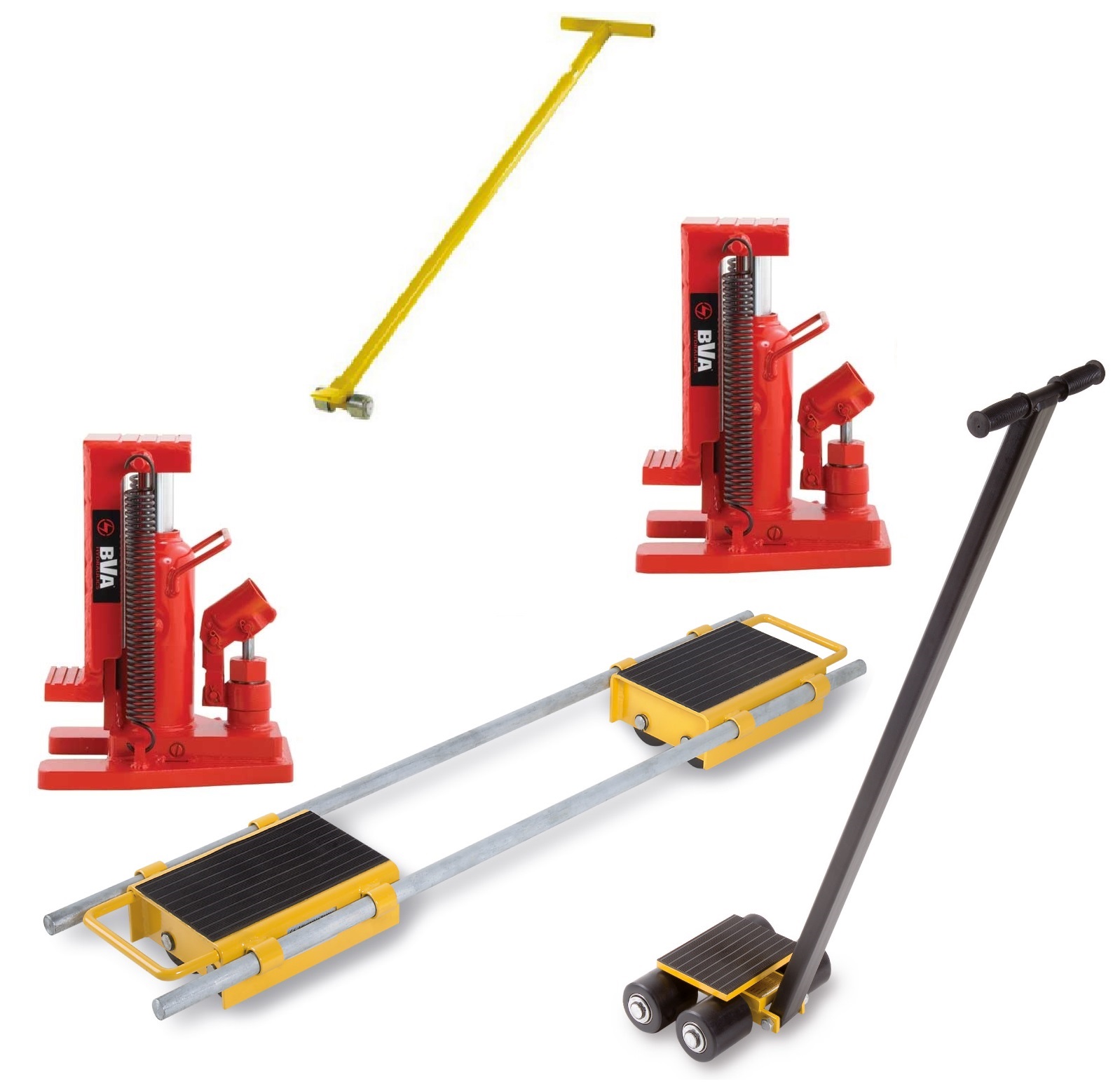

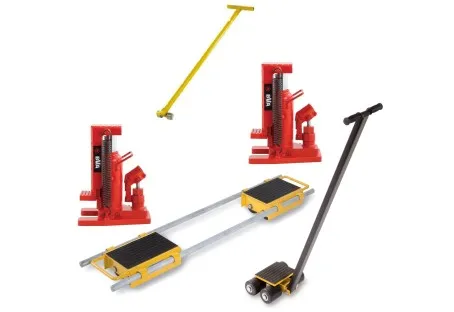

LX6KIT - 6 Tonne Machine Movers Kit

1 x LX-6 Steerman Front Skate c/w Handle + Steerman Rear Skates c/w Alignment Bars

1 x BVA-3 Steerman Hydraulic Toe Jack

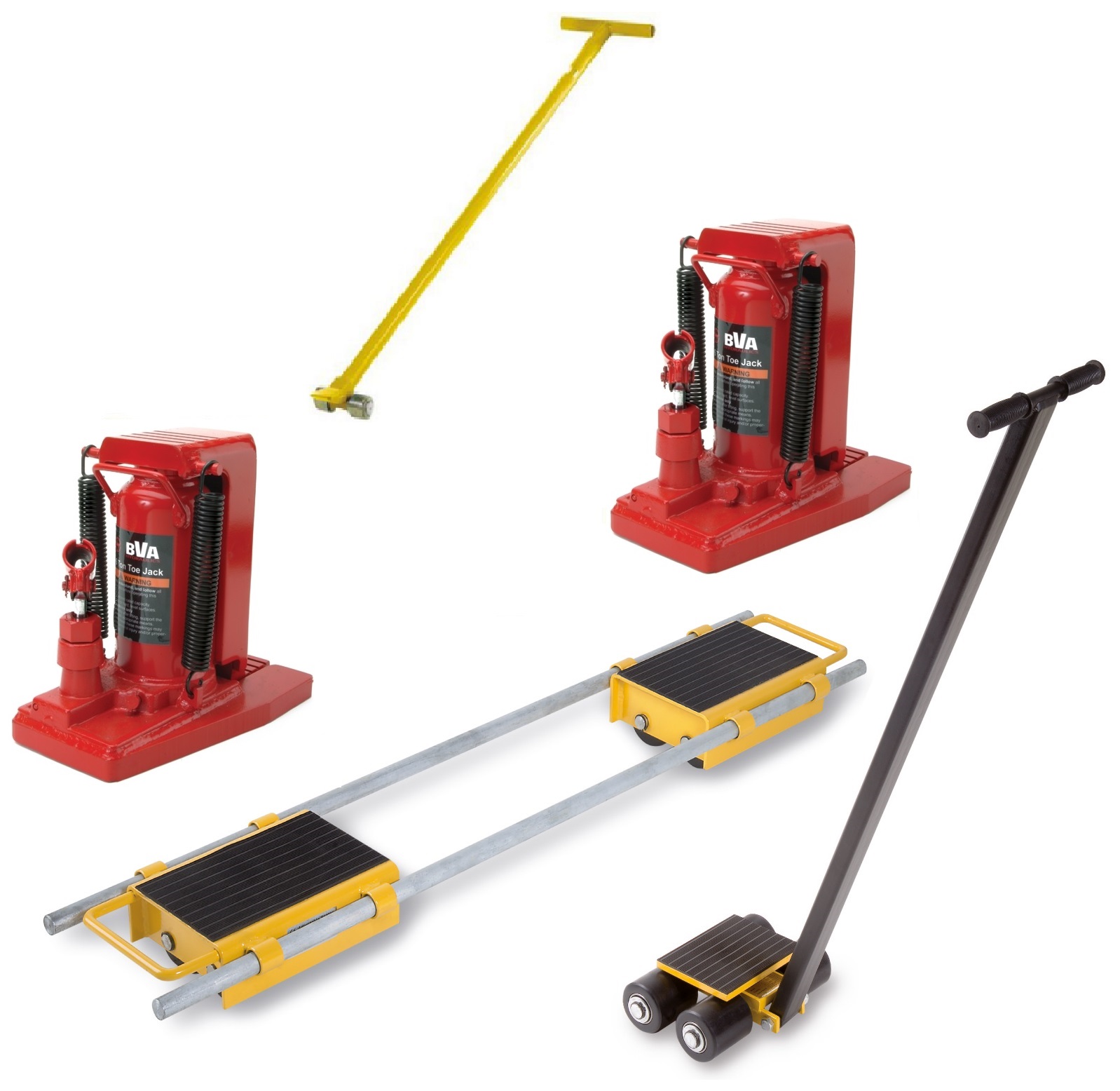

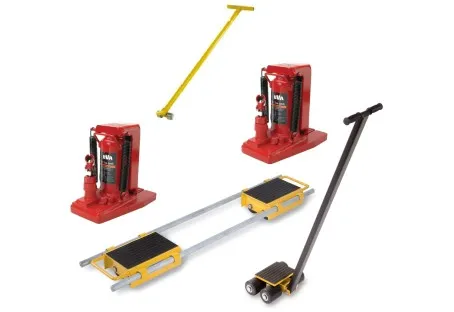

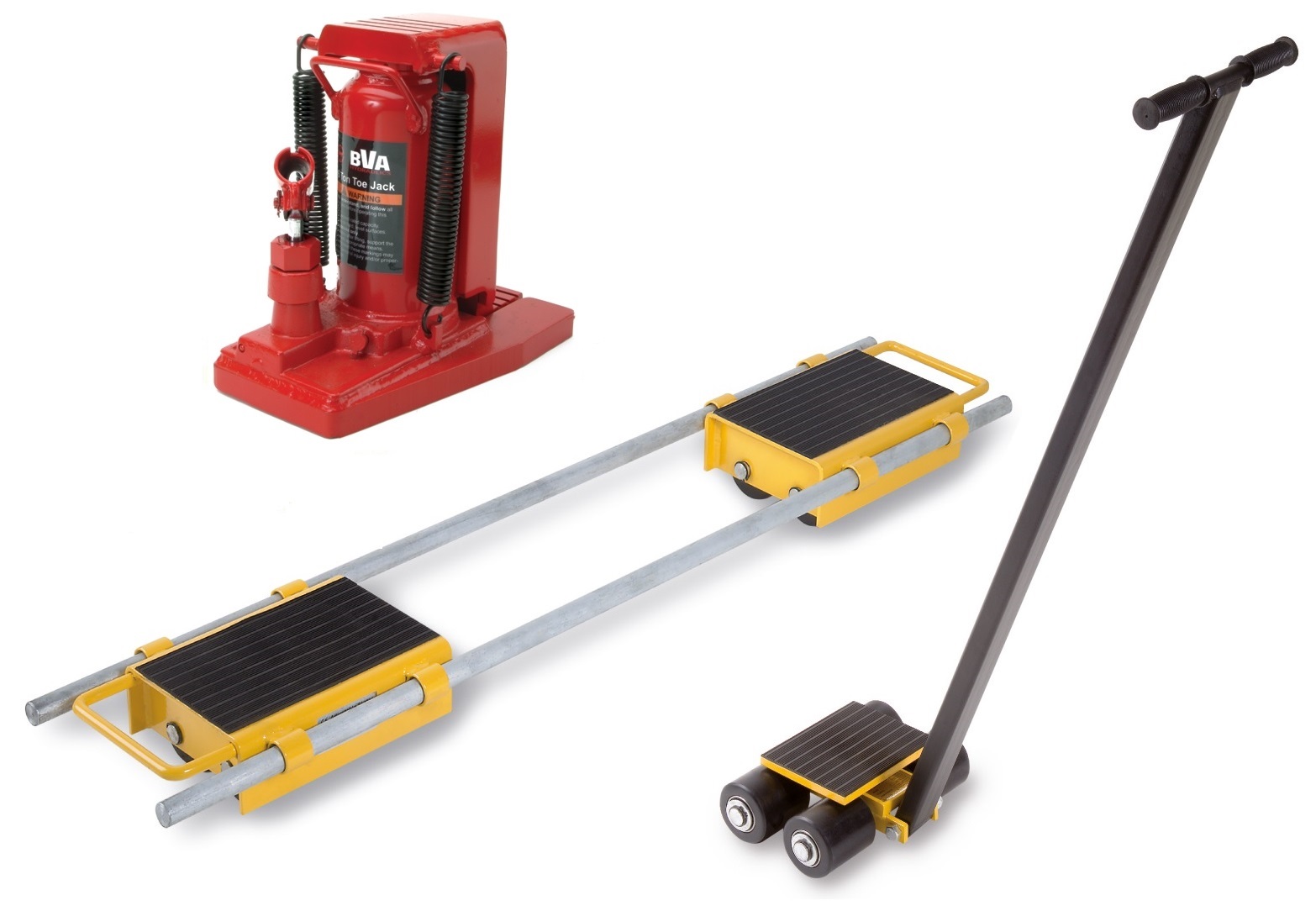

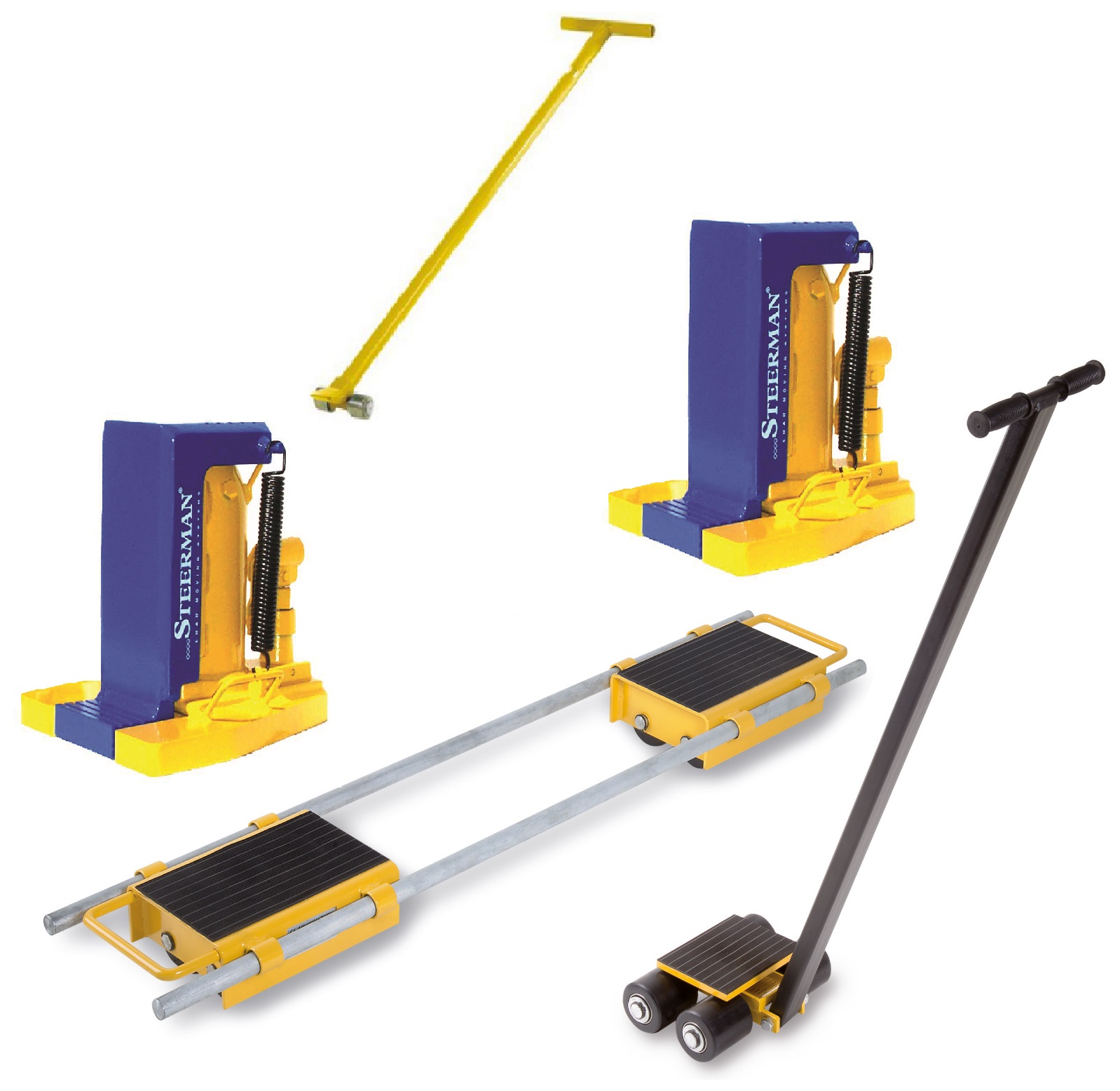

LX12KIT - 12 Tonne Machine Movers Kit

1 x LX-12 - Steerman Front Skate c/w Handle + Steerman Rear Skates c/w Alignment Bars

1 x BVA-6 Steerman Hydraulic Toe Jack

Extras that can be added to the above kit

1 x Extra Steerman Hydraulic Toe Jack eitherBVA-3 or BVA-6

1 x Steerman Roller Pinch Bar - RPB15 for LX6KIT and RPB50 for the LX12KIT

Model	Capacity of Complete Set	Capacity of Front Skate Only	Capacity Rear Skates only	Overall Height of both front/rear	Boxed Weight Complete Set
LX-6	6,000 Kgs	3,000 Kgs	6,000Kgs / Pair	115mm	45Kgs
LX-12	12,000 Kgs	6,000 Kgs	6,000Kgs / Pair	115mm	96Kgs

The Steerman Industrial Toe Jack - A quality manufactured hydraulic jack with a lifting toe, designed for working in confined spaces. Typical uses for this style of the jack are Lifting heavy machinery or containers off the floor ready for moving skates/systems to be positioned underneath

Model	Capacity via Claw	Capacity Via Head	Closed Height	Claw Clearance	Stroke	Weight
BVA- 3	3000Kgs	3000Kgs	230mm	16mm	130mm	16.4Kgs
BVA- 6	6000Kgs	6000Kgs	267mm	22mm	152mm	23.2Kgs

Steerman new roller pinch bar is an ideal companion for all load movers. Used as an aid to position an object into a precise area or to gently lift an object off the floor just enough to insert a Toe Jack

Model	Capacity	Max Lift Height	Overall Length	Weight
RPB15	1,500Kgs	145mm	2150mm	16.5Kgs
RPB50	5,000Kgs	145mm	2150mm	32Kgs (HEAVY)

Kit includes

LX6KIT - 6 Tonne Machine Movers Kit

LX-6 - One Steerman Front Skate c/w Handle + Two Steerman Rear Skates c/w Alignment Bars

BVA-3 One Steerman Hydraulic Toe Jack

LX12KIT - 12 Tonne Machine Movers Kit

LX-12 - One Steerman Front Skate c/w Handle + Two Steerman Rear Skates c/w Alignment Bars

BVA-6 One Steerman Hydraulic Toe Jack

Extras that can be added to the above kit

One Extra Steerman Hydraulic Toe Jack eitherBVA-3 or BVA-6

One Steerman Roller Pinch Bar - RPB15 for LX6KIT and RPB50 for the LX12KIT

Technical Details

LX Moving Skates

The Steerman LX range of load-moving skate systems is a low-cost alternative to the Steerman SX professional skate kits, but no compromise on quality - These 3 point kits comprise a steerable front and 1 pair of adjustable rear skates supplied complete with handles and connecting bars and are ready to use straight from the box

Model	Capacity of Complete Set	Capacity of Front Skate Only	Capacity Rear Skates only	Overall Height of both front/rear	Boxed Weight Complete Set
LX-6	3,000 Kgs	3,000 Kgs	6,000Kgs / Pair	115mm	45Kgs
LX-12	12,000 Kgs	6,000 Kgs	6,000Kgs / Pair	115mm	96Kgs

Model	Capacity via Claw	Capacity Via Head	Closed Height	Claw Clearance	Stroke	Weight
BVA- 3	3000Kgs	3000Kgs	230mm	16mm	130mm	16.4Kgs
BVA- 6	6000Kgs	6000Kgs	267mm	22mm	152mm	23.2Kgs

Model	Capacity	Max Lift Height	Overall Length	Weight
RPB15	1,500Kgs	145mm	2150mm	16.5Kgs
RPB50	5,000Kgs	145mm	2150mm	32Kgs (HEAVY)
