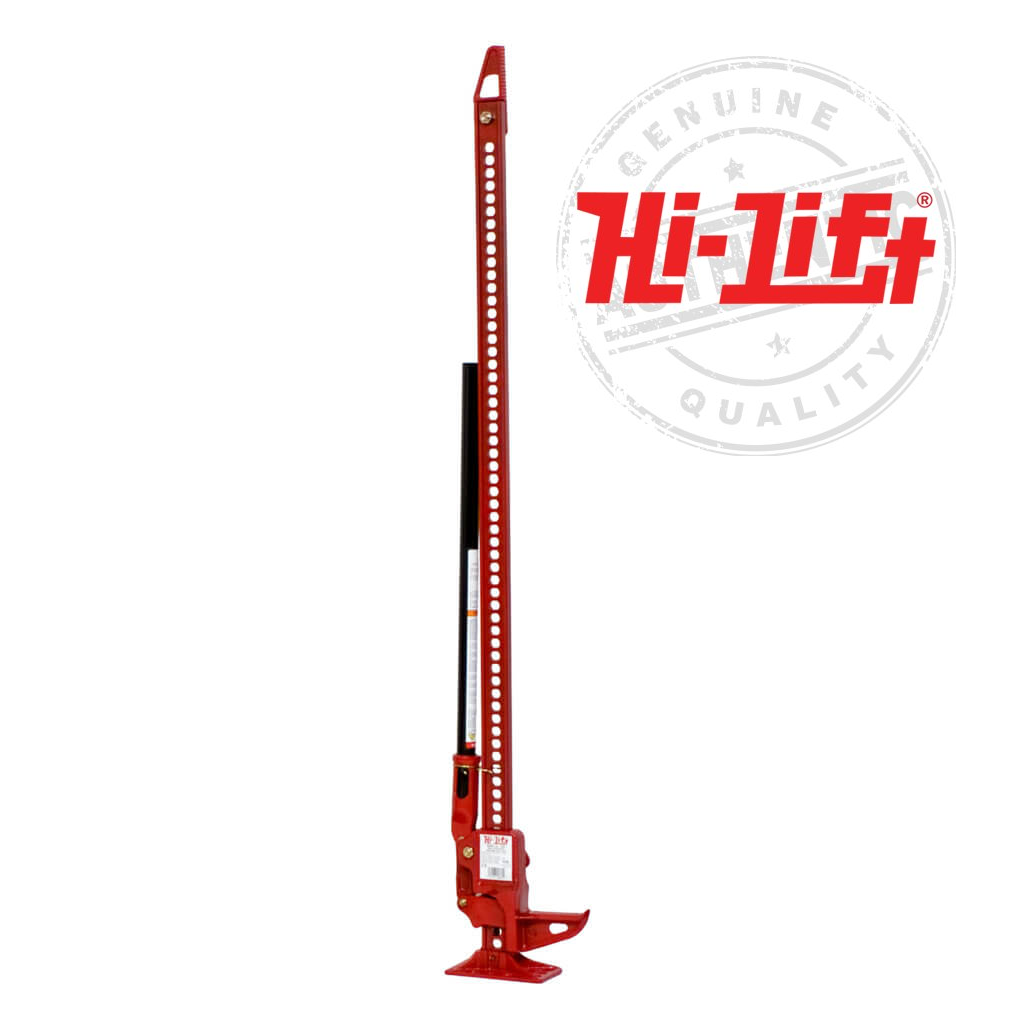

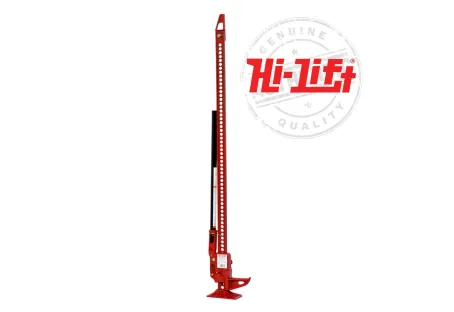

Hi-Lift All Cast Jack HL-605 (60")

The Hi-Lift HL-605 All Cast Jack is the ultimate high-lift mechanical jack, built for lifted 4x4s, heavy vehicles, and tough off-road conditions. Its 60" lifting height provides unparalleled reach for extreme terrain and recovery applications. Every major component is cast iron, giving it exceptional strength, durability, and reliability.

Construction & Materials

Main components: 100% cast iron (lifting mechanism, handle socket, base, and clamp-clevis)

Pins, bolts & hardware: Zinc-plated to resist corrosion

Handle: Heavy-duty steel with powder-coated finish

Top clamp-clevis: Supports lifting, winching, clamping, and spreading

Finish: Hi-Lift signature red powder coat for durability and visibility

Performance & Safety

Shear bolt protection: Designed to prevent misuse and overloading

Two climbing pins: Provide smooth, controlled incremental lifting

One-piece handle socket: Strong, consistent climbing action

Mechanical operation: Works in any weather—no hydraulics required

Safety standards: Complies with ASME B30.1-2015 for mechanical jacks

Compatibility & Accessories

Compatible with all Hi-Lift accessories:

Off-Road Base Plate – stabilizes jack on soft or uneven terrain

Handle Keeper – secures handle during transport

Winch Kit – converts jack into a hand-operated winch

Lift Mate – allows wheel or hub lifting

Works with most 4x4 mounting brackets and roof-rack mounts

Applications

Off-road vehicle recovery for lifted 4x4s

Heavy machinery and farm equipment lifting

Overland expeditions and workshop use

Winching, clamping, and spreading heavy loads

Maintenance & Care – Hi-Lift All Cast Jack HL-605

The HL-605 is designed to handle the toughest off-road recovery and heavy lifting tasks, but regular maintenance ensures it performs safely and reliably for years.

Routine Care

Clean after every use: Remove mud, sand, grit, or debris from climbing pins, springs, and the lifting mechanism. A wire brush or cloth works well.

Lubricate moving parts: Apply light oil (e.g., 3-in-1 or WD-40) to climbing pins, springs, and lift mechanism for smooth operation.

Inspect for damage: Check for bent parts, cracked castings, or worn pins before use. Replace any damaged components immediately.

Protect from corrosion: Store in a dry place. If mounted on a vehicle or roof rack, use a Hi-Lift Handle Keeper or cover to reduce exposure to moisture and vibration.

Check the shear bolt: Ensure the safety shear bolt is intact and correctly fitted — never replace with a stronger bolt.

Handle safely: Avoid uncontrolled handle movement; the spring-loaded action is strong and can cause injury if mishandled.

Recommended Service Interval

Occasional use: Clean and oil every few months.

Heavy or frequent use: Clean, oil, and inspect monthly or after every muddy/wet recovery.

Replacement Parts & Support

Genuine Hi-Lift replacement pins, bolts, springs, and service kits are available from authorised UK distributors.

Most maintenance can be done with simple hand tools — no specialist equipment required.

Why Choose Hi-Lift HL-605?

1. Extra Reach for Extreme Adventures

With a 60" lifting height, the HL-605 is built for lifted 4x4s, heavy machinery, and extreme recovery situations. It gives enthusiasts and professionals the reach and leverage needed for challenging terrain.

2. Rugged, All-Cast Construction

Every major component is solid cast iron, engineered to withstand heavy loads, harsh weather, and off-road abuse. The HL-605 is a tool built to last decades, even under demanding conditions.

3. High-Capacity Performance

Rated for 5,000 lb (2,268 kg) with tested loads over 7,500 lb (3,400 kg), the HL-605 handles heavier vehicles and extreme recovery jobs that smaller jacks cannot.

4. Versatile Tool for Multiple Applications

Lift, winch, clamp, or spread — the HL-605 is more than a jack. From overland expeditions to farm work or heavy 4x4 recovery, it adapts to a wide range of tasks.

5. Trusted by Experts Worldwide

Hi-Lift jacks are used by recovery professionals, off-road enthusiasts, and overlanders globally. The HL-605 combines decades of proven reliability with innovation for heavier-duty tasks.

6. Genuine Accessories & Support

The HL-605 works with all Hi-Lift accessories — off-road base plates, handle keepers, winch kits, and lift mates. Supported by authorised UK distributors, spare parts and expert advice are always available.
