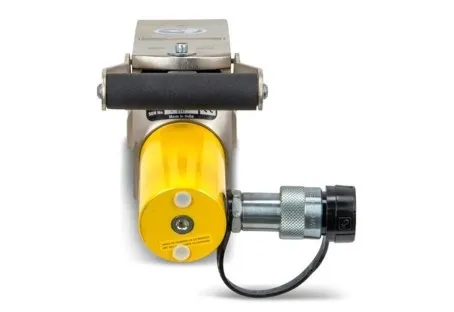

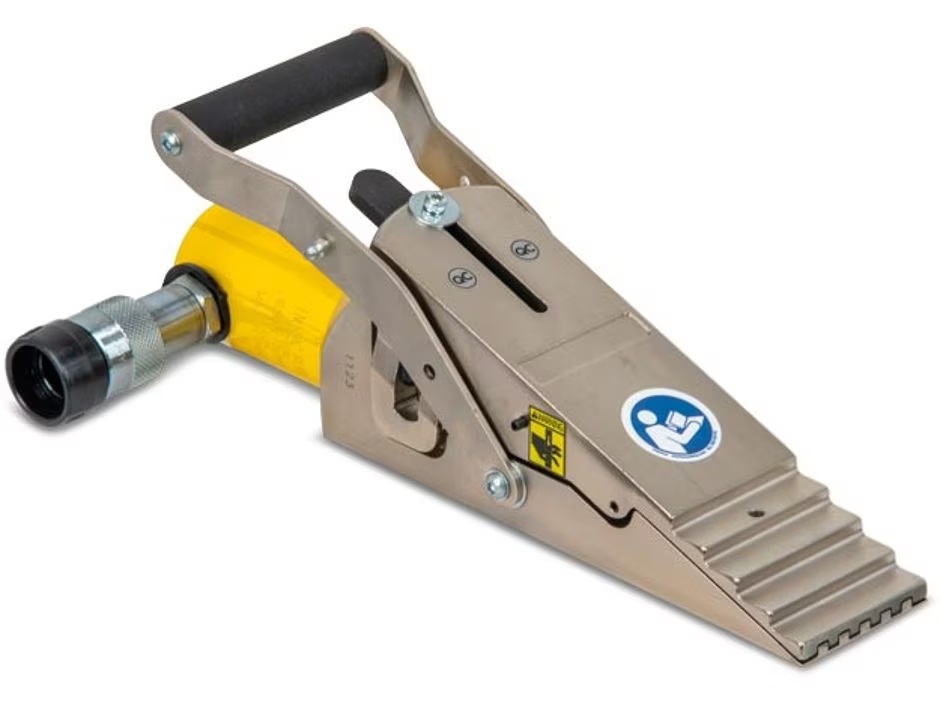

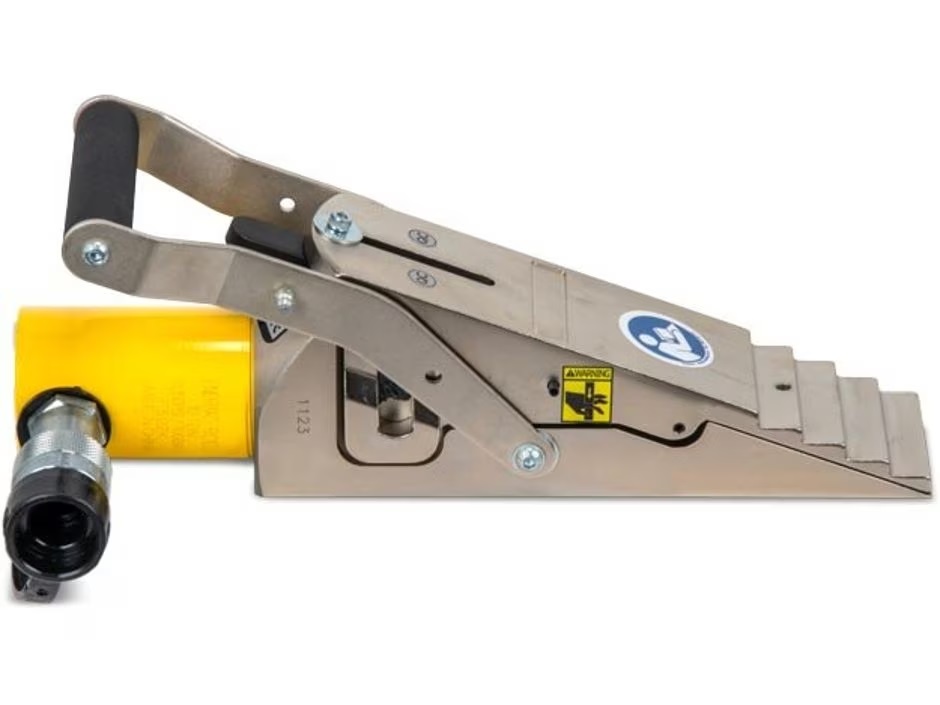

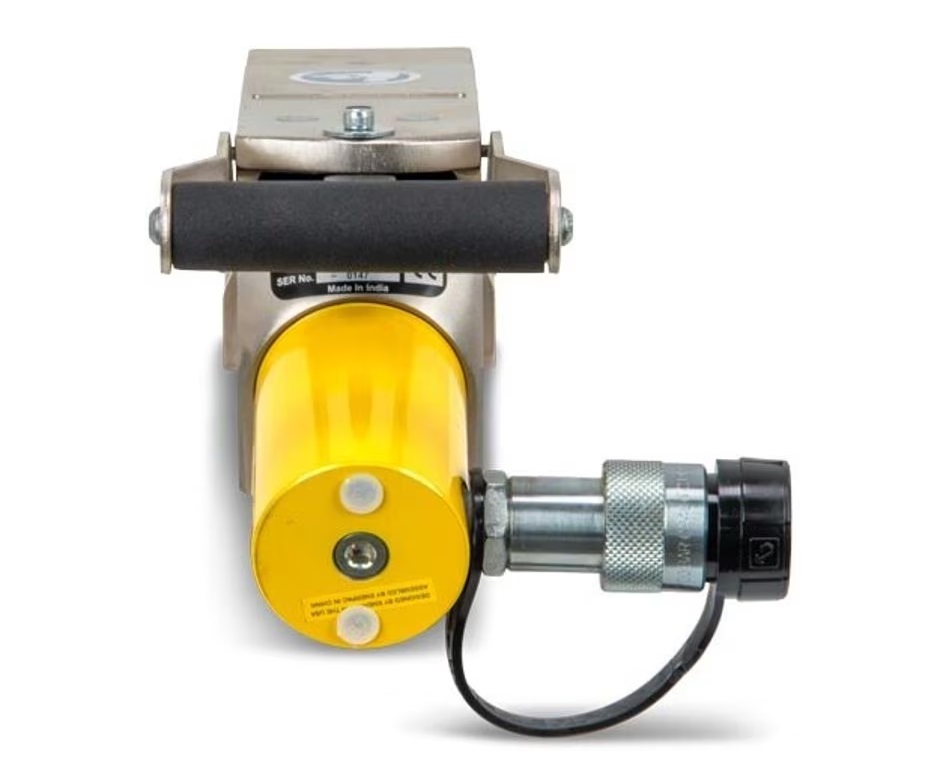

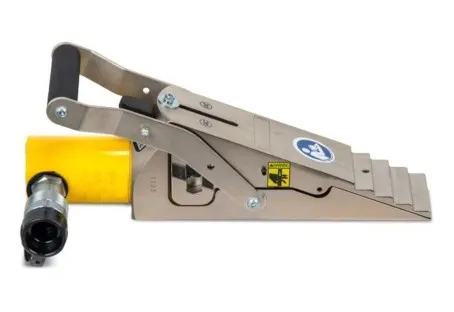

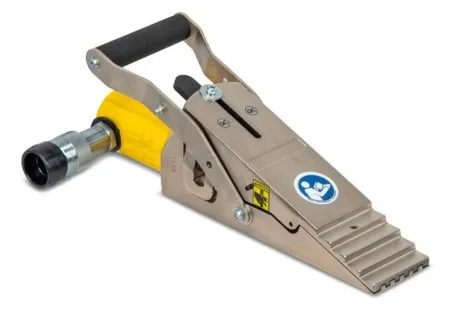

Enerpac LW16 Vertical Lifting Wedge

Enerpac LW16 Vertical Lifting Wedge is ideal when you need to lift and lower heavy loads of up to 16 tons with a stable motion without slippage. A minimum insertion gap of 10 mm is needed which expands up to 51.5 mm. Retraction force is supplied by the single-acting spring return cylinder. The maximum operating pressure is (10000 psi 700 bar). Please Note - A compatible hydraulic pump is needed to operate the LW16. The Enerpac P392 Hand Pump, or the P392FP Foot Pump are ideal. Alternatively, choose the LWC16 Vertical Lifting Wedge, which includes an integrated hand pump.

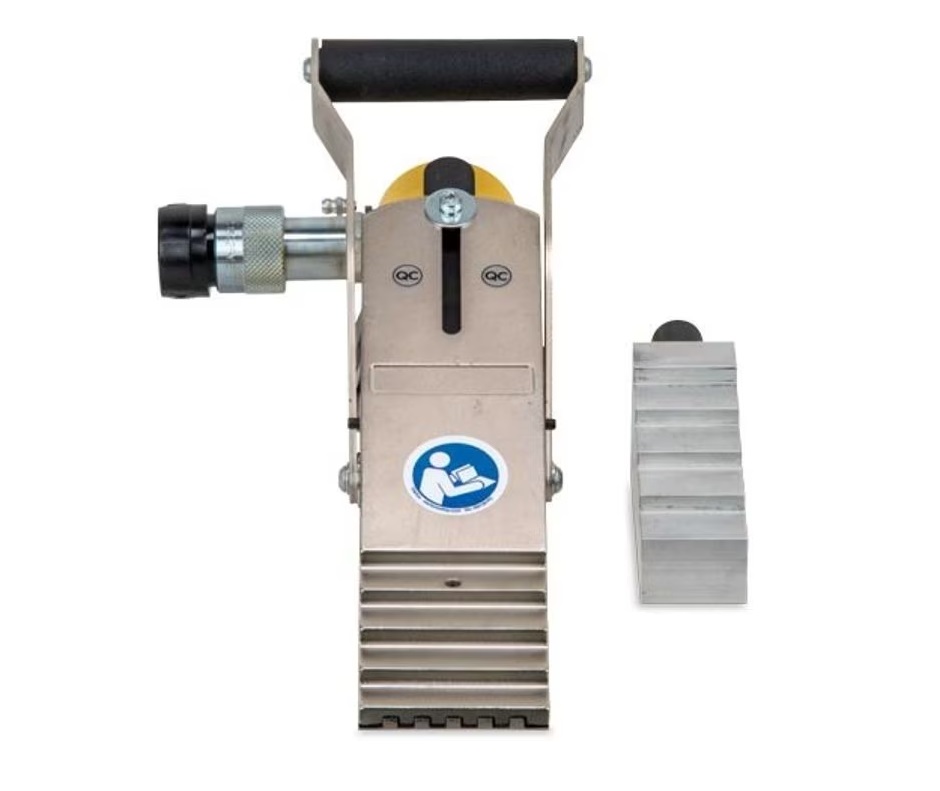

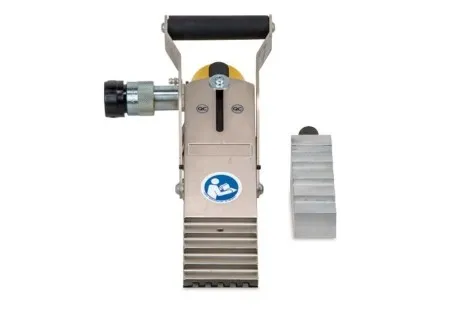

The included SB2 stepped safety block provides reassuring support, and can also be used to increase the lifting height to 2.72" (69 mm). The LWB1 is a larger stepped block available as an option.

What is frequently bought with the 15-tonne, 25mm stroke Enerpac RC151 General Purpose Hydraulic Cylinder?

GA45GC 45° Angled Gauge Adaptor Assembly

P392 Two-Speed Steel Hydraulic Hand Pump

Choose the LW-Series Vertical Lifting Wedge when you need to lift and lower heavy loads of up to 16-tons with a stable motion without slippage. A minimum insertion gap of 0.39" (10 mm) is needed which expands up to 2.02" (51.5 mm). Retraction force is supplied by the single-acting spring return cylinder. The maximum operating pressure is (10000 psi 700 bar).

Minimized access gap for greater accessibility on applications with limited insertion space

Secure, stable lifting and lowering motion with no slippage

Single-acting spring return cylinder allows for automatic, mechanical retraction

Includes safety block SB2

Can be used in multiple set-up.
