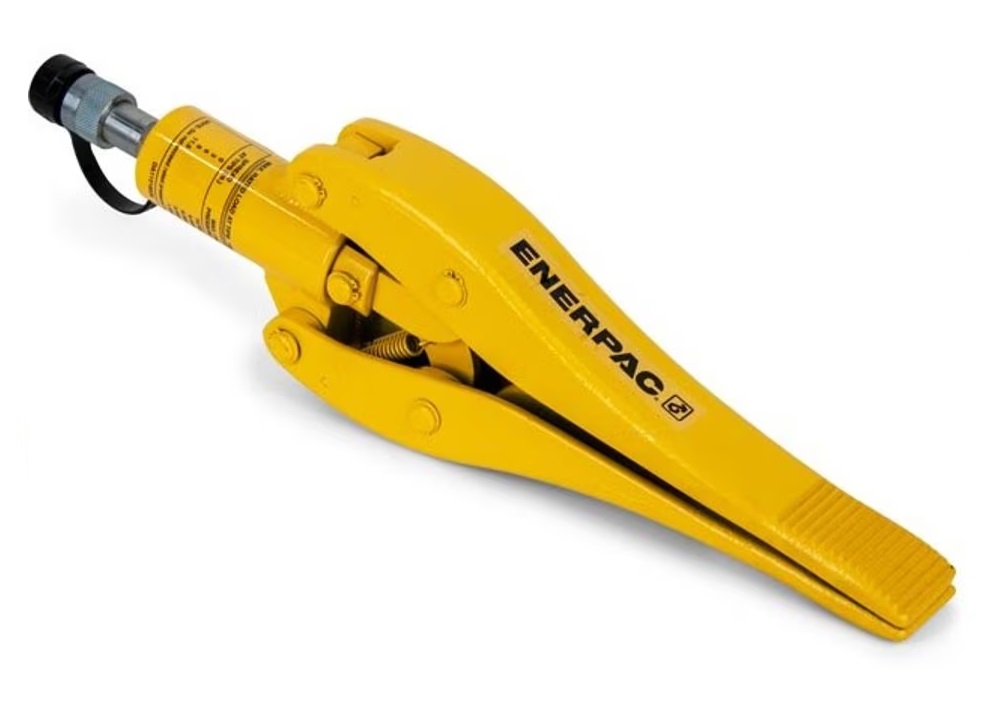

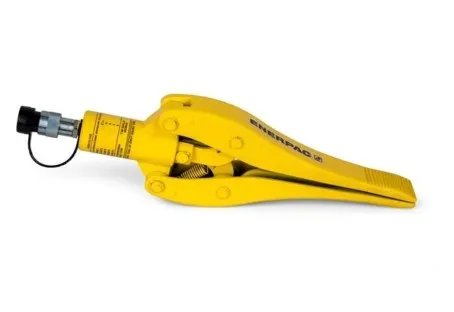

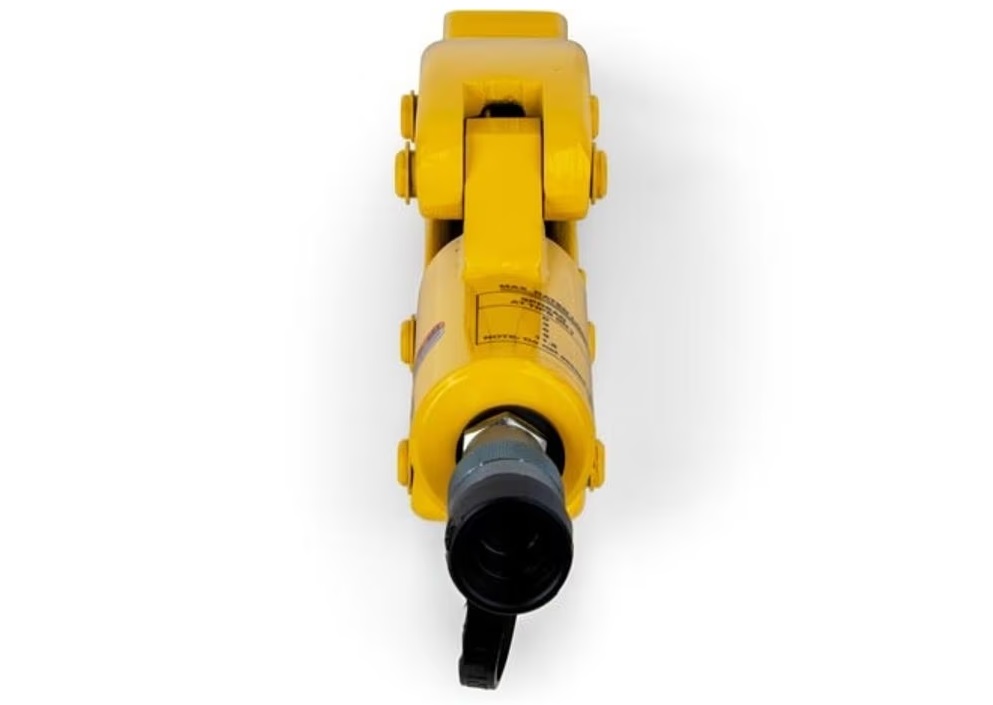

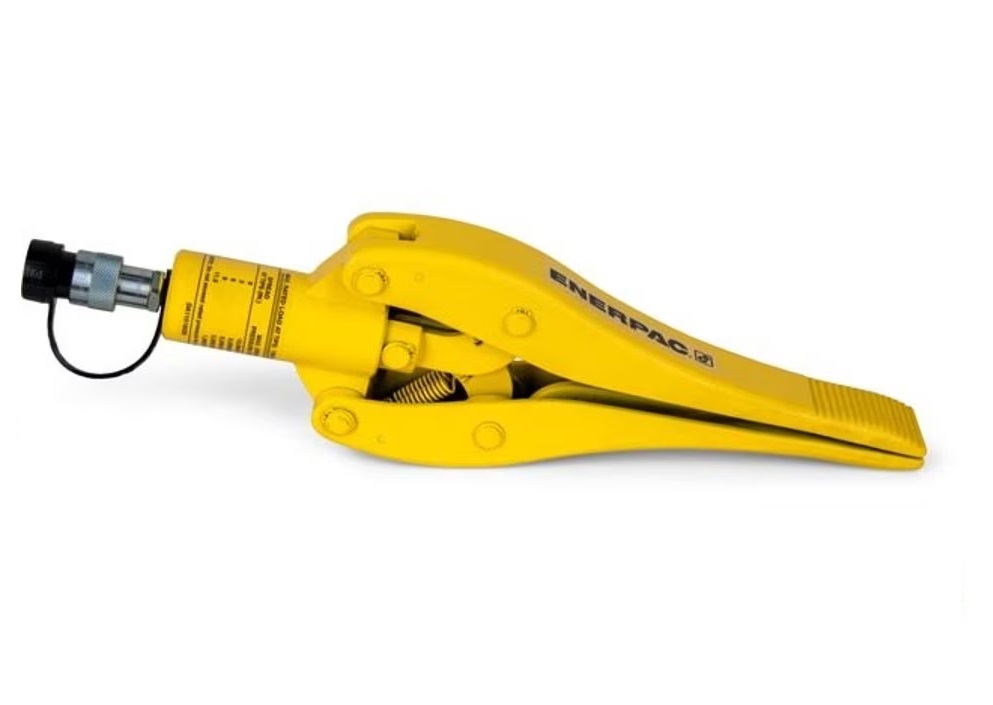

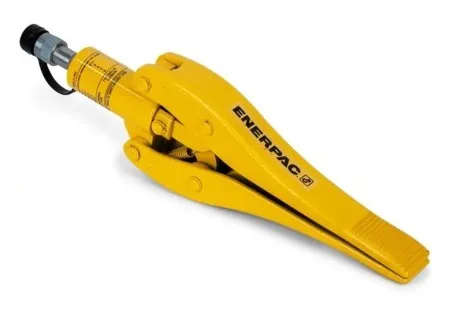

Enerpac WR15 Hydraulic Wedgie and Spread Cylinder
Brand:
Description
Enerpac WR15 Hydraulic Wedgie and Spread Cylinder is perfect when you need a hydraulic wedge spreader with a long stroke and for tight spaces. The WR15 can apply a force of 0.75 ton and uses powerful hydraulic force to separate the jaws up to 292 mm
£969.99 ex VAT
£1,163.99 inc VAT
Add to cart
Add to quoteRelated products
Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump
P392
The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.
£534.99 ex VAT
£641.99 inc VAT
Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump
P142
The Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.
£399.99 ex VAT
£479.99 inc VAT
Enerpac WR5 Hydraulic Wedge Spreader
WR5
Enerpac WR5 Hydraulic Wedge Spreader and perfect when you need a compact hydraulic wedge spreader for tight spaces. This single-acting tool uses powerful hydraulic force to expand up to 94mm and retracts with a spring return system
£329.99 ex VAT
£395.99 inc VAT
Enerpac WR15 Hydraulic Wedgie and Spread Cylinder is perfect when you need a hydraulic wedge spreader with a long stroke and for tight spaces. The WR15 can apply a force of 0.75 tons (6 kN) and uses powerful hydraulic force to separate the jaws up to 292 mm and a spring return system for retraction.
Please note that the maximum load capacity is 0.75-ton (6 kN), and the maximum system pressure must be limited to half the rated pressure (5000 psi 350 bar).
Single-acting, spring return
For long stroke spreading applications
| Model | Max Operating Pressure | Max Spread | Power Source | Max Spread Force | Max Spread Force | Tip Clearance | Cylinder Effective Area | Weight |
| WR5 | 700 bar | 94 mm | Hydraulic | 8.9 kN | 1 Ton | 12.8 mm | 6.5 cm3 | 2.3 Kgs |
| WR15 | 700 bar | 292 mm | Hydraulic | 6 kN | 0.75 Ton | 32.0 mm | 14.5 cm3 | 11.3 Kgs |
What is frequently bought with the 15-tonne, 25mm stroke Enerpac RC151 General Purpose Hydraulic Cylinder?
GA45GC 45° Angled Gauge Adaptor Assembly
P392 Two-Speed Steel Hydraulic Hand Pump or P142 Lightweight Hydraulic Hand Pump
Enerpac WR15 Hydraulic Wedgie and Spread Cylinder
Model: WR15
ECCN: EAR99
Harmonization: 8479899599
Series: WR
Product Line: Industrial Tools, Bolting Tools
| Model | Max Operating Pressure | Max Spread | Power Source | Max Spread Force | Max Spread Force | Tip Clearance | Cylinder Effective Area | Weight |
| WR5 | 700 bar | 94 mm | Hydraulic | 8.9 kN | 1 Ton | 12.8 mm | 6.5 cm3 | 2.3 Kgs |
| WR15 | 700 bar | 292 mm | Hydraulic | 6 kN | 0.75 Ton | 32.0 mm | 14.5 cm3 | 11.3 Kgs |
Please note that the maximum load capacity is 0.75-ton (6 kN), and the maximum system pressure must be limited to half the rated pressure (5000 psi 350 bar).
Single-acting, spring return
Perfect for long-stroke spreading applications
