Crane End Stops

Universal Crane End Stop compatible with most Jib cranes, Overhead Cranes, and Crane Runways. Once fitted will create an electric hoist end stop to restrict a hoist or crane carriage from sliding off the end of the beam or single girder cranes. The great advantage of these universal runway beam end stops is that they are easy and quick to install without the need for drilling or welding. To be used to restrict the movement of both manual or electric hoists and crane carriageways up to 10 tonnes. (please check the max permitted weight of the crane//hoist and speed of the hoist before confirming suitability.

Bought singular to suit one end of the beam only. If both ends need to be protected, then order two beam end-stop buffers

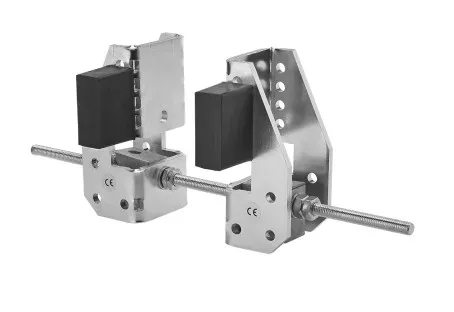

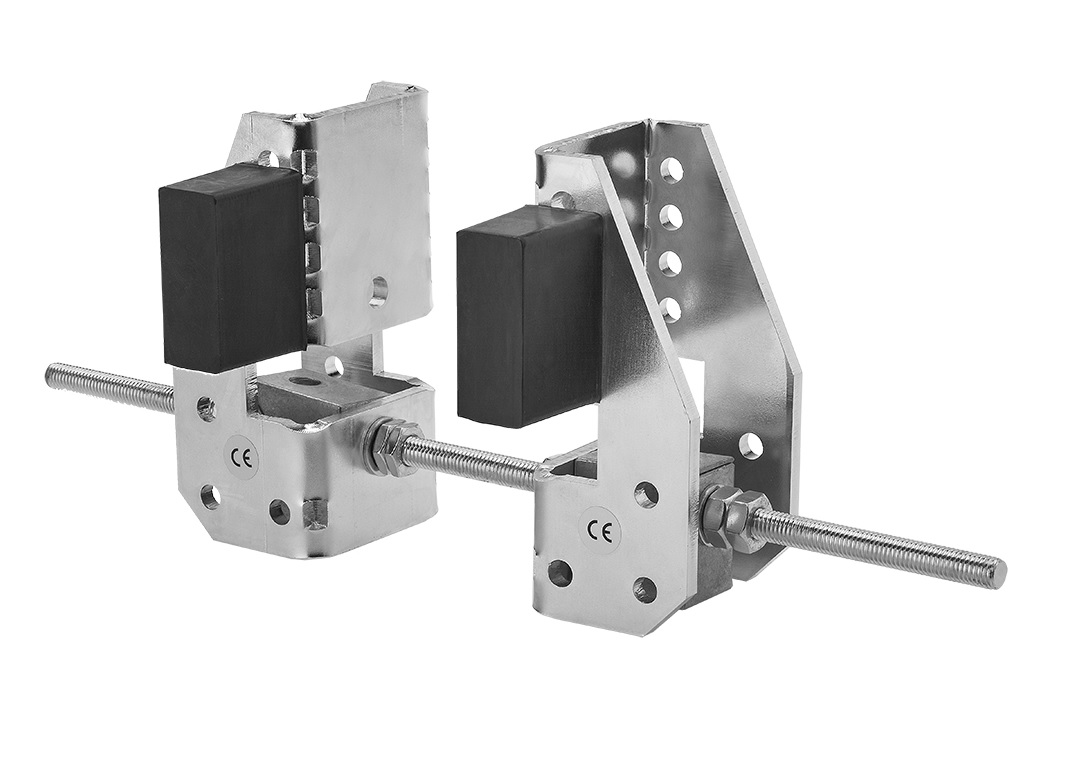

The Trolley / Crane Buffer is fitted with a rubber buffer to create a soft surface for the hoist trolley to contact. Manufactured from a lightweight rust-prevention chromated steel that will last for years once fitted. Can be fitted onto any parallel flanged beam from 82 - 300mm with a max thickness of 25mm.

Technical Data for the Universal Runway Beam End Stops

Universal Manual or electric trolley crane buffers for parallel-flanged I-Beams (82 to 300 mm beam flange width)

Suitable for all makes of push trolleys and electric trolleys up to 10 tonne

Quick installation, no welding, or drilling required

Installed in just a few minutes and easily adjusted

Complies with the Machinery Directive

Supplied with CE declaration of conformity
