Magnetek Flex 4 Base Radio Remote Control System
Estimated lead time:1 to 2 days Delivery
Please call us if you need this item sooner
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Magnetek Flex 4 Base Radio Remote Control System
Flex Base Wireless Control System, supplied with economy 4 button Base Transmitters to offer a cost-effective and alternative solution to restrictions of using hardwired pendants. Ideal for use in most lifting applications including Electric Chain Hoists and small cranes.
Magnetek Flex WAVE Radio Control Systems, sold with 4 button radio transmitters. Ideal for use on overhead cranes / hoists, industrial applications and material handling solutions.
£729.98 ex VAT
£875.98 inc VAT
Magnetek Flex WAVE Radio Control Systems, sold with a Pair of 6 button radio transmitters. Ideal for use in material handling, overhead crane, and industrial applications.
£769.98 ex VAT
£923.98 inc VAT
Magnetek Flex WAVE Radio Control Systems, sold with 8 button radio transmitters. Ideal for use on Overhead Crane Systems, industrial applications and material handling solutions.
£894.98 ex VAT
£1,073.98 inc VAT
Flex Base Wireless Control System, supplied with economy 6 button Base Transmitters to offer a cost-effective and alternative solution to restrictions of using hardwired pendants. Ideal for use in most lifting applications including Electric Chain Hoists and small cranes.
£679.98 ex VAT
£815.98 inc VAT
Flex Base TX Button Label Sheet to suit all Magnetek Gen2 Transmitters including the Flex Base and Flex Wave Transmitters. Easy to apply replacement markers for Flex Crane Radio Remote controllers. These are the official replacement directional legends manufactured from a strong, long-lasting plastic that replaces worn-out or lost labels.
£12.98 ex VAT
£15.58 inc VAT
The Magnetek Flex Base Wireless Radio Remote Control System, supplied with the lightweight and economy 4 button BASE transmitters. Offering a cost-effective alternative solution to the restrictive use of hardwired pendants. Ideal for use in lifting applications including electric chain hoists and small crane systems. The Flex Base Radio Control System is packaged with our MRX Receiver for a complete solution. The Flex Base system is equipped with numerous programmable functions to suit all types of applications, a wide variety of accessories are also available to provide additional protection and flexibility to suit most applications.
Designed to simplify installation and provide flexibility for easy adjustments or configuration. The 4-button Flex Base Kit is ideal for basic or lightweight applications, such as chain hoists and simple small crane systems. Another reason to purchase the Magnetek system is the voltage Select feature, that automatically adapts to the control voltage from three available power supplies: 9-36 VDC, 24-42 VAC, and 48-240 VAC, meaning these systems will never conflict or interfere with other equipment nearby (Anti-Interference Feature).
Why purchase and install a radio remote control system? - Ideal for use in material handling, overhead crane, and industrial applications where the operator requires greater freedom to move around to say get a better view of the working area, or to negotiate obstacles that could be blocking either the operator's path or the crane / loads path. Rather than using the traditional wired pendant control cord that restricts all movement.
Difference between the Base Transmitters or Wave Transmitter? Ultimate Lifting Solutions offer both the Economy Base System as well as the Wave Radio Control System. The main difference between the two radio remote systems comes down to the re-charging of the transmitters. The Wave transmitter option can be upgraded with a rechargeable docking station which can be wall mounted or left free standing. The Flex Base transmitters offer a simplified battery compartment with standard batteries that need to be removed to charge.
The Magnetek range of remote-control systems are supplied with both the receiver and two transmitters as standard, that can be either "retro-fitted" to older crane systems and/or crane hoists or they can be fitted to machinery that requires the flexibility of not having a wired pendant control. Flex Base transmitters are ergonomic and lightweight and available in 4, 6, 8, and 12-button style options to meet all your application needs. This 4 button Flex Base System is supplied with the compact designed MRX receiver that can be easily mounted on the control panel or on the body of the hoist itself to minimise the potential imbalance.

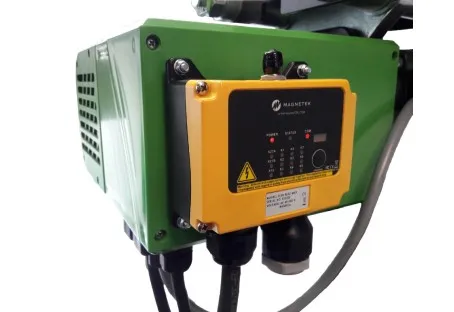

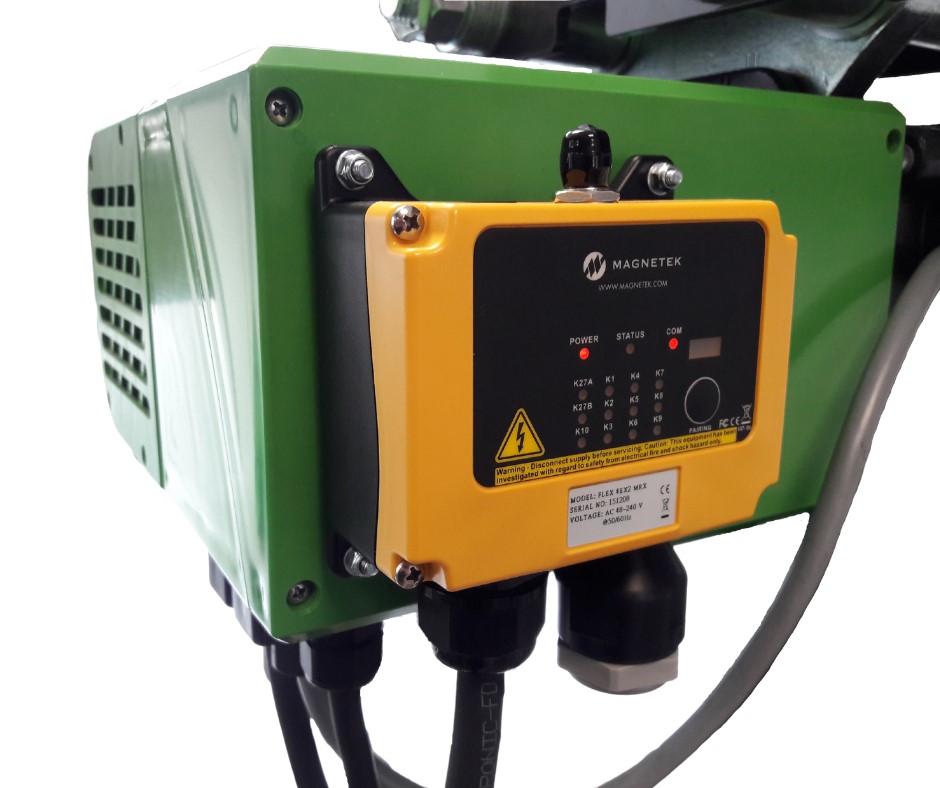

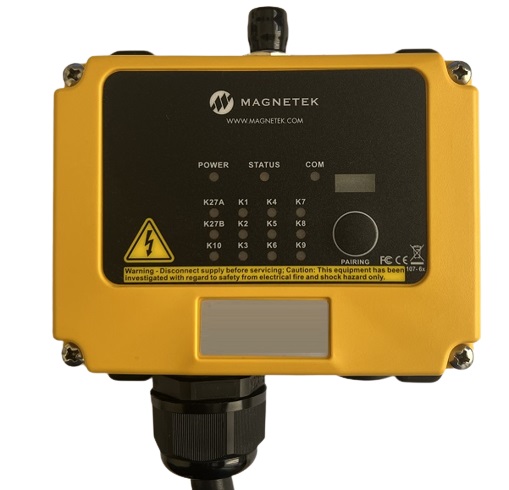

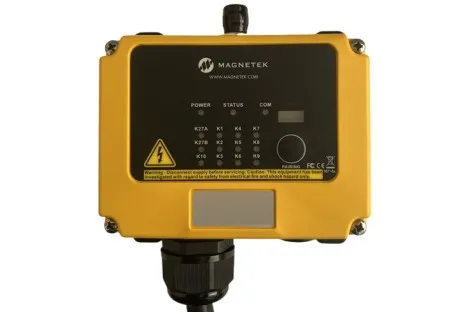

MRX RECEIVER - MRX Receiver can be mounted on the control panel or the body of a hoist to minimise the potential for imbalance. This receiver is ideal for basic or lightweight applications, such as chain hoists.
Do you need installation? Ultimate Lifting Solutions can offer full installation and integration of Radio Remote Control Systems with Overhead Crane Systems and Electric Chain Hoists - Please call the ULS Lifting sales team for more information.
|Model||Voltage of Kit||Transmitters Supplied||Transmitter Range||Receiver Supplied|
|FLEX-4BASE-MRXCE||24-42VAC ||2 x Flex Base Transmitters||100m (300 Feet)||MRX|
|FLEX-4BASE-MRXDE||48-240VAC ||2 x Flex Base Transmitters||100m (300 Feet)||MRX|
PLEASE NOTE - These Radio Remote System are only compatible with a Three (3) Wire Set up for the hoisting speed. Where as the fast speed using a common 3rd wire. Ideal for standard Hoists and cranes - If a Four Wire set up is required, please call the ULS Sales Team.

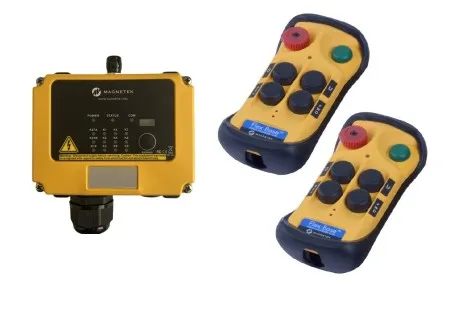

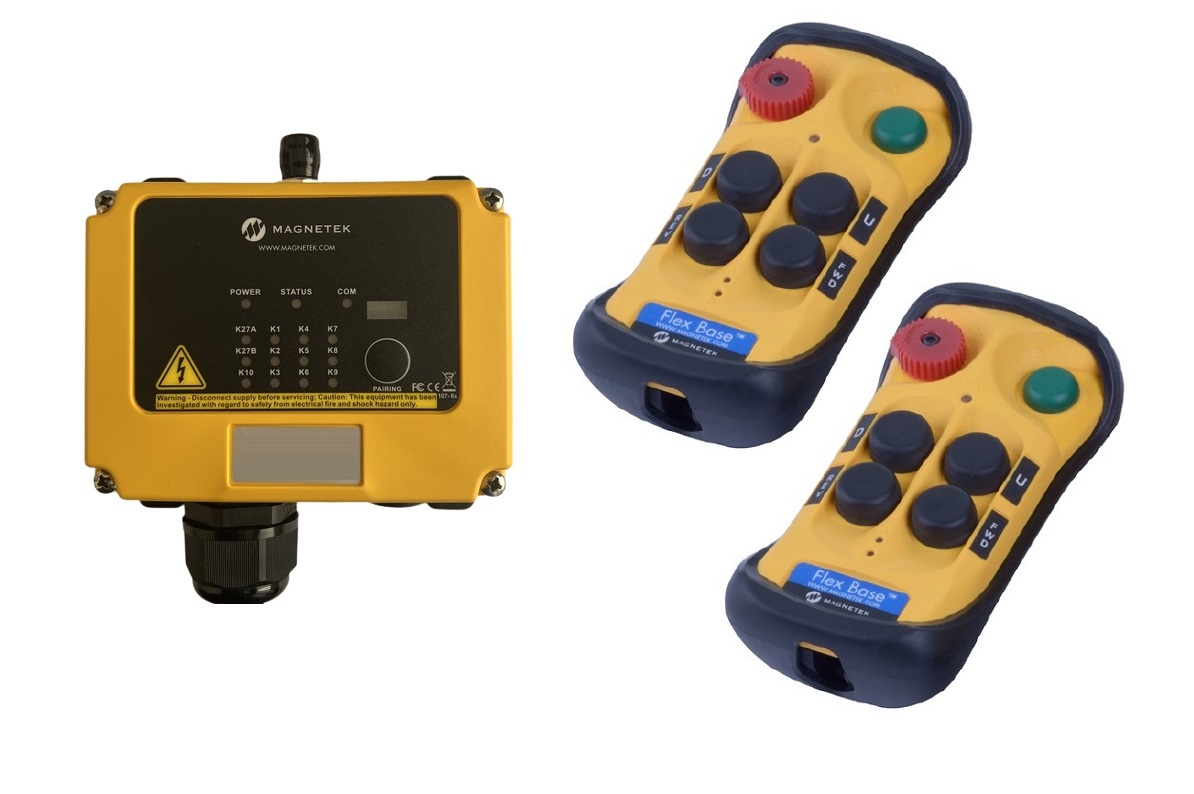

What is supplied in the box - The Magnetek Flex 4 Base Radio Control System
1 x MRX Micro Receiver (3 Wire) c/w 1.3m Cable.
2 x Flex Base Radio Transmitters - Four, Two Step Push Button, E-Stop and Power On/Off.
2 x AA Alkaline Batteries supplied (non rechargeable).

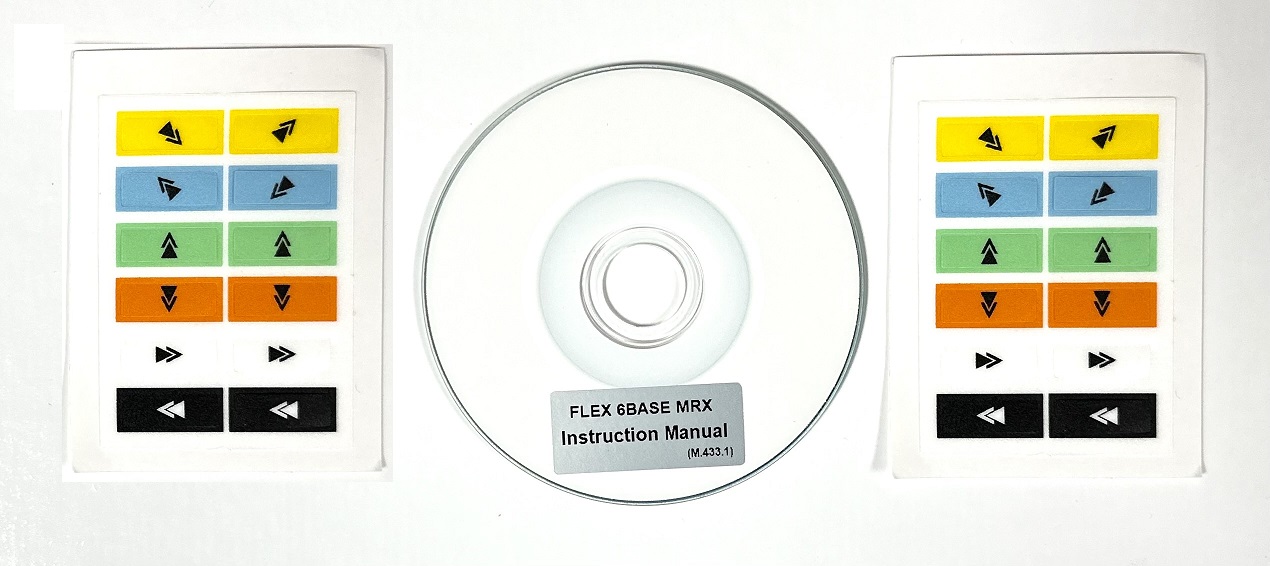

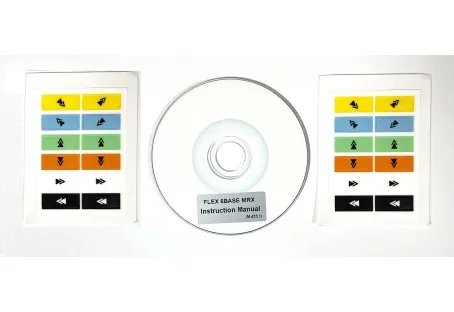

2 x Set of directional legend sheets.
1 x Operating manual.
Accessories available for Magnetek Flex 4 Base Radio Control System

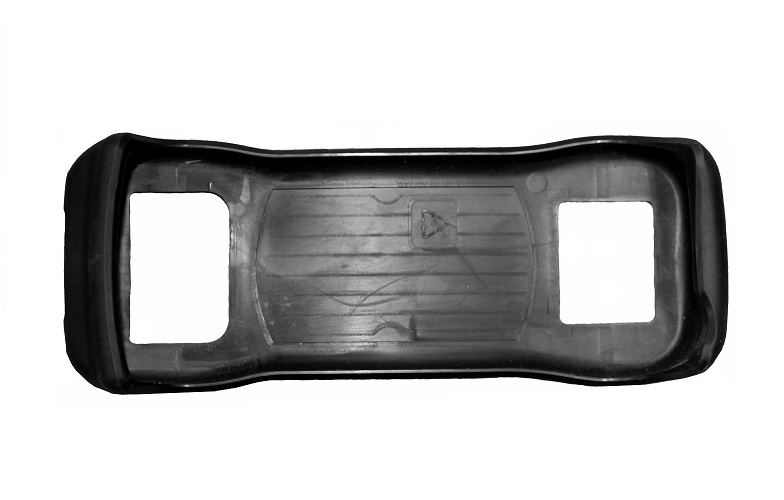

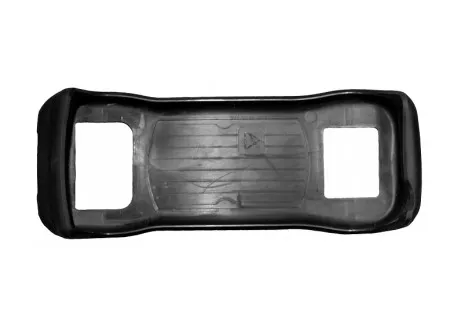

FLEX-4Base-Boot - Protective Rubber Boot / Cover to protect the Flex Base Radio 4 button Transmitter.

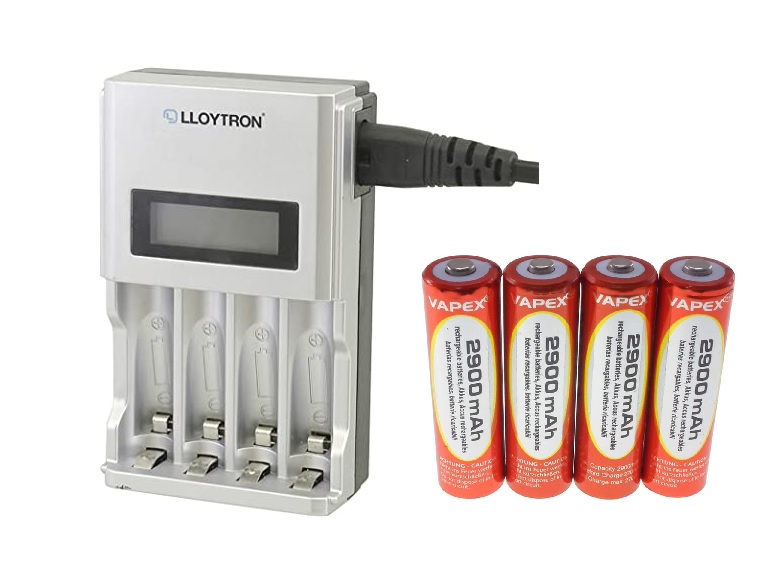

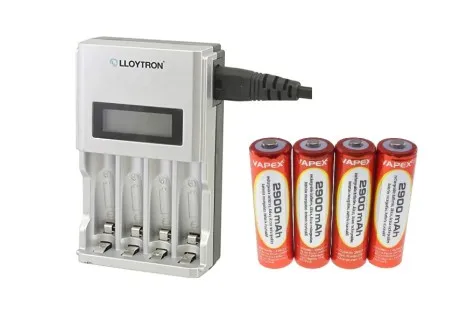

FLEX-BATT-CHARGE-KIT - Plug In LCD Charger complete with four2900mAh rechargeable batteries.
IT070R240Z - IT SERIES RED 48-240V AC/DC LED Horn (70mm), klaxon and beacon combo unit - It offer both visual and audible warning when the crane or hoist is in motion.
