24 tonne Modular Spreader Beam

Estimated lead time:2 to 3 days. Please call if required urgently

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

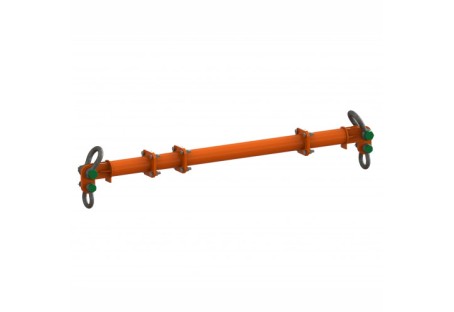

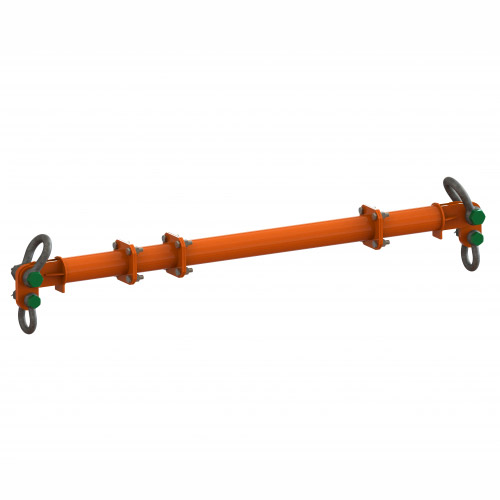

24 tonne Modular Spreader Beam

Brand:

Description

24-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.

£1,272.98 ex VAT

£1,527.58 inc VAT

Lifting Slings available on request

Related products

8 tonne Modular Spreader Beam

BT T8

8-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.

£674.98 ex VAT

£809.98 inc VAT

13 tonne Modular Spreader Beam

BT T13

13-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.

£752.98 ex VAT

£903.58 inc VAT

34 tonne Modular Spreader Beam

BT T34

34-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.

£1,532.98 ex VAT

£1,839.58 inc VAT

50 tonne Modular Spreader Beam

BT T50

50-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.

£1,788.98 ex VAT

£2,146.78 inc VAT

24-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam. This style of lightweight lifting beams has become very popular over the last few years due to their flexibility in instantly changing the length of the lifting beam quickly by adding an extra strut to create the desired length. Manufactured from tubular steel with flanged boltable sections to create an incredibly strong, yet lightweight system. The Modular End Struts with link plates are supplied to create top and bottom lifting eyes that suit standard lifting shackles (shackles not supplied).


T24 Modular Spreader Beam kit will be supplied with the following items. Complete with everything required, and once assembled can be used immediately.

Two Strut Ends c/w link plates. (500mm each (1000mm long per pair))

Middle Strut Sections (available in lengths of 250mm, 500mm, 1000mm, and 2000mm). enough sections will be supplied to make up span of the lifting beam required.

Fixing Bolts M20 x 50 GRADE 8.8 HT Bolts, Nuts, and Washers. (The recommended tightening Torque is 160Nm).


If shackles are required with the T24, 24,000Kgs Modular Spreader Beam - Please use 17 Ton Alloy Safety Bow Shackles for Top Lifting Point and 12 Ton Alloy Safety Bow Shackles for the lower lifting points. Ultimate lifting Solutions advise that customers consider using Green Pin G4163 Bow Shackle with Safety Bolt manufactured to EN13889.


The 24,000Kgs lightweight modular spreader beam can have a minimum lifting span of just 1m (1,000mm), by adding different-sized middle struts the span is interchangeable in 250mm increments up to a maximum length of 8m span. If a longer lifting span is required, a larger capacity modular lifting beam will be required. If unsure, please call Ultimate Lifting Solutions and our specialist lifting division will be able to assist with your lifting application. Please note - As this Lifting attachment is a lifting spreader beam, It must only be loaded via the two endpoints through the link plates. NEVER HANG LOADS FROM THE MIDDLE STRUTS.


T24 - 24 tonnes (24,000Kgs) Traditional Modular Spreader Beam selection chart and basic information.

SpanSWL @ 45° Degrees Top lifting angleMinimum top Lifting sling LengthSWL @ 30° Degrees Top lifting angle
Minimum top Lifting sling Length
SWL @ 20° Degrees Top lifting angle
Minimum top Lifting sling Length
1000 mm24 tonne (24,000Kgs)
600 mm24 tonne (24,000Kgs)
900 mm24 tonne (24,000Kgs)
1300 mm
1500 mm
24 tonne (24,000Kgs)
900 mm24 tonne (24,000Kgs)
1400 mm24 tonne (24,000Kgs)
2100 mm
2000 mm
24 tonne (24,000Kgs)
1300 mm24 tonne (24,000Kgs)
1900 mm24 tonne (24,000Kgs)
2800 mm
2500 mm
24 tonne (24,000Kgs)
1700 mm24 tonne (24,000Kgs)
2400 mm24 tonne (24,000Kgs)
3500 mm
3000 mm
24 tonne (24,000Kgs)
2000 mm24 tonne (24,000Kgs)
2900 mm24 tonne (24,000Kgs)
4300 mm
3500 mm
24 tonne (24,000Kgs)
2400 mm24 tonne (24,000Kgs)
3400 mm24 tonne (24,000Kgs)
5000 mm
4000 mm
24 tonne (24,000Kgs)
2700 mm24 tonne (24,000Kgs)
3900 mm24 tonne (24,000Kgs)
5700 mm
4500 mm
20 tonne (13,000Kgs)
3100 mm24 tonne (24,000Kgs)
4400 mm24 tonne (24,000Kgs)
6500 mm
5000 mm
17 tonne (17,000Kgs)
3400 mm24 tonne (24,000Kgs)
4900 mm24 tonne (24,000Kgs)
7200 mm
5500 mm
14 tonne (14,000Kgs)
3800 mm24 tonne (24,000Kgs)
5400 mm24 tonne (24,000Kgs)
7900 mm
6000 mm
11 tonne (11,000Kgs)
4100 mm20 tonne (13,000Kgs)
5900 mm24 tonne (24,000Kgs)
8700 mm
6500 mm
10 tonne (10,000Kgs)
4500 mm17 tonne (17,000Kgs)
6400 mm24 tonne (24,000Kgs)
9400 mm
7000 mm
8 tonne (8,000Kgs)
4800 mm14 tonne (14,000Kgs)
6900 mm23 tonne (23,000Kgs)
10,100 mm
7500 mm
7 tonne (7,000Kgs)
5200 mm12 tonne (12,000Kgs)
7400 mm20 tonne (13,000Kgs)
10,800 mm
8000 mm
6 tonne (6,000Kgs)
5500 mm11 tonne (11,000Kgs)
7900 mm17 tonne (17,000Kgs)
11,600 mm

Why purchase a 24 tonne T24 Britlift Traditional Modular Spreader Beam? These UK-manufactured quality modular lifting beams are amongst the lightest on the market and can be supplied with interchangeable components to create a specific length of lifting beam to suit most lifting applications. Being manufactured with small middle struts, when not in use a modular spreader beam can be dismantled for easy storage and transportation to the site. Modular Spreader Beams offer Versatility, due to the modular design of this style of lifting beam it can be re-assembled and reconfigured to suit multiple lift schedules and requirements. Modular Spreader Beams are cost-effective, as only a small number of struts are required to be able to assemble a variety of spans.


Technical considerations before purchasing a modular spreader beam.

A SPREADER BEAM MUST ONLY BE LOADED AT THE TWO END POINTS THROUGH THE END LINKS. NEVER HANG LOADS FROM THE STRUTS


STV (SLING TO VERTICAL) ANGLE MUST BE NO MORE THAN 45°.

THE ABOVE CHART MUST BE REFERRED TO IN ORDER TO ENSURE THAT THIS BEAM IS SUITABLE FOR THE PLANNED LIFT.

END LINKS MUST HANG DOWNWARDS, TOWARDS THE LOAD.

THE WLL (WORKING LOAD LIMIT) OF A SINGLE LINK PLATE IS 12 TONNES (24 TONNES COMBINED). DO NOT EXCEED THIS WEIGHT AT ONE END OF THE BEAM.

THE T4 MOD LIFT BEAM USES M20 x 50 GRADE 8.8 HT BOLTS, NUTS, AND WASHERS. THE RECOMMENDED TIGHTENING TORQUE IS 160Nm.

ANY PERSONNEL USING THIS PRODUCT MUST BE A TRAINED AND COMPETENT RIGGER OR SLINGER/SIGNALLER.

THE ONGOING USE OF THIS PRODUCT MUST BE IN ACCORDANCE WITH THE REQUIREMENTS IN LOLER (LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998).

PLEASE ENSURE THAT NO MORE THAN 6 STRUTS ARE USED IN THE ASSEMBLY OF A BEAM.

CHECK THAT NO RIGGING EQUIPMENT CLASHES WITH THE BEAM. THE BEAM MUST ONLY BE LOADED THROUGH THE SHACKLE PIN HOLES AT EACH END.

T24 - 24 tonne (24,000Kgs) Traditional Modular Spreader beam selection chart and basic information.


Capacity - 24 tonne.

Length available 1.0m to 8.0m.

One of the Lightest beams on the market.

Supplied without shackles or lifting slings.

designed and manufactured in the UK.

Cost-effective.

supplied fully certified.


T24 - 24 tonnes (24,000Kgs) Traditional Modular Spreader Beam selection chart and basic information.

SpanSWL @ 45° Degrees Top lifting angleMinimum top Lifting sling LengthSWL @ 30° Degrees Top lifting angle
Minimum top Lifting sling Length
SWL @ 20° Degrees Top lifting angle
Minimum top Lifting sling Length
1000 mm24 tonne (24,000Kgs)
600 mm24 tonne (24,000Kgs)
900 mm24 tonne (24,000Kgs)
1300 mm
1500 mm
24 tonne (24,000Kgs)
900 mm24 tonne (24,000Kgs)
1400 mm24 tonne (24,000Kgs)
2100 mm
2000 mm
24 tonne (24,000Kgs)
1300 mm24 tonne (24,000Kgs)
1900 mm24 tonne (24,000Kgs)
2800 mm
2500 mm
24 tonne (24,000Kgs)
1700 mm24 tonne (24,000Kgs)
2400 mm24 tonne (24,000Kgs)
3500 mm
3000 mm
24 tonne (24,000Kgs)
2000 mm24 tonne (24,000Kgs)
2900 mm24 tonne (24,000Kgs)
4300 mm
3500 mm
24 tonne (24,000Kgs)
2400 mm24 tonne (24,000Kgs)
3400 mm24 tonne (24,000Kgs)
5000 mm
4000 mm
24 tonne (24,000Kgs)
2700 mm24 tonne (24,000Kgs)
3900 mm24 tonne (24,000Kgs)
5700 mm
4500 mm
20 tonne (13,000Kgs)
3100 mm24 tonne (24,000Kgs)
4400 mm24 tonne (24,000Kgs)
6500 mm
5000 mm
17 tonne (17,000Kgs)
3400 mm24 tonne (24,000Kgs)
4900 mm24 tonne (24,000Kgs)
7200 mm
5500 mm
14 tonne (14,000Kgs)
3800 mm24 tonne (24,000Kgs)
5400 mm24 tonne (24,000Kgs)
7900 mm
6000 mm
11 tonne (11,000Kgs)
4100 mm20 tonne (13,000Kgs)
5900 mm24 tonne (24,000Kgs)
8700 mm
6500 mm
10 tonne (10,000Kgs)
4500 mm17 tonne (17,000Kgs)
6400 mm24 tonne (24,000Kgs)
9400 mm
7000 mm
8 tonne (8,000Kgs)
4800 mm14 tonne (14,000Kgs)
6900 mm23 tonne (23,000Kgs)
10,100 mm
7500 mm
7 tonne (7,000Kgs)
5200 mm12 tonne (12,000Kgs)
7400 mm20 tonne (13,000Kgs)
10,800 mm
8000 mm
6 tonne (6,000Kgs)
5500 mm11 tonne (11,000Kgs)
7900 mm17 tonne (17,000Kgs)
11,600 mm

Why purchase a 24 tonne T24 Britlift Traditional Modular Spreader Beam? These UK-manufactured quality modular lifting beams are amongst the lightest on the market and can be supplied with interchangeable components to create a specific length of lifting beam to suit most lifting applications. Being manufactured with small middle struts, when not in use a modular spreader beam can be dismantled for easy storage and transportation to the site. Modular Spreader Beams offer Versatility, due to the modular design of this style of lifting beam it can be re-assembled and reconfigured to suit multiple lift schedules and requirements. Modular Spreader Beams are cost-effective, as only a small number of struts are required to be able to assemble a variety of spans.


Technical considerations before purchasing a modular spreader beam.

A SPREADER BEAM MUST ONLY BE LOADED AT THE TWO END POINTS THROUGH THE END LINKS. NEVER HANG LOADS FROM THE STRUTS


STV (SLING TO VERTICAL) ANGLE MUST BE NO MORE THAN 45°.

THE ABOVE CHART MUST BE REFERRED TO IN ORDER TO ENSURE THAT THIS BEAM IS SUITABLE FOR THE PLANNED LIFT.

END LINKS MUST HANG DOWNWARDS, TOWARDS THE LOAD.

THE WLL (WORKING LOAD LIMIT) OF A SINGLE LINK PLATE IS 12 TONNES (24 TONNES COMBINED). DO NOT EXCEED THIS WEIGHT AT ONE END OF THE BEAM.

THE T4 MOD LIFT BEAM USES M20 x 50 GRADE 8.8 HT BOLTS, NUTS, AND WASHERS. THE RECOMMENDED TIGHTENING TORQUE IS 160Nm.

ANY PERSONNEL USING THIS PRODUCT MUST BE A TRAINED AND COMPETENT RIGGER OR SLINGER/SIGNALLER.

THE ONGOING USE OF THIS PRODUCT MUST BE IN ACCORDANCE WITH THE REQUIREMENTS IN LOLER (LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998).

PLEASE ENSURE THAT NO MORE THAN 6 STRUTS ARE USED IN THE ASSEMBLY OF A BEAM.

CHECK THAT NO RIGGING EQUIPMENT CLASHES WITH THE BEAM. THE BEAM MUST ONLY BE LOADED THROUGH THE SHACKLE PIN HOLES AT EACH END.
