Manual Winch Stacker - WS Range

Key notes for ordering:

Delivered assembled and ready to use straight away

Estimated lead time:2 - 3 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Manual Winch Stacker - WS Range

Brand:

Capacity

250Kgs to 500Kgs
(0.25t - 0.5t)

Description

Manual Winch Stacker - WS Range is available with either a 250Kgs or 500Kgs lifting capacity. Fitted with a manual winch instead of a hydraulic ram. This stacker is a great cost-effective alternative to a fork truck or a hydraulic stacker.

£833.75 ex VAT

£1,000.50 inc VAT

Related products

Manual Winch Stacker - WS Range is available with either a 250Kgs or 500Kgs lifting capacity. Fitted with a manual winch instead of a hydraulic ram. This stacker is a great cost-effective alternative to a fork truck or a hydraulic stacker.

These very popular manual winch stackers offer a great cost-effective alternative to a fork truck in aiding lifting and lowering from shelving around any workplace. These stackers will reach 1.56m high and come with adjustable forks to suit most box or pallet dimensions.
Model
Capacity
Lowered Fork Height
Max Fork Height
Fork Adjustment Widths
Lifting Height Per Stroke
Fork Width
Fork Length
Weight
WS25
250Kgs
90mm
1560mm
160 to 690mm
40mm
60mm
800mm
140Kgs
WS50
500Kgs
90mm
1560mm
160 to 690mm
22mm
70mm
800mm
146Kgs

Product Description

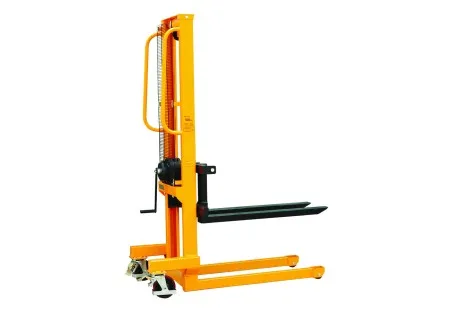

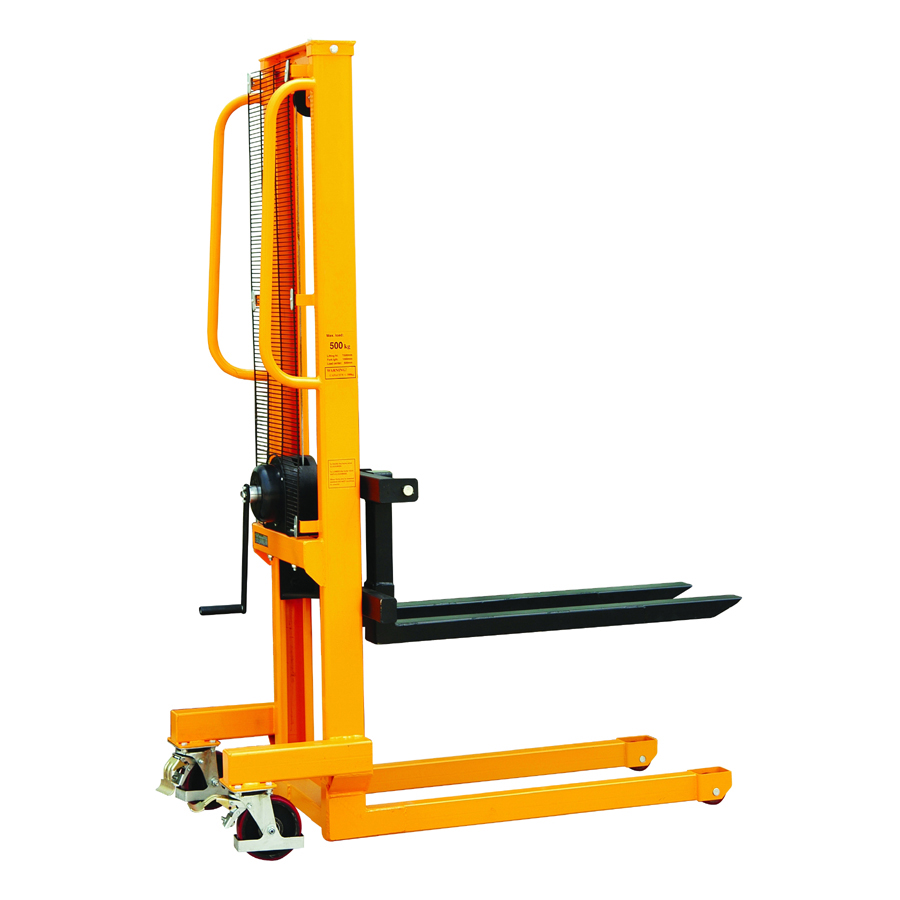

Winch Stacker Model WS25 and WS50

250kg capacity with a 1.56m lift height
500Kgs Capacity with a 1.56m lift height

Key Features
Heavy Duty C Section mast
Lifting function by operation of a Winch
No hydraulics, offering very low maintenance
Two parking brakes on the Steering wheels
Adjustable width forks – 160 – 690mm across the forks
800mm fork length
Lifting height per stroke 40mm
Conforms to EN1757-1
These models are designed only for open-bottom pallets.
