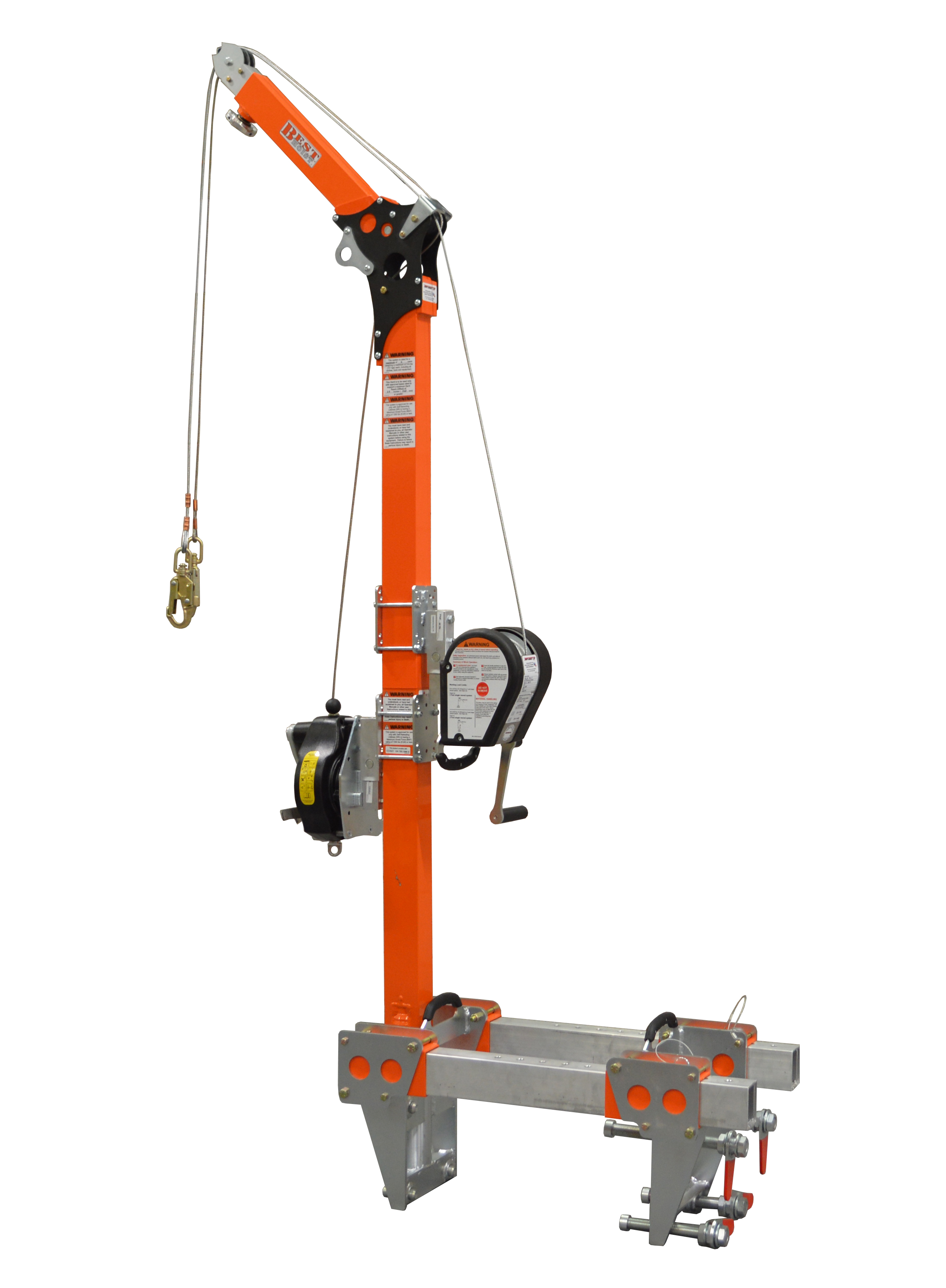

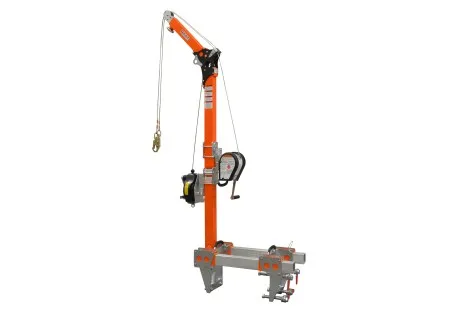

30029KIT Abtech Davit System c/w Adjustable Barrel Mount

Abtech Safety 30029KIT is a complete Davit system with a 30m Man Riding Winch, 15m Fall Arrest Winch, and Adjustable Barrel mount designed for mounting onto shoring and trench boxes. Supplied with everything the customer will require to mount and use the Davit System easily and safely within the trenching environment. Certified to EN795 Class B, EN360, EN13496.

This multiuse Davit system can be used on any shoring or trench box due to the adjustable Barrel attachment that can be adjusted from 2.25" to 25" (57mm - 635mm). Included also are the Abtech 30105 Upper Davit Arm and Abtech 30109 Lower Davit.

The Kit comprises of:-

30105 Upper Davit Arm - Large size upper Davit Arm

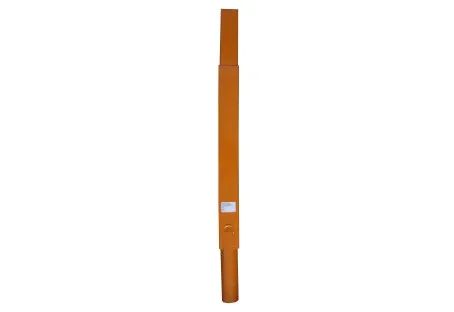

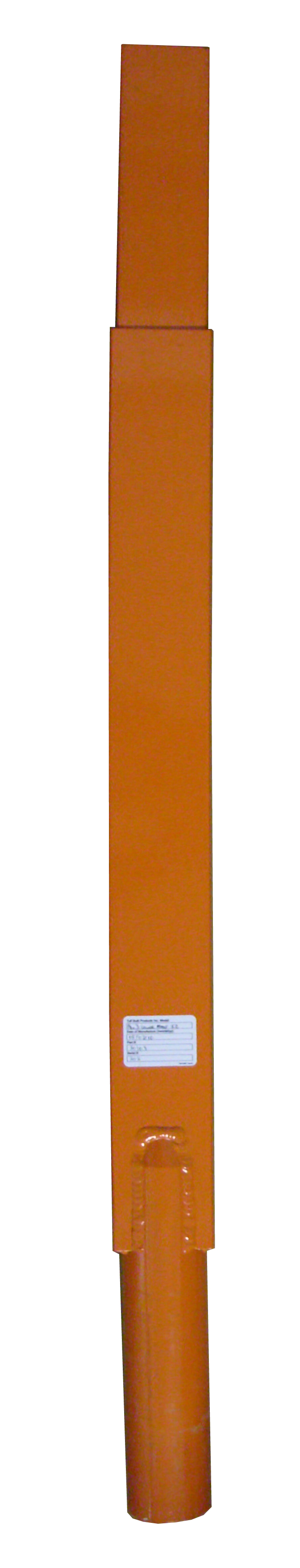

30109 Lower Davit Arm - Large lower Davit arm mast

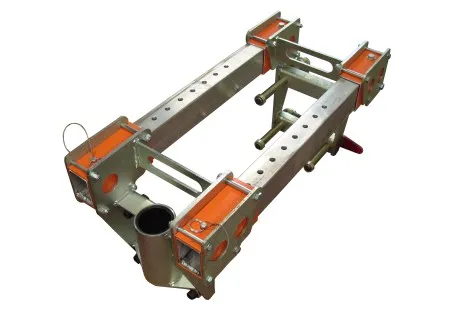

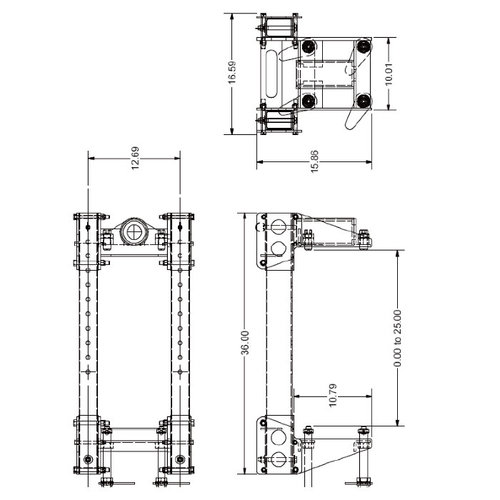

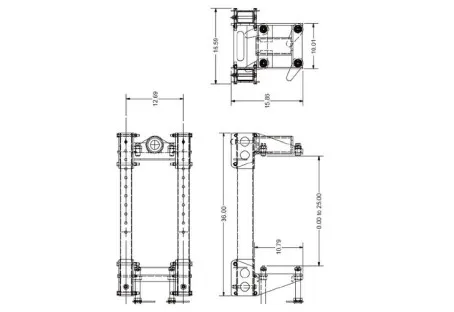

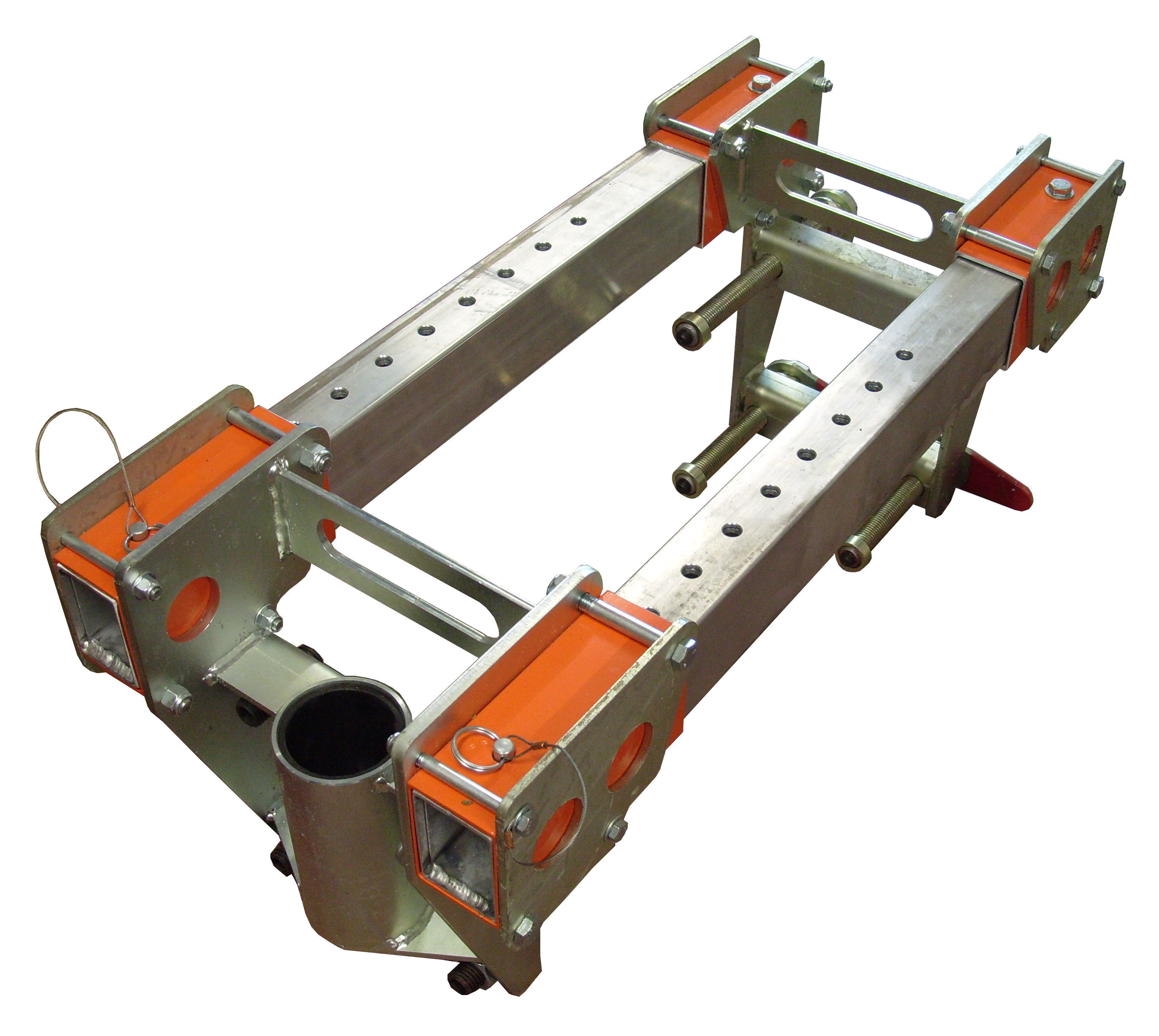

30029 Adjustable Barrel Mount 57mm to 635mm (2.25" - 25")

60005 30mtr Man Riding Winch - Capacity 140kg as a single reeved system or 240kg as a double reeved system, includes a brake wear indicator, folding crank handle, secondary brake and high impact resistant plastic cover.

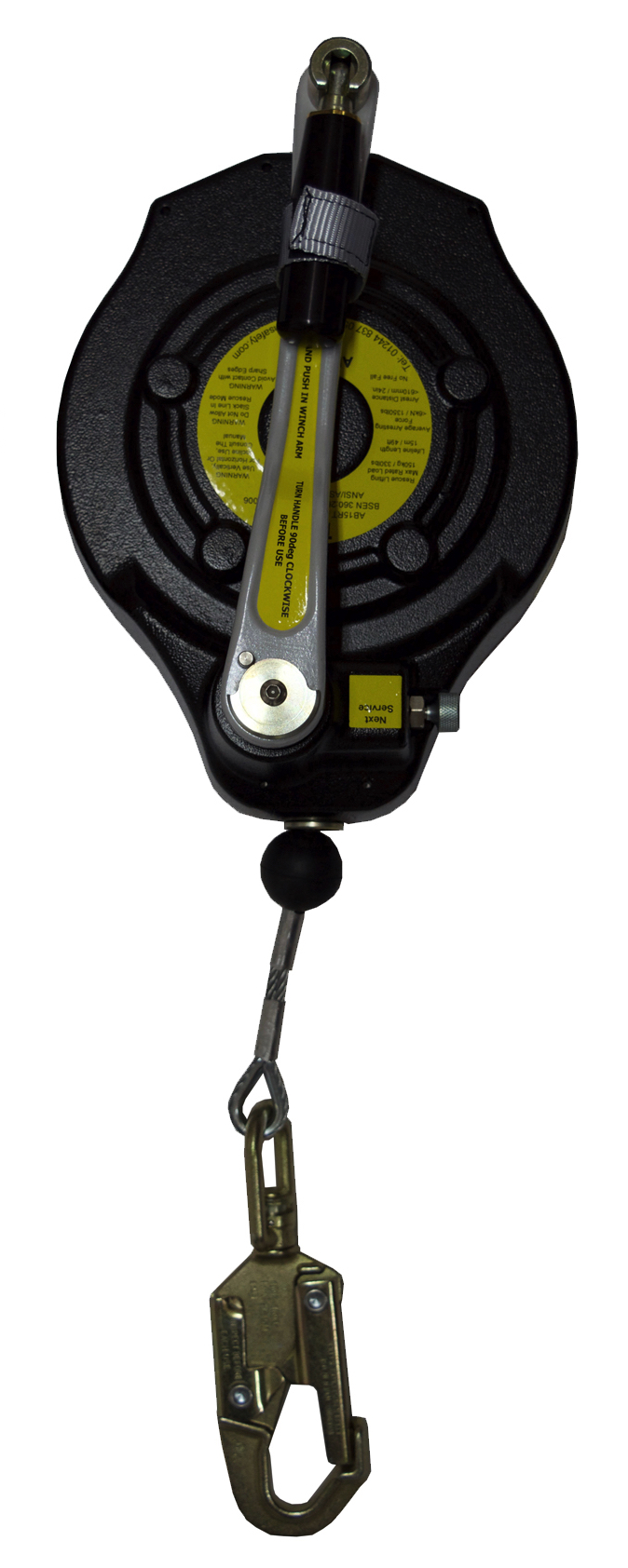

AB15RT 15mtr Fall Arrest Winch - Integral winch mechanism, allowing a top-end user to raise or lower the user to a safe area in the case of a fall. Used with 5mm Galvanised Steel Cable.

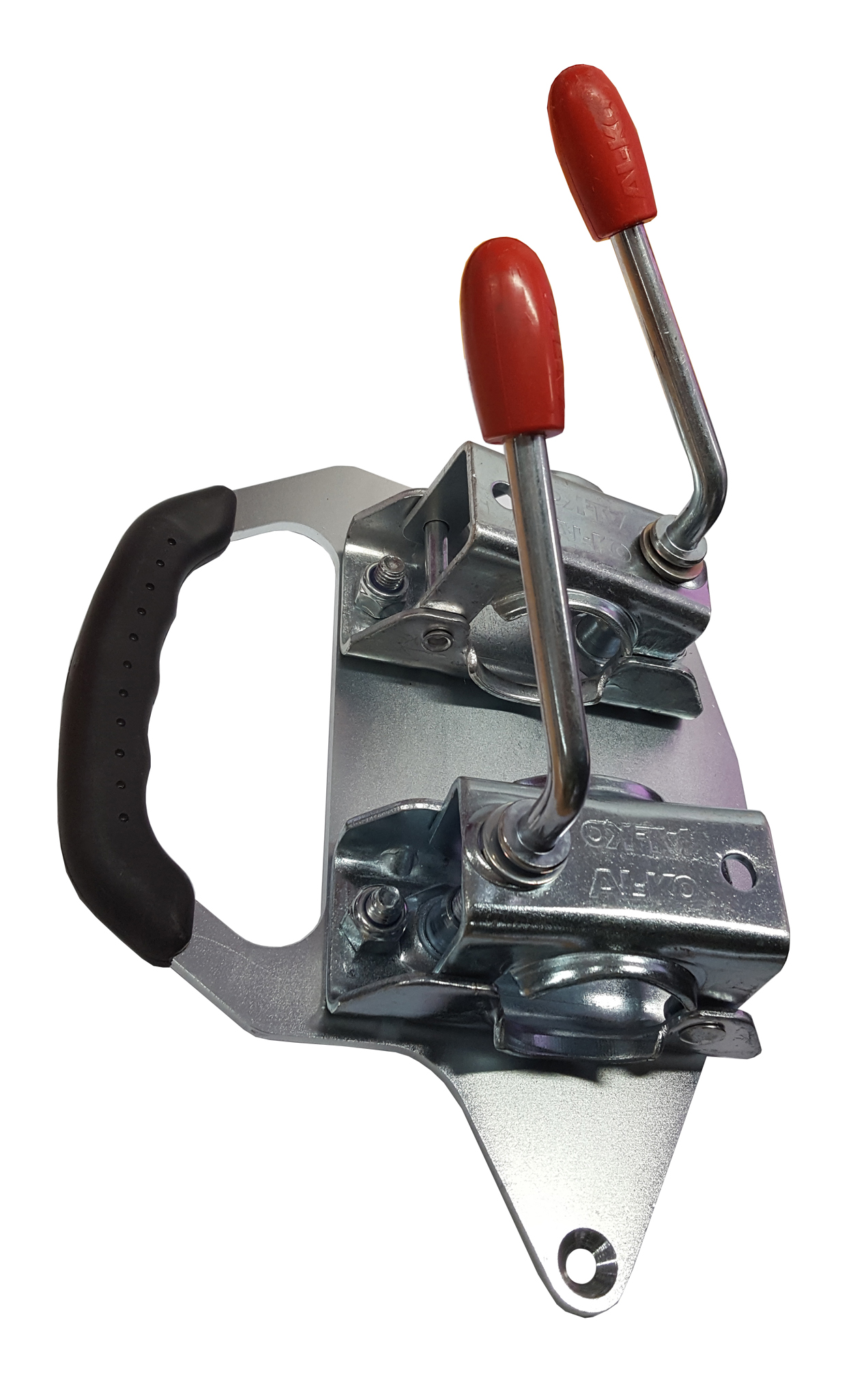

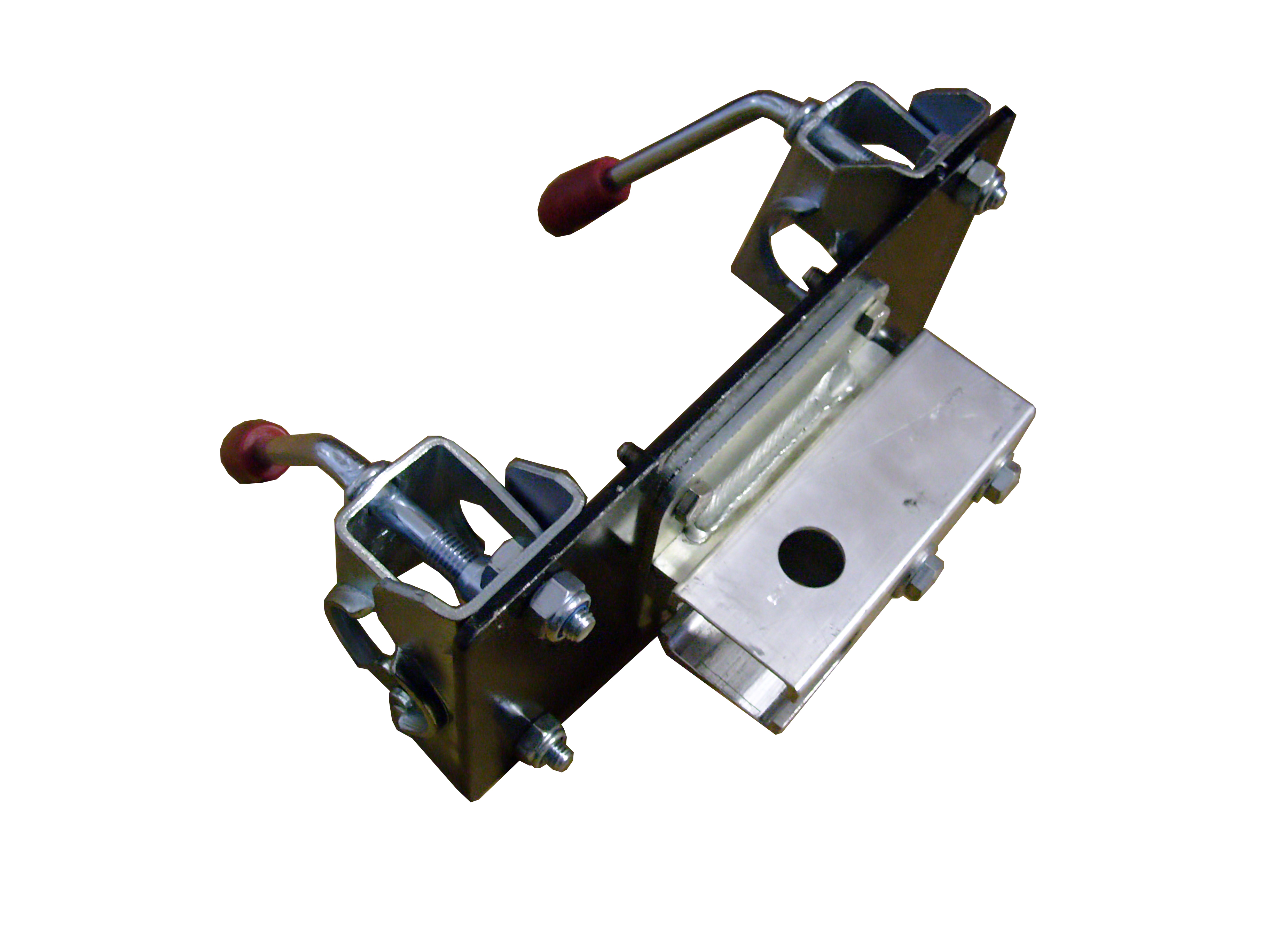

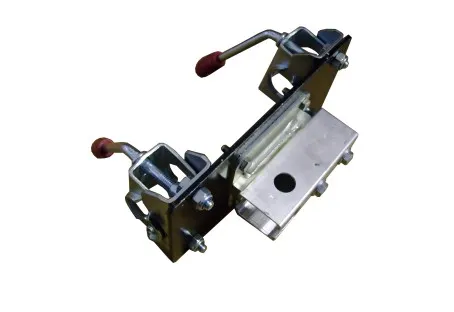

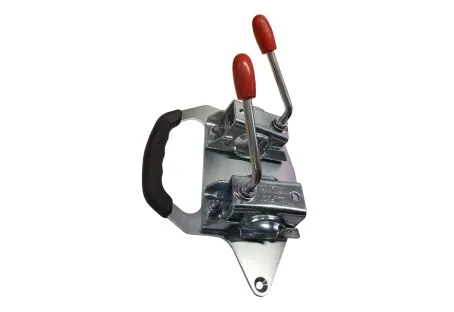

Plus Brackets

Certified to EN795 CLASS B, EN360, EN13496.
