RUD PSA INOX Star, Eyebolt Metric thread

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

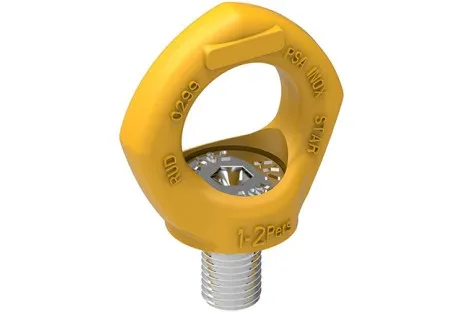

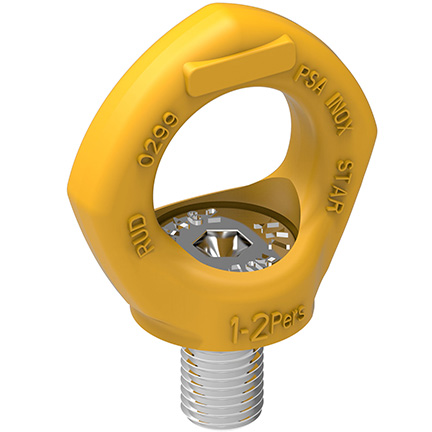

RUD PSA INOX Star, Eyebolt Metric thread

Brand:

Capacity

M12 = One Person
M16 / M20 = Two Person

Description

RUD PSA INOX Star Swivel Stainless Steel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Manufactured in Stainless Steel for protection against the elements

£80.81 ex VAT

£96.97 inc VAT

Related products

RUD PSA INOX Star, Eyebolt Metric long thread

PSA INOX Star

RUD PSA INOX Star Swivel Stainless Steel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Manufactured in Stainless Steel for protection against the elements

£102.54 ex VAT

£123.05 inc VAT

RUD PSA VRS Starpoint Swivel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in.

PSA Fall protection Anchorage points MUST only be used with fall arrest equipment. Never use these eyebolts for any lifting applications. When using for rescue from height , additional emergency descent device must be used.

The PSA VRS Starpoint is suitable for One person and Two person
Lifting points pivots 360°.
Non removable special bolt (this reduces the risk of improper standard bolts).
According to EG Directive 89/686/EWG. Exceeds the requirements of DIN EN 795. Marking corresponds to DIN EN 365.

Tested and certified by faculty PSA of DGUV.
DGUV approval for attachment to steel and with blind rivet nuts.

Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions. Component is allowed to be used in outdoor applications.

Quick and easy installation with just one bolt connection.

Hand tightening with appropriate wrench is sufficient for a singular lift.

PSA - INOX Star Fall protection Anchorage Point

Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - INOX Star M12
ONE  Person
M12
7997097
0.19 Kgs
30mm
18mm
PSA - INOX Star M16
TWO Person
M16
7909459
0.31 Kgs
35mm
24mm
PSA - INOX Star M20
TWO Person
M20
7900921
0.56 Kgs
40mm
30mm


PSA - INOX Star  Fall protection Anchorage Point with Longer Eyebolt

Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - INOX Star M12
ONE  Person
M12
7997820
0.22Kgs

30mm

50mm
PSA - INOX Star M16
TWO Person
M16
7909982
0.40Kgs
35mm50mm
PSA - INOX Star M16
TWO Person
M16
7909983
0.40Kgs35mm120mm
PSA - INOX Star M20
TWO Person
M20
7901252
0.60Kgs40mm60mm

The Lift Saver

The PSA INOX Star Eyebolt is suitable for One person and Two person

Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions. Component is allowed to be used in outdoor applications.

Quick and easy installation with just one bolt connection.

Hand tightening with appropriate wrench is sufficient for a singular lift.

PSA - INOX Star Fall protection Anchorage Point

Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - INOX Star M12
ONE  Person
M12
7997097
0.19 Kgs
30mm
18mm
PSA - INOX Star M16
TWO Person
M16
7909459
0.31 Kgs
35mm
24mm
PSA - INOX Star M20
TWO Person
M20
7900921
0.56 Kgs
40mm
30mm
PSA - INOX Star  Fall protection Anchorage Point with Longer Eyebolt

Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - INOX Star M12
ONE  Person
M12
7997820
0.22Kgs

30mm

50mm
PSA - INOX Star M16
TWO Person
M16
7909982
0.40Kgs
35mm50mm
PSA - INOX Star M16
TWO Person
M16
7909983
0.40Kgs35mm120mm
PSA - INOX Star M20
TWO Person
M20
7901252
0.60Kgs40mm60mm
In-service Inspection and Maintenance
Inspect PSA-Fall protection anchorage point regularly before each usage in regard of tightening,
corrosion, wear, deformation etc

If a safe usage is doubtable or if the lifting mean has been stressed by a dropped load, for safety reasons the usage must be withdraw.
A competent person must decide whether the lifting mean can be used further on.

The PSA-Fall protection anchorage point has to be adjustable through 360° when fitted and completely installed.

Helpful advice for the regular inspection
In time periods complying to the need or usage a technical expert should control at least once a year the appropriateness of the anchor point. This inspection must also be done after each event of damage or special incident.


Helpful advice for upkeep
For cleaning of PSA fall arrest anchor devices use only solvent- and acid-free cleaning supplies.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
