RUD PSA Starpoint, Metric thread

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

RUD PSA Starpoint, Metric thread

Brand:

Capacity

M12 = One Person
M16 / M20 = Two Person

Description

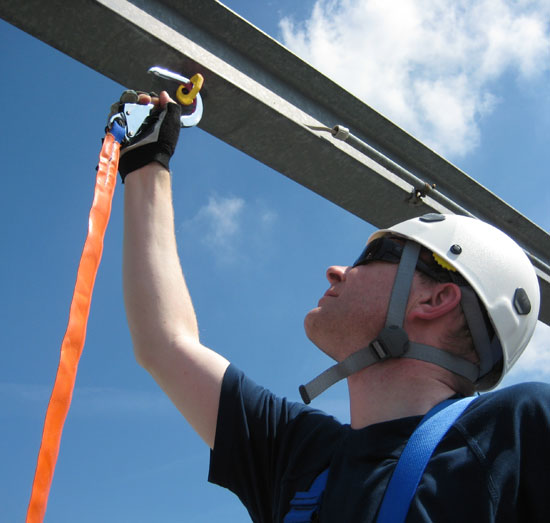

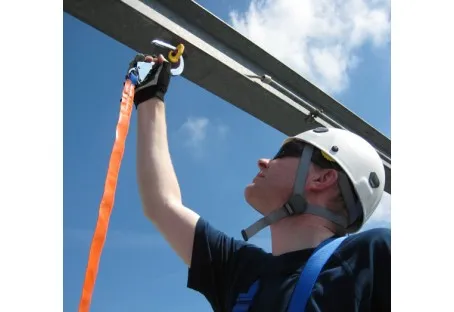

RUD PSA VRS Starpoint Swivel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in.

£47.51 ex VAT

£57.01 inc VAT

Related products

RUD PSA INOX Star, Eyebolt Metric long thread

PSA INOX Star

RUD PSA INOX Star Swivel Stainless Steel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Manufactured in Stainless Steel for protection against the elements

£102.54 ex VAT

£123.05 inc VAT

RUD PSA VRS Starpoint Swivel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Once connected the eyebolt with the special non removable bolt is able to rotate through 360° to ensure correct orientation for the operator at all times. The RUD PSA Fall Protection Anchorage points, MUST only be used with suitable fall arrest equipment. Never use these eyebolts for any lifting applications. When used for rescue from height, additional emergency descent device must be used.

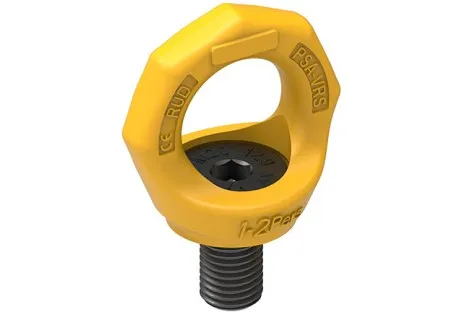

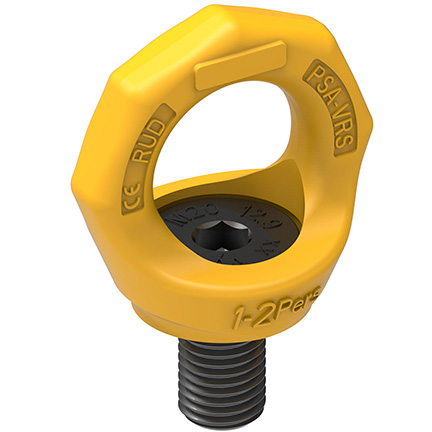

PSA - VRS Fall protection Anchorage Point.
Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
One  Person
M12
7997100
0.2 Kgs
30mm
18mm
PSA - VRS M16
Two Person
M16
7997854
0.3 Kgs
35mm
24mm
PSA - VRS M20
Two Person
M20
7900920
0.5 Kgs
40mm
30mm

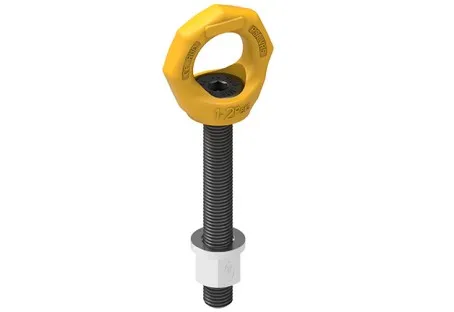

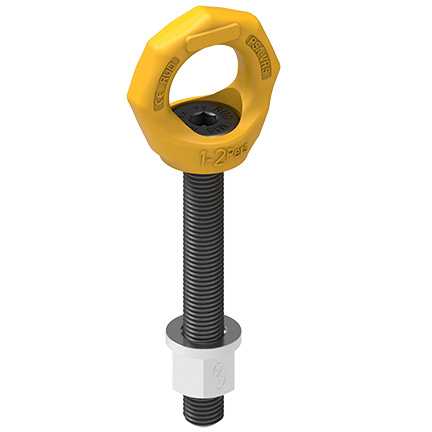

PSA - VRS Fall protection Anchorage Point with Longer Eyebolt supplied at max length.
Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
One  Person
M12
8600400
0.2 Kgs
30mm
150mm
PSA - VRS M16
Two Person
M16
8600401
0.3 Kgs
35mm
120mm

PSA - VRS Fall protection Anchorage Point with Vario Eyebolt (Longer bolt to standard) can be ordered with max thread length or can be cut to suit your desired length required between the stated thread length below. Please contact the ULS LIFTING sales team with your enquiry for specific cut thread length.
Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
One  Person
M12
8600400
0.2 Kgs
30mm
18-150mm
PSA - VRS M16
Two Person
M16
8600401
0.3 Kgs
35mm
24-120mm
Key features of PSA VRS Starpoint Metric Eyebolt.
The PSA VRS Starpoint is suitable for One person and Two person
Lifting points pivots 360°.
Non-removable special bolt (this reduces the risk of improper standard bolts).
According to EG Directive 89/686/EWG. Exceeds the requirements of DIN EN 795. Marking corresponds to DIN EN 365.

Tested and certified by faculty PSA of DGUV.
DGUV approval for attachment to steel and with blind rivet nuts.
Quick and easy installation with just one bolt connection.
Hand tightening with appropriate wrench is sufficient for a singular lift.
The Lift Saver

The PSA VRS Starpoint is suitable for One person and Two person

PSA - VRS Fall protection Anchorage Point


Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
ONE  Person
M12
7997100
0.2 Kgs
30mm
18mm
PSA - VRS M16
TWO Person
M16
7997854
0.3 Kgs
35mm
24mm
PSA - VRS M20
TWO Person
M20
7900920
0.5 Kgs
40mm
30mm

PSA - VRS Fall protection Anchorage Point with Vario Eyebolt (Longer bolt to above) Cut to suit


Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
ONE  Person
M12
8600400
0.2 Kgs
30mm
18-150mm
PSA - VRS M16
TWO Person
M16
8600401
0.3 Kgs
35mm
24-120mm

PSA - VRS Fall protection Anchorage Point with Longer Eyebolt


Model
Capacity
Thread
RUD Order Ref No.
Weight
Eye Dia
Thread Length
PSA - VRS M12
ONE  Person
M12
8600400
0.2 Kgs
30mm
150mm
PSA - VRS M16
TWO Person
M16
8600401
0.3 Kgs
35mm
120mm

In-service Inspection and Maintenance
Inspect PSA-Fall protection anchorage point regularly before each usage in regard of tightening,
corrosion, wear, deformation etc

If a safe usage is doubtable or if the lifting mean has been stressed by a dropped load, for safety reasons the usage must be withdraw.
A competent person must decide whether the lifting mean can be used further on.

The PSA-Fall protection anchorage point has to be adjustable through 360° when fitted and completely installed.

Helpful advice for the regular inspection
In time periods complying to the need or usage a technical expert should control at least once a year the appropriateness of the anchor point. This inspection must also be done after each event of damage or special incident.


Helpful advice for upkeep
For cleaning of PSA fall arrest anchor devices use only solvent- and acid-free cleaning supplies.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
