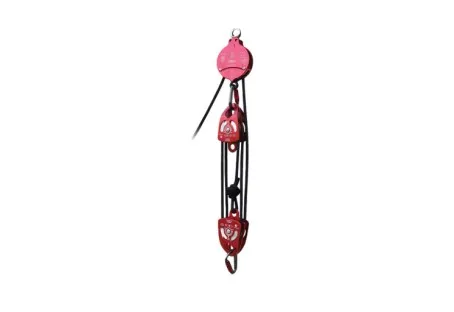

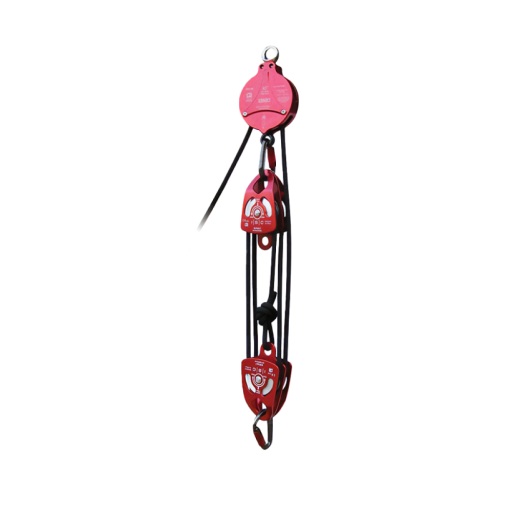

Abtech ABRALF - Auto-Locking 15m Rescue & Work System

Control when you need it, safety when you don't. The Abtech ABRALF is a 15m two-way locking system that combines a high-efficiency pulley with a "dead-man" over-speed brake. Whether you are suspending a worker for maintenance or performing a critical extraction, the ABRALF provides the mechanical advantage to lift with ease and the technology to lock instantly in a fall.

Two-Way Locking Rescue System (15m). Part  Number ABRALF - CE 0120, ANSI Z359.4:2007

The ABRALF Two-Way Locking Rescue System is engineered for efficient rescue and work positioning tasks. Featuring an integrated over-speed brake, it automatically locks upon detecting a fall. The system’s load-rated becket eye allows integration with pulleys to create 3:1 or 5:1 mechanical advantage systems. Compatible exclusively with 11mm EN1891-A ropes, it’s suitable for confined space, rescue, and work suspension applications.

Integrated over-speed brake for automatic locking during falls.

Load-rated becket eye for mechanical advantage configurations.

Constructed from durable aluminium.

Designed for use with 11mm EN1891-A ropes.

Maintenance & Servicing Requirements

To ensure the Abtech ABRALF remains in peak operational condition and complies with safety regulations, the following inspection regime must be followed:

1. Pre-Use Inspection (User Check)

Before every single use, a competent person must perform a visual and functional check:

• Mechanical Function: Pull the rope sharply to ensure the over-speed brake engages and locks the line instantly.

• Housing & Hardware: Inspect the aluminium body for cracks, significant dents, or signs of heat friction.

• Rope Integrity: Check the 11mm EN1891-A rope for cuts, abrasions, "furring," or chemical contamination. Ensure the termination stitching is intact.

• Cleanliness: Ensure the device is free from grit, dirt, or oil that could interfere with the internal braking cams.

2. Periodic Thorough Examination (6 or 12 Months)

Under LOLER and BS EN 365, this equipment must undergo a "Thorough Examination" by a qualified inspector:

• Rescue Equipment: Every 6 months (as it is used for lifting people).

• Work Positioning: At least every 12 months.

• Record Keeping: All inspections must be recorded in a formal equipment log, noting the serial number and date of next inspection.

3. Professional Servicing & Recertification

Unlike a standard pulley, the ABRALF has internal moving parts.

• Manufacturer Service: Abtech recommends that the device be returned to an authorized service center for a full strip-down, internal clean, and mechanical recertification if it has been involved in a fall or shows signs of internal wear.

• Life Span: While the metal hardware has a potentially indefinite life (subject to passing inspections), the textile rope component typically has a maximum lifespan of 10 years from the date of manufacture, even if unused.

4. Storage & Care

• Cleaning: Clean the metal casing with a damp cloth and mild detergent. Do not submerge the mechanical head in degreasers.

• Drying: If the rope or device gets wet, allow it to dry naturally in a well-ventilated area away from direct heat or sunlight.

• Storage: Store in a cool, dry place (ideally in a dedicated kit bag) away from UV light and corrosive chemicals.
