CST1KIT Abtech Confined Space Tripod Kit Fall Arrest

Key Features & Specifications Summary

• Complete System: Includes tripod, fall arrest & recovery device, and bracket.
• User Capacity: Designed for 2 persons.
• Safe Working Load (SWL): 250KG (with a 6:1 safety ratio).
• Tripod Adjustment: Height adjustable from 140cm to 240cm.
• Tripod Leg Span: Adjustable from 110cm to 170cm.
• Tripod Anchor Points: 3 overhead pulleys (up to 11mm rope), 3 underslung eyes.
• Fall Arrest/Recovery Cable: 15m x 5mm Galvanised Steel.
• Maximum User Weight (AB15RT): 150KG.
• Tripod Weight: 19.4kg.
• AB15RT Weight: 10.40kg.
• Service Interval: 12 months recommended for both devices.

Conformance

• Abtech T3 Tripod: BS EN 795 TYPE B
• Abtech AB15RT: BS EN 360

Abtech T3 Tripod Specifications:

• Conformance: BS EN 795 TYPE B
• Designed for: 2 persons
• Safe Working Load (SWL): 250Kg (6:1 safety ratio)
• Anchor Points: 3x Overhead Pulleys (up to 11mm rope), 3x Underslung Eyes
• Adjustable Height: 140cm - 240cm
• Adjustable Leg Span: 110cm - 170cm
• Weight: 19.4kg

Abtech AB15RT 15m Fall Arrest & Recovery Device Specifications:

• Product Code: AB15RT
• Conformance: BS EN 360
• Function: Fall Arrest & Manual Recovery
• Cable: 15m x 5mm Galvanised Steel
• Max Recommended User Weight: 150KG
• Weight: 10.40kg
• Service Interval: 12 months

Abtech T05T Retriever Bracket:

• Function: Allows mounting of Abtech AB15RT onto Abtech T3 Tripods.

Abtech Safety is a reputable UK-based manufacturer specialising in high-quality height safety, fall arrest, and rescue equipment. With decades of experience, Abtech is known for designing and producing reliable, durable, and compliant safety solutions for challenging working environments. Their focus on innovation and rigorous testing ensures their products, like the Abtech CST1KIT, meet the highest safety standards.

What is included in the Abtech CST1KIT Confined Space Tripod Kit?

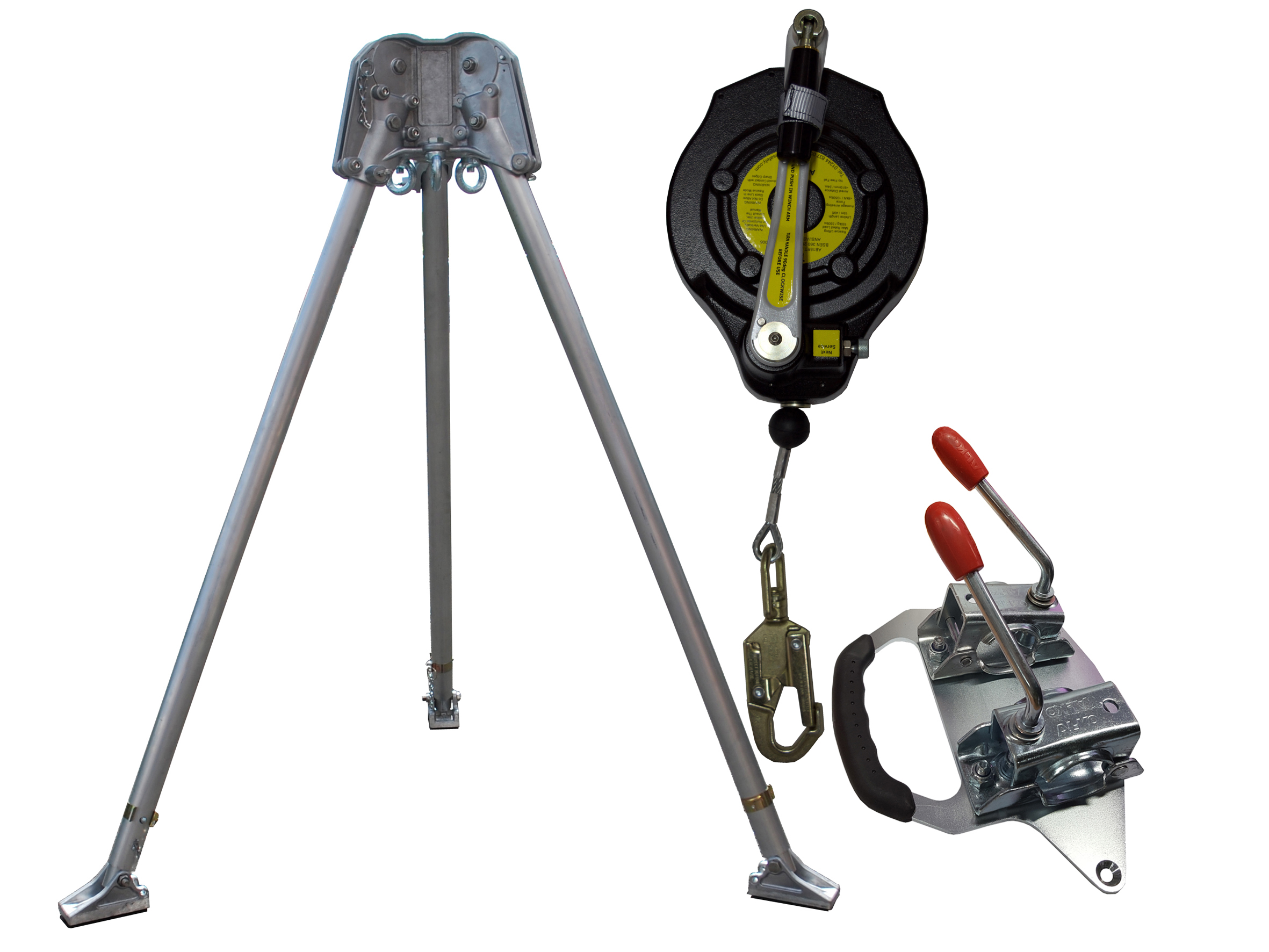

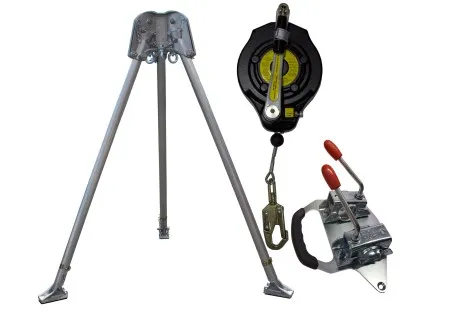

The Abtech CST1KIT is a complete confined space safety and rescue system. It includes the Abtech T3 two-person tripod, an Abtech AB15RT 15-metre fall arrest and recovery device (winch), and the specific Abtech T05T bracket required to mount the winch onto the tripod.

Is a safety harness included with this kit?

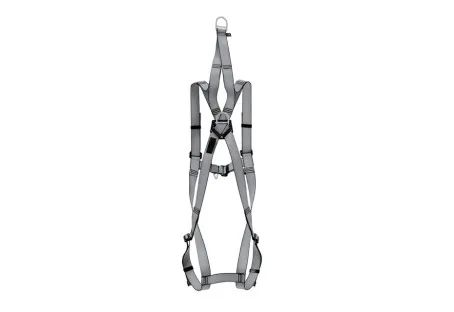

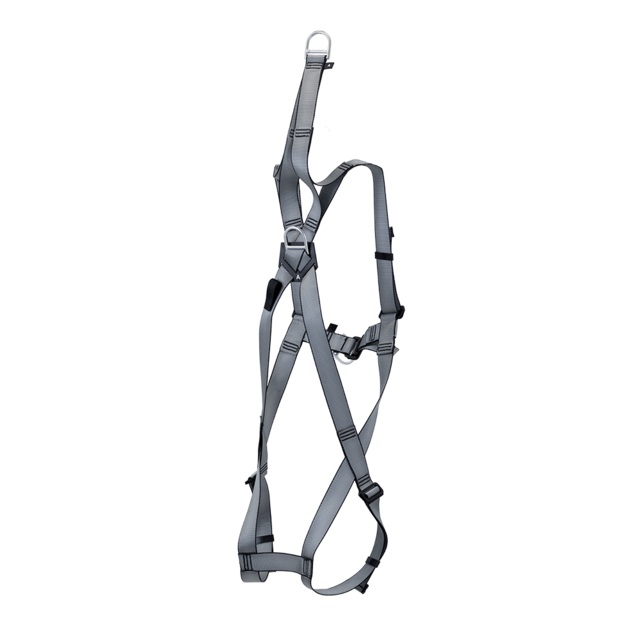

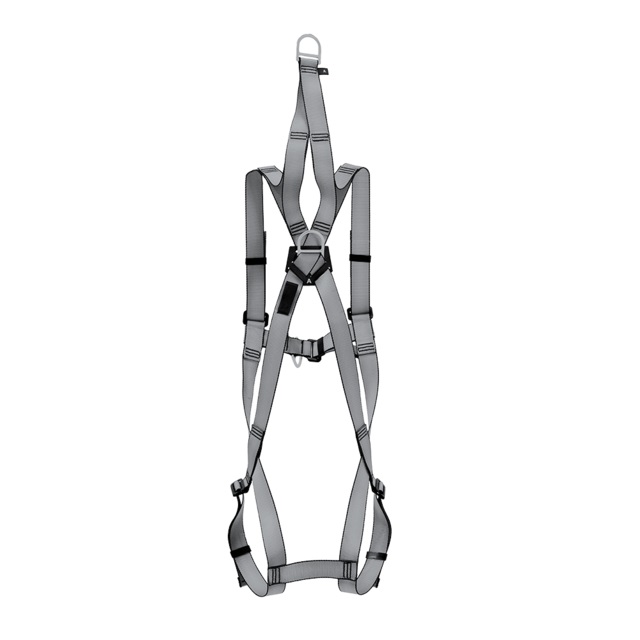

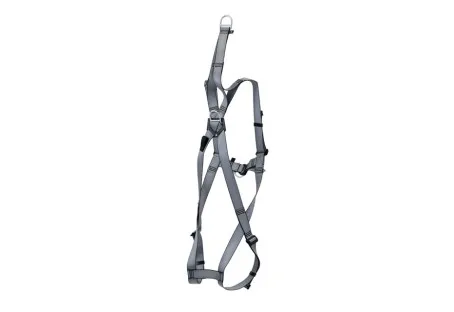

No, a safety harness is not included as standard with the CST1KIT. While the kit provides the anchorage point, fall protection, and rescue capability, you will need to select a suitable full-body fall arrest and rescue harness separately to complete the system and connect the user to the AB15RT device.

What safety standards does the Abtech CST1KIT meet?

The main components of the kit conform to relevant European and British standards:

- The Abtech T3 Tripod conforms to BS EN 795:2012 Type B (Transportable anchor devices).

- The Abtech AB15RT Fall Arrest & Recovery Device conforms to BS EN 360 (Retractable type fall arresters) and BS EN 1496 (Rescue lifting devices).

How often does the Abtech CST1KIT require inspection and servicing?

Both the tripod (Abtech T3) and the fall arrest/recovery device (Abtech AB15RT) require regular inspection by a competent person.

- Pre-use checks: A visual inspection should be carried out before each use.

- Periodic Examinations: A thorough examination by a competent person is required at least every 12 months. Under LOLER (Lifting Operations and Lifting Equipment Regulations 1998), equipment used for lifting people must be thoroughly examined every 6 months. As this kit is used for both fall arrest and potential personnel recovery, a 6-monthly thorough examination is strongly recommended and often legally required.

- Annual Service: Abtech Safety recommends an annual service for the AB15RT device, typically carried out by the manufacturer or an approved service centre.

Always refer to the user manual supplied with the kit for specific inspection, maintenance, and servicing requirements.

What is the maximum number of users for this kit?

The Abtech T3 tripod is designed and certified for use by up to two persons simultaneously, typically one person entering/working in the confined space and a second person (attendant/rescuer) operating the system or providing support. The AB15RT device is designed for a single user attachment for fall arrest and recovery (maximum 150kg user weight).

Can this kit be used for rescue as well as fall arrest?

Yes, absolutely. The Abtech AB15RT device included in the kit is a combined fall arrest and recovery unit. It functions as a standard retractable fall arrester during normal operation but also features a manual handle to enable controlled lifting or lowering of a person for rescue purposes or assisted entry/exit.

What is the Safe Working Load (SWL) of the Abtech T3 tripod?

The Abtech T3 tripod has a Safe Working Load (SWL) of 250kg, designed with a 6:1 safety ratio.

What is the maximum recommended user weight for the AB15RT device?

The Abtech AB15RT is suitable for a maximum recommended user weight of 150kg.

Can I use a different fall arrest device or winch with the Abtech T3 tripod?

While the T3 tripod has multiple anchor points, the Abtech CST1KIT is designed specifically around the compatibility of the Abtech AB15RT device and the Abtech T05T mounting bracket. Using other devices would require ensuring compatibility, appropriate certification, and might necessitate different brackets. It is generally recommended to use compatible components from the same manufacturer within a system like this to ensure correct function and maintain certification.
