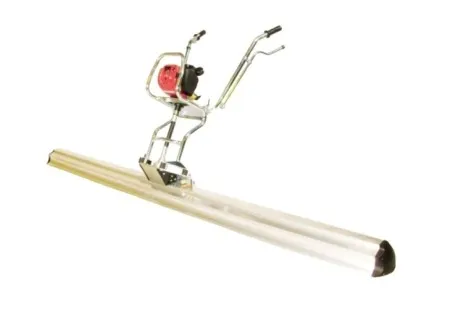

Altrad Belle Easy Screed Pro Drive Unit - Petrol
Estimated lead time:1 to 3 Days Delivery
Please call us if you need this item sooner
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

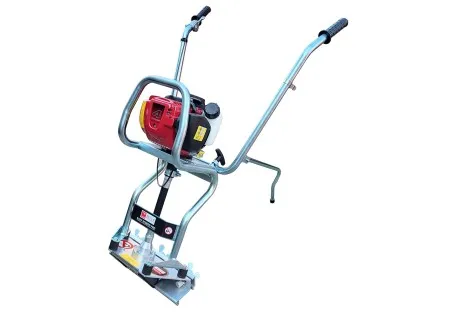

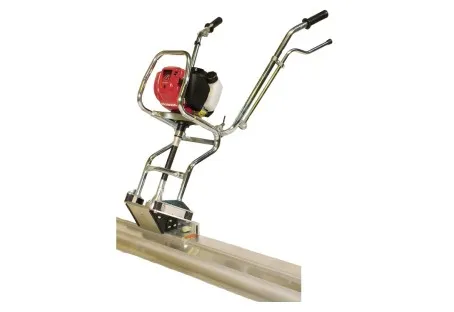

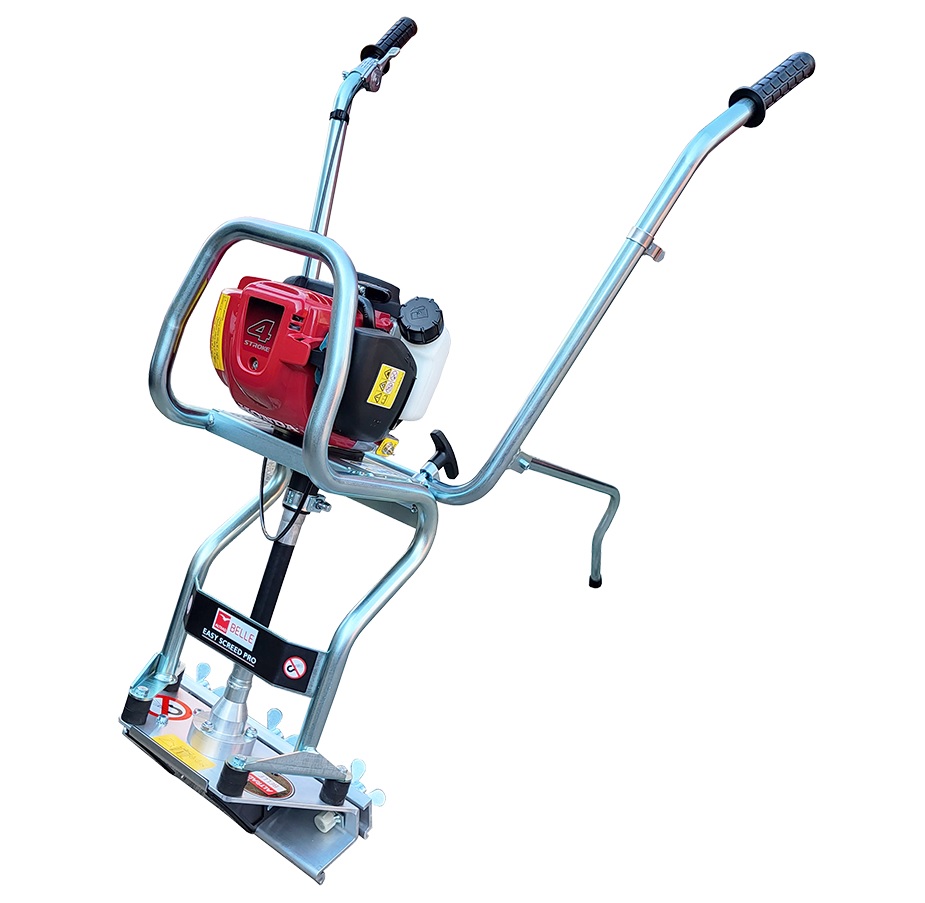

Altrad Belle Easy Screed Pro Drive Unit - Petrol
Honda Petrol Engine 1.6Hp / 1.2kW

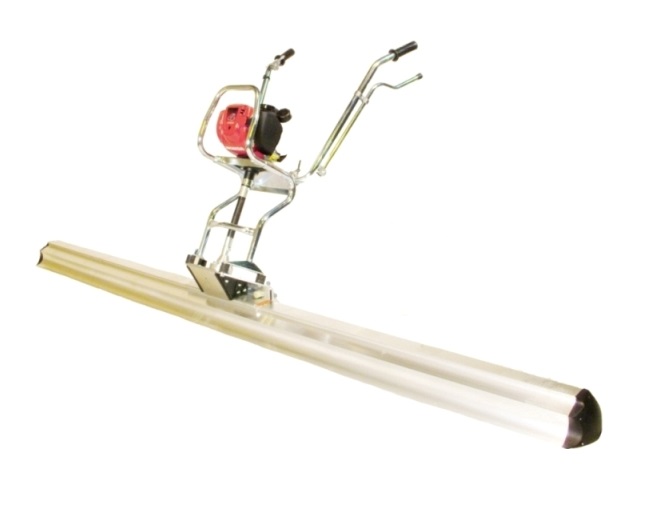

Altrad Belle Easy Screed Pro Drive Unit - Petrol powered is a high-performance free screeding machine, designed for levelling and vibrating concrete slabs. Formwork and Free Screeding are possible and beams available from 1.5m up to 6m Long.

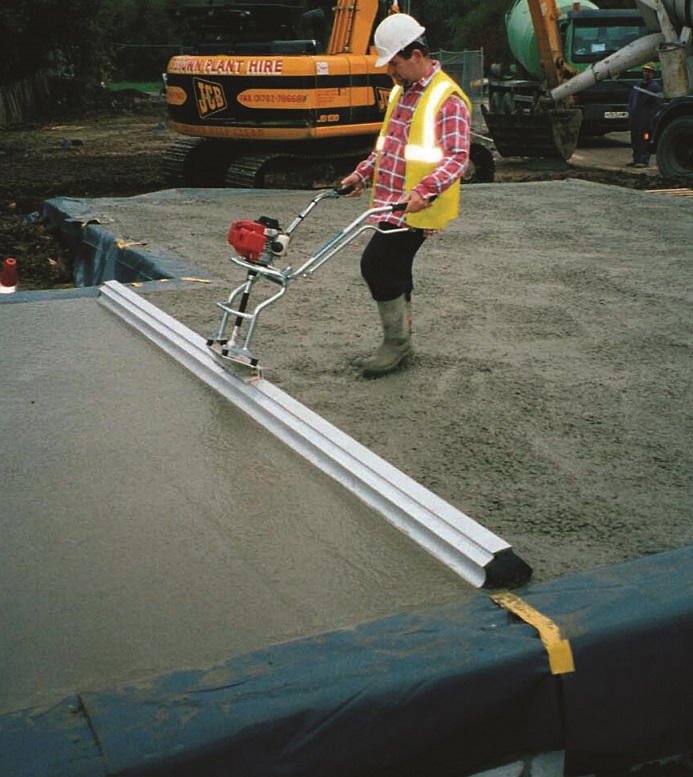

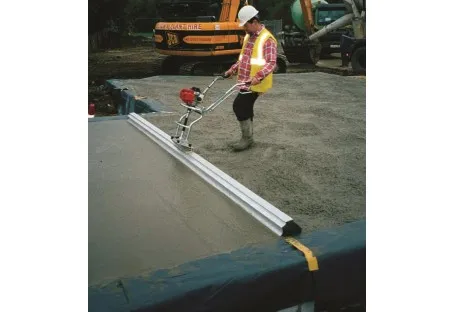

Altrad Belle Easy Screed Pro Drive Unit - Petrol powered is a high-performance free screeding machine, designed for levelling and vibrating concrete slabs. Free Screeding and Formwork Screeding is possible with this walk-behind free screeding machine. Different sized Aluminium Beams are available from 1.4m up to 6m Long to suit various applications. beams can be exchanged quickly via the tool-free quick clamp mechanism.
The 9 different beams themselves are heavily reinforced to ultimate strength and vibration transmission. Double-sided beam profile with one side designed for form-free screeding and the other for striking off between formwork.

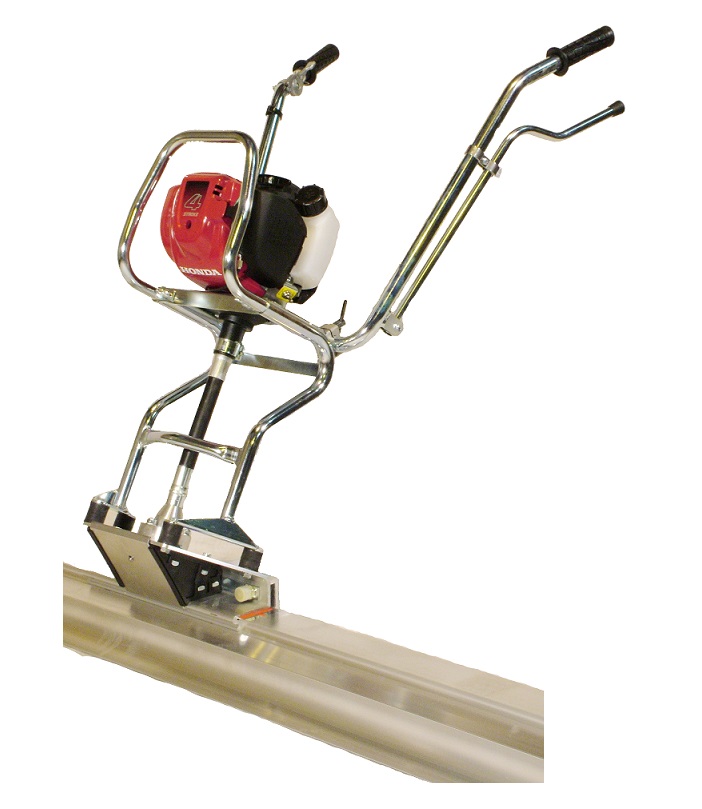

The Belle Easy Screed Pro Drive Unit provides control with high-power vibration via the attached Aluminium Beams that are uniquely shaped and not only can be used for levelling, but can also be used for striking off across traditional formwork. Power comes from the quality high power 4 stroke Honda GX31 Petrol engine which powers the inline flexible drive shaft.
Adjustable centrifugal force from the vibrator unit optimises performance with different concrete slumps and beam lengths. This ensures effective compaction and finishing
|Model||Belle Part No||Engine Power||Frequency||Compacting Depth||Width||Height||Length||Vibration Level||Weight|
Easy Screed Pro Drive Unit
Honda GX31 Petrol Engine
|157.9.010||1.6Hp / 1.2kW||83 Hz||75mm||630mm||440mm||1040mm||3.75 m/sec2||19.5Kg|

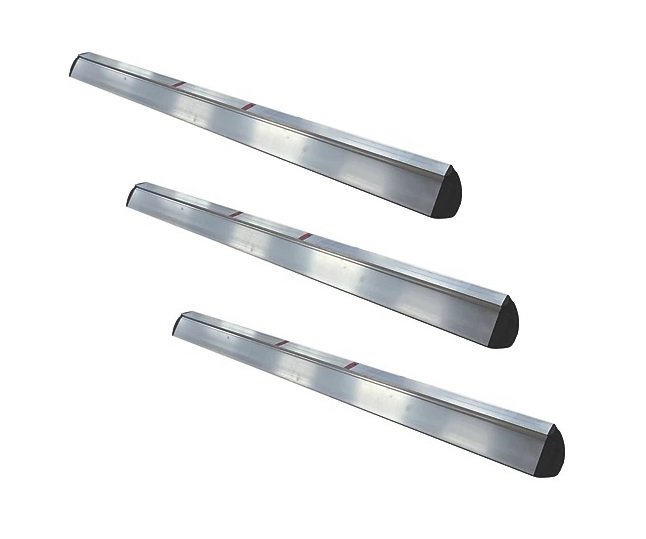

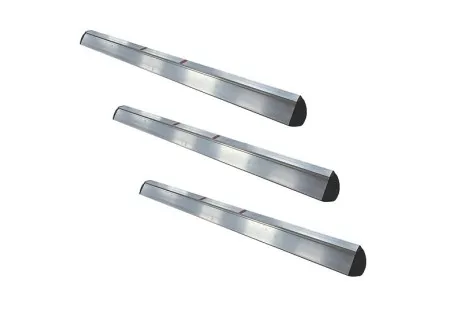

9 different Aluminium Beam lengths are available to suit the Altrad Belle Easy Screed Pro Drive Unit
|Model / Description||Belle Part No||Width||Height||Length||Weight|
|1.5m Aluminium Beam||157.3.000||200mm||100mm||1500mm||6.0Kg|
|1.9m Aluminium Beam||157.3.001||200mm||100mm||1900mm||8.0Kg|
|2.5m Aluminium Beam||157.3.002||200mm||100mm||2500mm||10.5Kg|
|3.0m Aluminium Beam||157.3.003||200mm||100mm||3000mm||12.5Kg|
|3.75m Aluminium Beam||157.3.004||200mm||100mm||3750mm||15.5Kg|
|4.25m Aluminium Beam||157.3.005||200mm||100mm||4250mm||17.5Kg|
|5.0m Aluminium Beam||157.3.006||200mm||100mm||5000mm||20.5Kg|
|**5.5m Aluminium Beam**||157.3.007||200mm||100mm||5500mm||22.6Kg|
|**6.0m Aluminium Beam**||157.3.008||200mm||100mm||6000mm||24.6Kg|
** NOTE - Two Drive Units recommended to ensure full compaction on 5.5m and 6.0m Screeding Beams.
Altrad Belle Easy Screed Pro Drive Unit - Petrol Powered - Belle Part Number 157.9.010
Quick clamp-on 4-stroke petrol power unit
Unique beam section allows "free screeding" or striking off from formwork
Straight drive shaft for the highest reliability
Variable centrifugal force to suit beam width and concrete slump
Adjustable handle height for operator comfort
Extra rigid, structurally engineered, extruded aluminium beams
8 different beam lengths to suit your applications.
Easy to maintain and transport
