Concrete Manhole Lifting Pin
Key notes for ordering:
Supplied tested with certification.
Estimated lead time:1 - 2 Days
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Concrete Manhole Lifting Pin
Brand:
Capacity
1500Kgs
(1.5 tonne)
Description

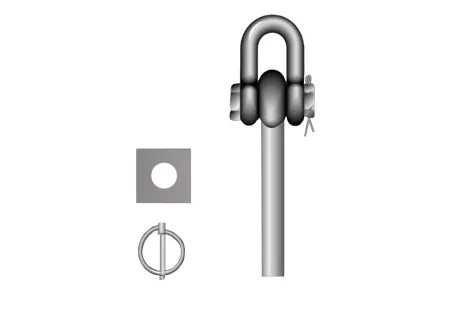

Concrete Manhole Pins are usually used in sets of three to lift concrete manhole chambers. This style of concrete lifting Pins are supplied with Large flat washer and retaining pins - Other style of pins available on request
£49.98 ex VAT
£59.98 inc VAT
Add to cart
Add to quoteRelated products
Concrete Manhole Pins are usually used in sets of three to lift concrete manhole chambers. These Pins supplied with Large flat washer and retaining pin.
- Material High Tensile Steel
- WLL (SWL) 30cwts - 1.5 ton
- Pin Diameter - 30mm dia
- Pin Length - 210mm
- Length to Washer Plate - 192mm
- Top Shackle Internal Width - 30mm
- Supplied Self Colour
Material High Tensile Steel
- WLL (SWL) 30cwts - 1.5 ton
- Pin Diameter - 30mm dia
- Pin Length - 210mm
- Length to Washer Plate - 192mm
- Top Shackle Internal Width - 30mm
- Supplied Self Colour
Maintenance requirements are minimal. Keep clean, the shackle free of debris and protect from corrosion.
Regularly inspect both shackle and the body of the Manhole Lifter and, in the event of the following defects, refer the shackle to a Competent Person for thorough examination: illegible markings; distorted, worn, stretched or bent body; bent pin; nicks, gouges, cracks or corrosion; any other defect.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eye bolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
