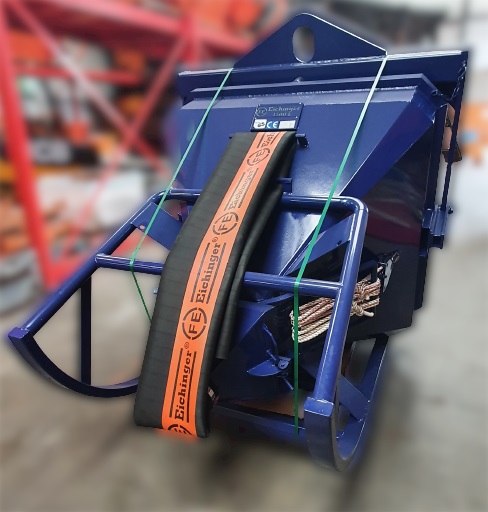

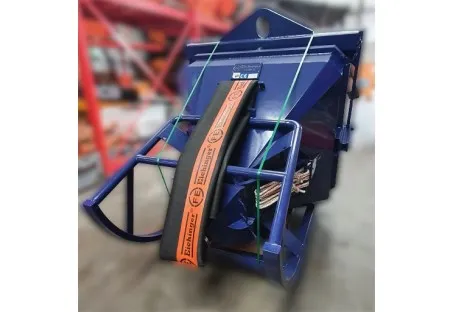

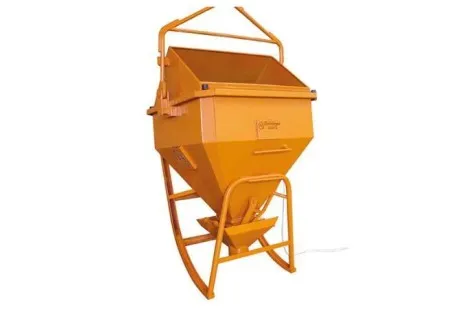

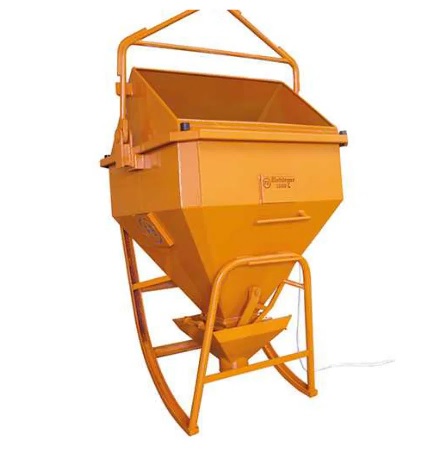

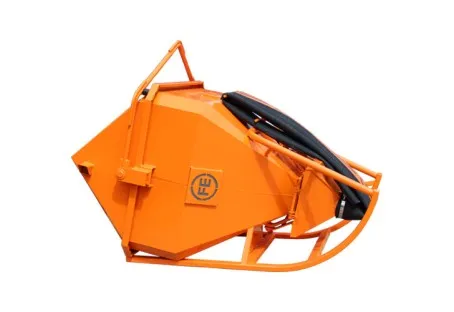

Concrete Column Pouring Skip CS 1034C

Product Specifications – Eichinger CS 1034C Concrete Column Skip

Key Features of the CS 1034C

- Designed for precise pouring of wet concrete into columns, walls, and narrow shuttering

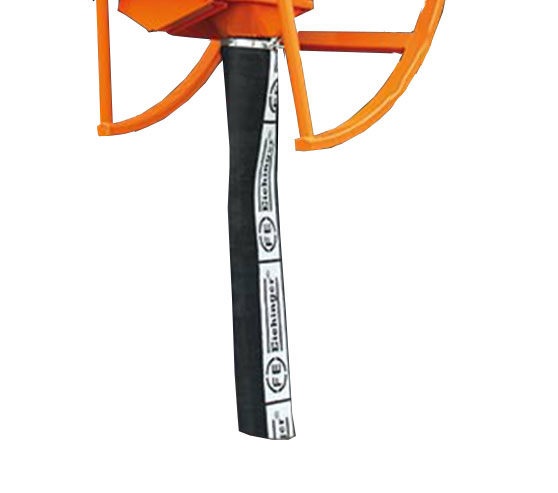

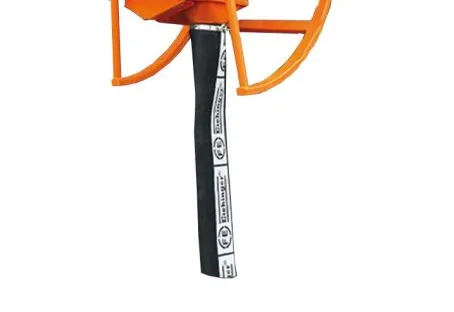

- Supplied with 200mm diameter x 3m hose (longer lengths available)

- Kick-down hopper for quick cleaning

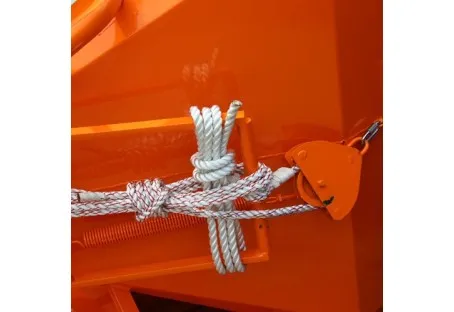

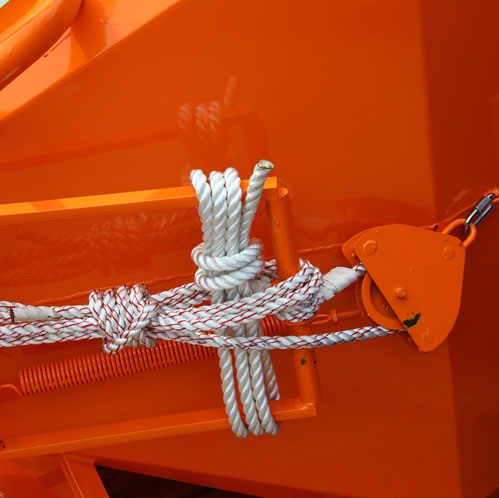

- Safeguard pulley fitted as standard (except 500L model)

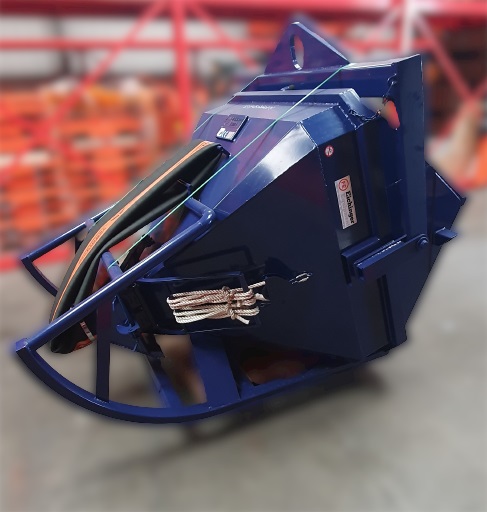

- Laydown design for easier filling

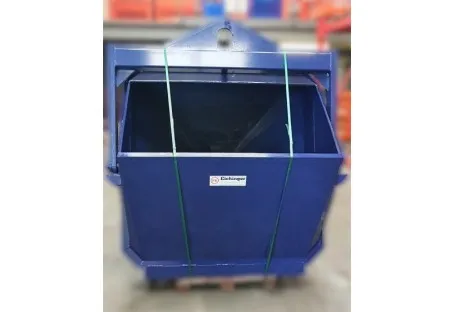

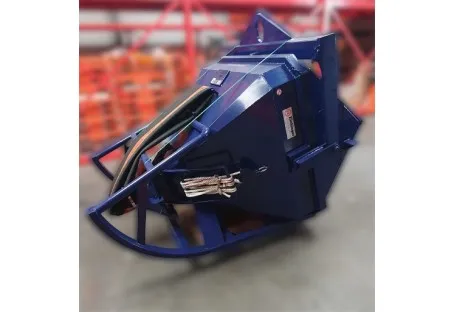

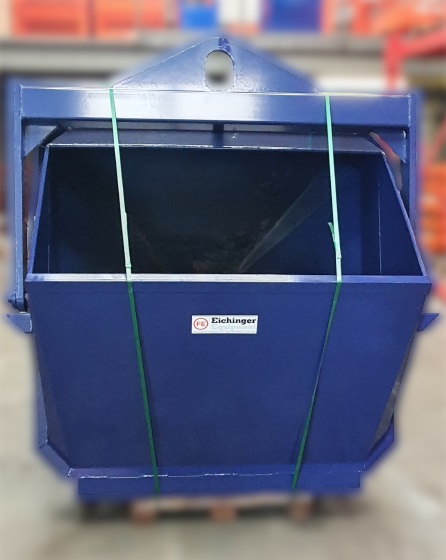

- Strong bale arm for secure crane lifting

- Available in Eichinger orange or royal blue (colour confirmation recommended before ordering)

Available Sizes and Load Ratings – Concrete Column Pouring Skip CS 1034C

Warning: Do not hold the gate open on a full skip, the weight of the contents may detach the hose. Always discharge using short, controlled movements.

Maintenance & Servicing – CS 1034C Concrete Pouring Skip

To maintain the safe performance of your Eichinger CS 1034C Concrete Column Pouring Skip, we recommend:

- Cleaning the hopper, gate, and hose after each use to prevent blockages

- Inspecting the safety pulley and gate mechanism for smooth operation

- Checking the hose condition for wear, splits, or detachment points

- Monitoring the bale arm and lifting eye for cracks, deformation, or corrosion

- Applying lubrication to pivot points for smooth movement

In accordance with PUWER regulations, the skip should be inspected by a competent person at least once every 12 months. ULS Lifting offers full servicing and inspection support.

Brand Benefits – Why Choose Eichinger?

Eichinger is a long-standing manufacturer of lifting and concrete handling equipment, known for producing high-quality, reliable skips that meet the toughest site demands. Everything is manufactured in-house to ensure consistency, safety, and performance; no outsourced fabrication, no mixed designs. With a strong reputation across construction and infrastructure sectors, Eichinger skips are favoured by professionals looking to reduce maintenance costs and extend product lifecycles.

Many contractors now seek a “clean fleet” solution, choosing uniform, high-performance equipment across all job sites. With Eichinger and ULS Lifting, you’re getting the same quality every time. Discover more from the Eichinger range here.

FAQs – Concrete Column Pouring Skip CS 1034C

What is the Concrete Column Pouring Skip CS 1034C used for?

The CS 1034C Concrete Column Pouring Skip is designed for accurate placement of wet concrete into columns, walls, formwork, and trenches.

How does the CS 1034C Tremie Skip operate?

The skip discharges concrete through a 200mm diameter hose, controlled by a gate and safeguard pulley, ensuring precision and operator safety.

What hose is supplied with the CS 1034C Concrete Pouring Skip?

Each skip comes with a 200mm x 3m hose as standard. Longer hoses can be supplied on request.

Is the Eichinger CS 1034C available in different capacities?

Yes, the CS 1034C is available in five capacities, ranging from 500 litres to 2000 litres with SWLs up to 4800kg.

Does the CS 1034C Concrete Column Skip include a safeguard pulley?

Yes, all models except the 500L (CS 1034C.8) are fitted with the safeguard pulley system as standard.

Can the CS 1034C be delivered outside the UK mainland?

Yes, but please note that a carriage surcharge may apply to deliveries in the Highlands, Wales, and Northern Ireland.

Is the Eichinger CS 1034C skip easy to clean?

Yes, it features a kick-down hopper design, making it easier to clean after use compared with standard concrete skips.

What colour is the CS 1034C Concrete Column Skip supplied in?

It is typically supplied in Eichinger orange or royal blue. Please contact ULS Lifting to confirm colour availability before ordering.

Where can I find compatible lifting and concrete skips?

You can explore our full range, including the Circular Muck Skip, Twinflow Concrete Skip and Forklift Concrete Skip.
