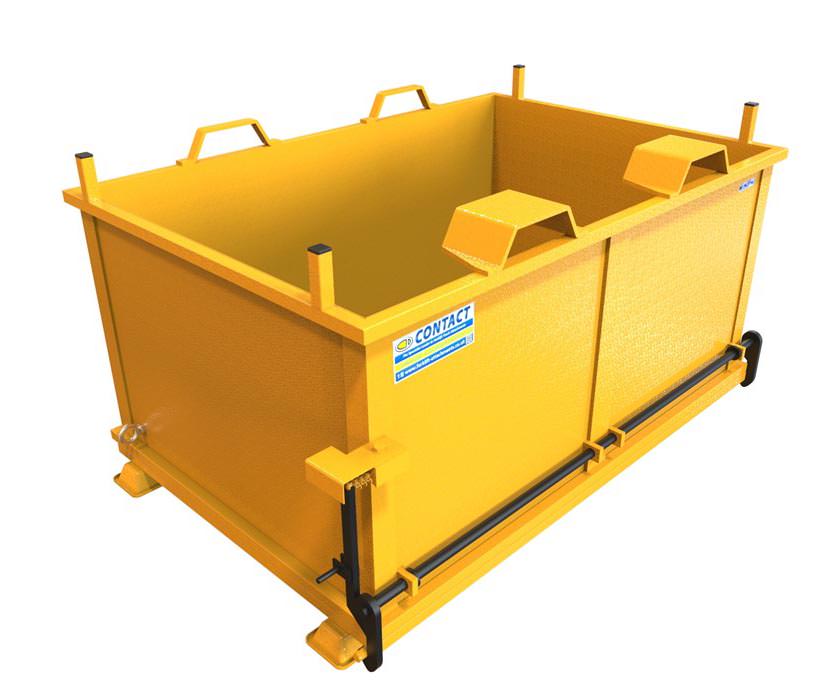

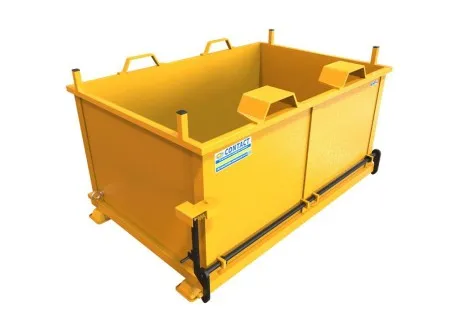

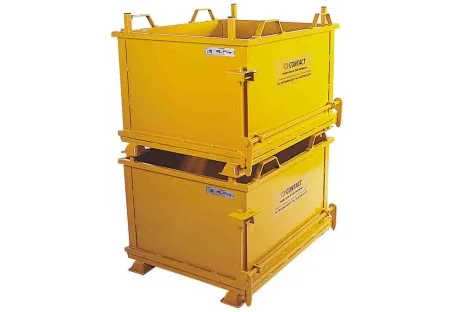

BDB Series: Drop Bottom Skips & Base Emptying Stillages

Maintenance & Servicing Procedure

To ensure the longevity of your BDB Drop Bottom Skip and remain compliant with PUWER and LOLER regulations, we recommend the following inspection schedule.

Daily Pre-Use Checks (Operator)

Visual Inspection: Check for any obvious signs of structural damage, cracked welds, or excessive rust.

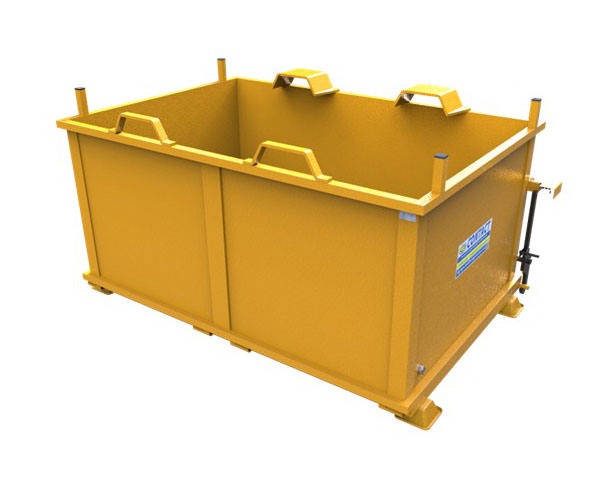

Release Mechanism: Ensure the manual pull-cord is not frayed and that the spring-loaded lever moves freely.

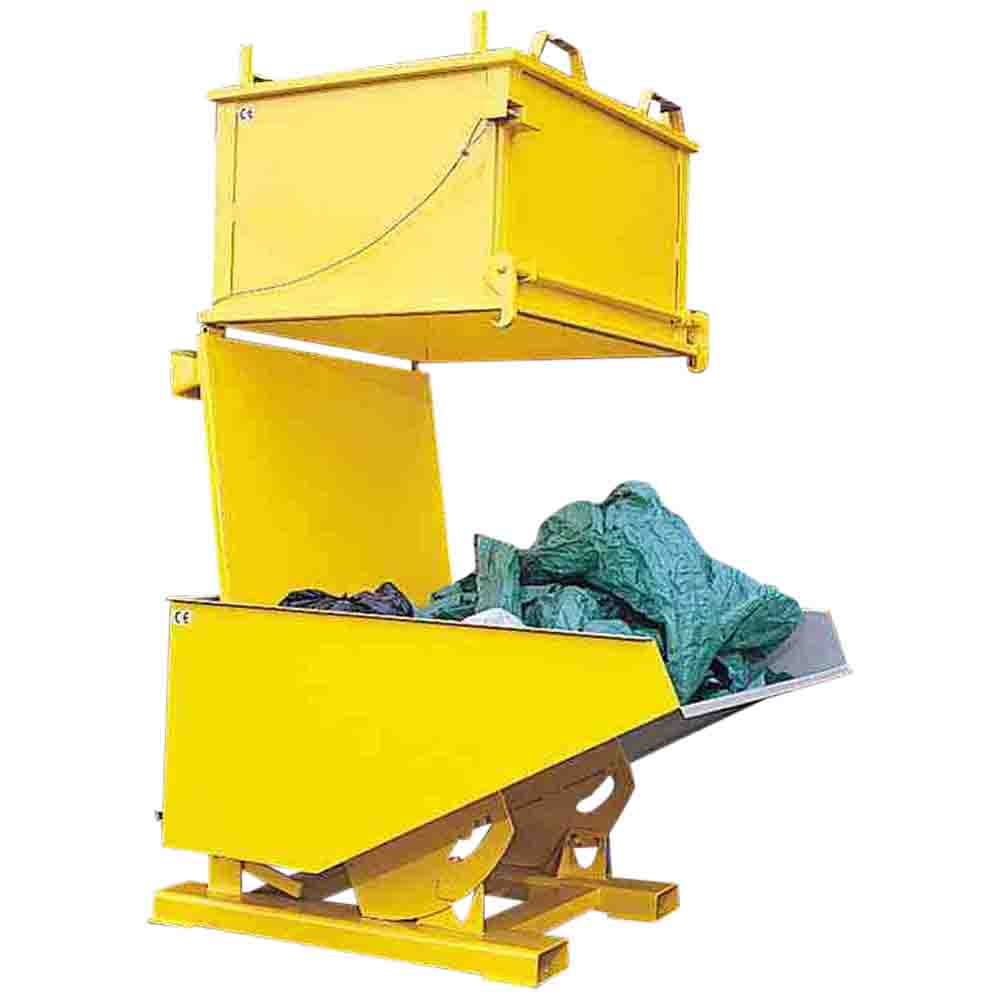

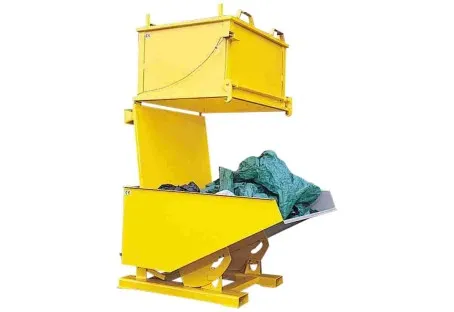

Safety Chain: Confirm the safety securing chain and lynch pin are present and undamaged.

Debris Check: Ensure the base hinges and locking latches are free from debris or waste buildup that could prevent a secure lock.

Weekly Maintenance

Cleaning: Thoroughly wash out the interior of the skip to remove residue that can cause corrosion or jam the locking mechanism.

Lubrication: Apply grease to the pivot bars, latches, and locking hooks. Apply a light oil to the release springs to ensure smooth semi-automatic operation.

Fasteners: Check all bolts and nuts are tight, specifically around the hinge points and fork pocket attachments.

Statutory Examinations (LOLER)

6-Monthly Inspection: Because this skip is a forklift attachment used for lifting loads, it must be subjected to a Thorough Examination by a Competent Person every 6 months in accordance with LOLER 1998.

Certification: ULS Lifting provides an initial Certificate of Conformity. It is the owner's responsibility to maintain a register of ongoing 6-monthly inspections.

Warning: If any distortion is found in the fork pockets or if the base fails to lock automatically when lowered, the unit must be withdrawn from service immediately and reported to a supervisor.

Why Choose the Contact Attachments BDB Range?

When you buy the BDB range from ULS Lifting, you are investing in equipment from Contact Attachments—the UK’s original innovator of mechanical forklift attachments.

50 Years of Engineering Excellence: Contact Attachments has been designing and manufacturing in the UK since 1974. They didn't just join the market; they helped create the standards for safe forklift waste handling.

The "Original Innovator" Quality: While many competitors sell imports, the BDB range is UK-manufactured in a dedicated ISO 9001:2015 certified facility. This ensures superior weld quality and structural integrity that cheap imitations cannot match.

Built for Arduous Environments: Contact uses high-grade steel (2mm side plates and 3mm reinforced base plates) specifically designed to withstand the rigours of construction sites and heavy manufacturing plants.

Unrivalled Safety Standards: Every BDB unit is rigorously tested and individually inspected. You receive a full Certificate of Conformity, ensuring your site meets LOLER and HSE compliance from day one.

3-Year "No Quibble" Guarantee: Because Contact is so confident in their British engineering, the BDB range often carries a long-term backing that provides total peace of mind for fleet managers.

Bespoke Capabilities: Because we work directly with the manufacturer, ULS Lifting can offer custom RAL colours for waste segregation (Blue, Red, Yellow, Green, Orange) or specialized galvanized finishes for corrosive or outdoor use.
