Forklift Jibs - Low Liner Version

Brand:

Capacity

1,000Kgs up to 5,000Kgs
(1t to 5t)

Description

Quality yet inexpensive UK manufactured Jib Arm. Ideal when extra long reach is required to pick up those awkward loads from inaccessible locations.

Model/Capacity:

£569.98 ex VAT

£683.98 inc VAT

This Product is supplied with 3 year Manufacturer warranty, fully tested & certificated.

Add to cart

Add to quote

Related products

Fork Mounted Extendable Jib Arm EJ2081

EJ2081

Extendable heavy duty forklift Jib Arm Attachment. A cost effective attachment for lifting and transporting large and abnormal loads around the workplace or construction site.

£1,249.98 ex VAT

£1,499.98 inc VAT

More info

Fork Mounted Hook

FMH2084

Fixed style heavy duty forklift hook attachment. A cost effective attachment that enables simply conversion of any forklift into a mobile crane unit.

£364.98 ex VAT

£437.98 inc VAT

More info

Adjustable Extendable Jib Arm AEJ2082

AEJ2082

Height Adjustable heavy duty forklift Jib with extendable arm. A cost effective attachment for lifting and transporting tall and abnormal loads around the workplace or construction site.

£2,398.98 ex VAT

£2,878.78 inc VAT

More info

Description
Specifications
Maintenance and servicing
Reviews (0)
Q & A

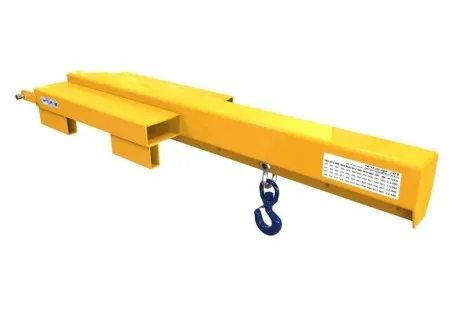

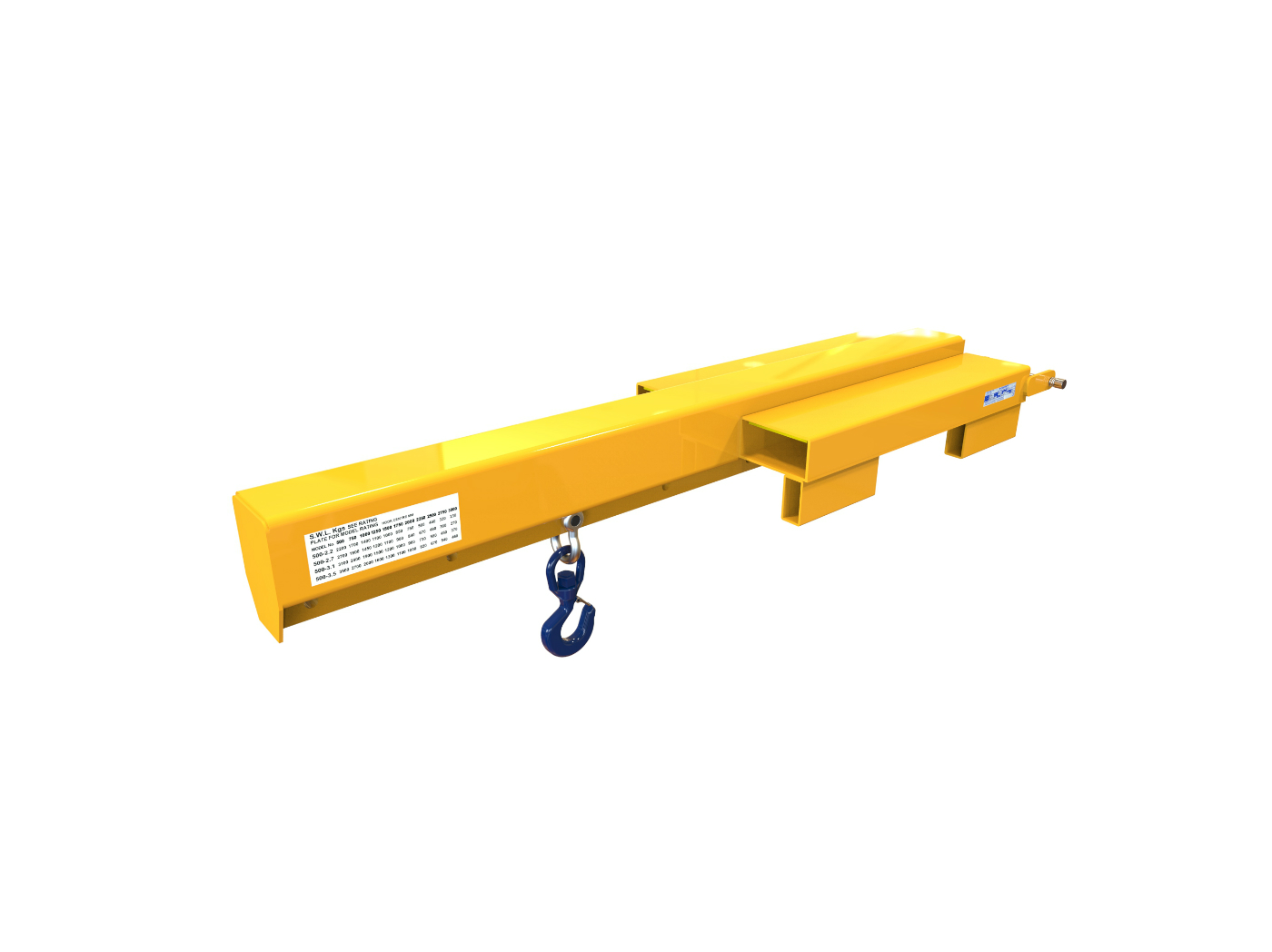

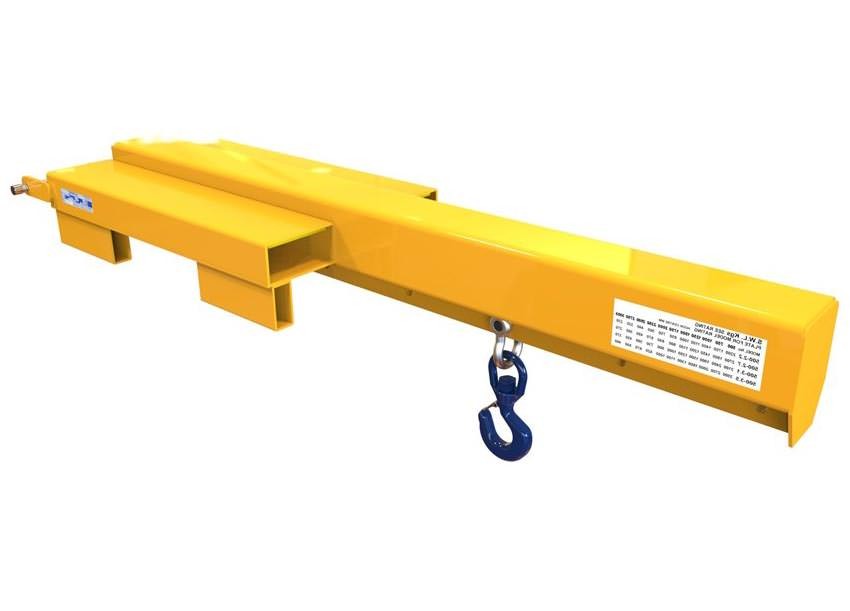

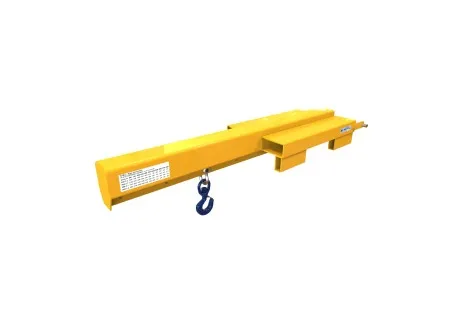

Quality yet inexpensive UK manufactured Jib Arm. Ideal when extra long reach is required to pick up those awkward loads from inaccessible locations. Our Low liner Jib crane is a low profile forklift jib which is great when height restrictions are a concern, it will also give you long reach capabilities for either picking up or placing down an object or product which is difficult to reach with the standard forks on a lift truck - Ideal for non palletised goods, handling machinery or presses or even motors, in fact anything that is in a hard to access position.

Jib is supplied with a quality lifting hook that swivels.

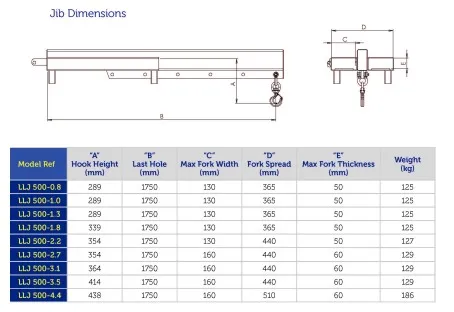

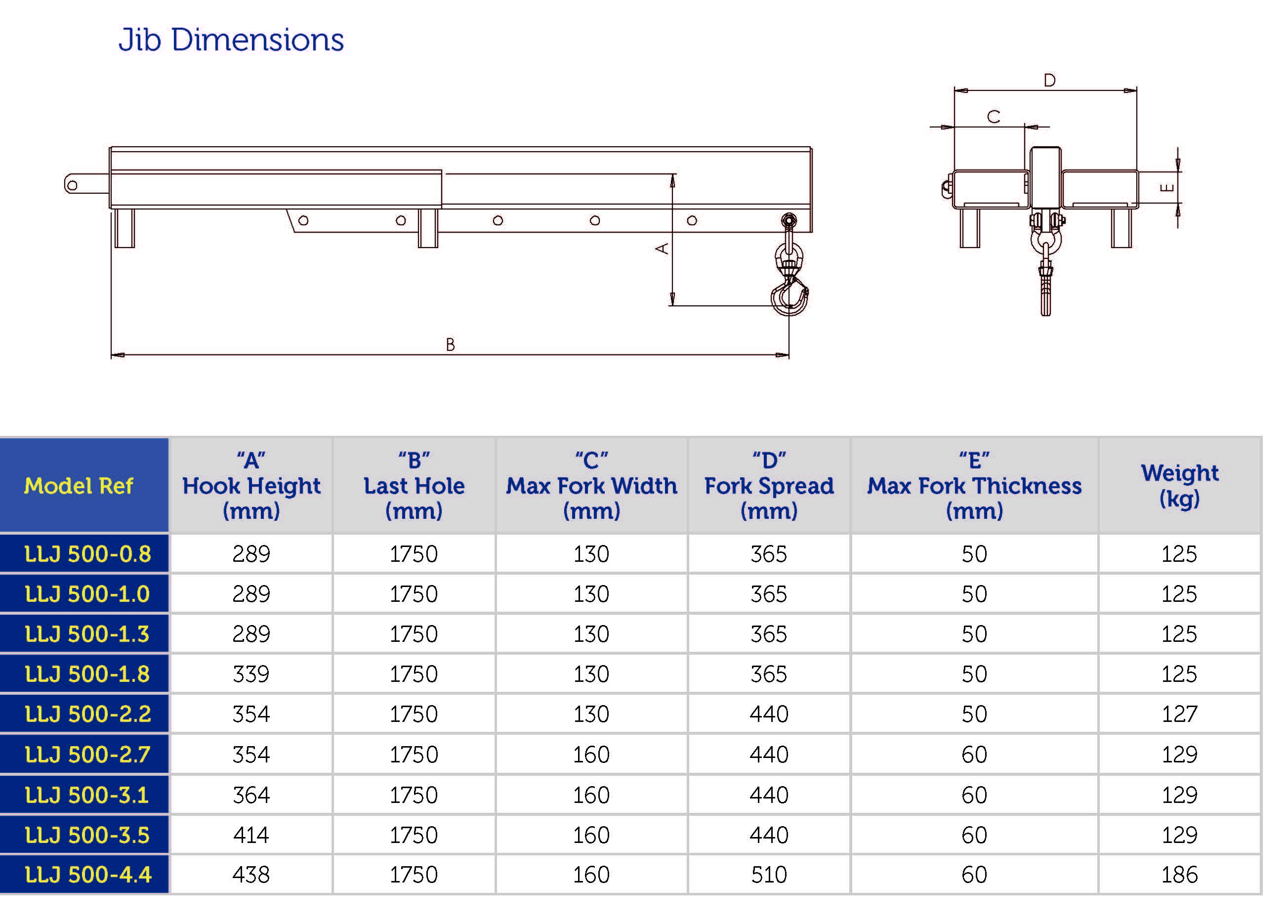

All Jib arms are 1800mm (1.8m) long and all have 6 different lifting points evenly spread along the whole length of the unit.

For securing the Jib to the forklift, quality heel pins are supplied, eliminating any risk of the arm moving or slipping.

Fork Truck Minimum Capacity	Model Ref	Max Loading Capacity	Overall Length	Max Fork Section	Weight
1000Kgs	LLJ 500-0.8	800Kgs	1,800mm	130 x 50mm	125Kgs
1300Kgs	LLJ 500-1.0	1,000Kgs	1,800mm	130 x 50mm	125Kgs
1500Kgs	LLJ 500-1.3	1,300Kgs	1,800mm	130 x 50mm	125Kgs
2000Kgs	LLJ 500-1.8	1,800Kgs	1,800mm	130 x 50mm	125Kgs
2500Kgs	LLJ 500-2.2	2,200Kgs	1,800mm	130 x 50mm	127Kgs
3000Kgs	LLJ 500-2.7	2,700Kgs	1,800mm	160 x 50mm	129Kgs
3500Kgs	LLJ 500-3.1	3,100Kgs	1,800mm	160 x 50mm	129Kgs
4000Kgs	LLJ 500-3.5	3,500Kgs	1,800mm	160 x 50mm	129Kgs
5000Kgs	LLJ 500-4.4	4,400Kgs	1,800mm	160 x 50mm	186Kgs

This Product is supplied with 3 year Manufacturer warranty, fully tested & certificated.

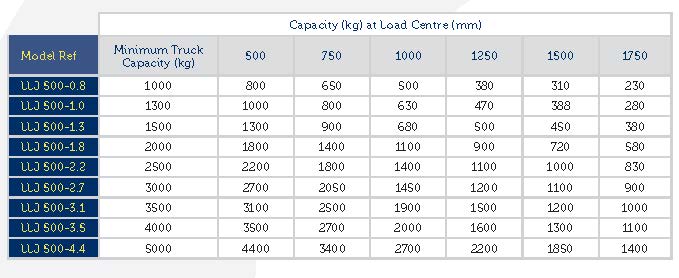

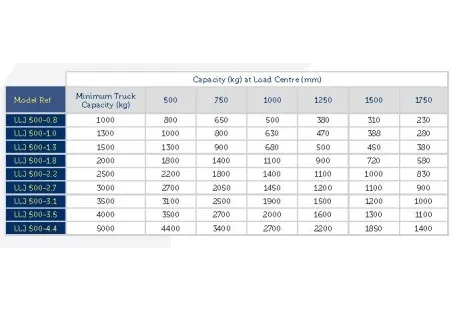

For load lifting safety, the forklift jib comes with a load capacity chart that details the safe lifting limits of the jib based on the capacity of the forklift truck.

For full loading at all lifting points - please see attached data sheet for further details

Benefits and Main Features

Low profile design allows for better access into areas where space is limited, thus reducing the need manual handling and subsequent risk of injury

Jib rated to suit the capacity of the lift truck, reducing wear and tear on the lift truck and possibility of overloading

Multiple hook positions for flexible load handling whilst reducing handling costs

Long jib arm to reach otherwise inaccessible places (i.e. machinery motors), helping to reduce factory maintenance costs

Large fork pockets for instant 'drive in' fitting, making jib quick and simple to fit and remove from lift truck

Heel retaining pins to ensure the jib is safely and securely fastened to the lift truck forks

'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations

Fork Truck Minimum Capacity	Model Ref	Max Loading Capacity	Overall Length	Max Fork Section	Weight
1000Kgs	LLJ 500-0.8	800Kgs	1,800mm	130 x 50mm	125Kgs
1300Kgs	LLJ 500-1.0	1,000Kgs	1,800mm	130 x 50mm	125Kgs
1500Kgs	LLJ 500-1.3	1,300Kgs	1,800mm	130 x 50mm	125Kgs
2000Kgs	LLJ 500-1.8	1,800Kgs	1,800mm	130 x 50mm	125Kgs
2500Kgs	LLJ 500-2.2	2,200Kgs	1,800mm	130 x 50mm	127Kgs
3000Kgs	LLJ 500-2.7	2,700Kgs	1,800mm	160 x 50mm	129Kgs
3500Kgs	LLJ 500-3.1	3,100Kgs	1,800mm	160 x 50mm	129Kgs
4000Kgs	LLJ 500-3.5	3,500Kgs	1,800mm	160 x 50mm	129Kgs
5000Kgs	LLJ 500-4.4	4,400Kgs	1,800mm	160 x 50mm	186Kgs

For load lifting safety, the forklift jib comes with a load capacity chart that details the safe lifting limits of the jib based on the capacity of the forklift truck.

MAINTENANCE of Jib Arms

The Jib Arm should be inspected every time it is used but no later than weekly for general condition with particular attention paid to:

All weld points, Wear and distortion of fork pockets and swinging arms, Any damaged parts, and the thumb screws and pivots – Any problems found must be rectified immediately.

Check for general surface rusting especially in critical areas should be treated with proprietary inhibitors, primers and paint on a regular basis.

All pivots and thumbscrews must be kept lightly greased.

This product is certified for six (6) months from the date of manufacture after which it is the customer’s responsibility to have the product re-tested at an approved testing facility or inspected and logged in a register by a competent person as advised by The HSE.
