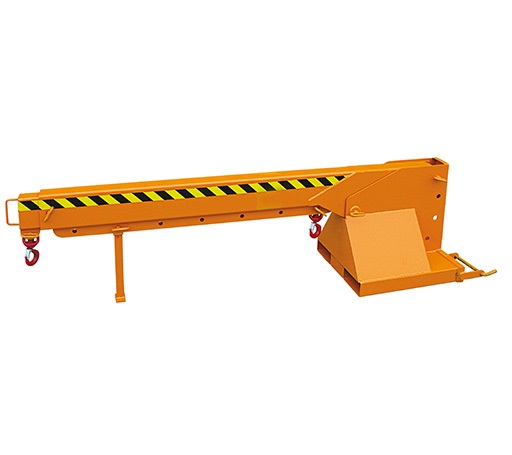

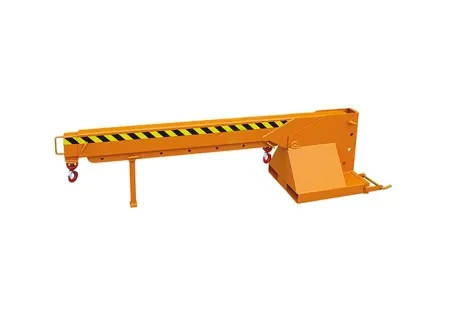

Adjustable Extendable Jib Arm AEJ2082

Transform your forklift or telehandler into a versatile mobile crane with the heavy-duty Adjustable Extendable Jib Arm AEJ2082. This robust forklift lifting attachment is specifically designed for safely lifting and transporting tall, large, and abnormal loads up to 5000Kgs in various workplace environments, from busy construction sites to organised yards and workshops.

The AEJ2082 offers exceptional functionality with its adjustable jib arm and impressive extendable jib arm reach of up to 3.7 meters. This makes it a cost-effective and efficient solution for tasks where overhead cranes are not available, such as loading and unloading oversized items or positioning awkward loads like roof trusses, with the added benefit of height adjustability for angular lifts.

Engineered for ease of use, this extendable jib arm attachment slides onto your forklift forks quickly and is secured safely with the supplied heel anchor bars, preventing movement during operation. The quality construction ensures reliable performance and a long service life.

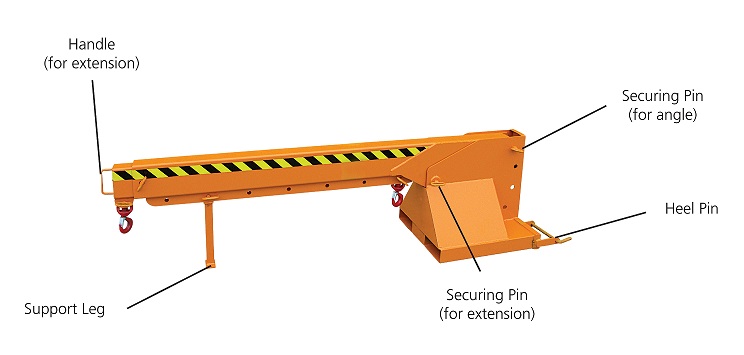

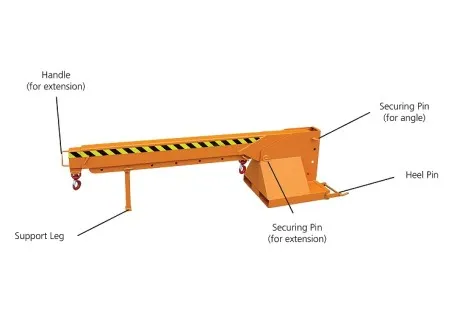

Featuring multiple lifting points along the underside, the adjustable extendable jib arm provides total flexibility for attaching lifting shackles and swivel hooks, allowing you to optimise the lifting point for each specific load. A high-quality swivel lifting hook is fitted as standard, ready for use with standard lifting chains or slings.

For assistance in selecting the correct lifting equipment, such as chain slings, shackles, or flat/round slings, please contact the ULS sales team on 01384 986 026.

The AEJ2082 is supplied fully tested and certified, ensuring compliance and safety.

Key Features of the AEJ2082 Adjustable Extendable Jib Arm:

- Heavy-duty construction for demanding applications.

- Capacity up to 5000Kgs (5 tonne).

- Adjustable jib arm for versatile lifting angles.

- Extendable jib arm with a reach from 700mm to 3,700mm.

- Multiple lifting points for flexible load handling.

- Quick and easy to fit onto most forklifts and telehandlers.

- Secured firmly with heel pins.

- Fitted with a high-quality swivel hook.

- Supplied fully tested and certified.

Eichinger AEJ2082 Load Rating Data:

As with all extendable jib arm attachments with multiple lifting points, the lifting capacity varies depending on the extension length used. Please refer to the detailed load rating charts below for maximum lifting capacities at different lengths for both the AEJ 2082.1 (2500Kgs Max Capacity) and AEJ 2082.2 (5000Kgs Max Capacity) models.

Load Rating for AEJ 2082.1 Height Adjustable Extending Jib 2,500Kgs Max Capacity

Load Rating for AEJ 2082.2 Height Adjustable Extending Jib 5,000Kgs Max Capacity

Important Notes: Due to the overall extended length of 3.665m, it is crucial to consult your forklift manufacturer's data and load plates to ensure safe operation and compliance with capacity restrictions.
